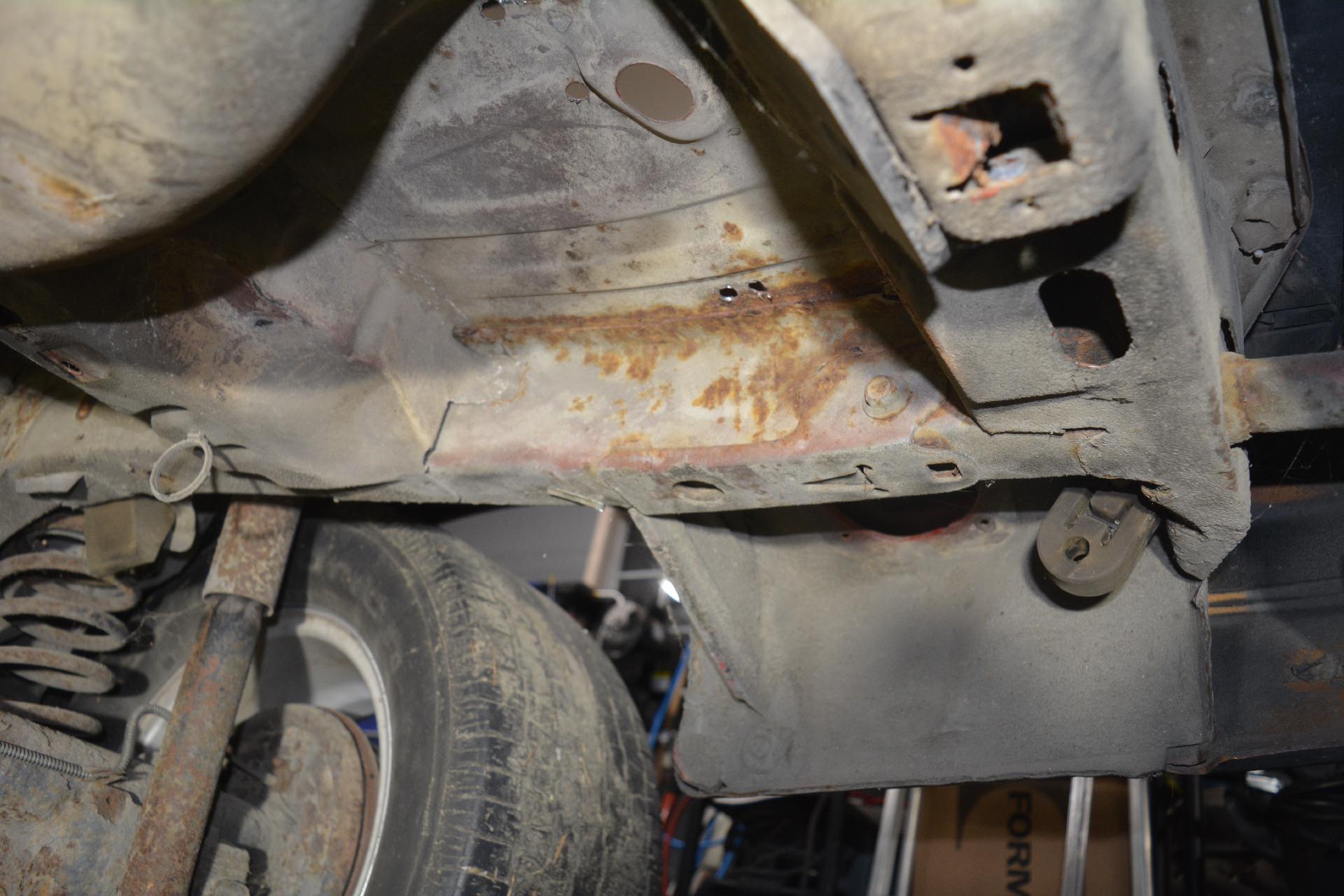

Drivers side before

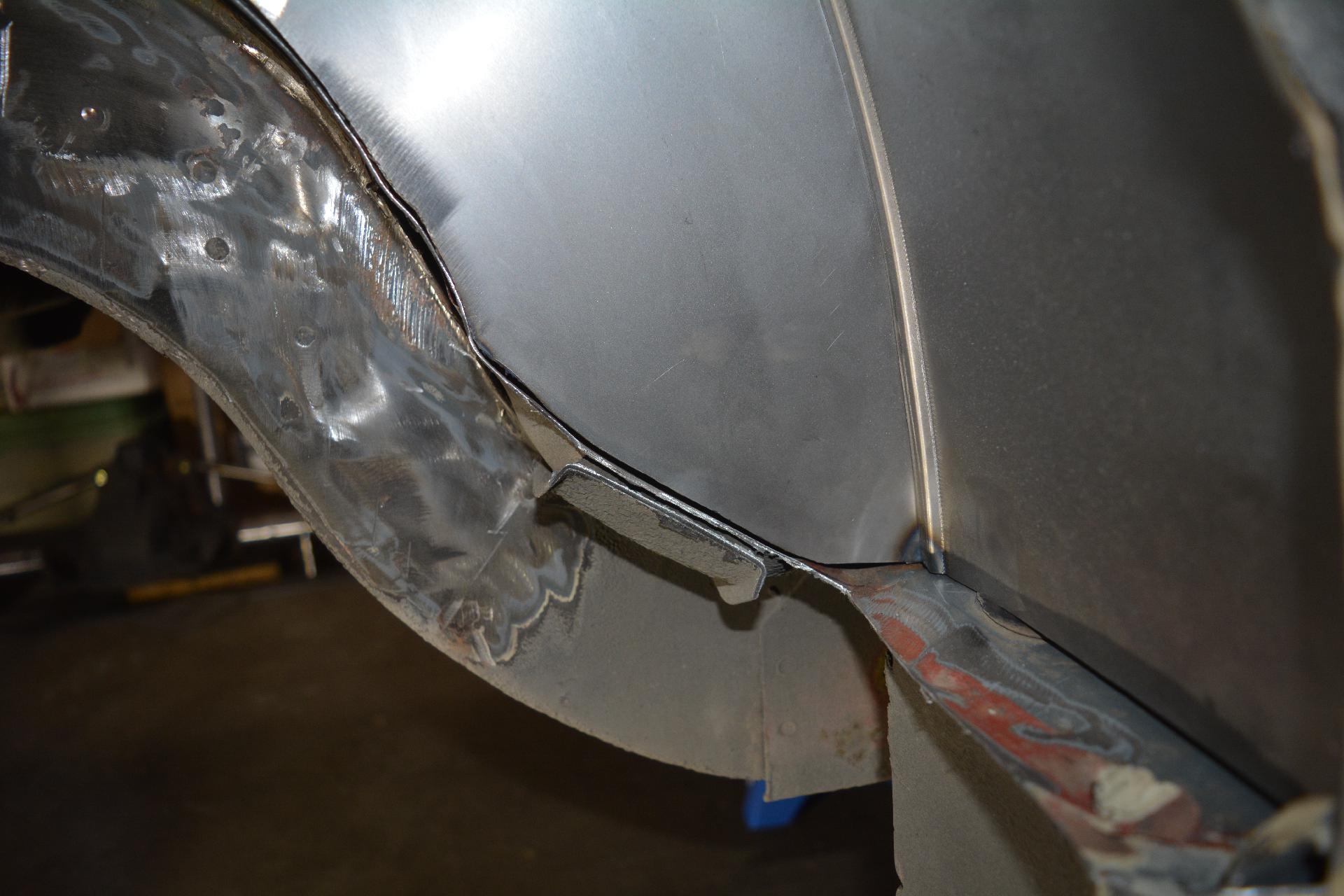

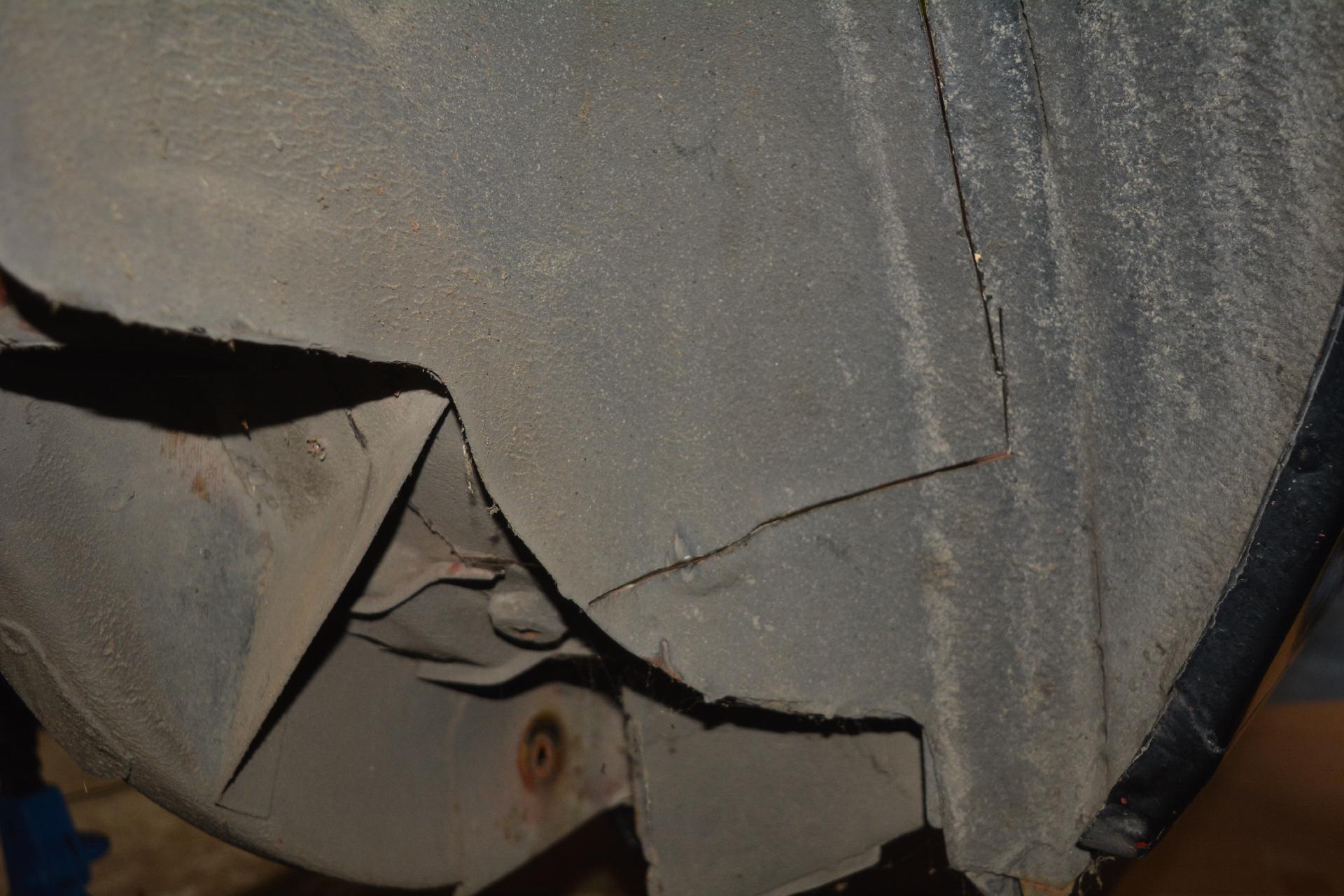

Passener side before

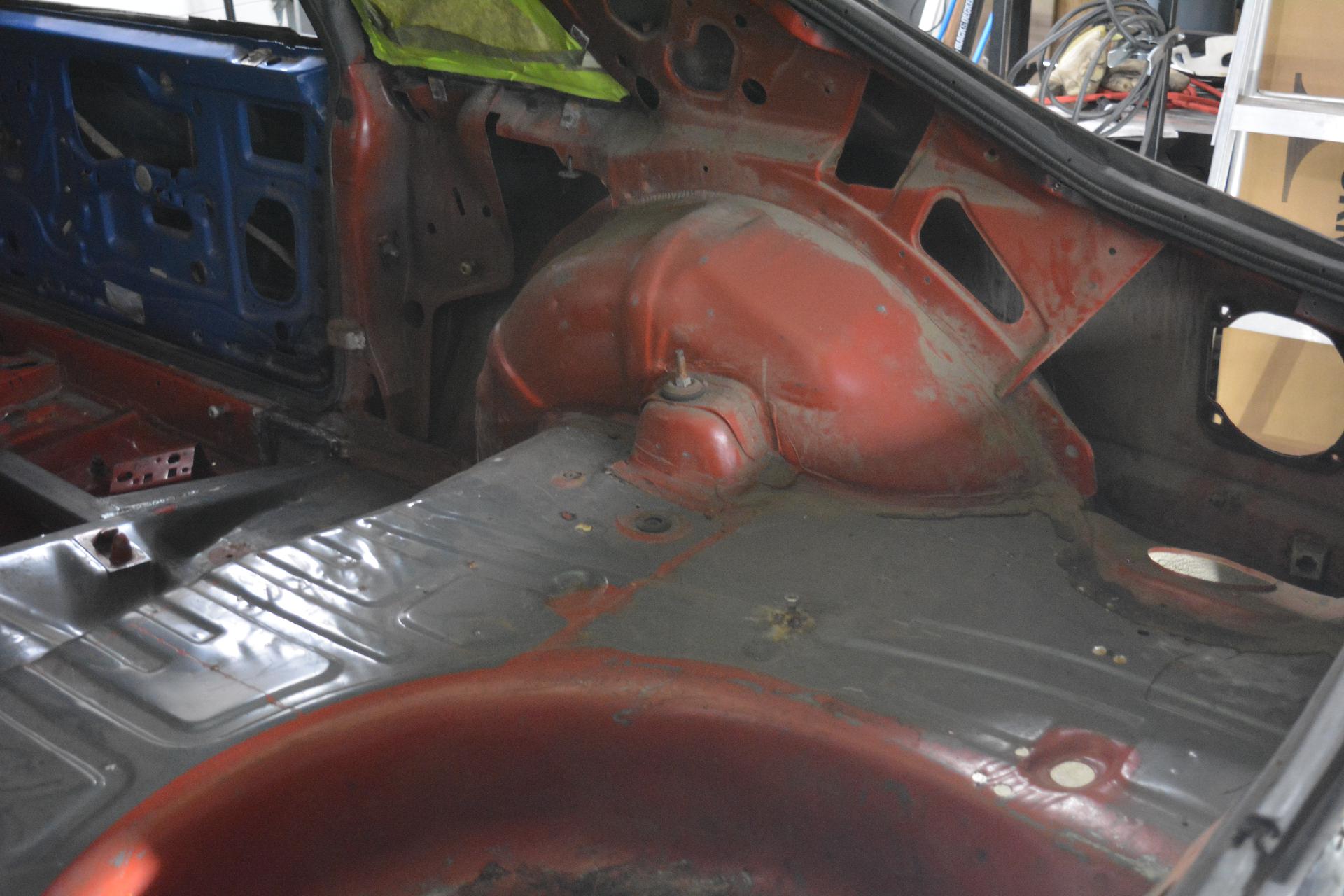

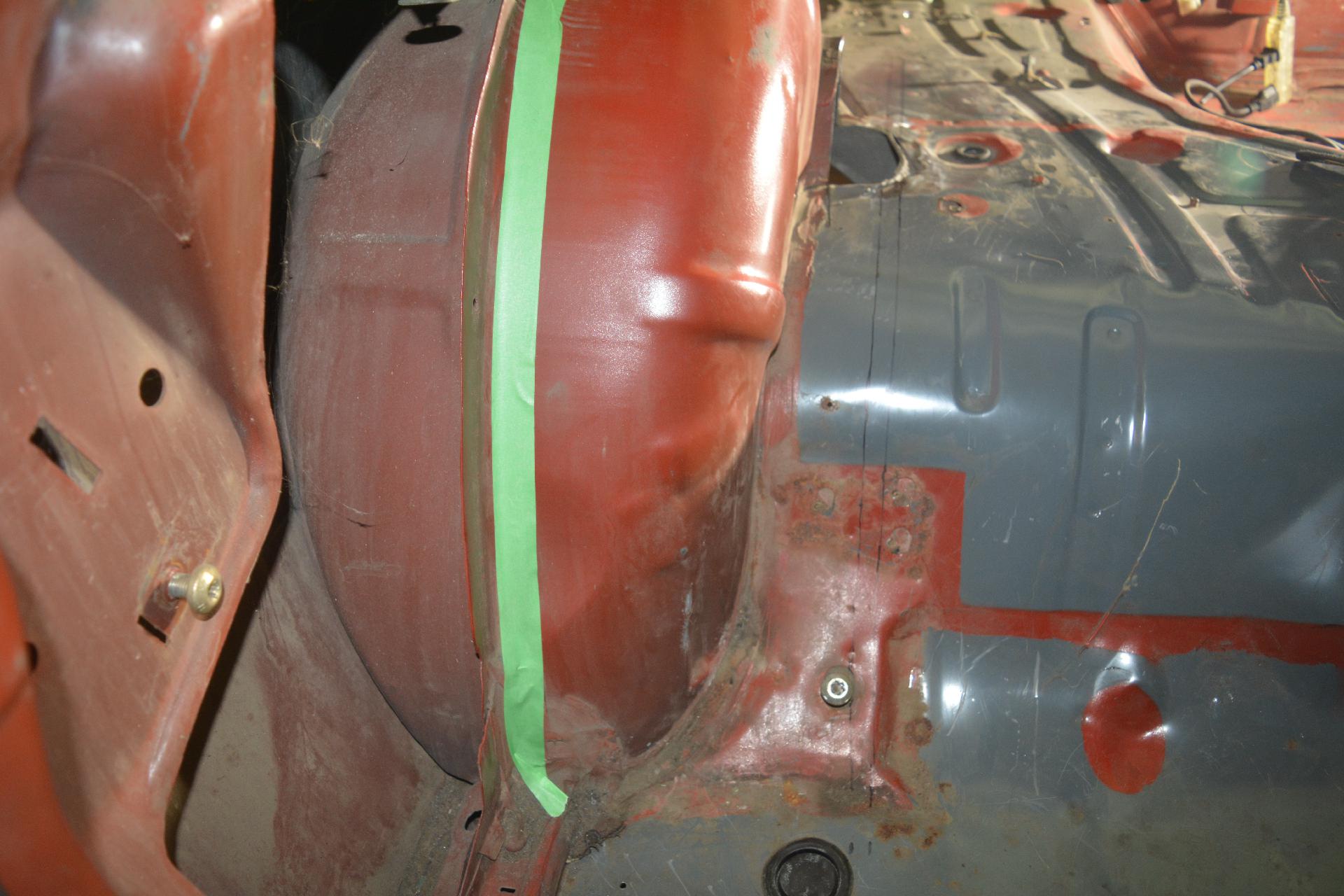

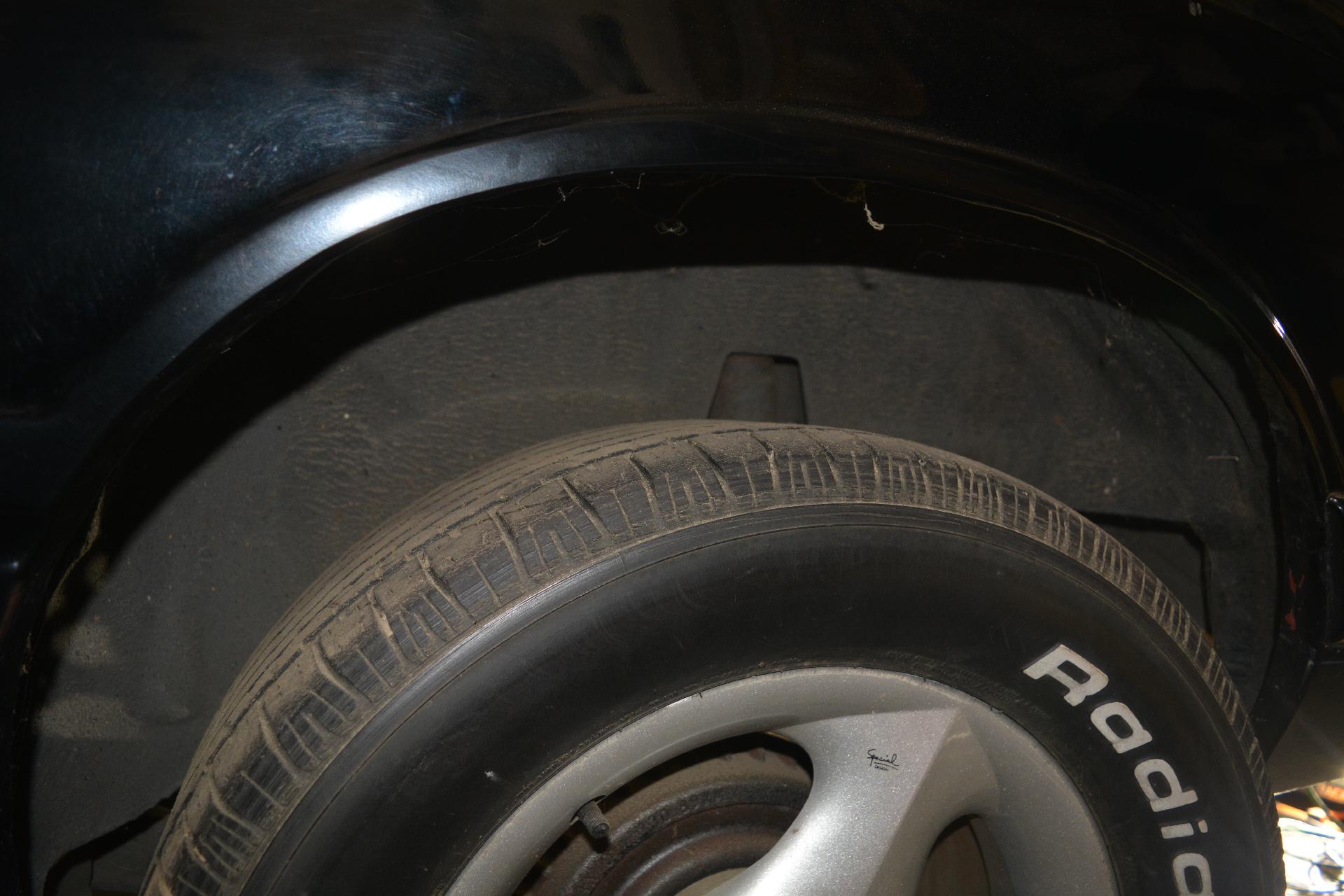

Passenger side before

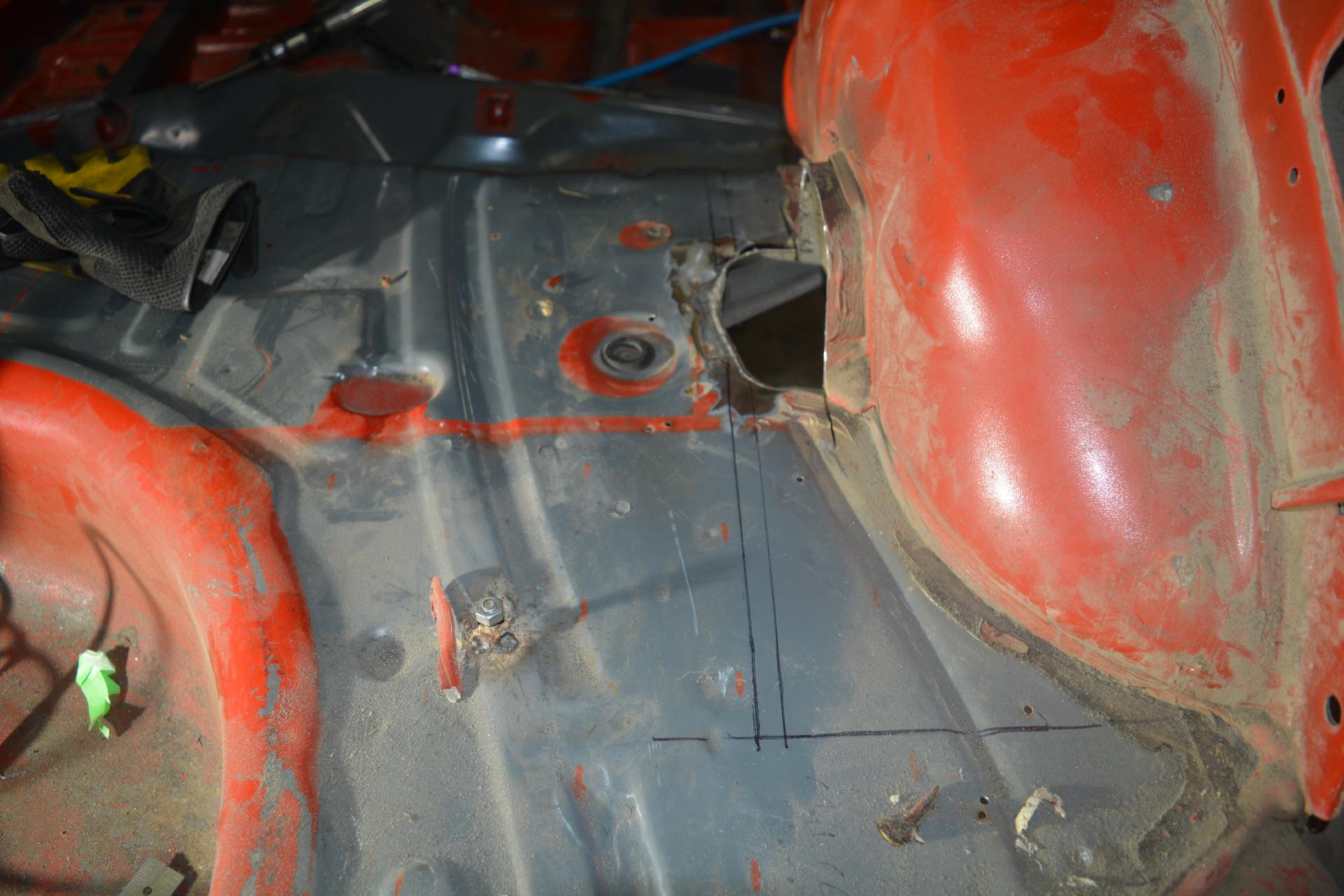

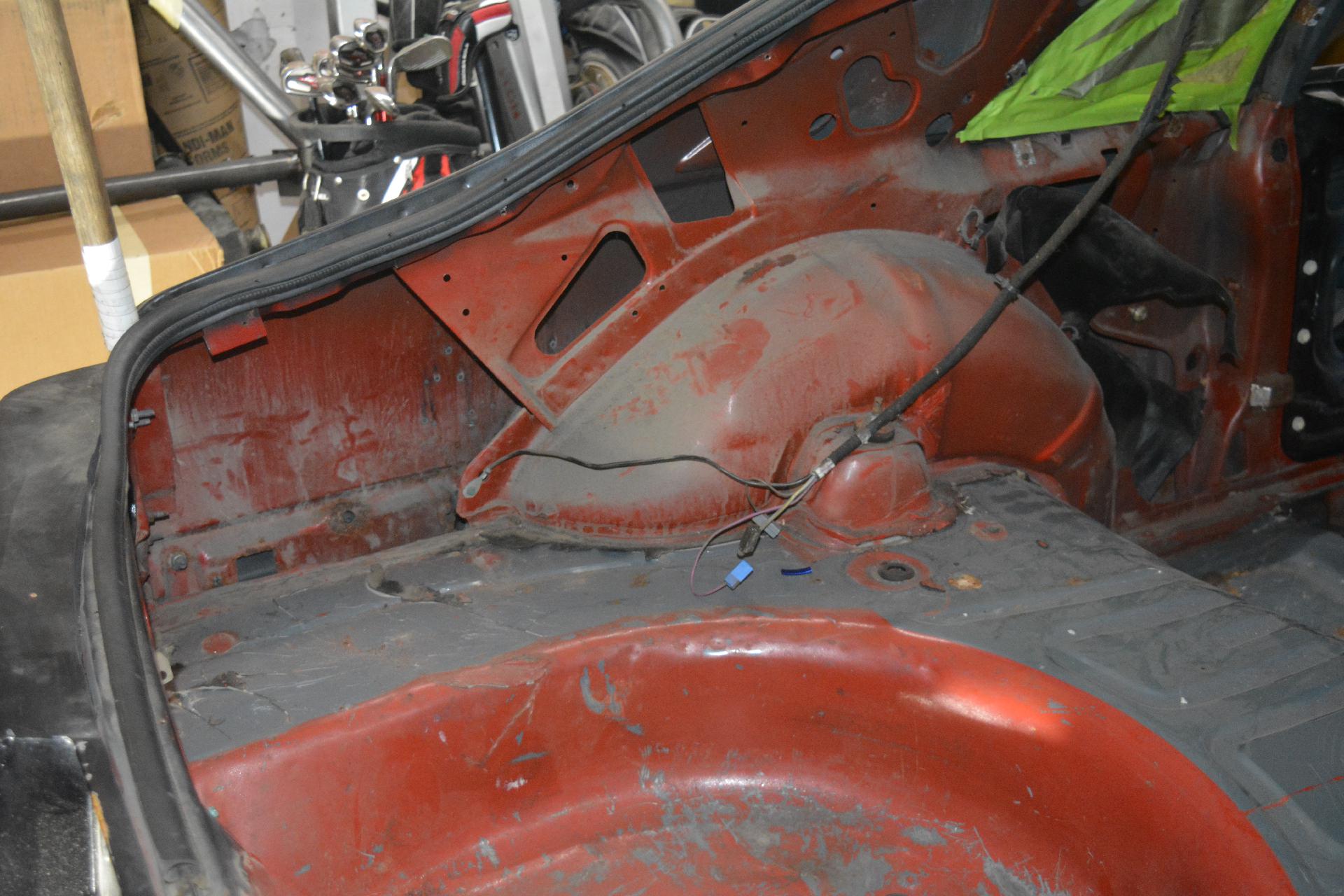

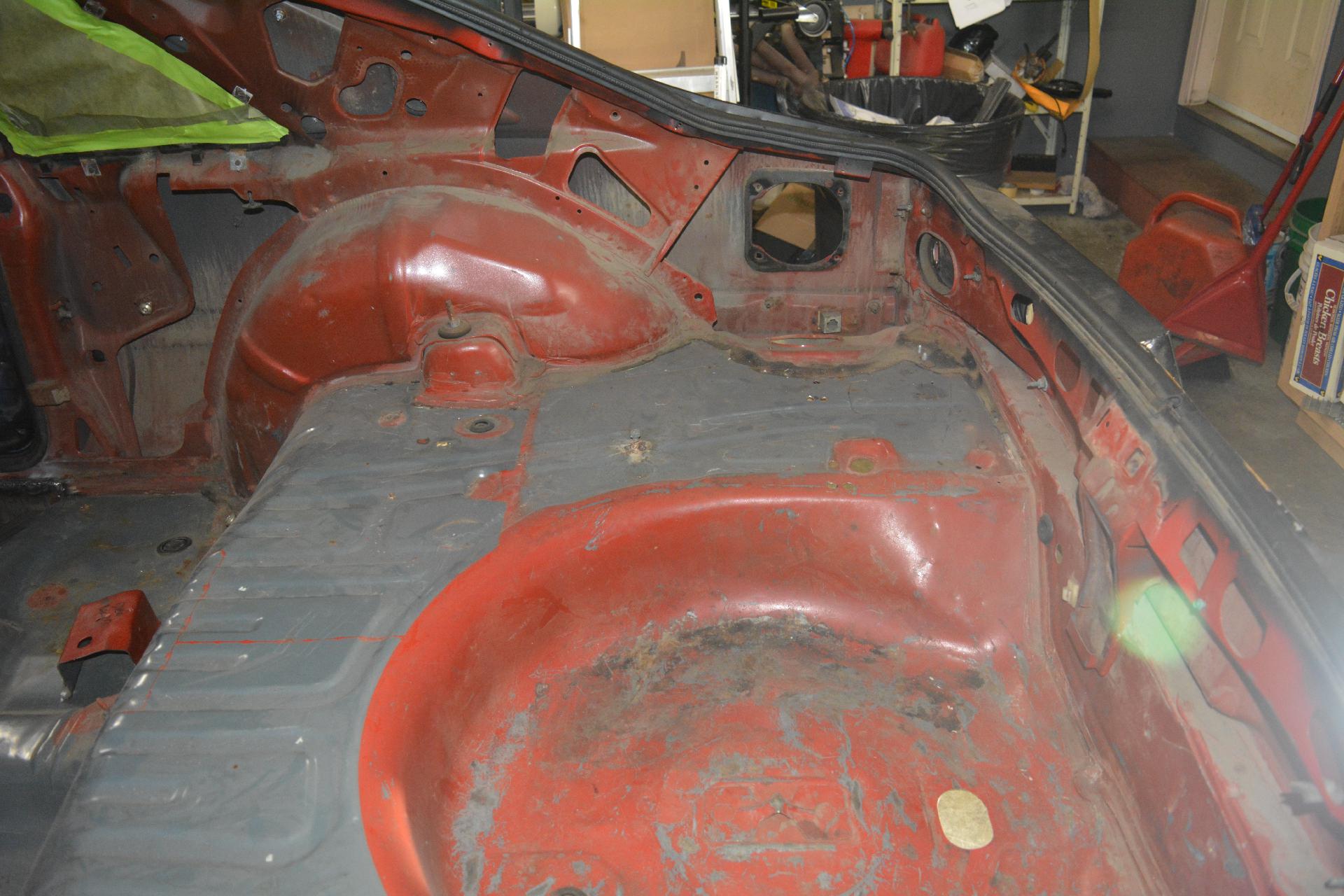

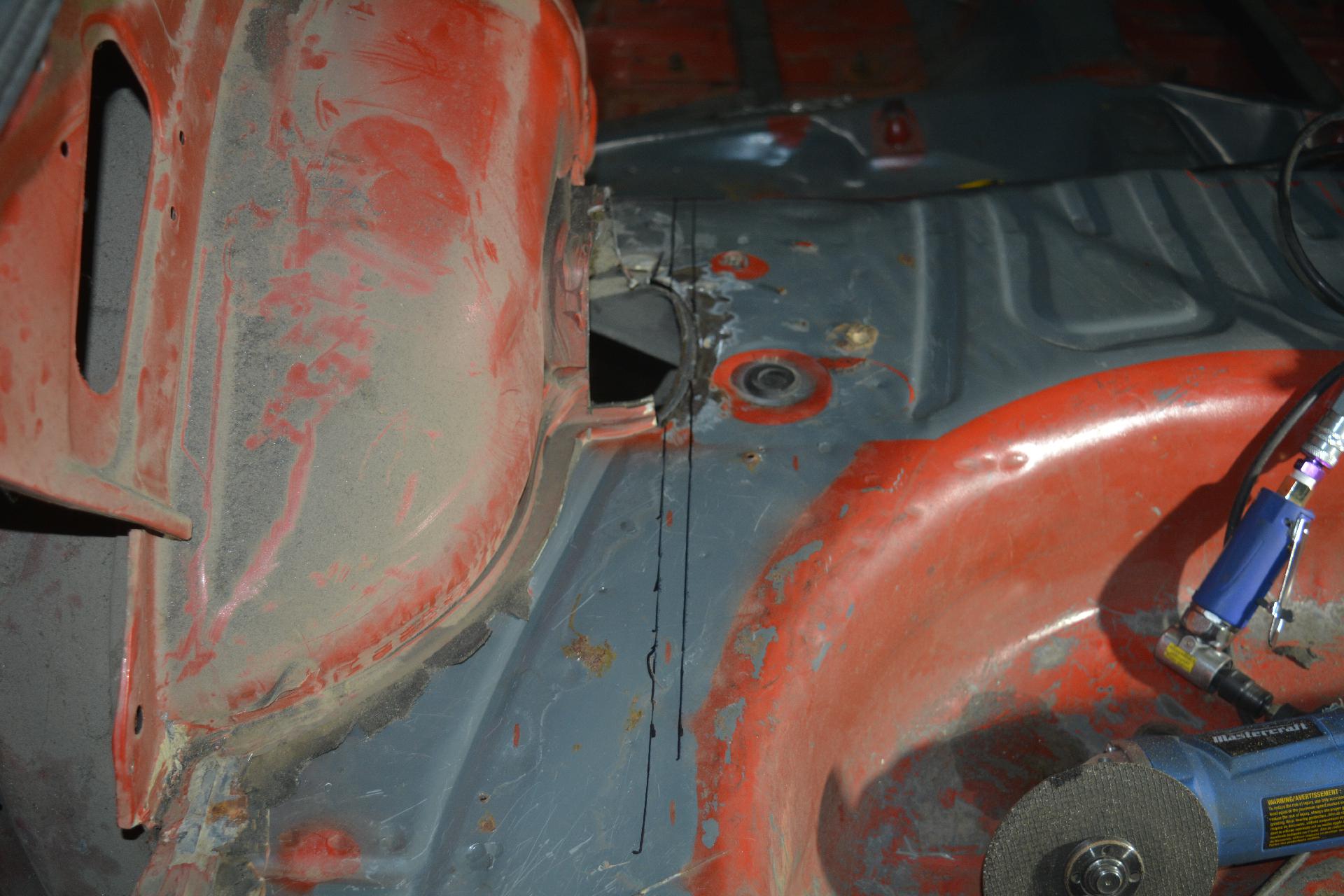

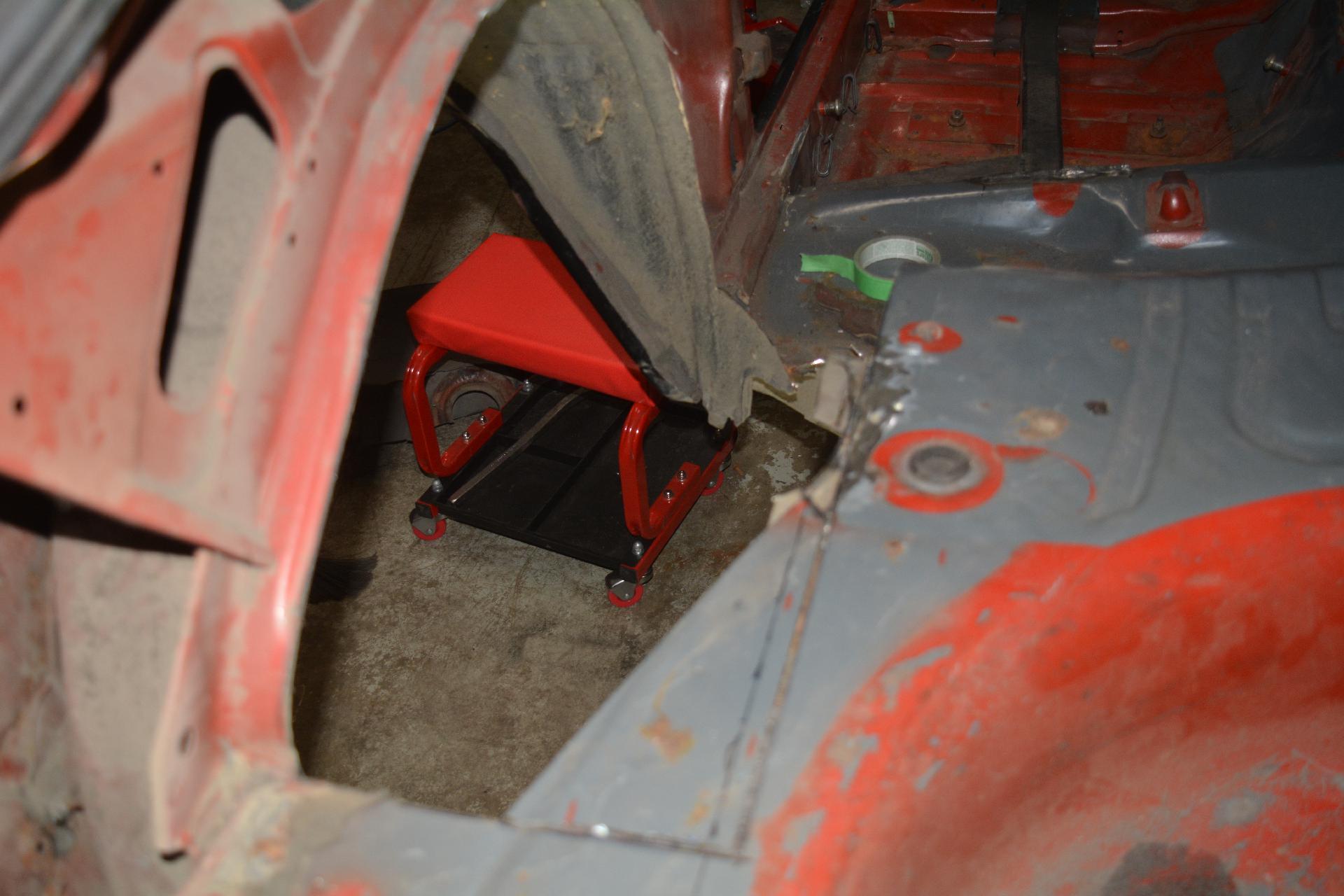

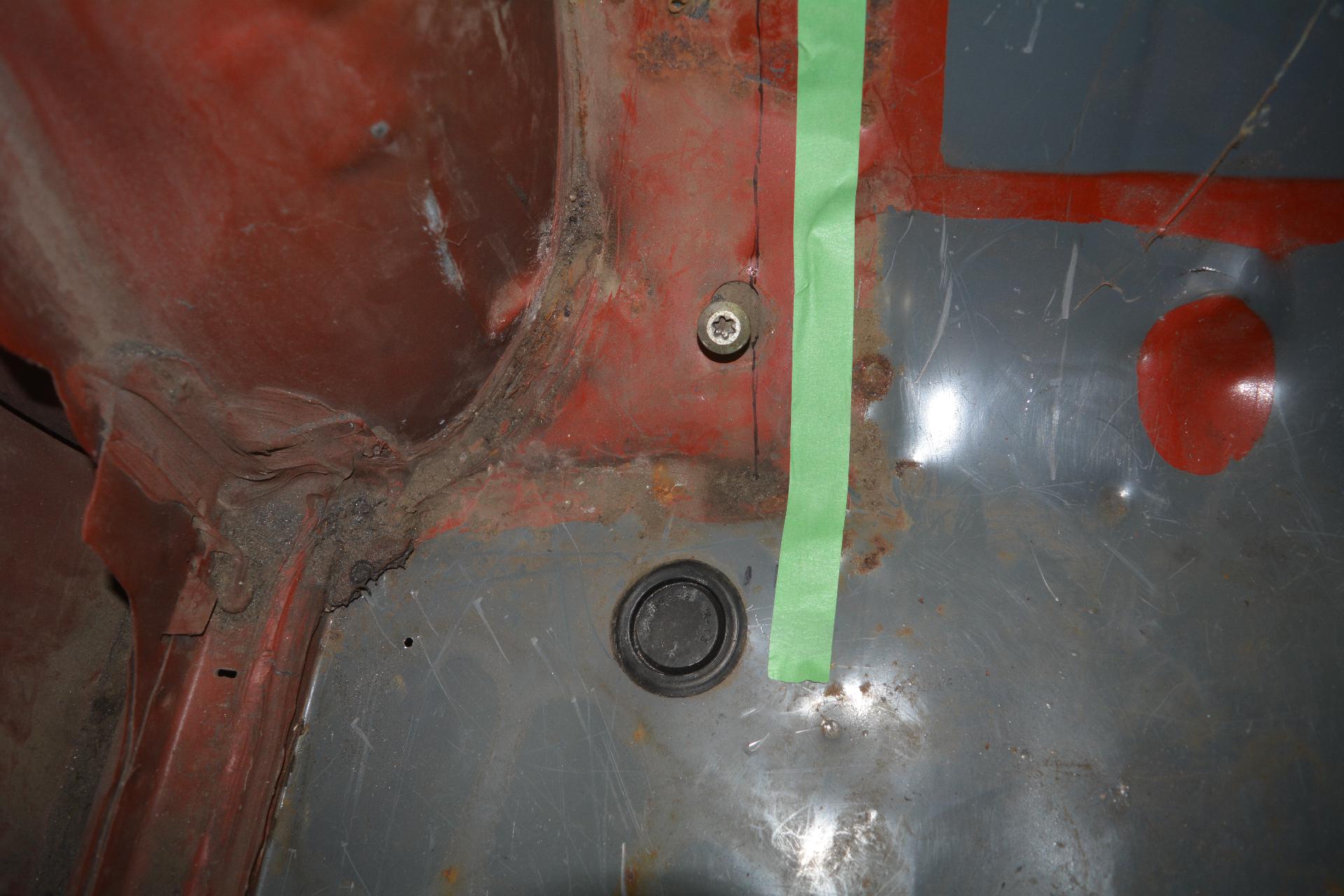

Spare wheel well before

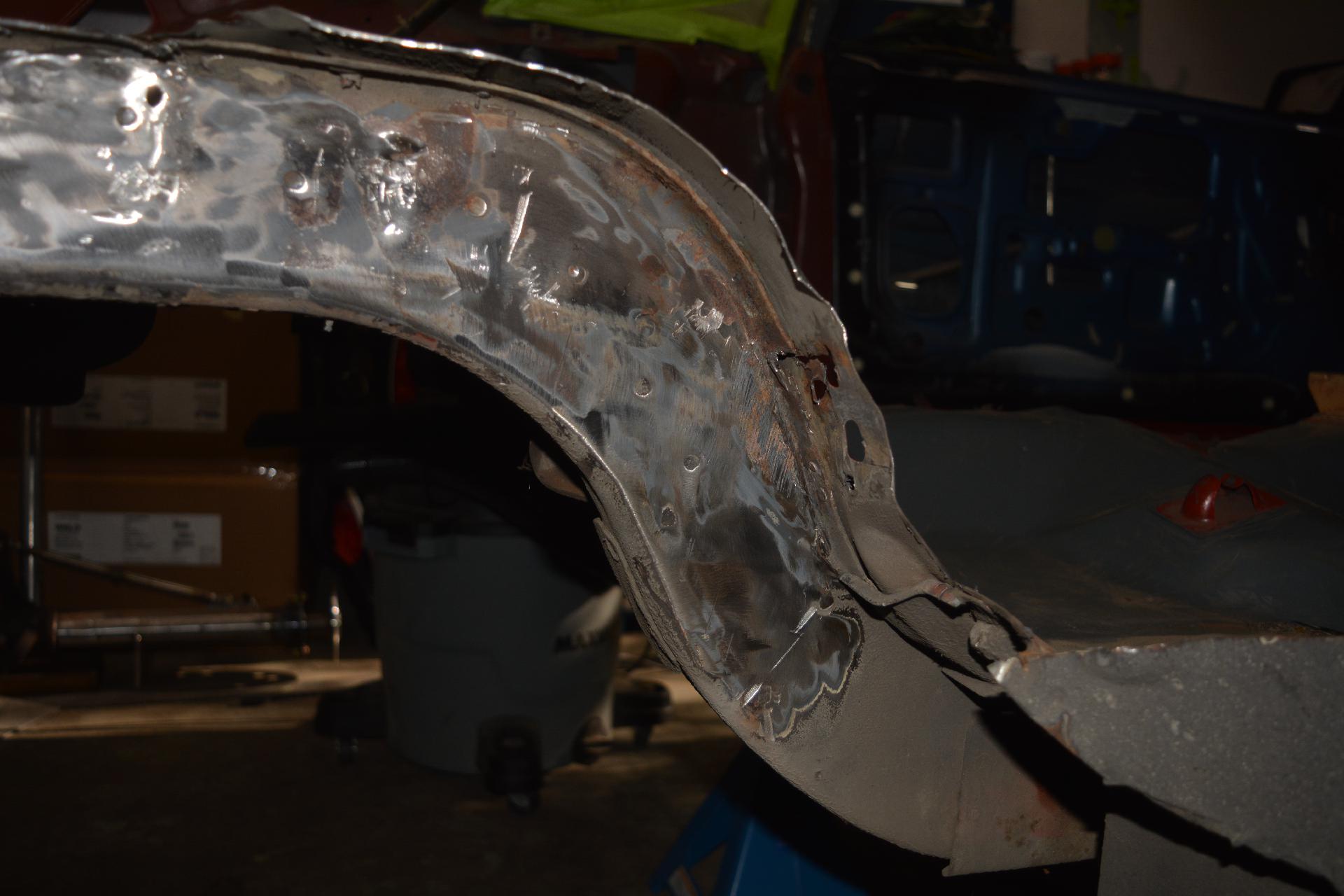

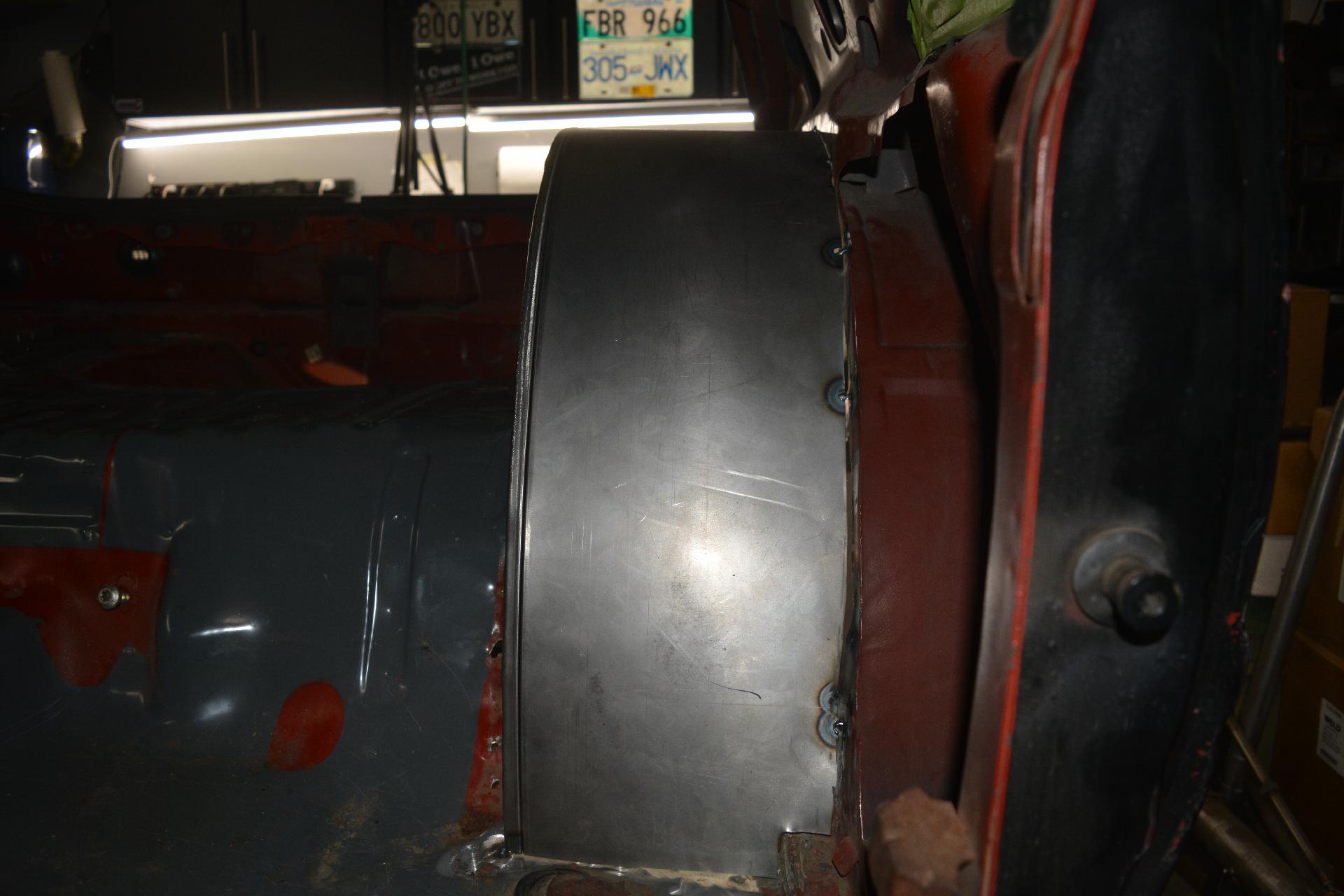

Tub from the side before

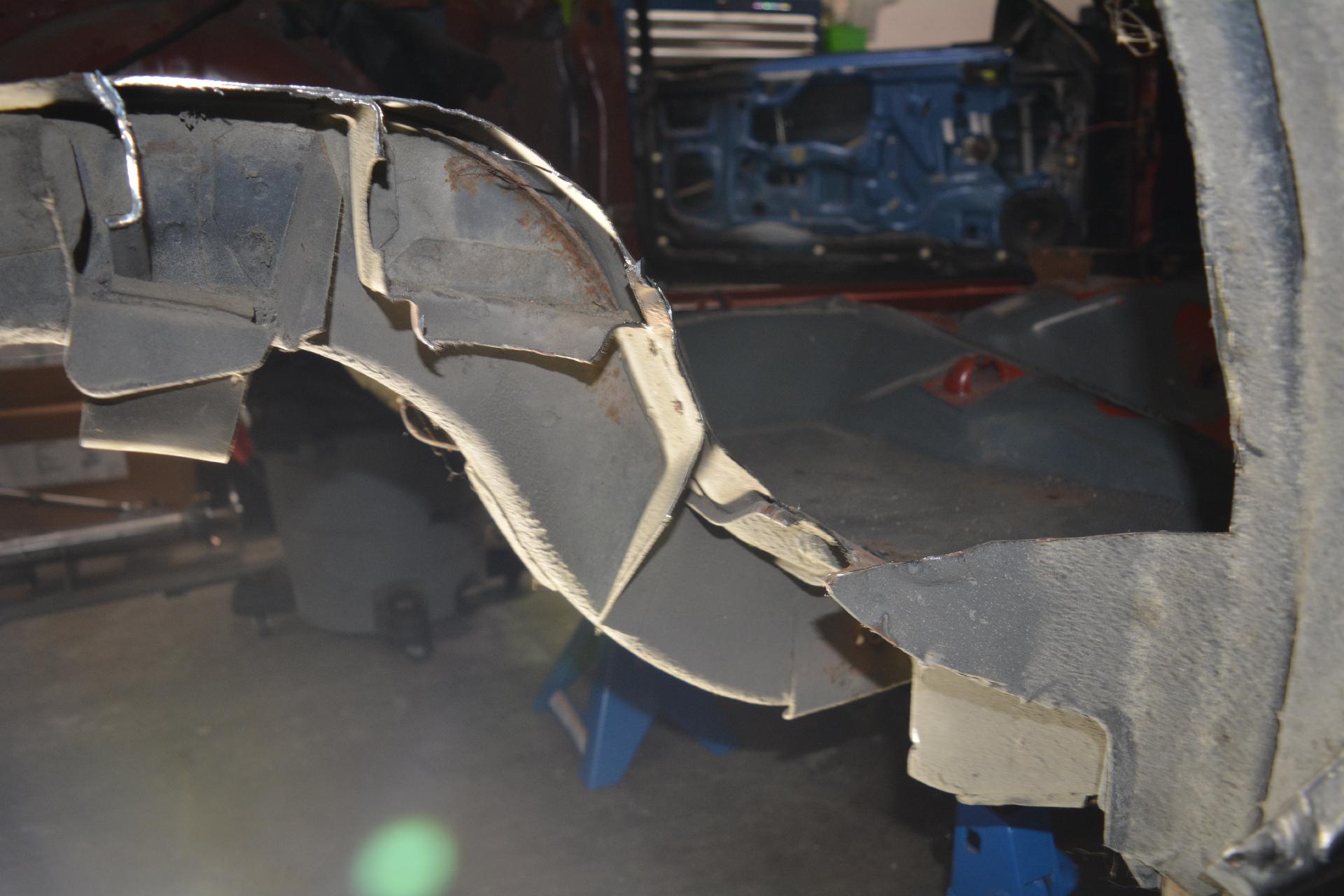

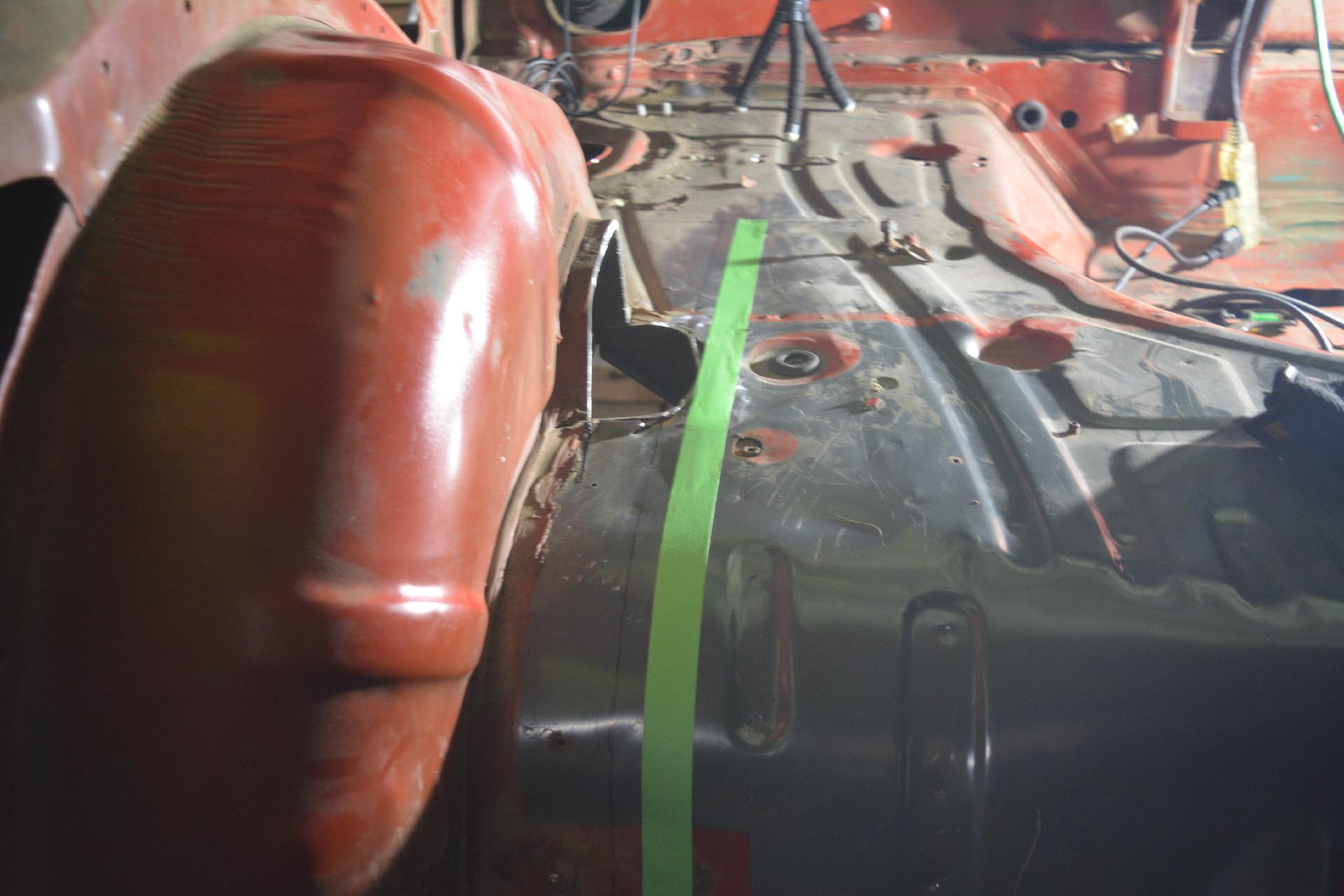

tubs before
tubs before

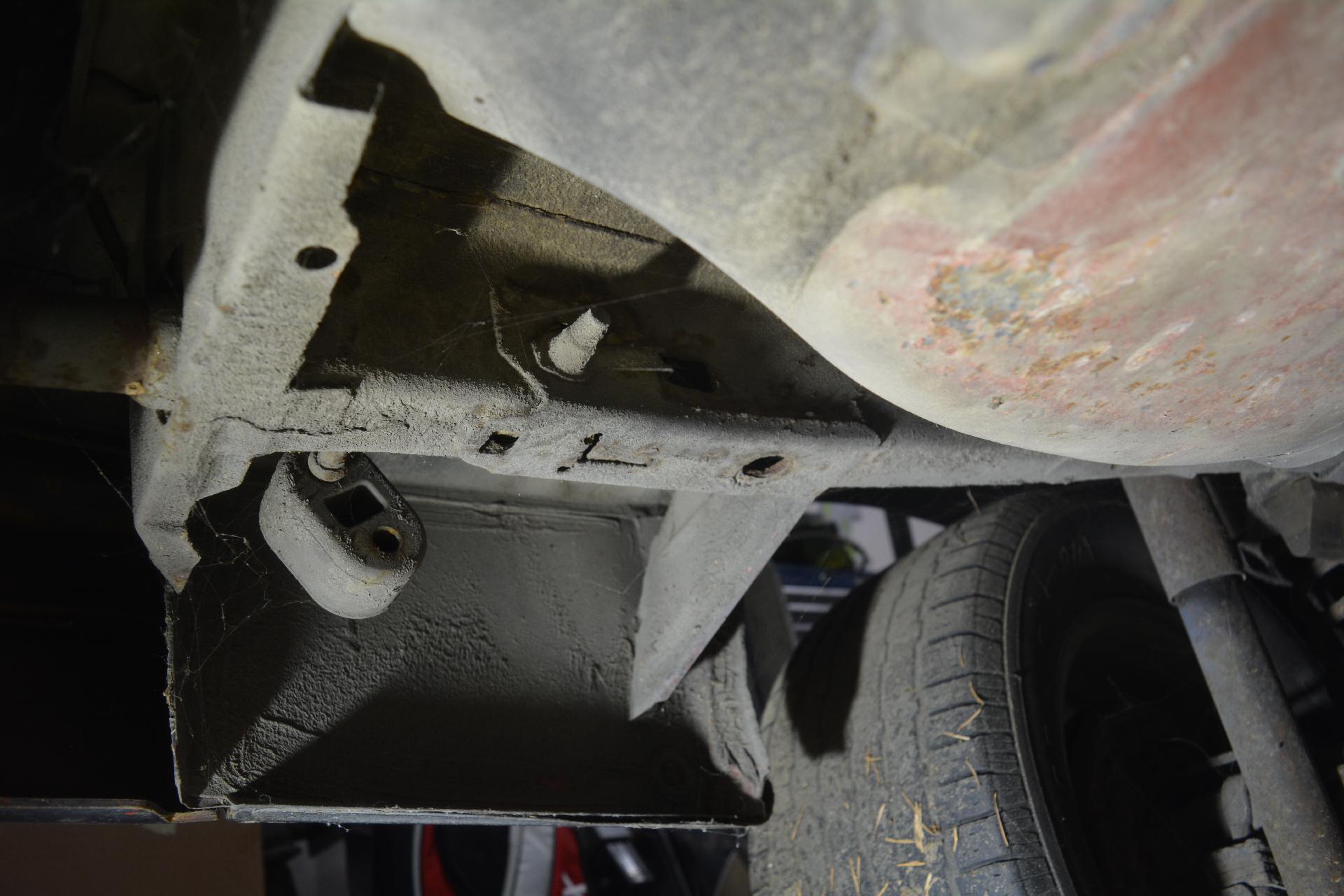

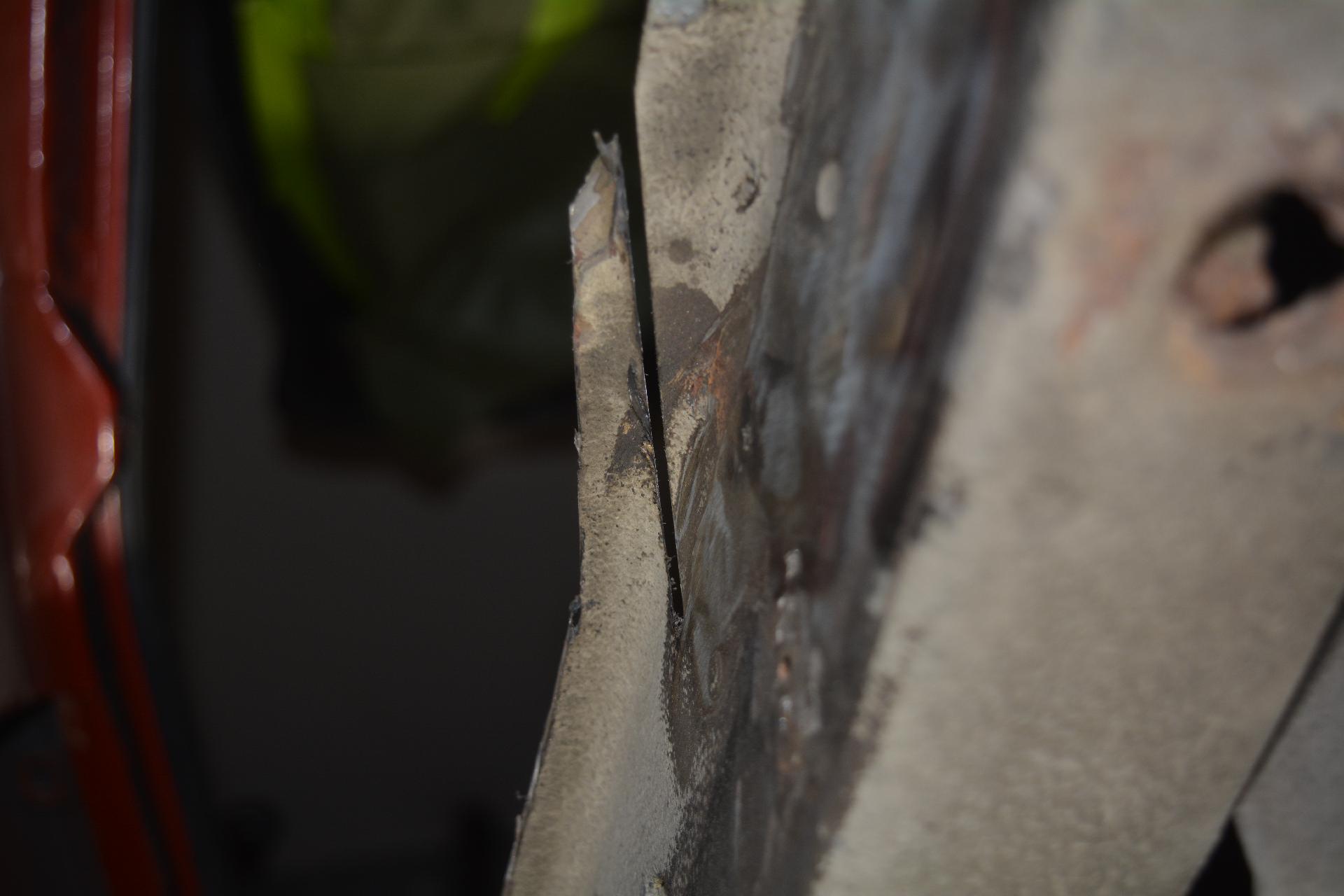

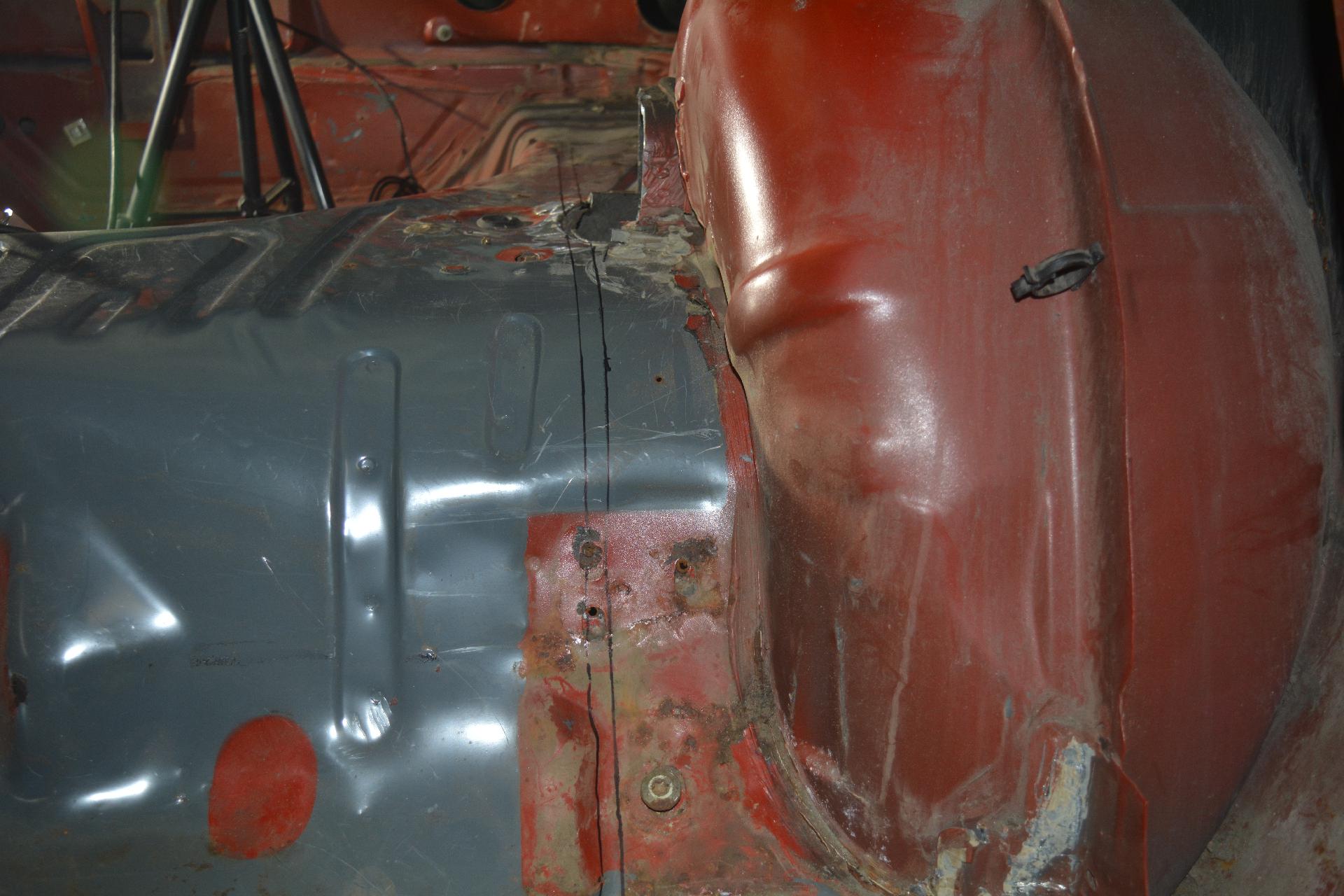

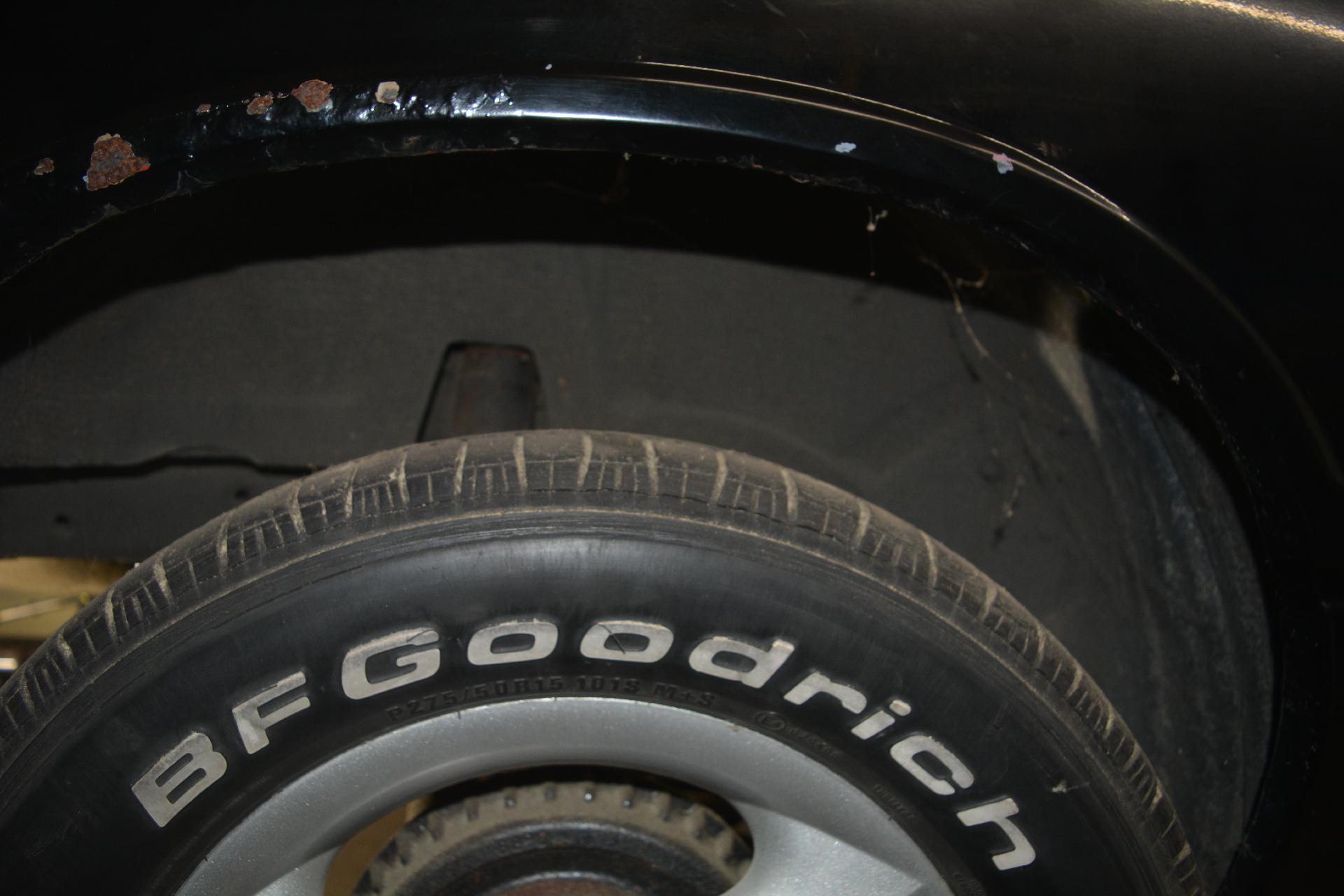

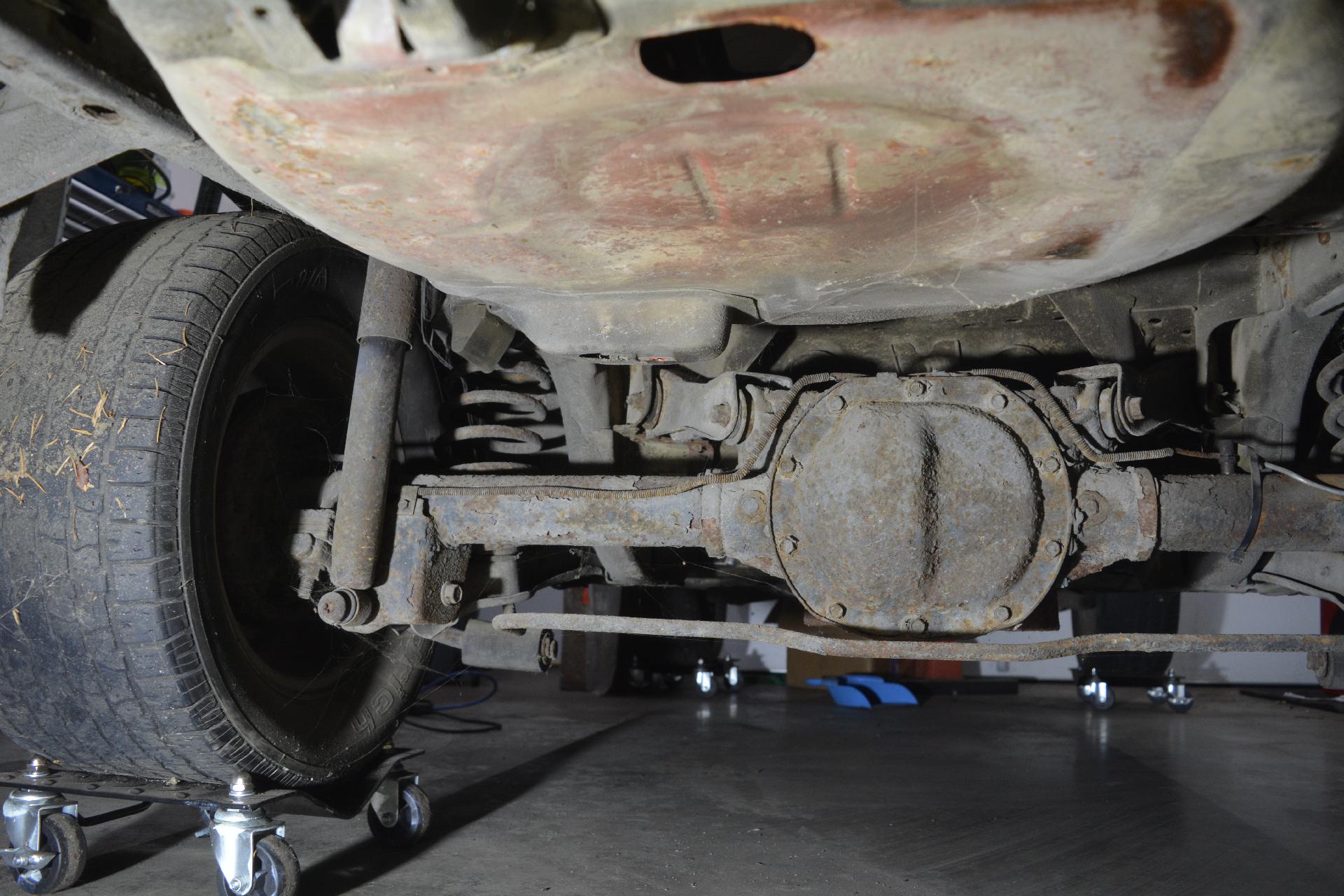

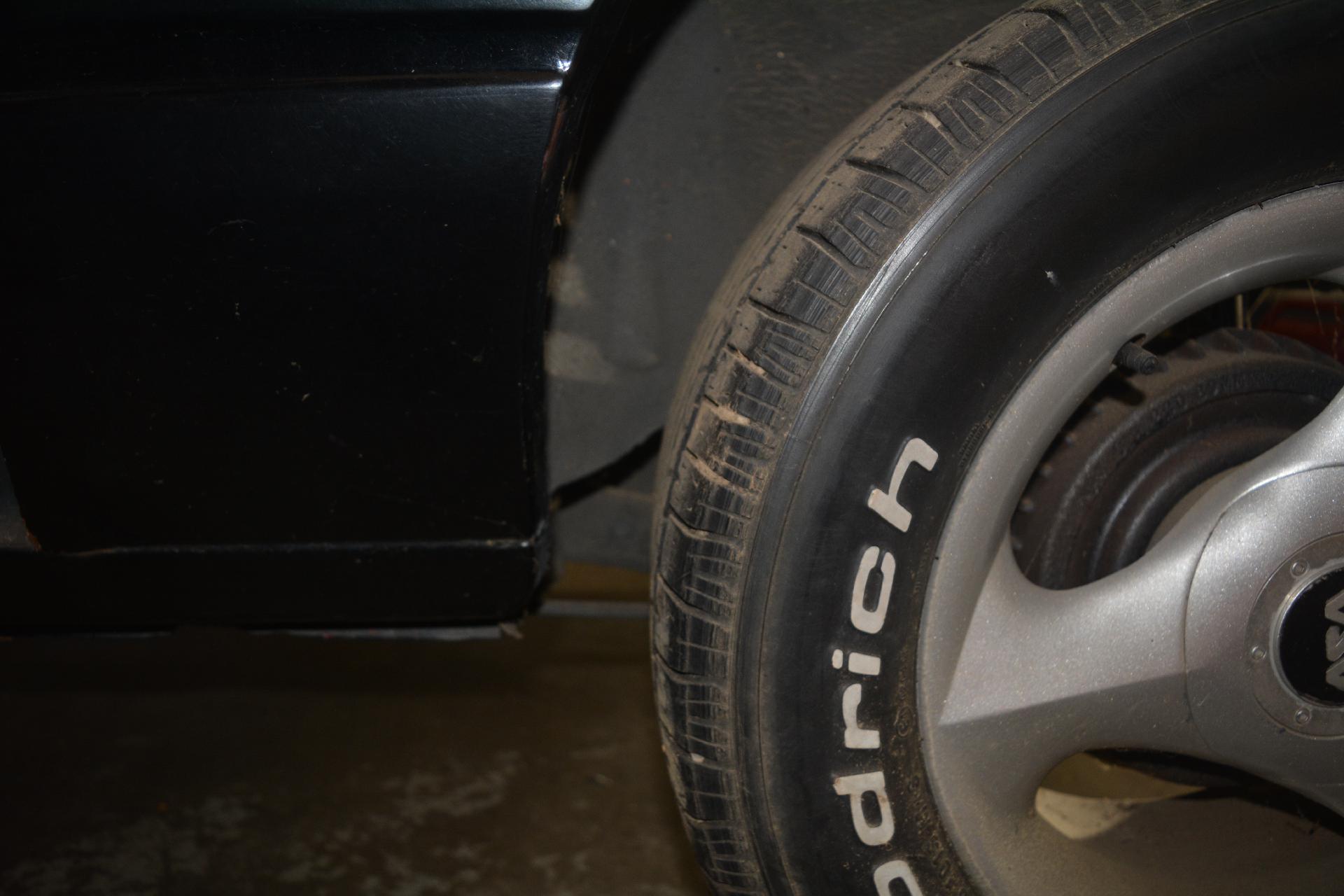

wheel well before

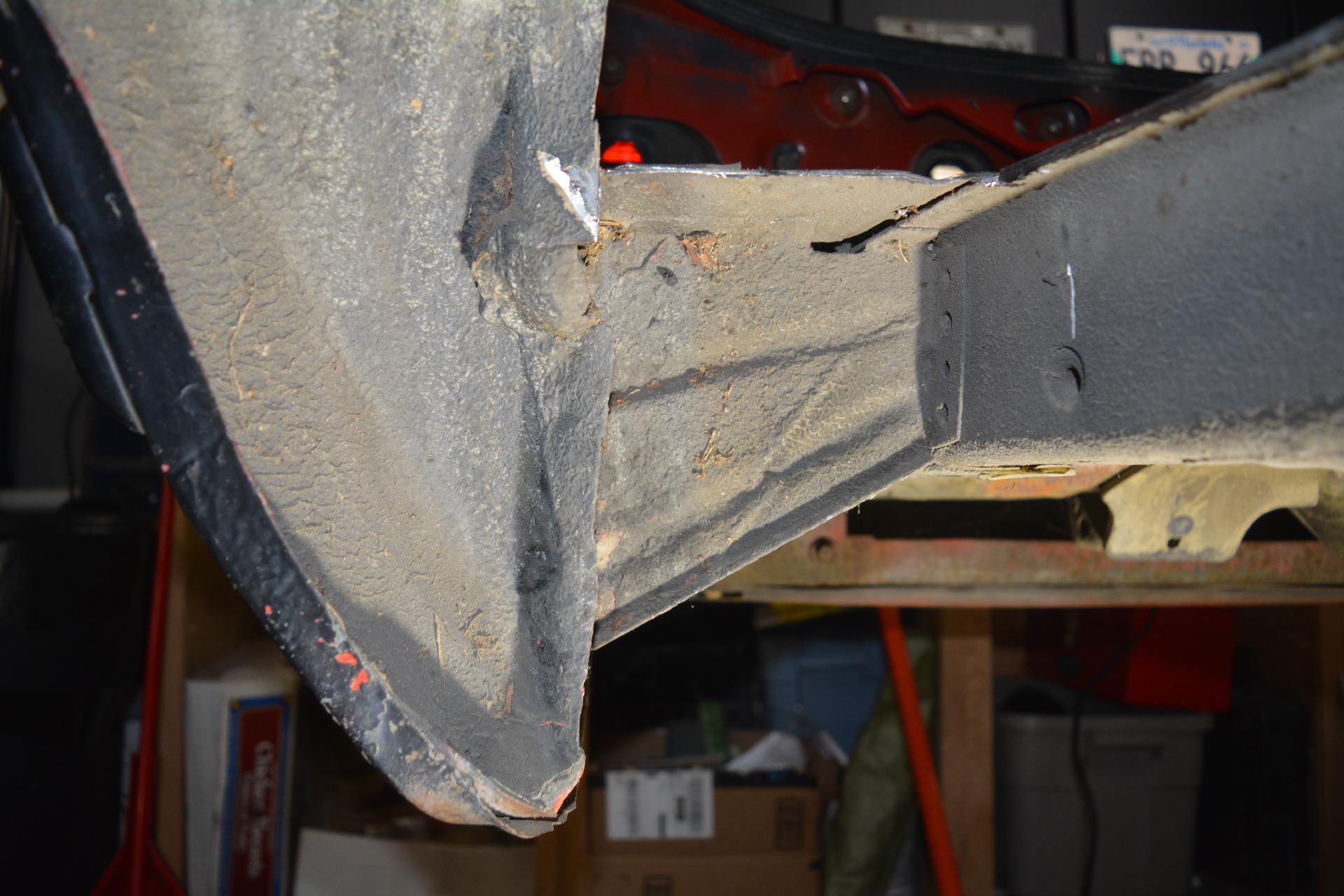

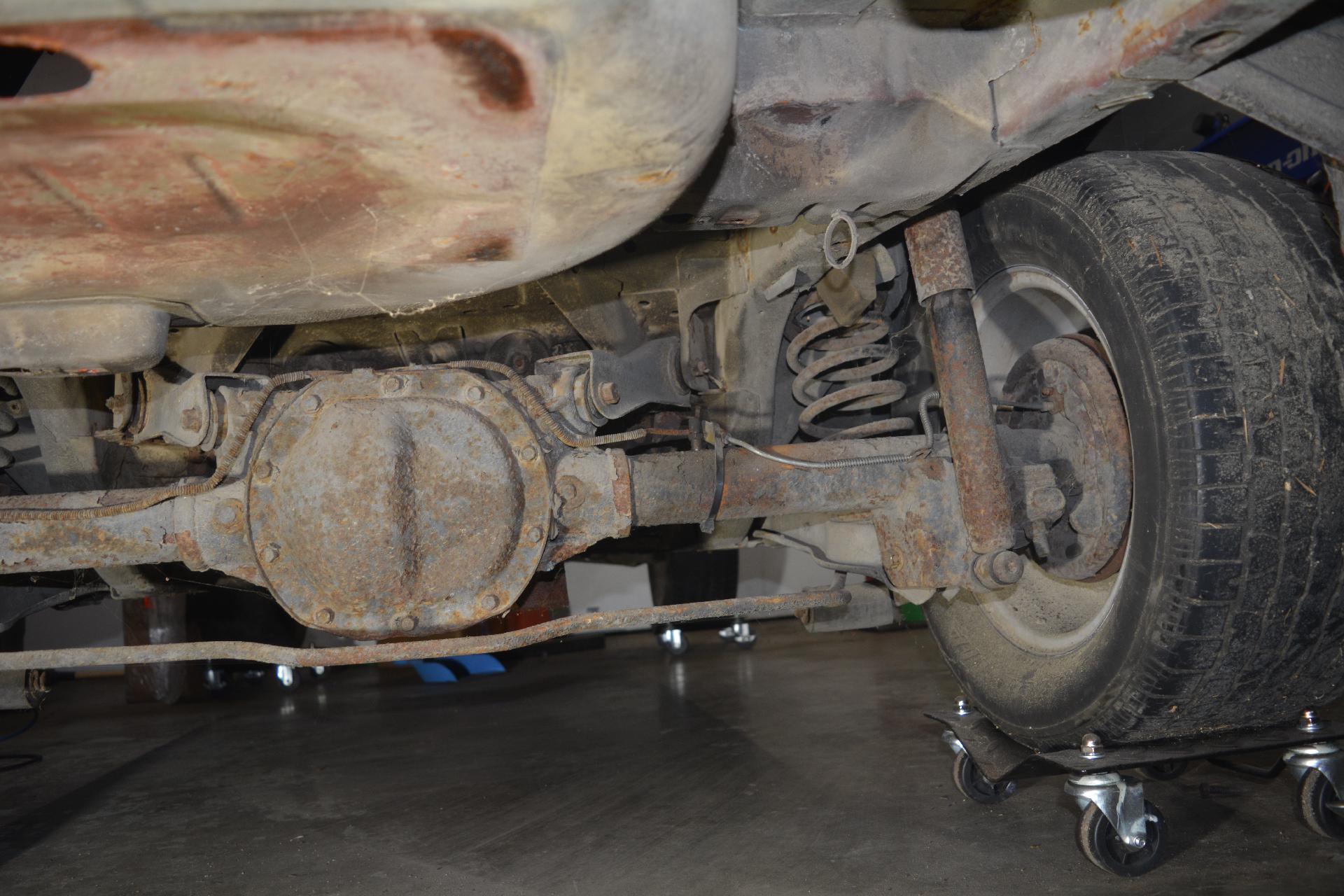

frame before
frame before

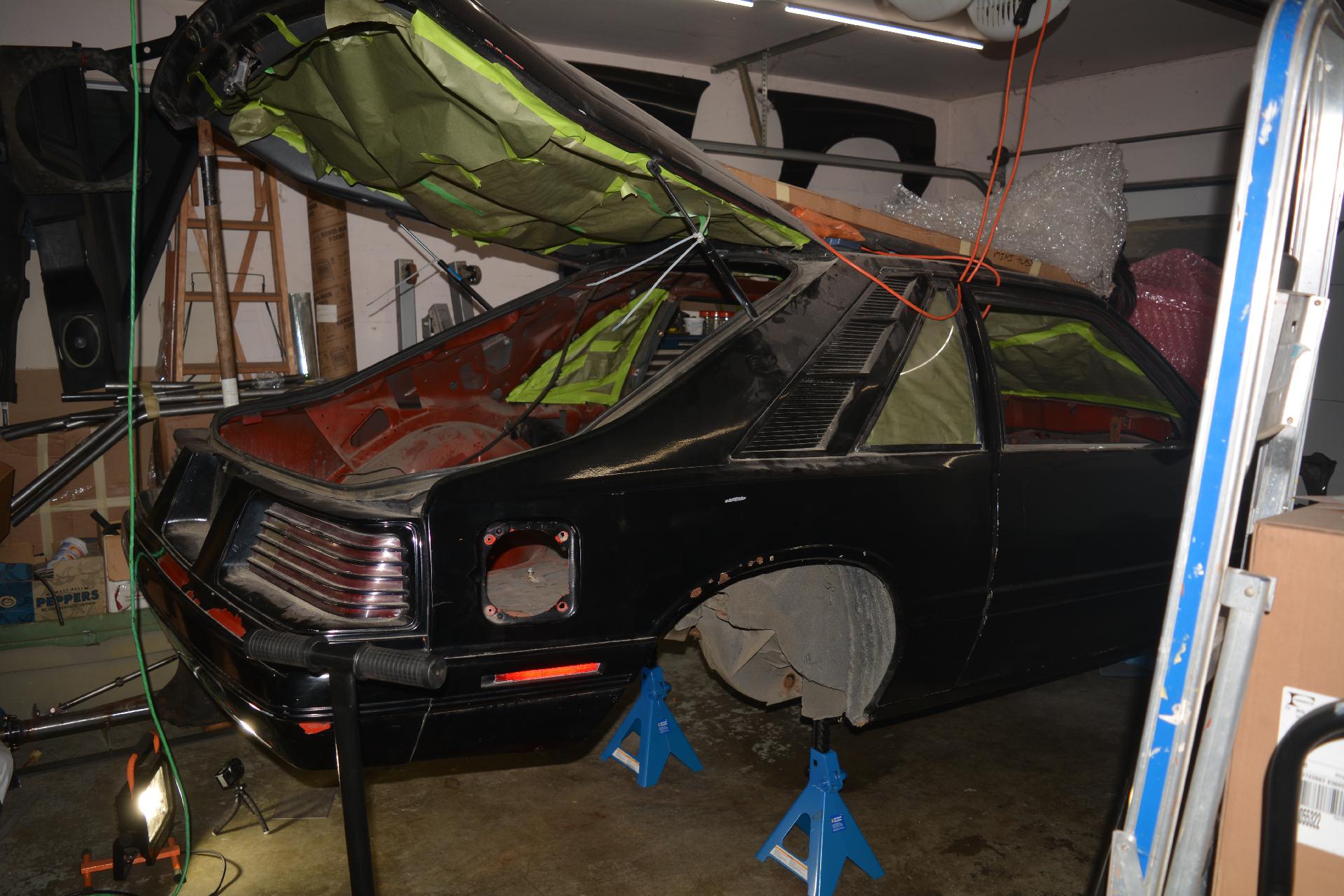

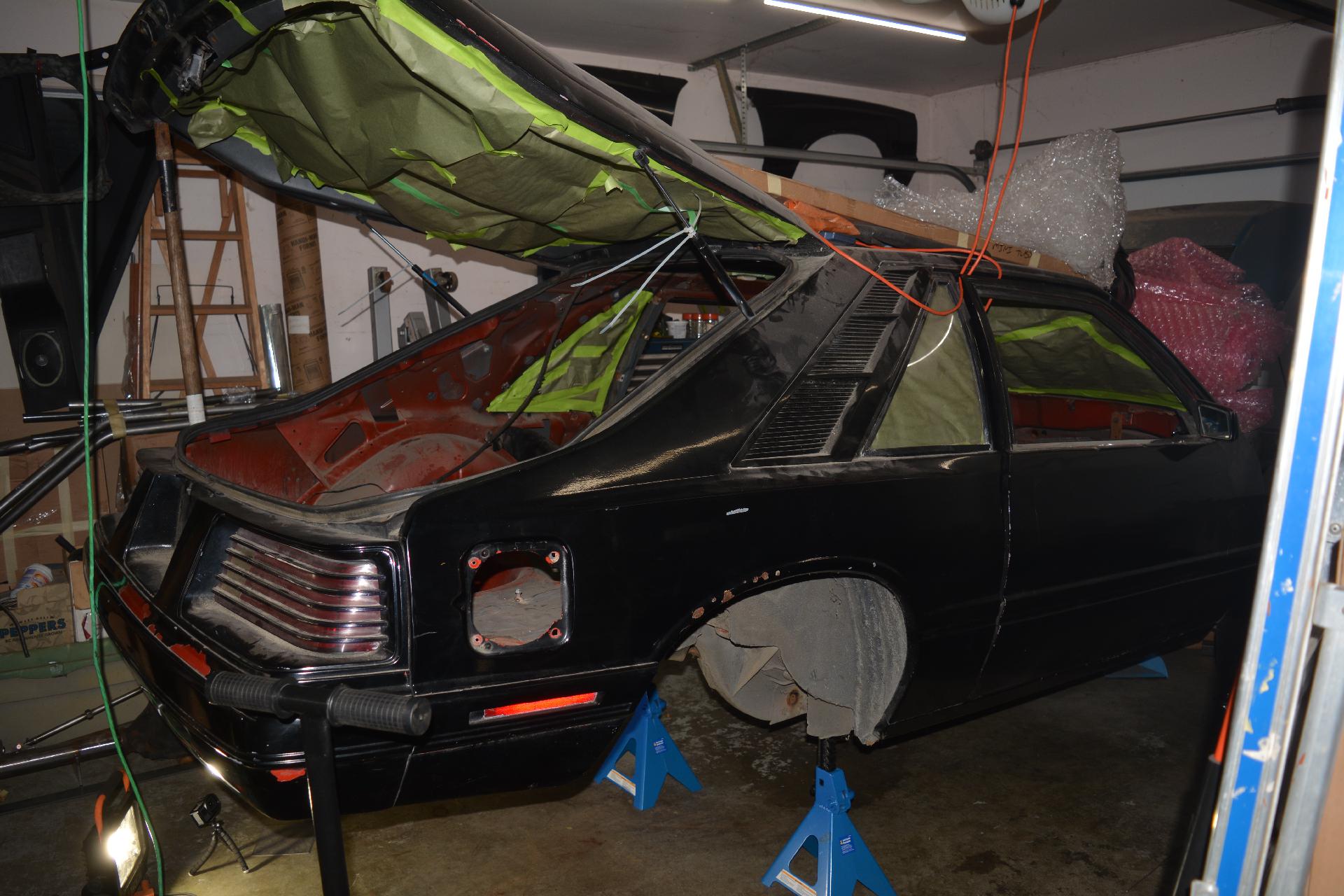

Car on jackstands

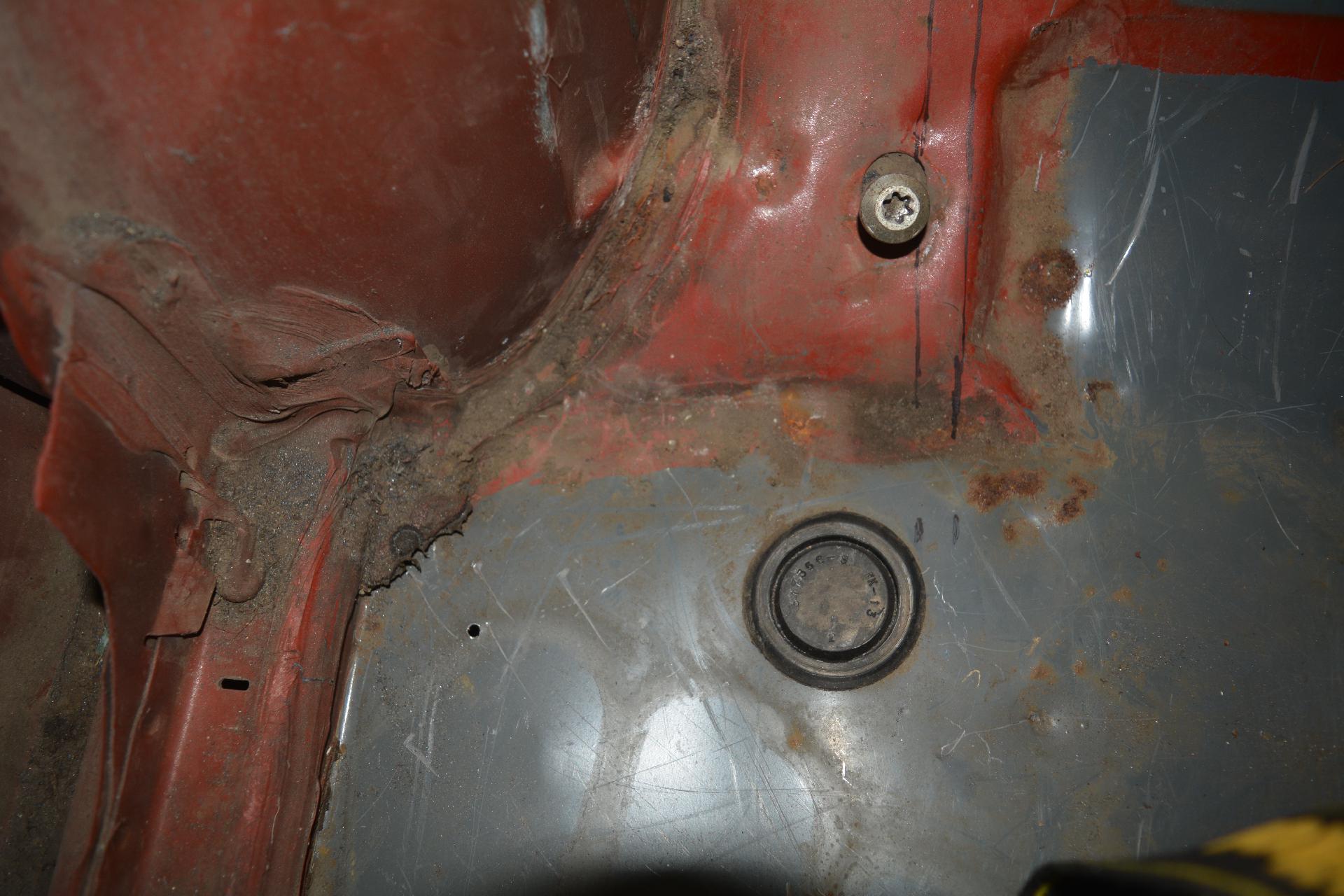

Lots of extra metal on the tubs

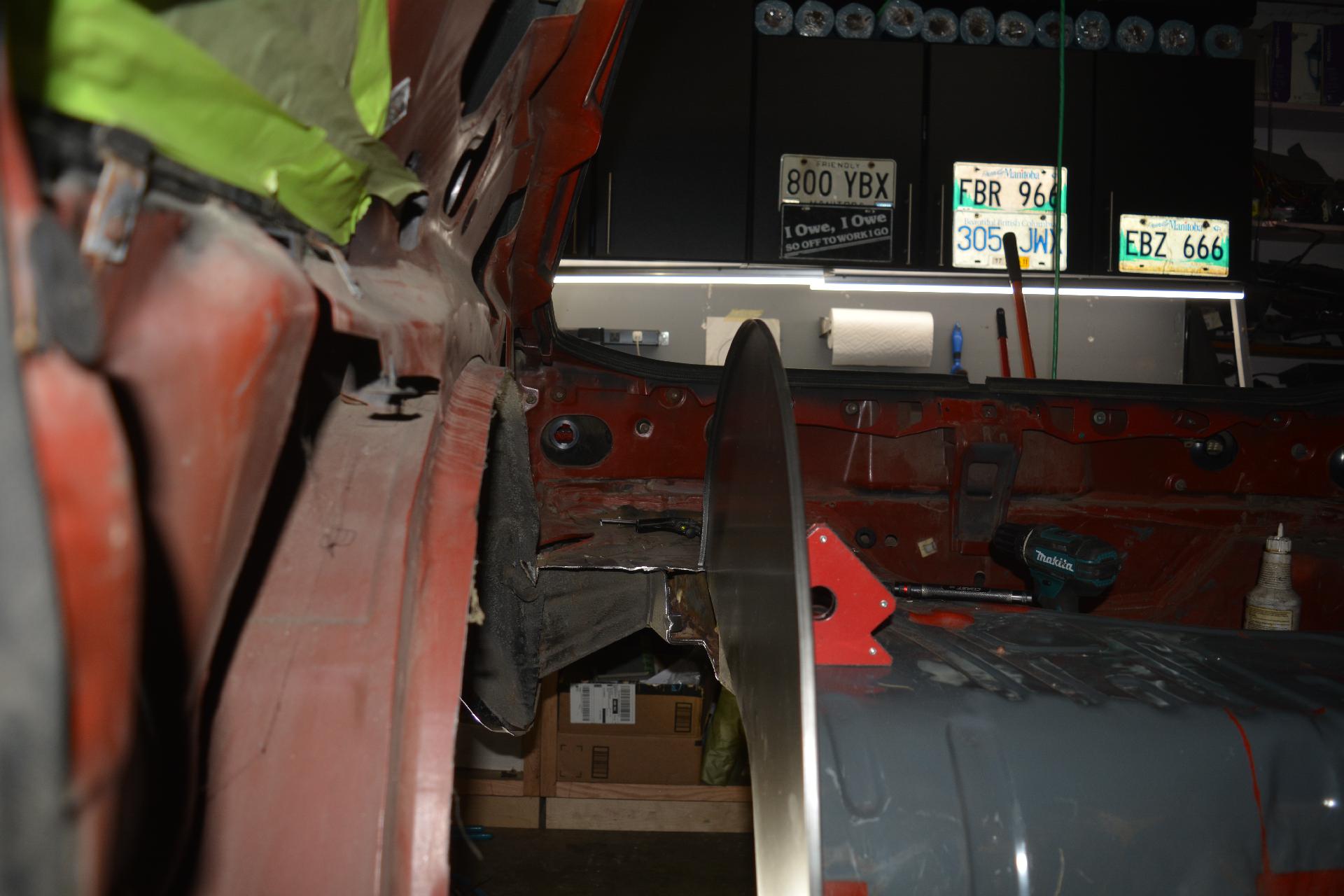

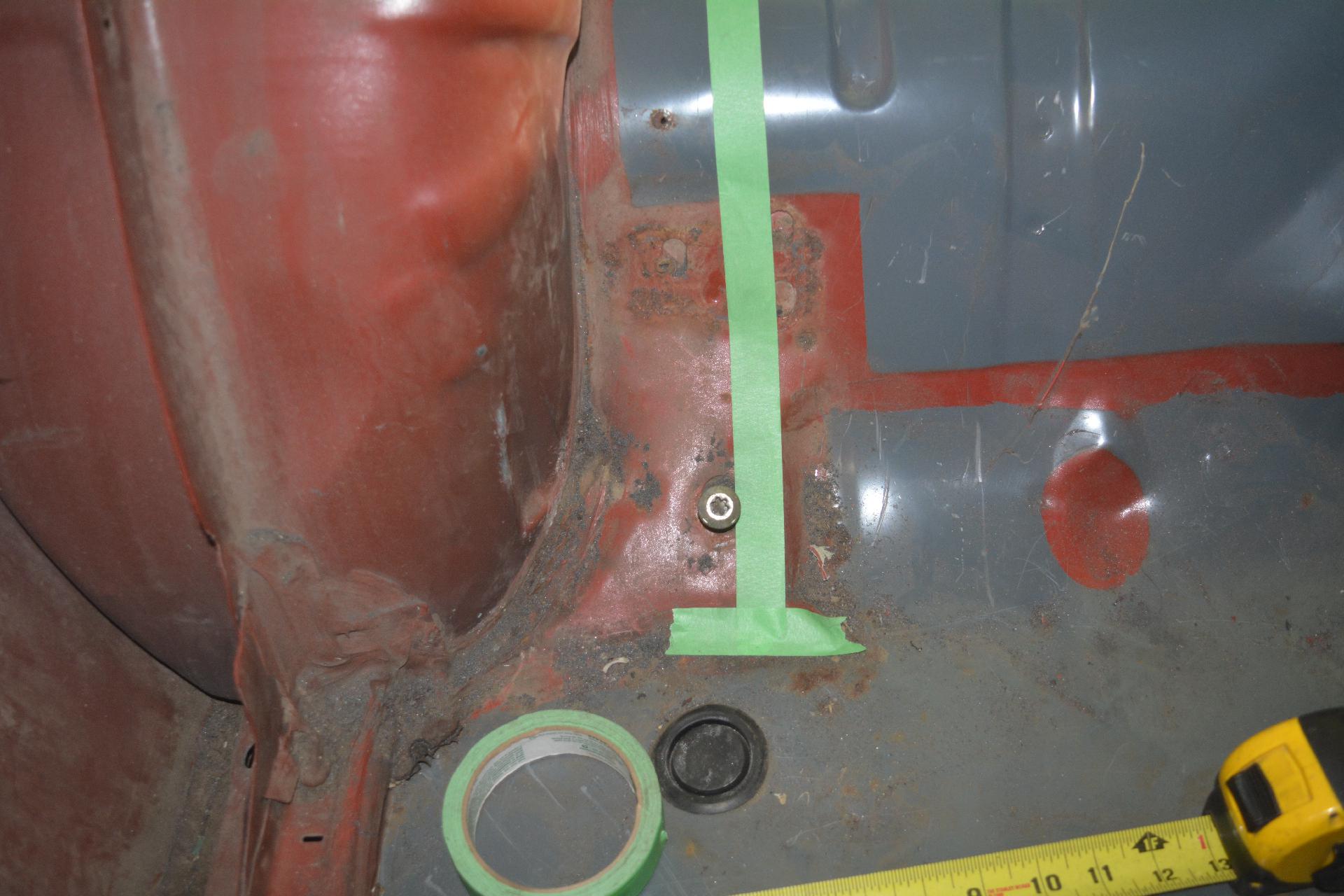

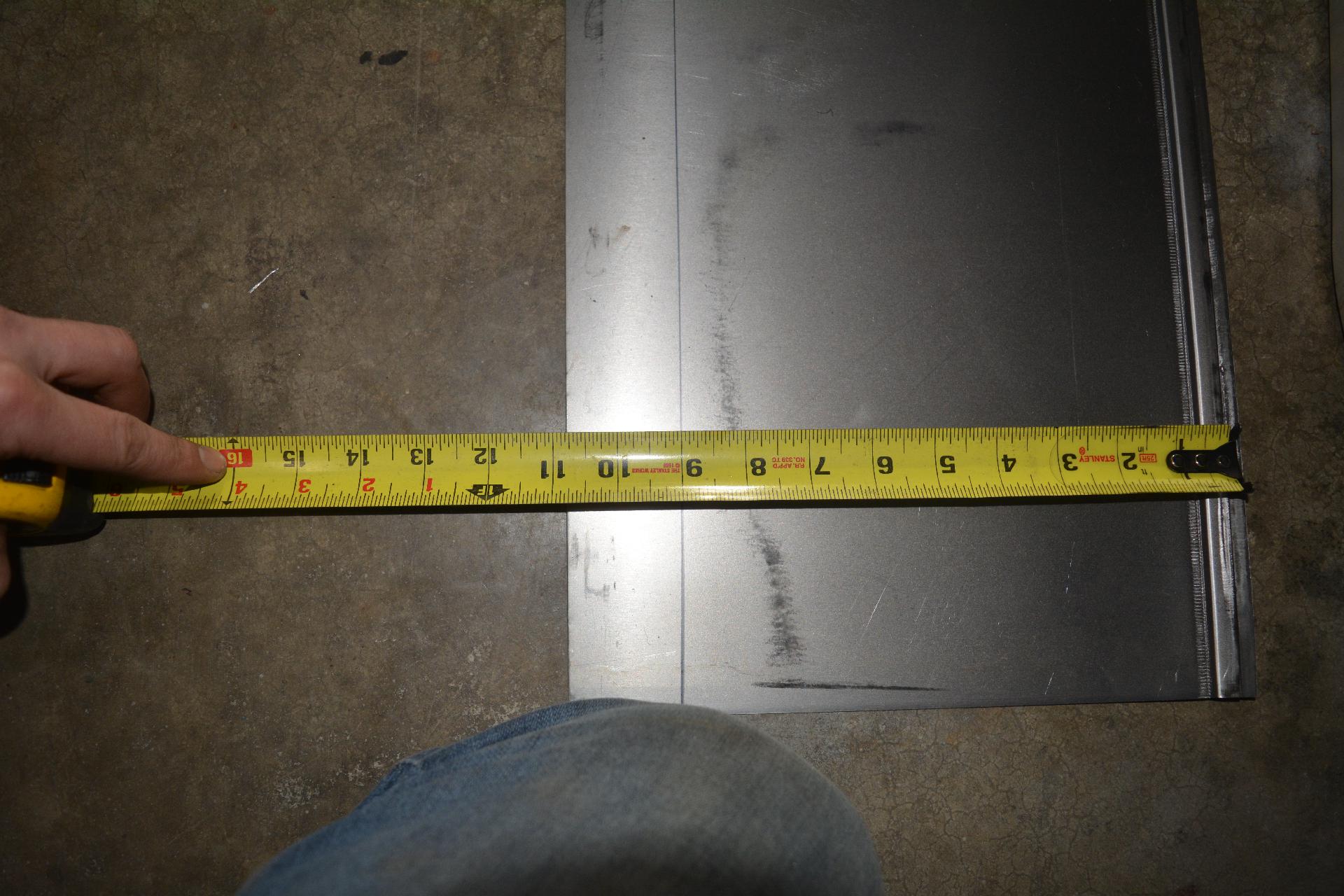

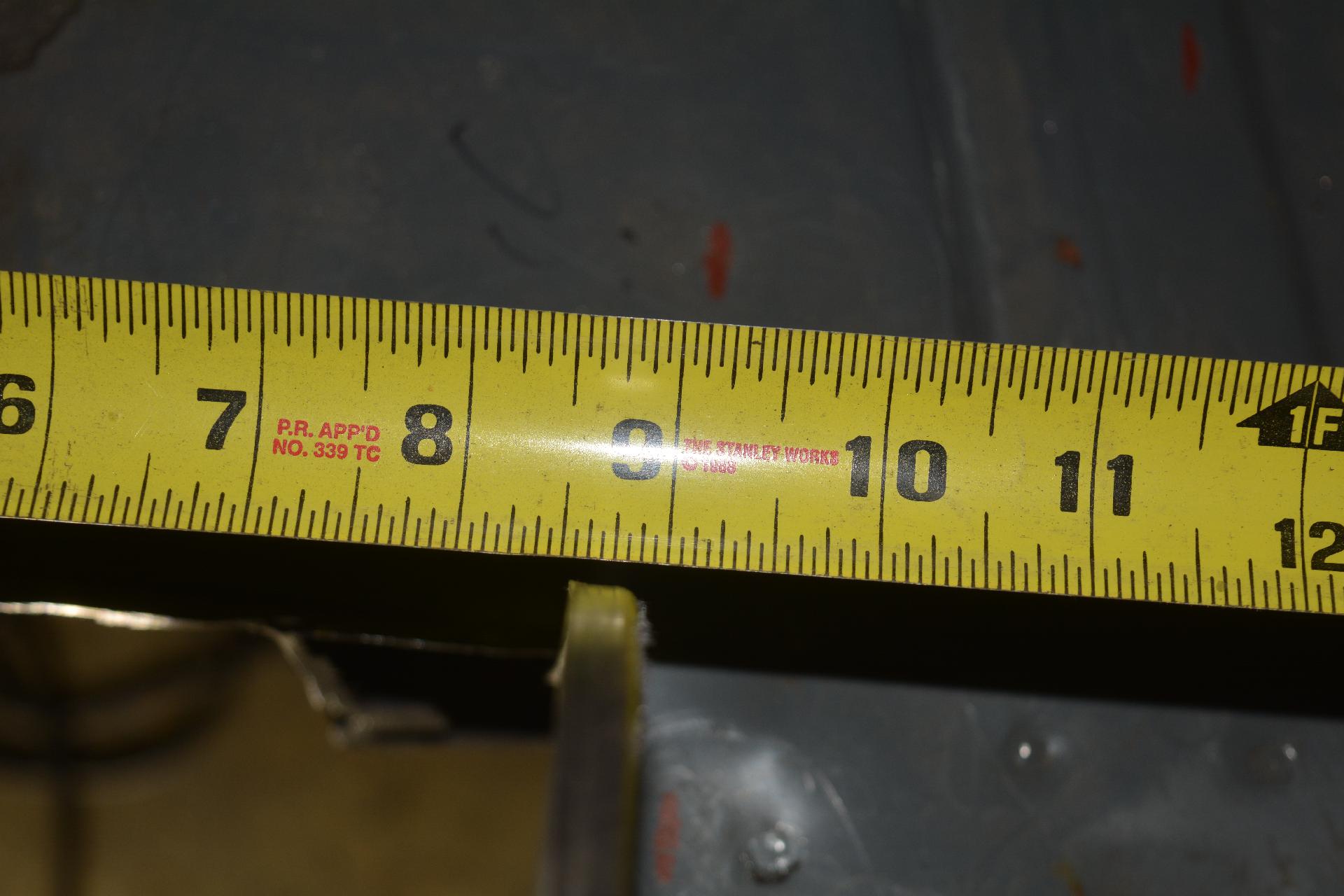

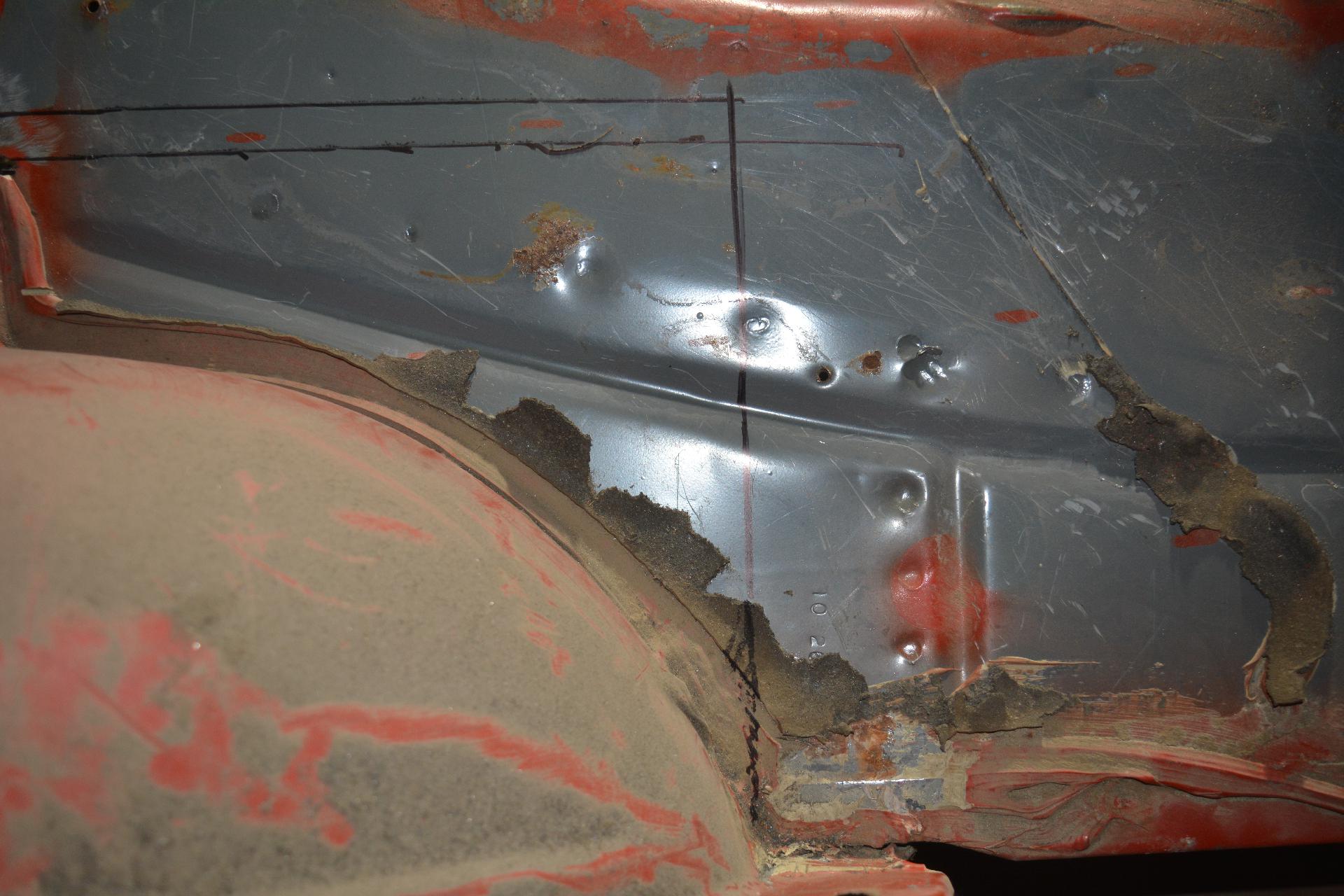

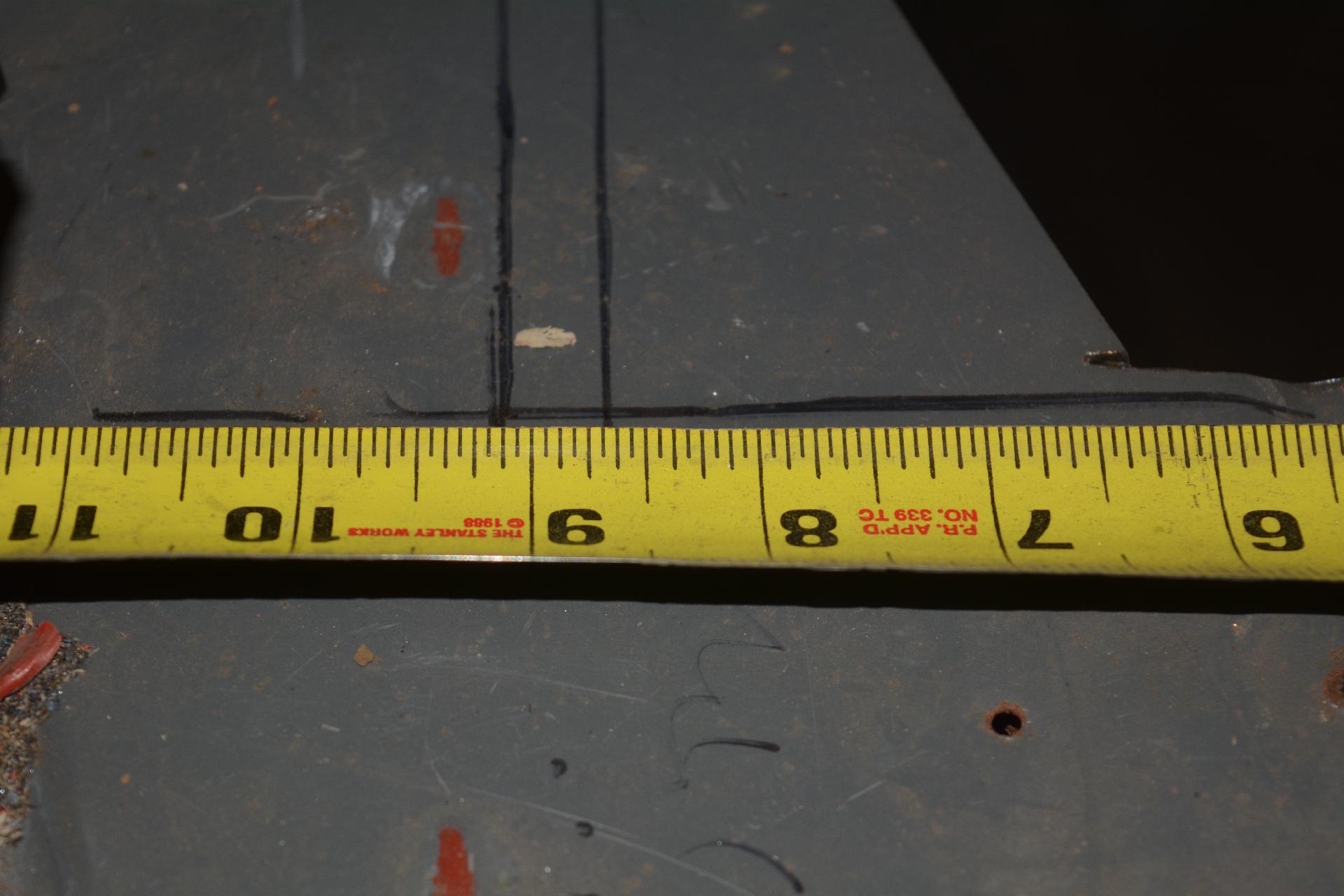

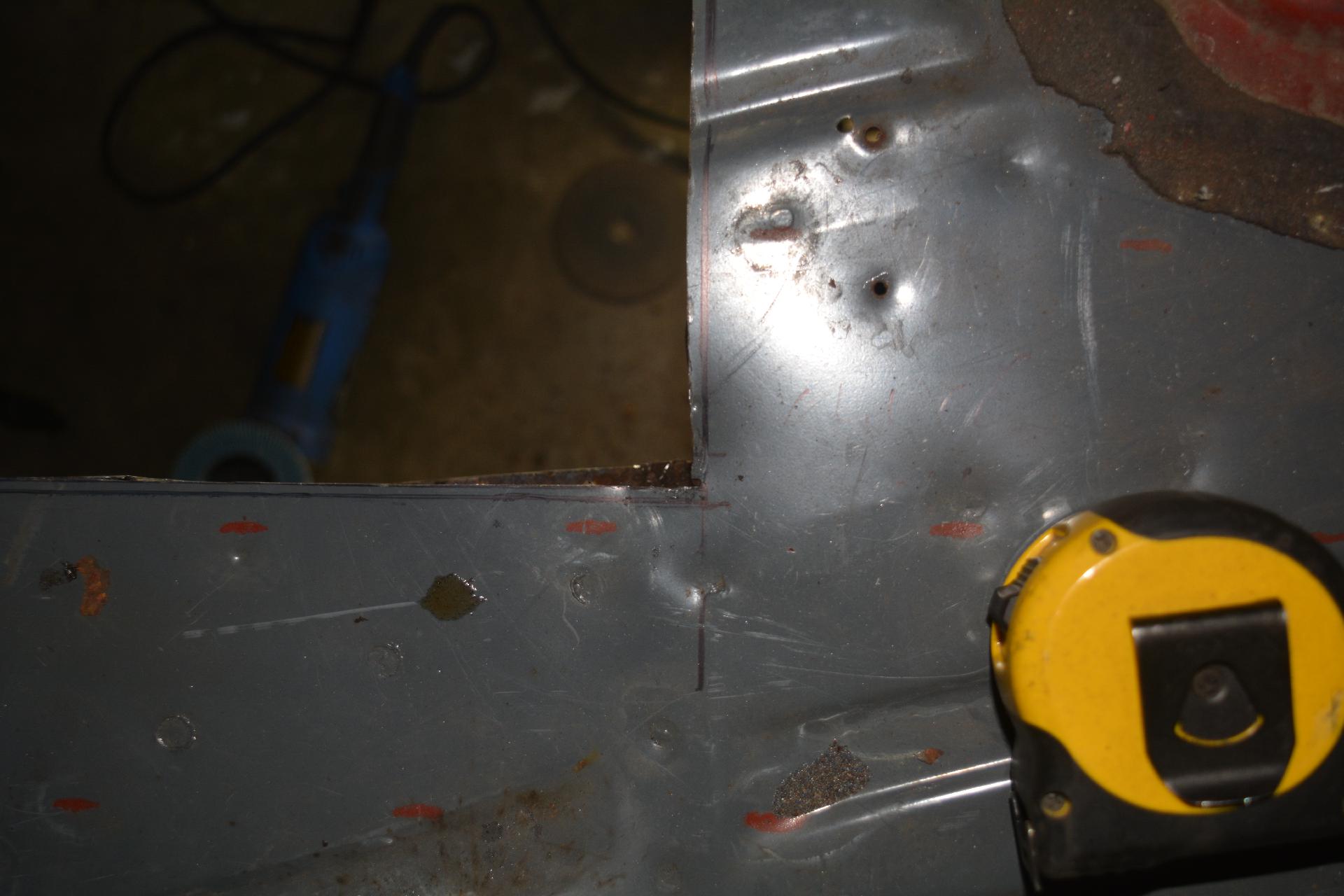

8.5 inch cutline marked out
Cut line left short on the bottom

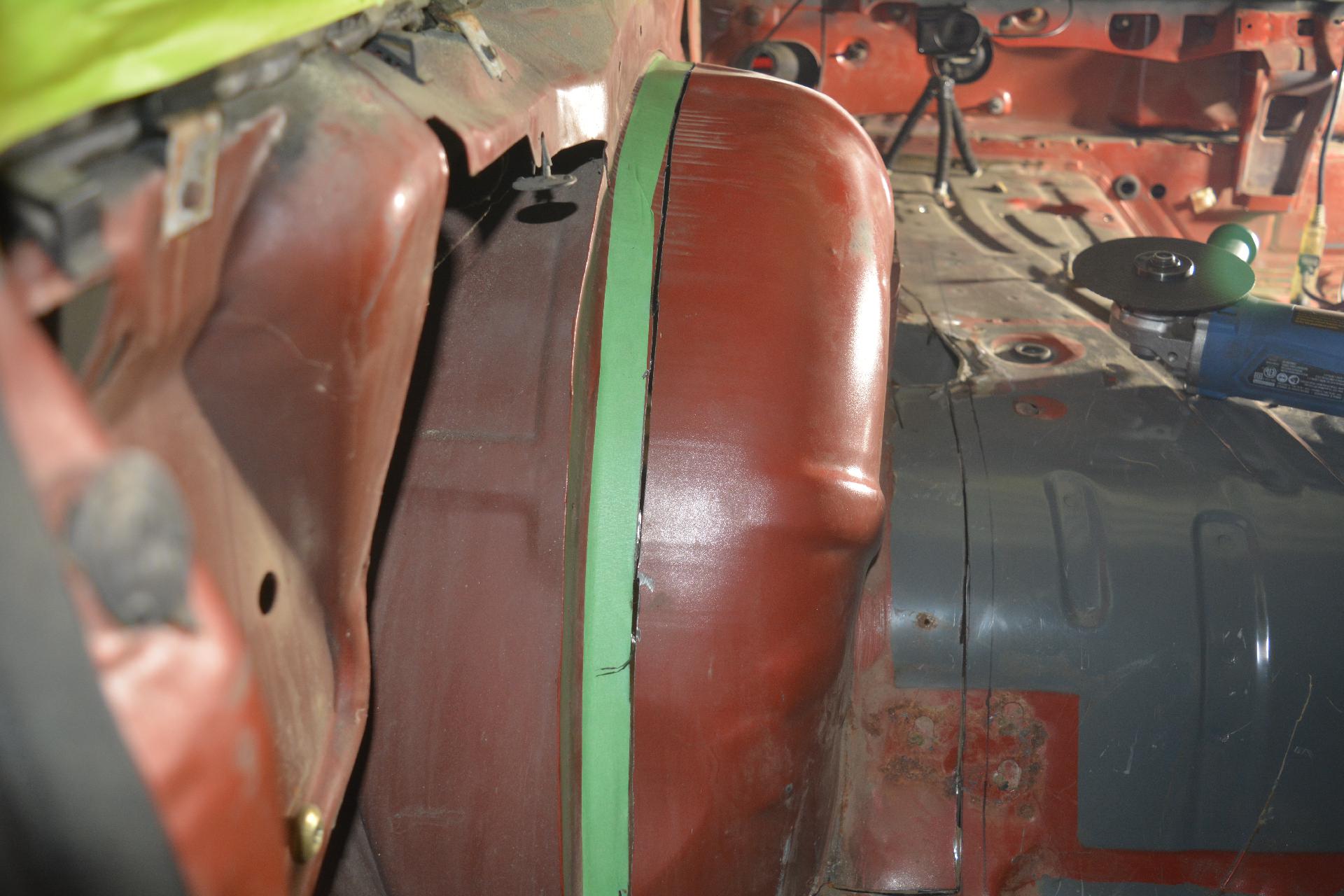

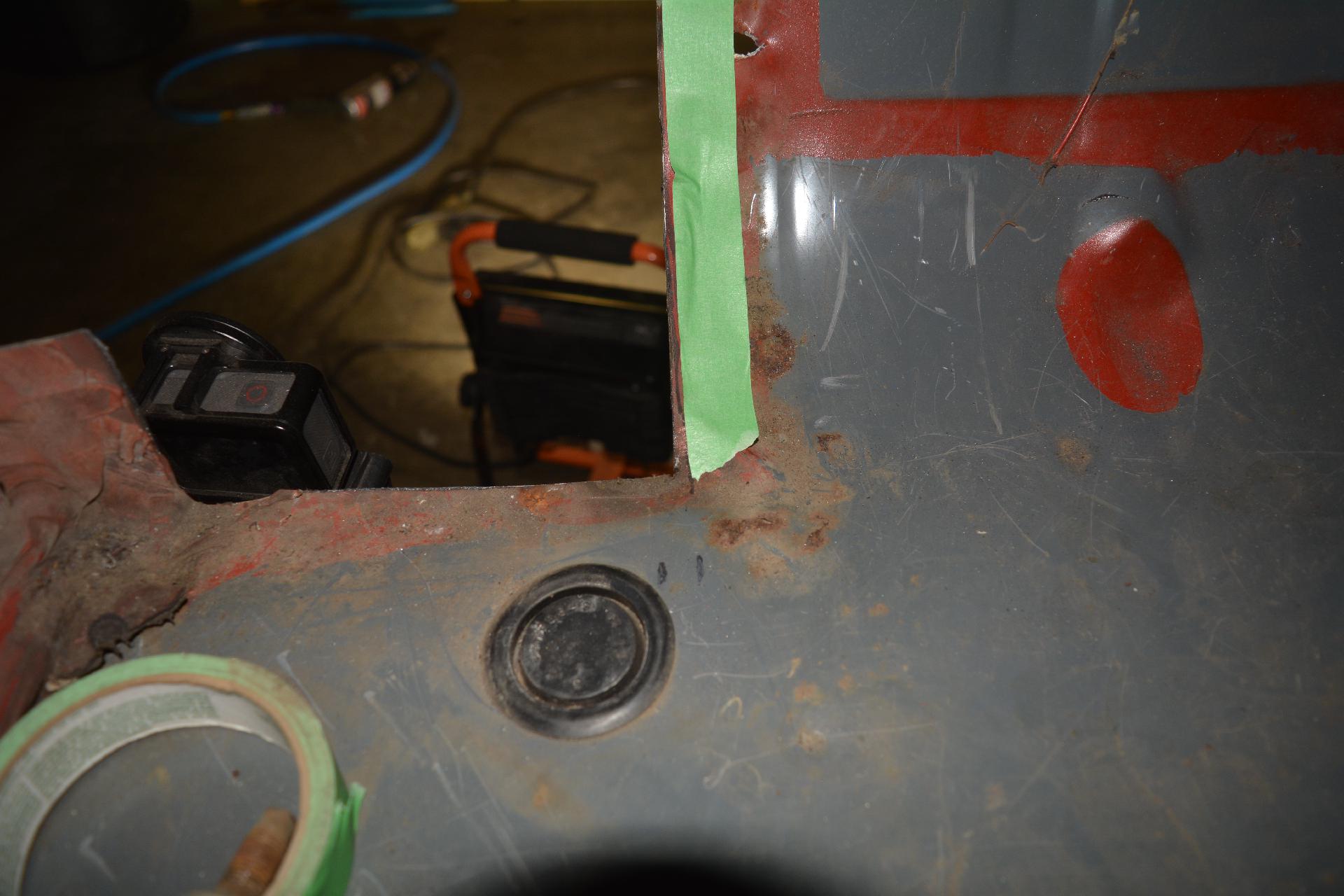

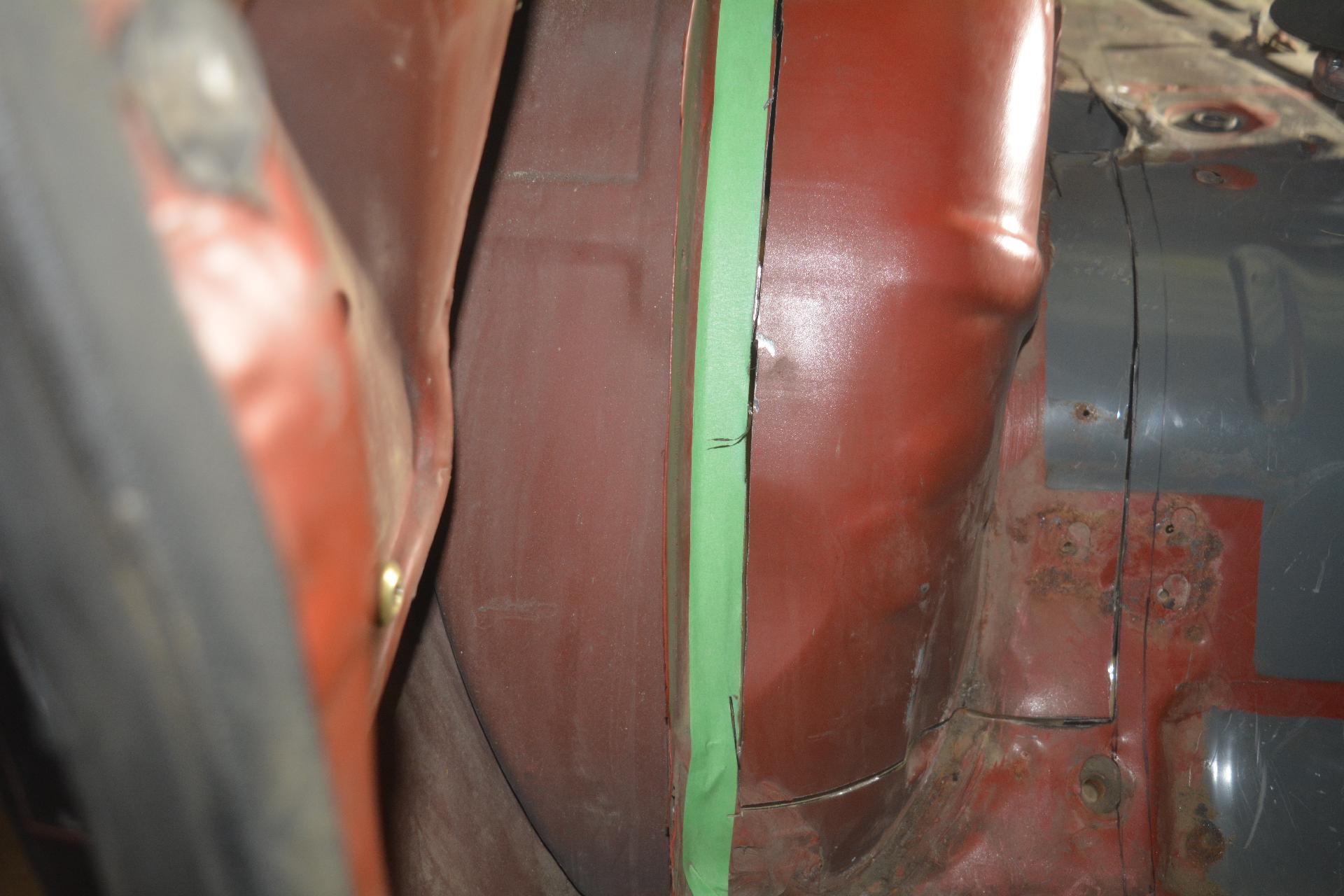

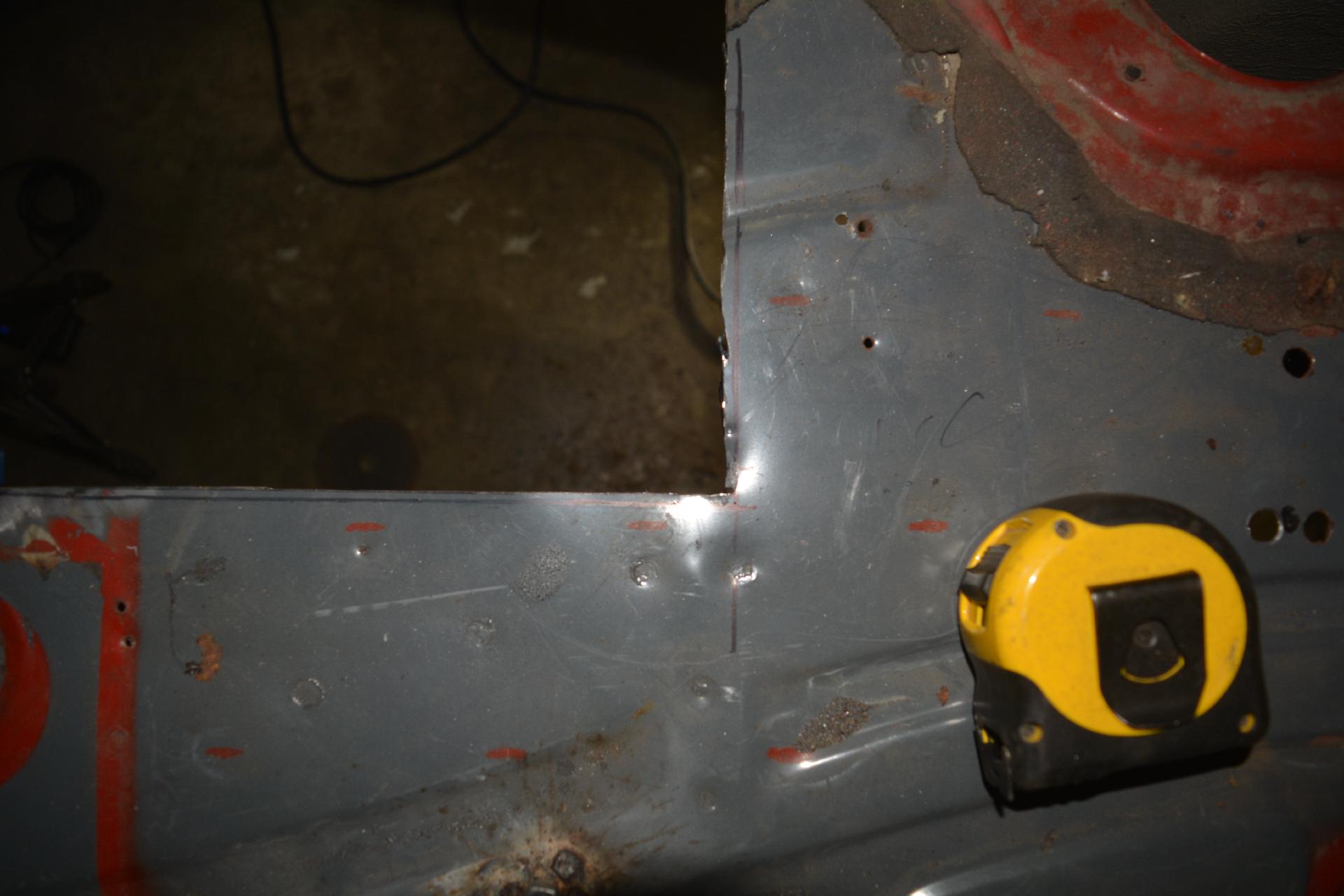

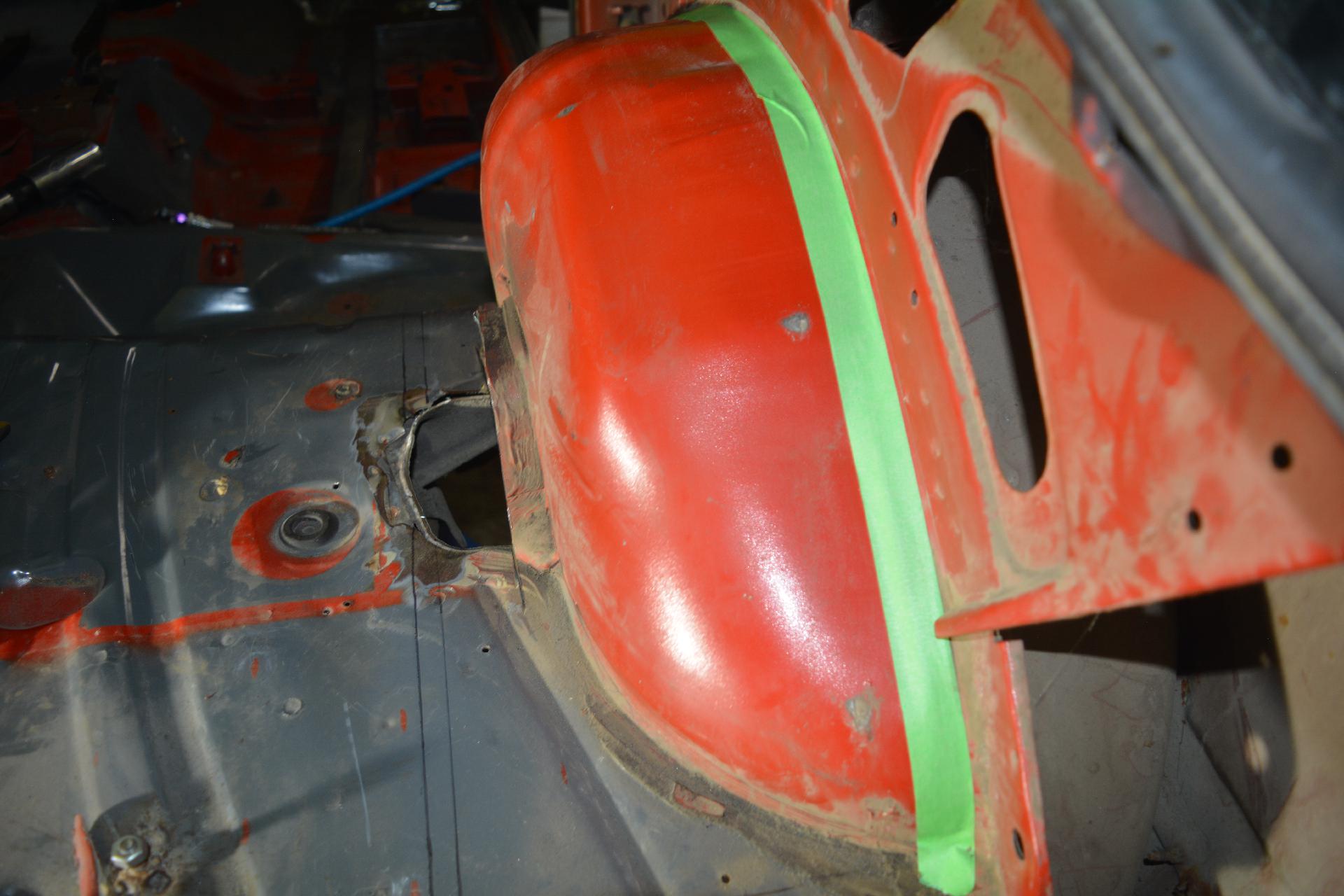

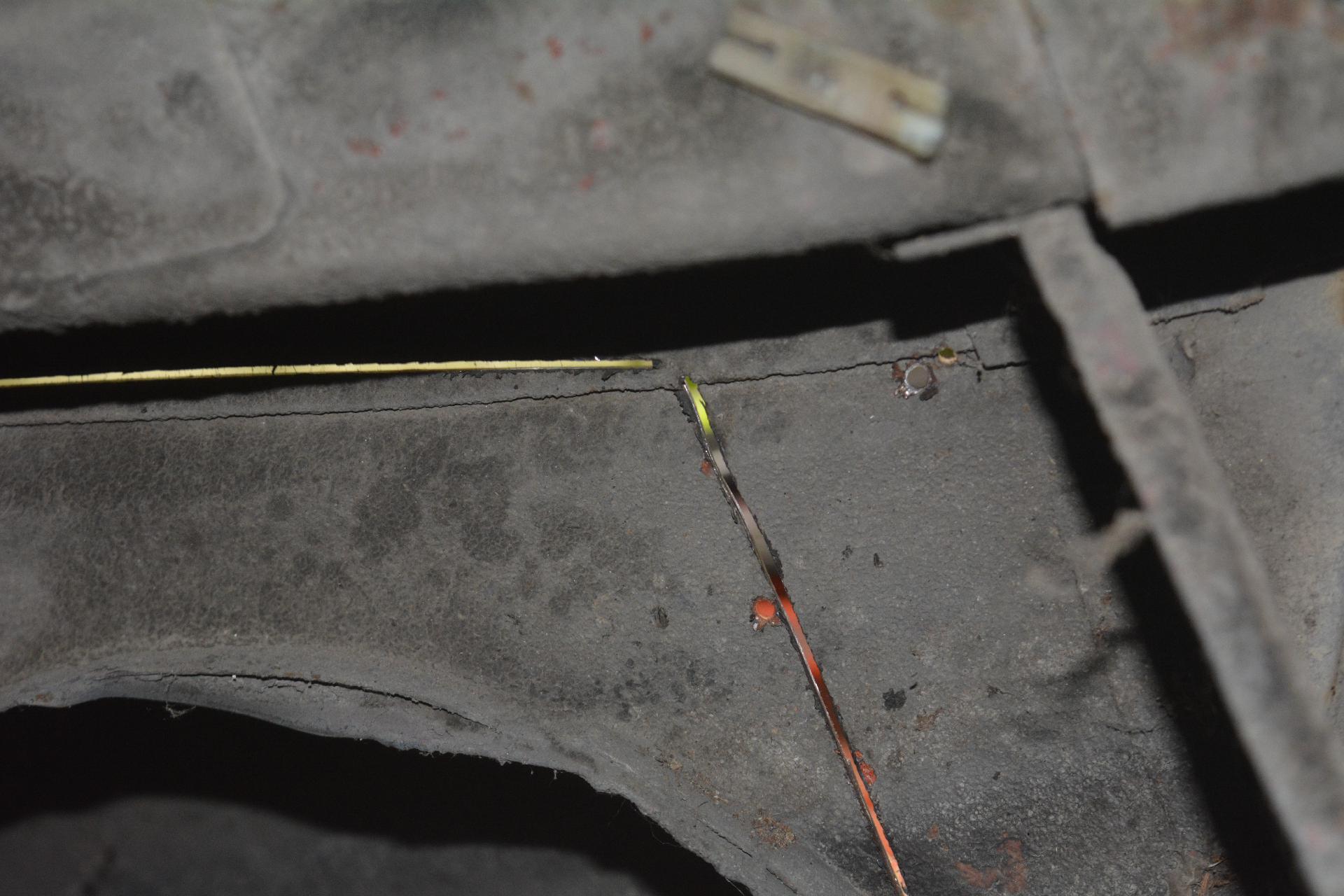

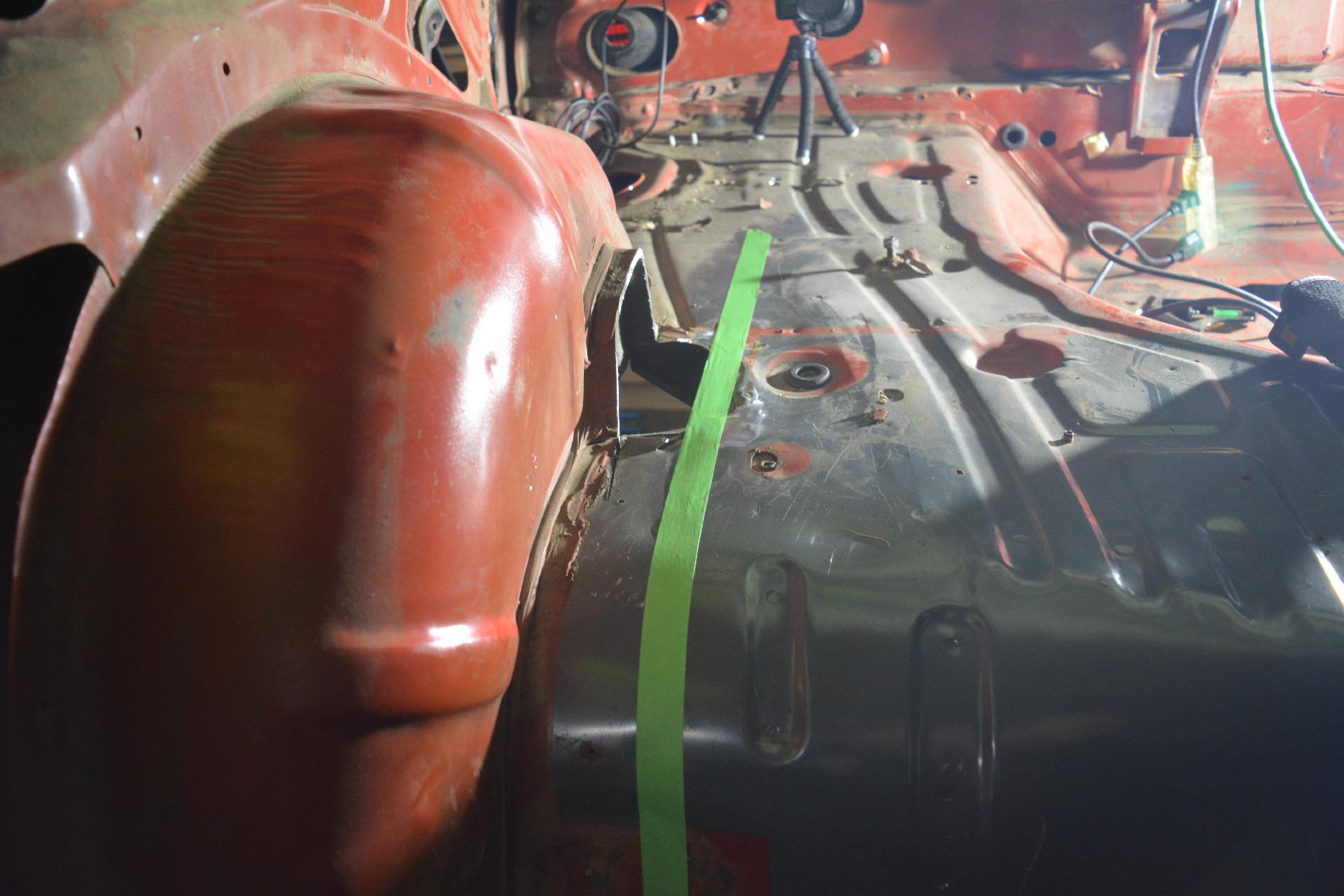

9 inch cut line masked off

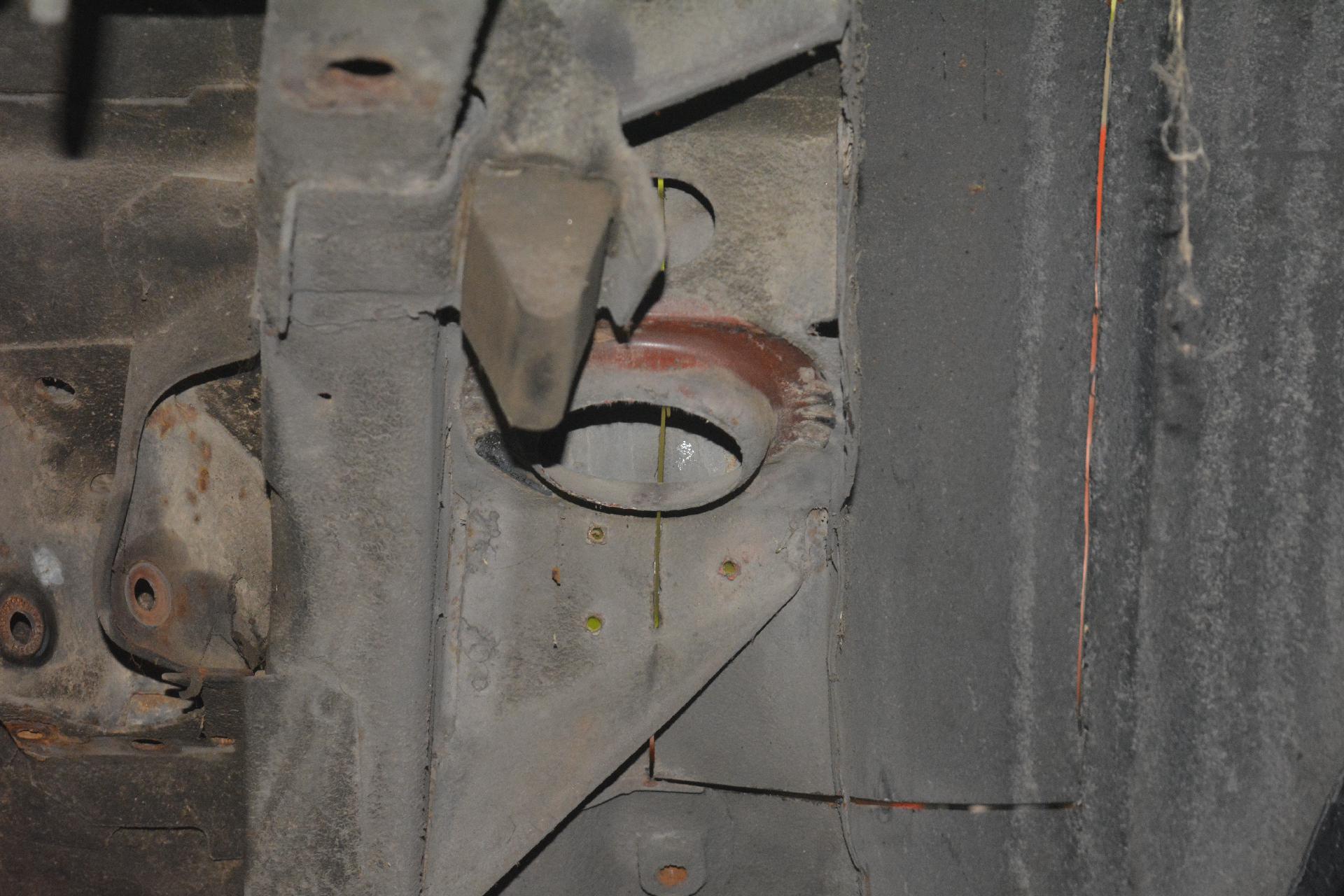

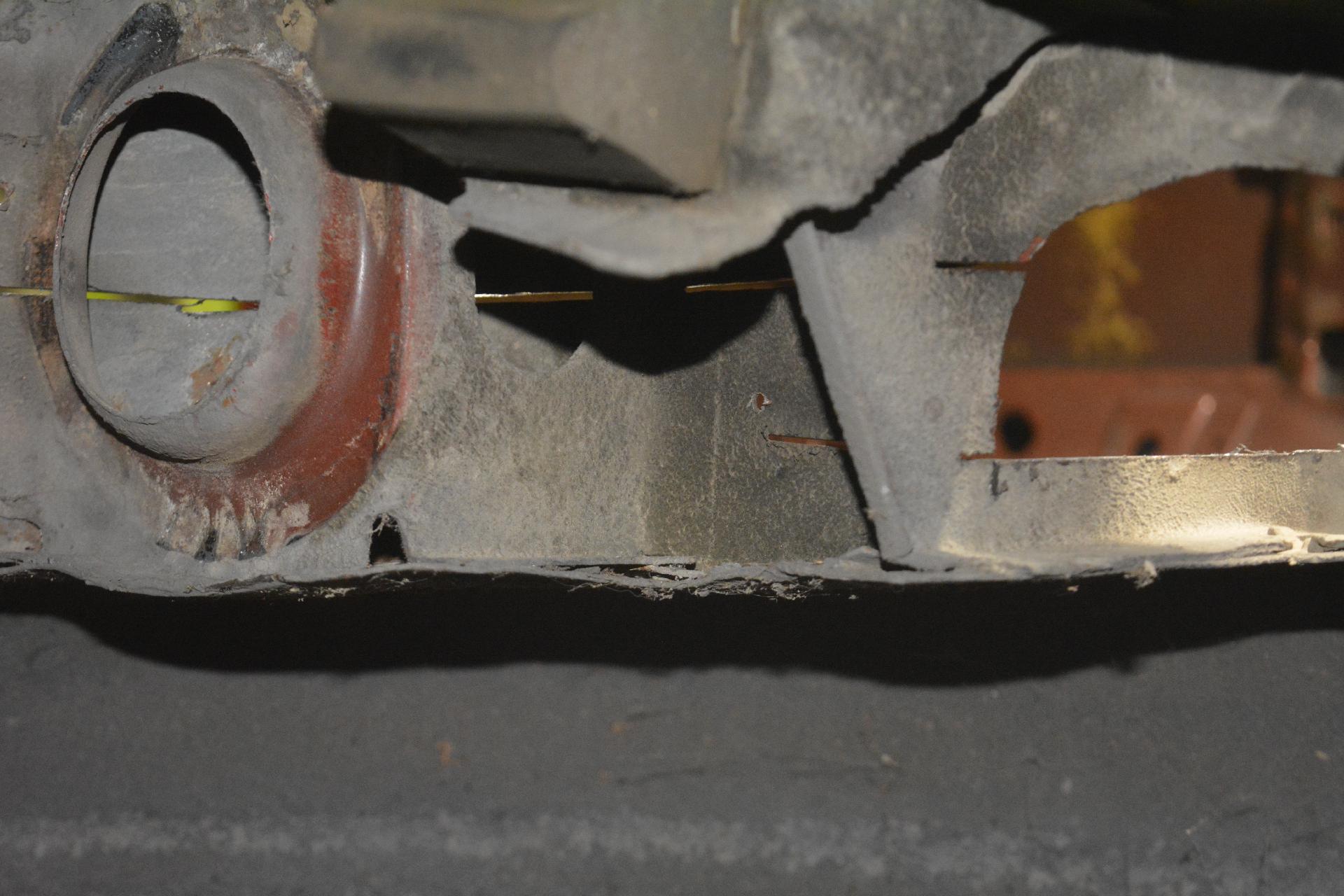

Had to cut out the shock mount to get the cut lines

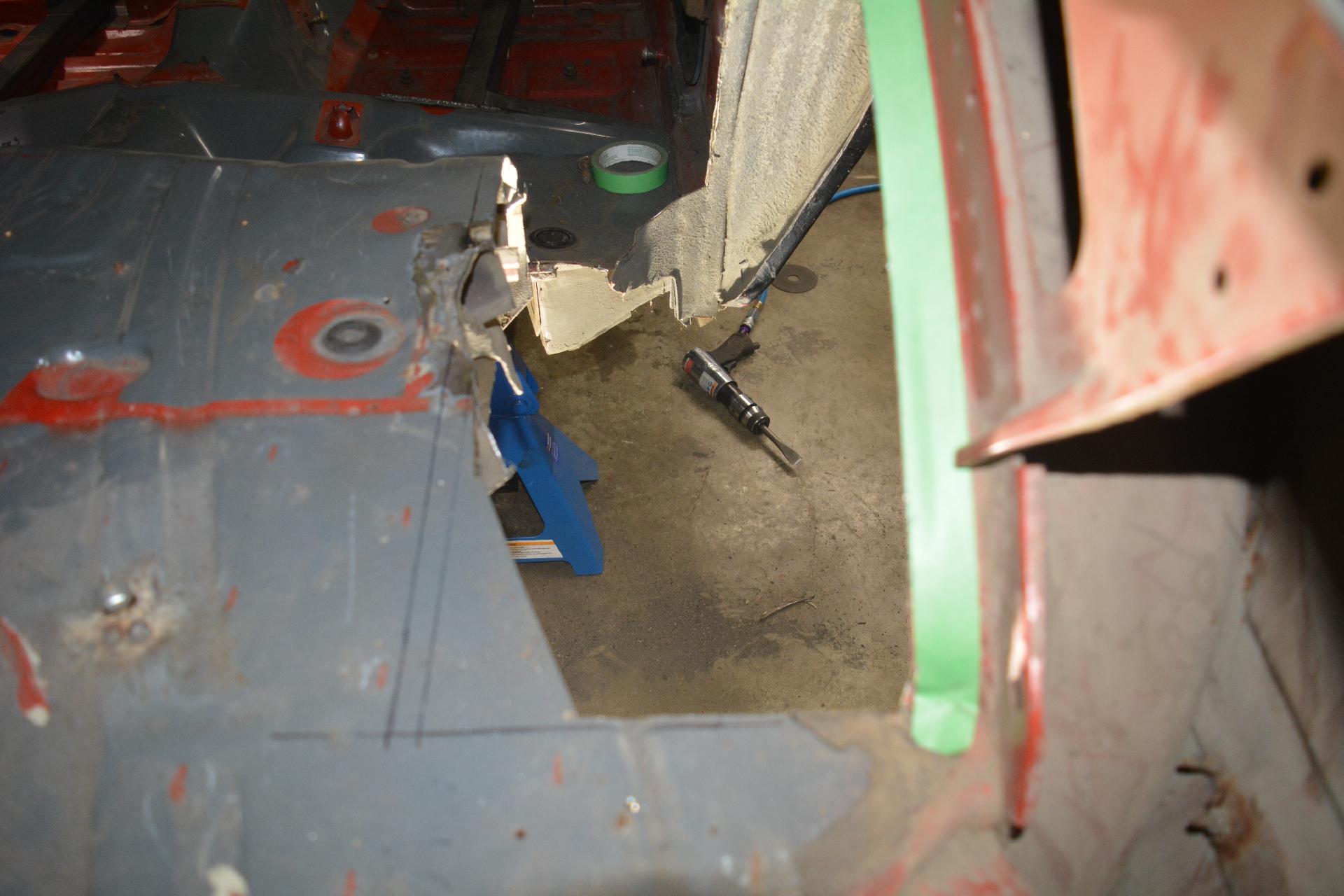

two cut lines
Cut line from the back of the car

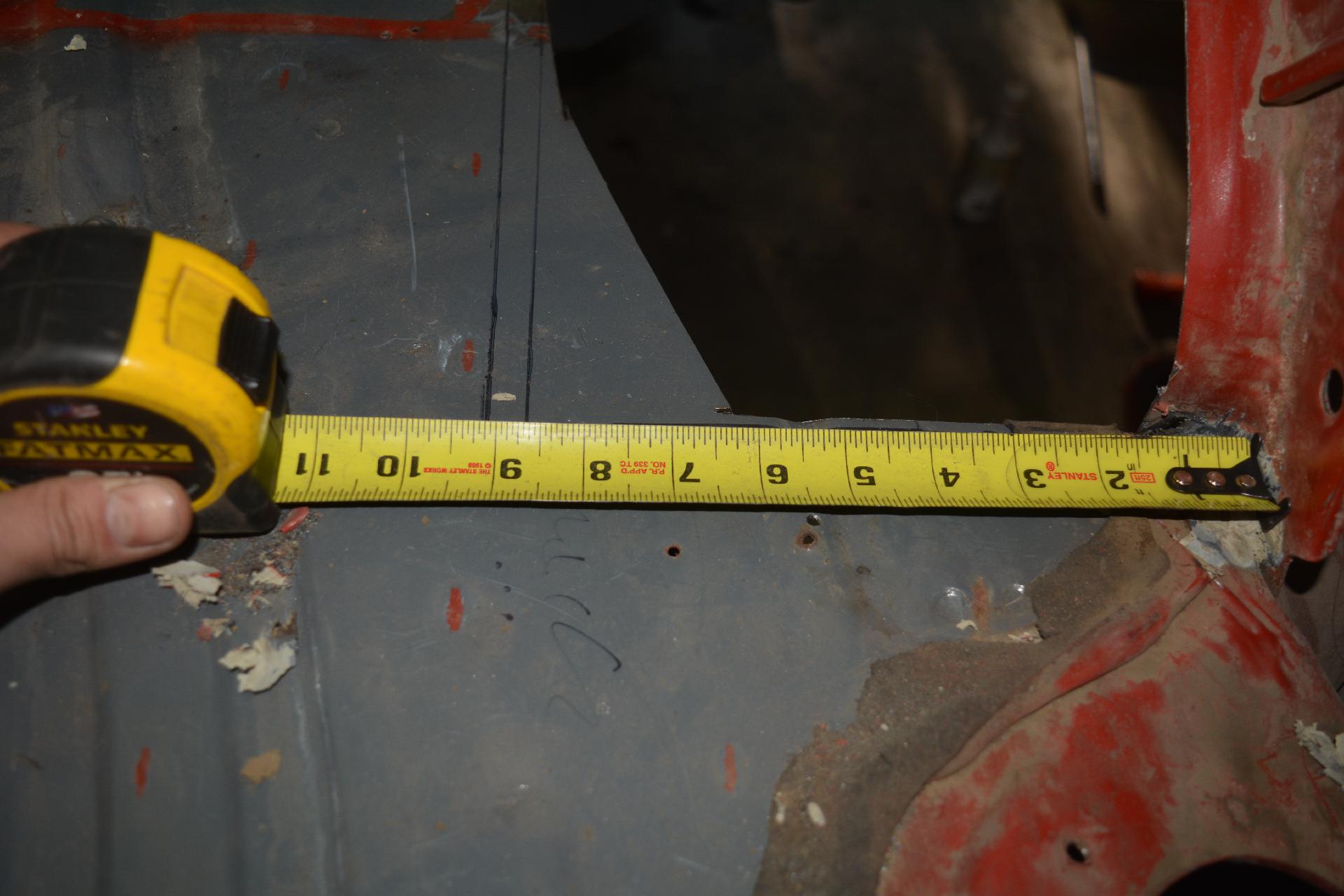

Measuring Out the old tub cut line
Rough cut to the frame, notice we'll be cutting into the frame a lot
tub cut

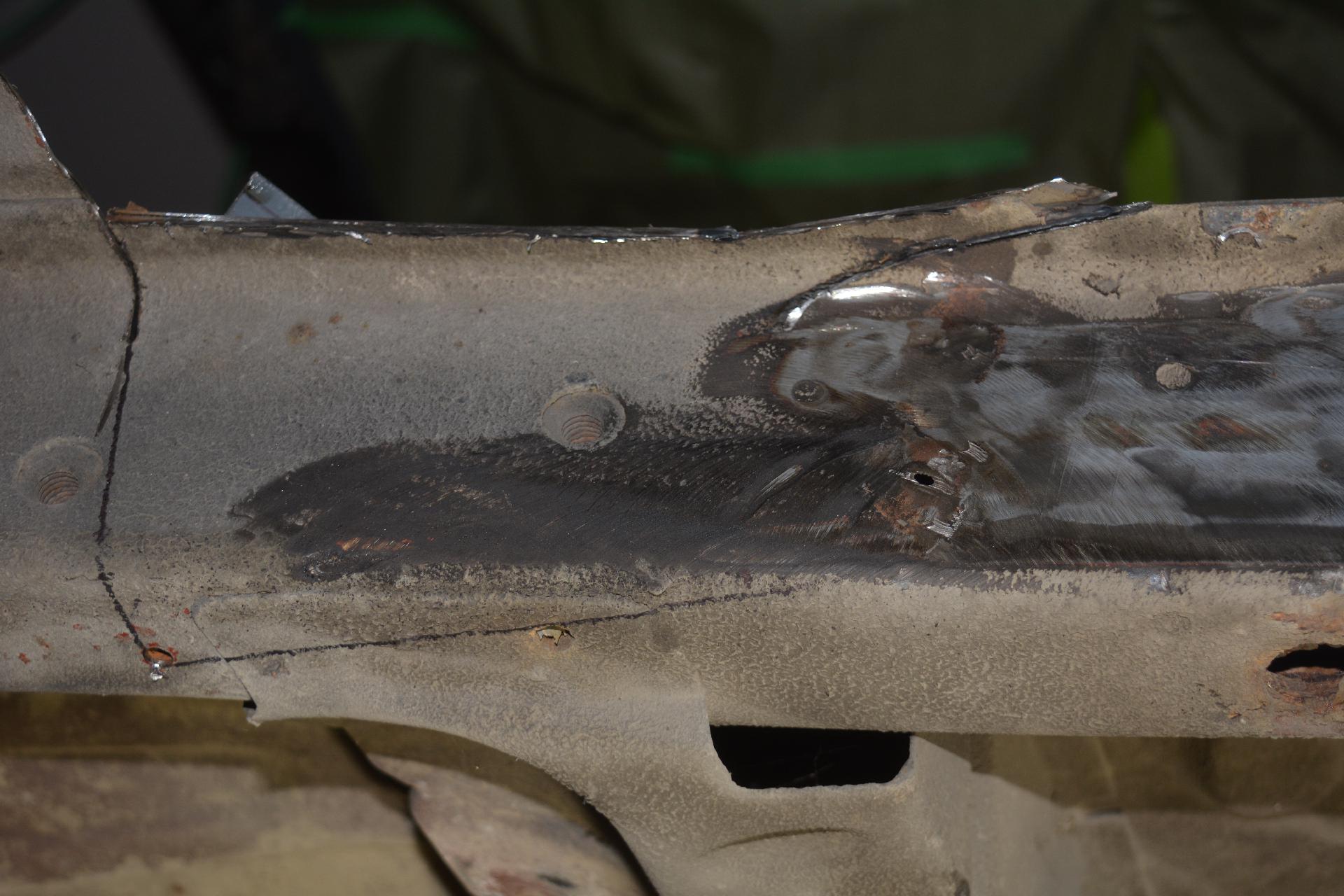

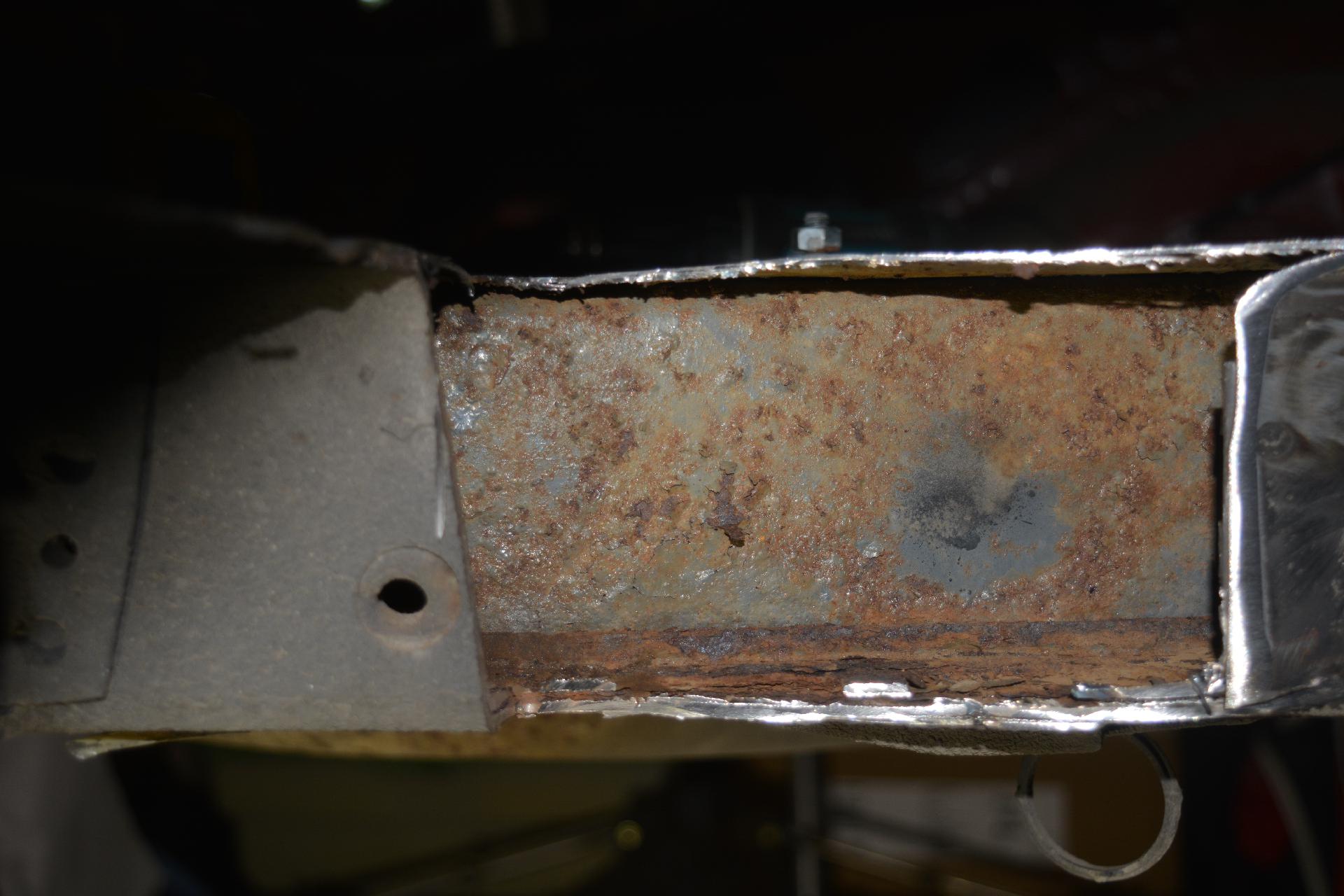

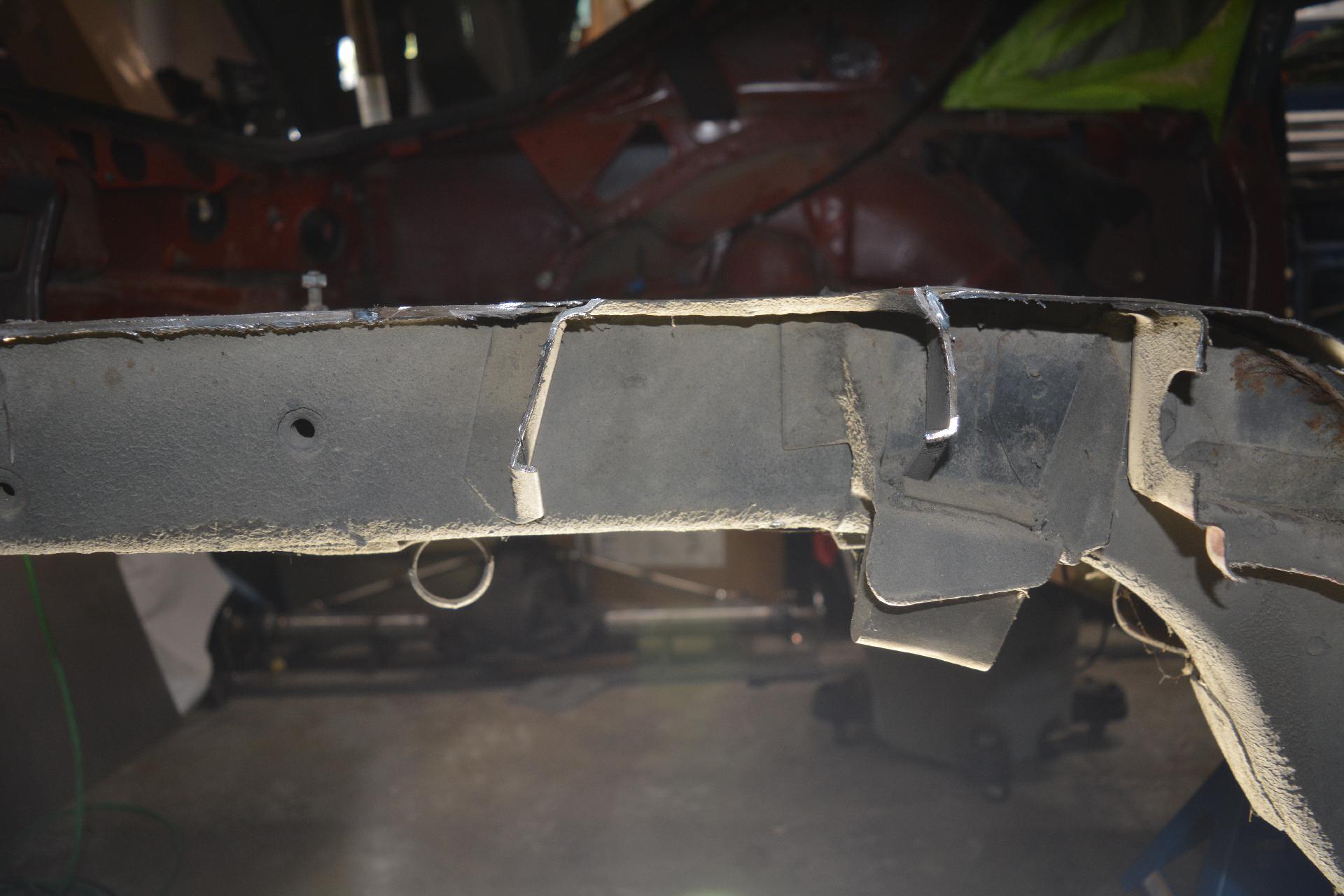

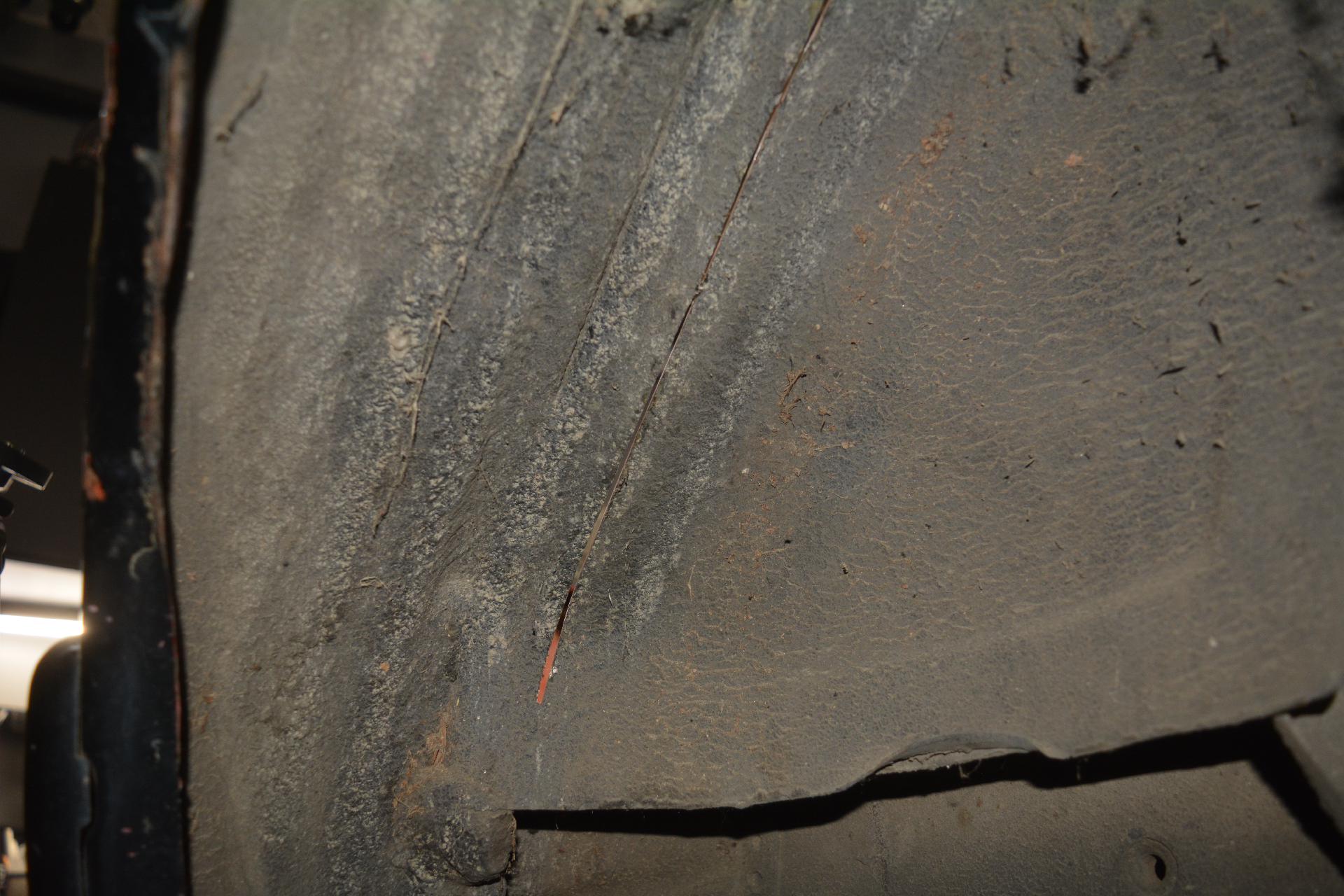

Tub cut from the bottom side

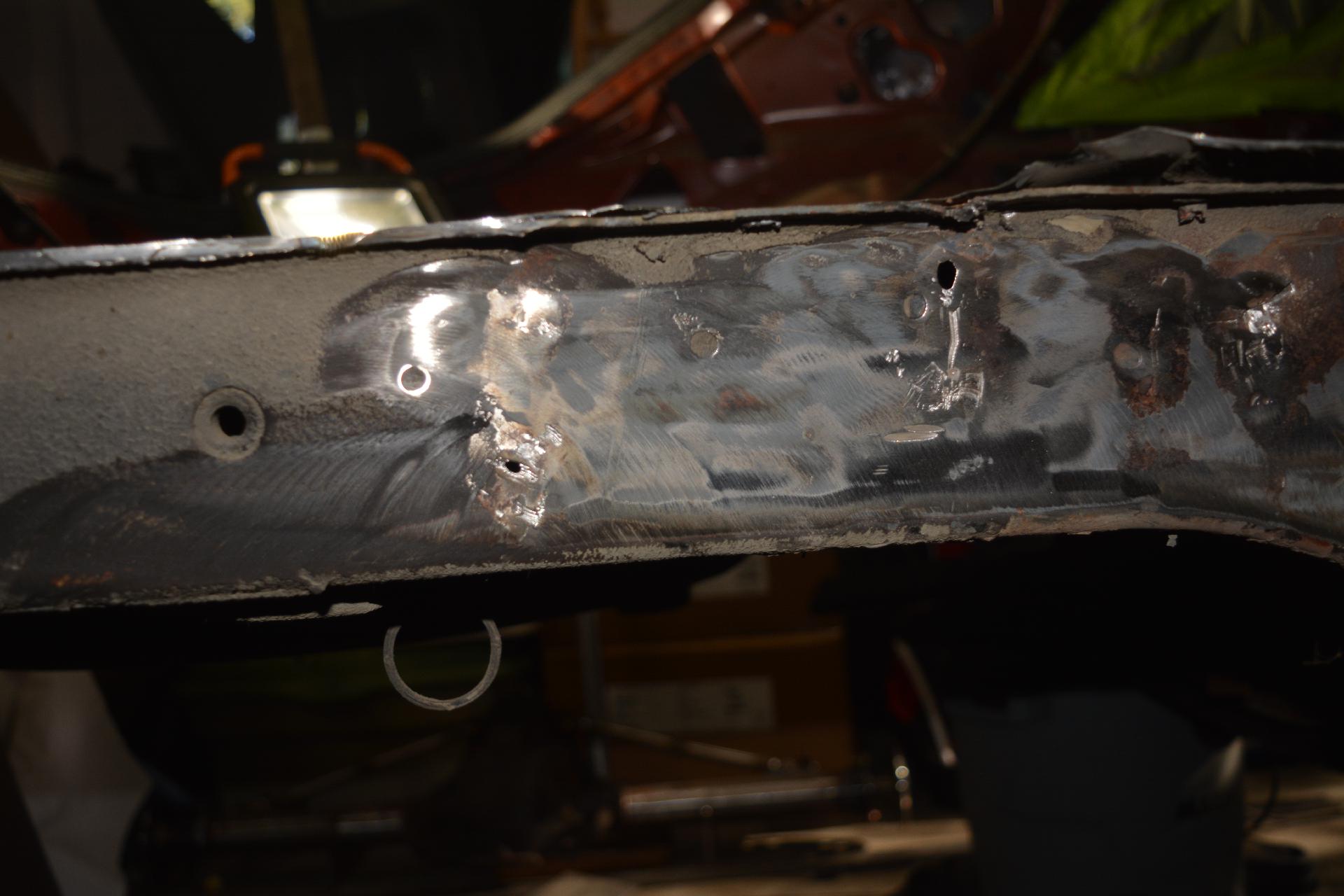

Lots of bracketry to remove

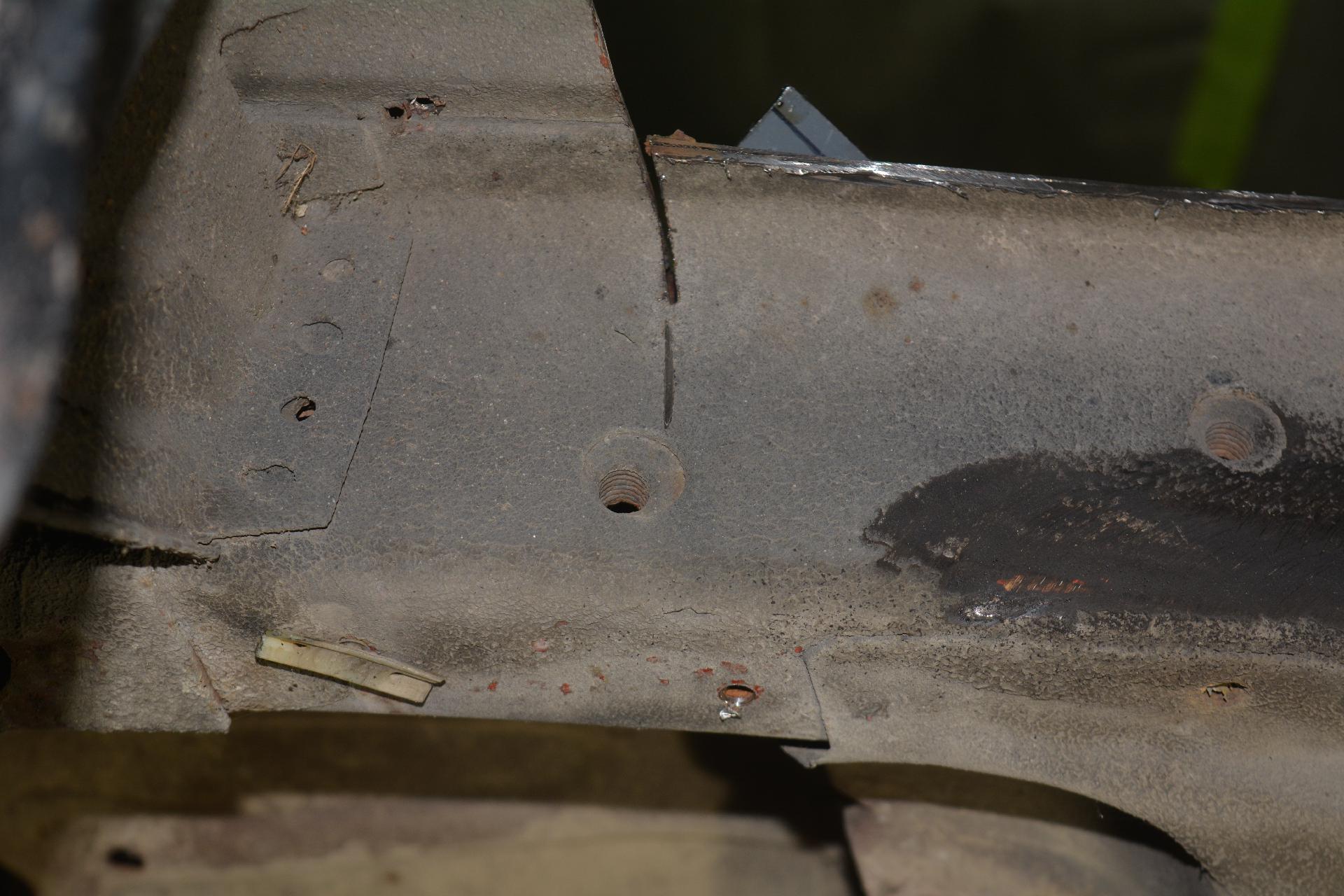

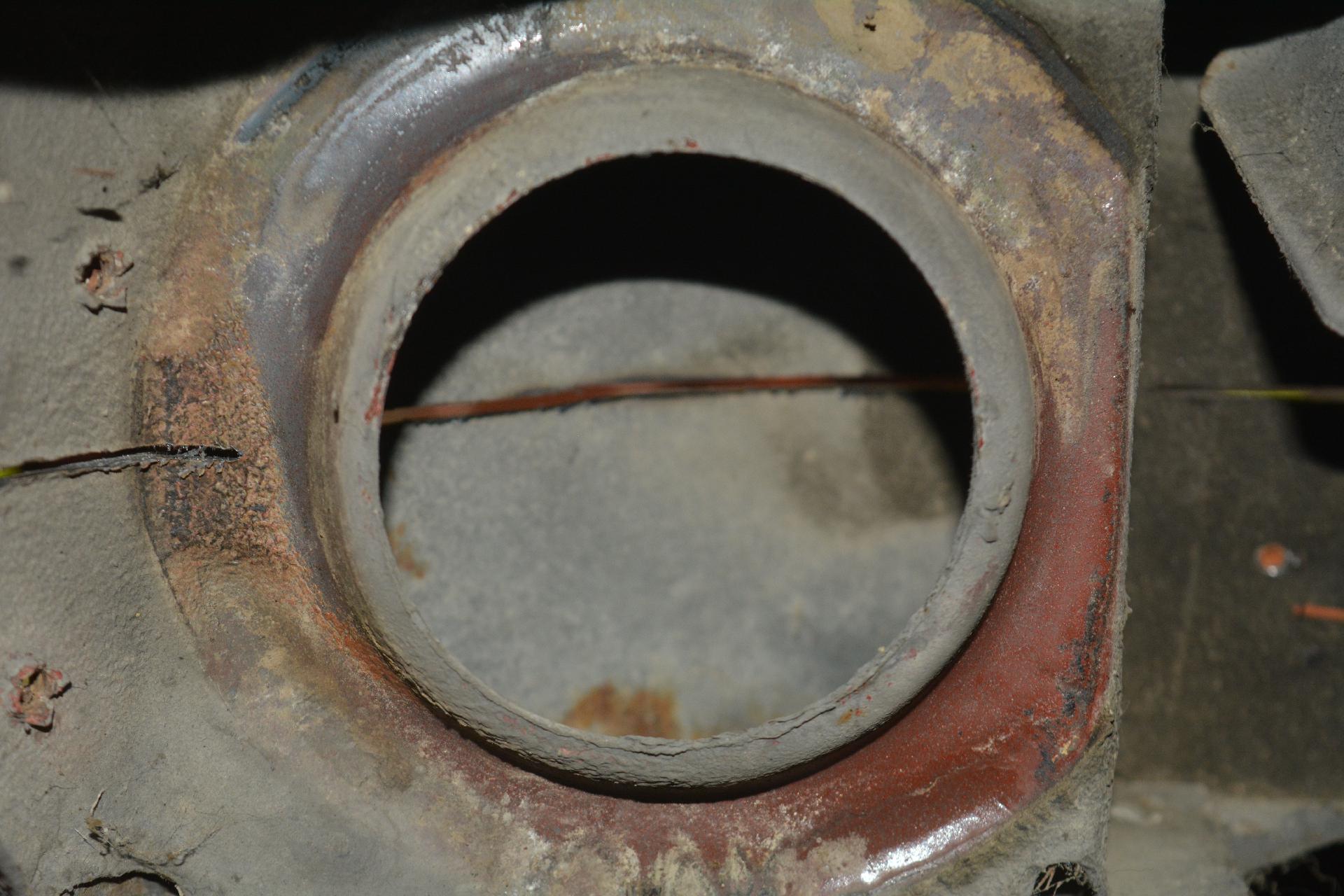

Spring perch has to come out
All this cutting makes a lot of mess
Majority of the tub removed

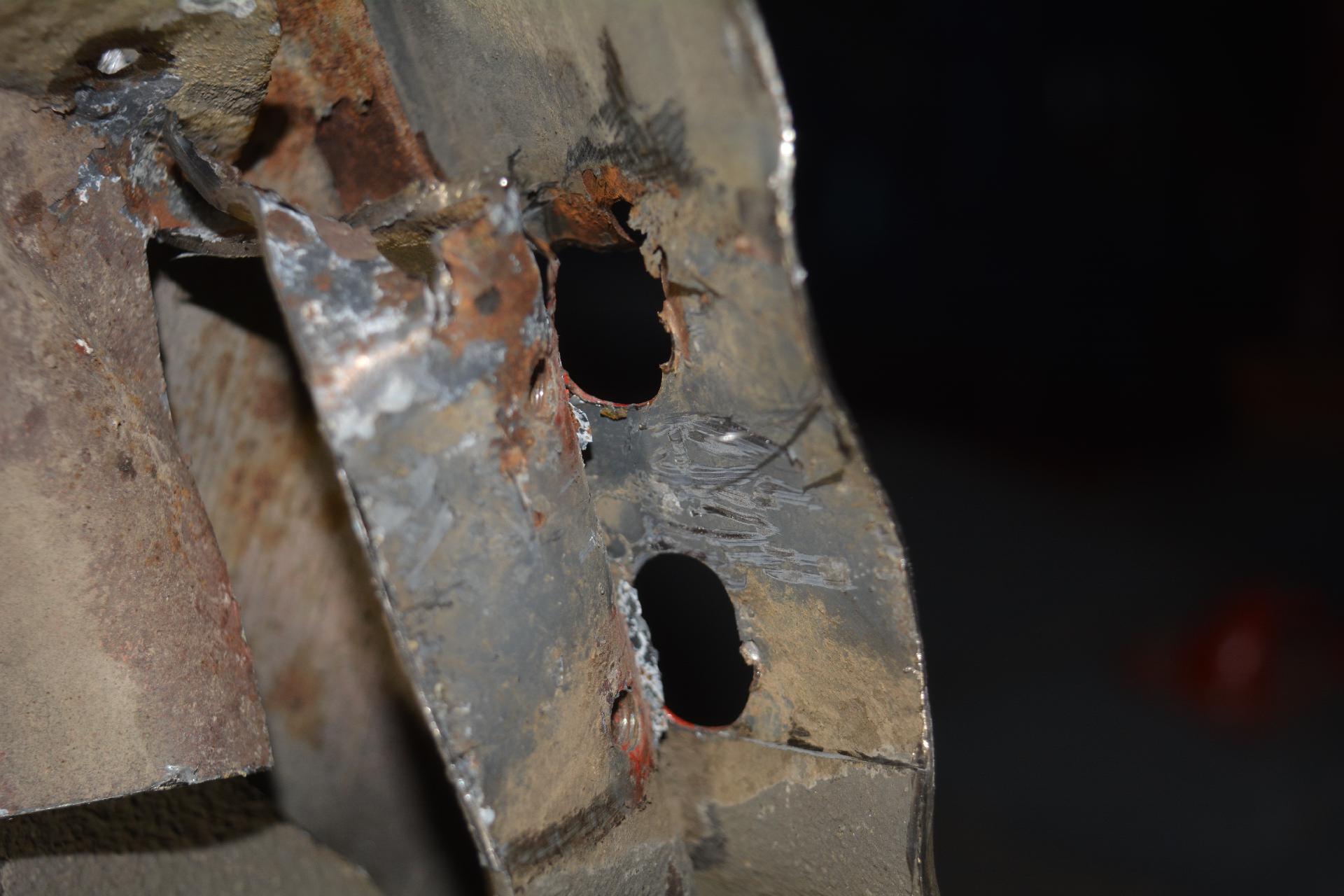

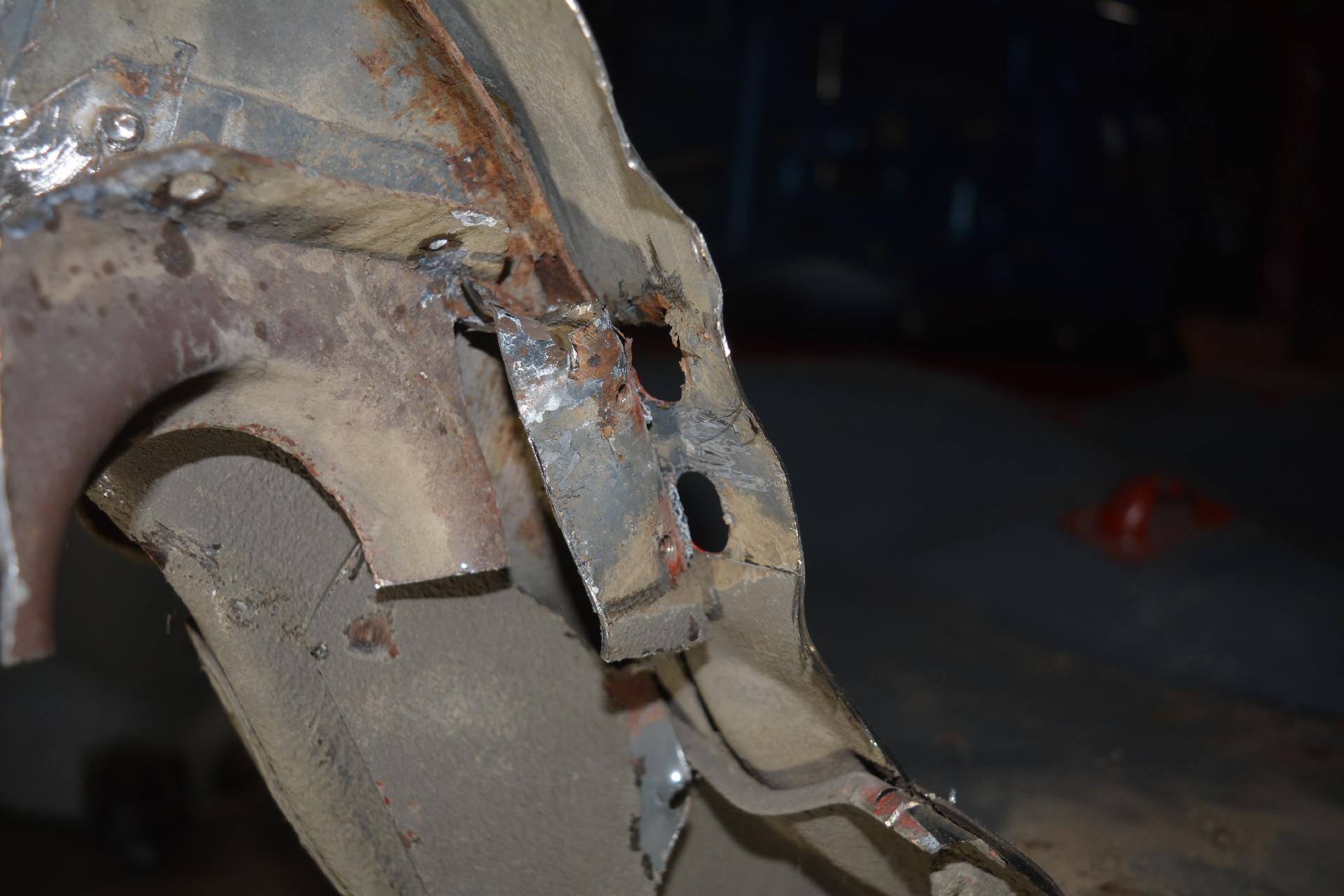

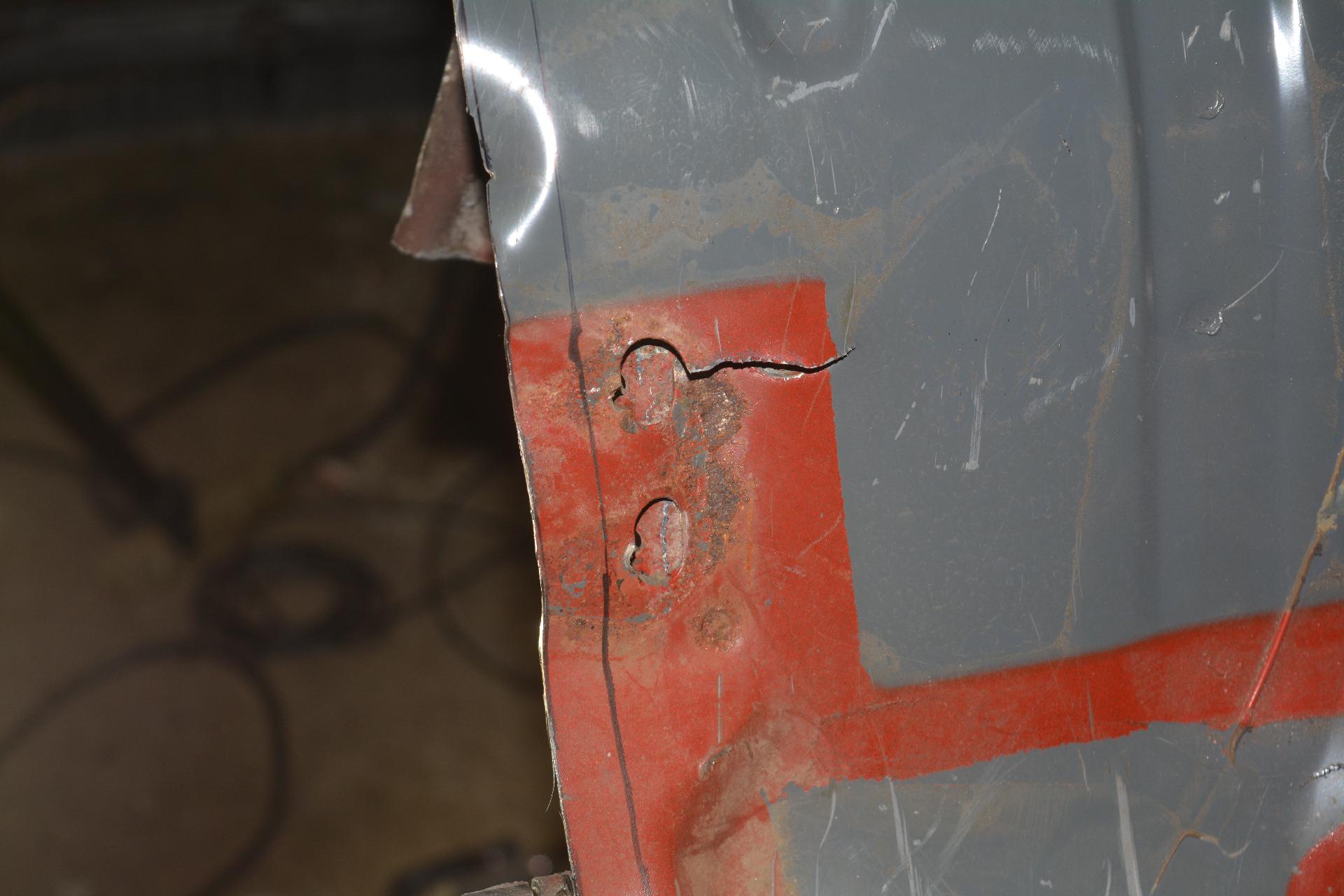

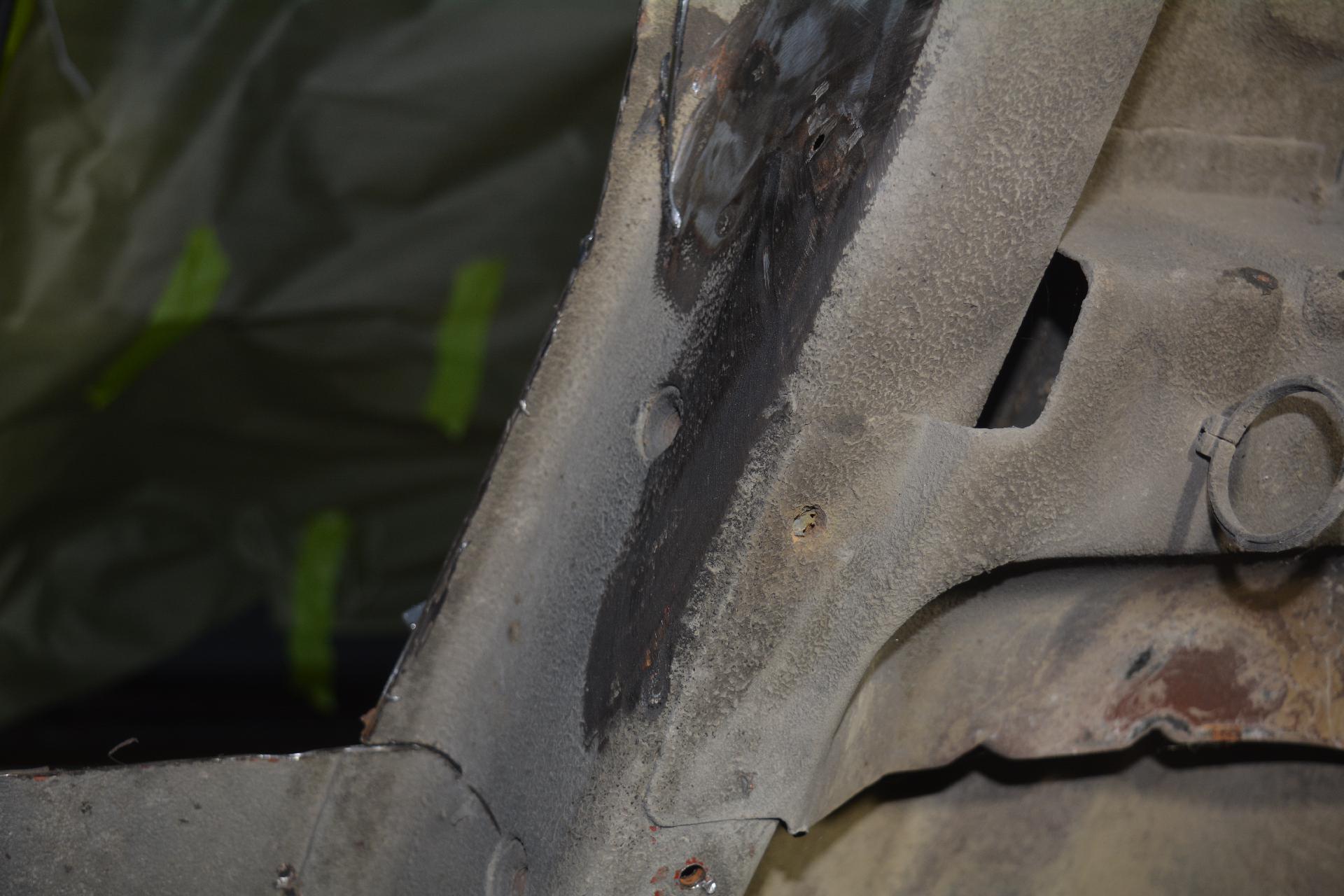

Made a bit of a mess removing this bracket Will need to fix the holes
Brackets removed
ds

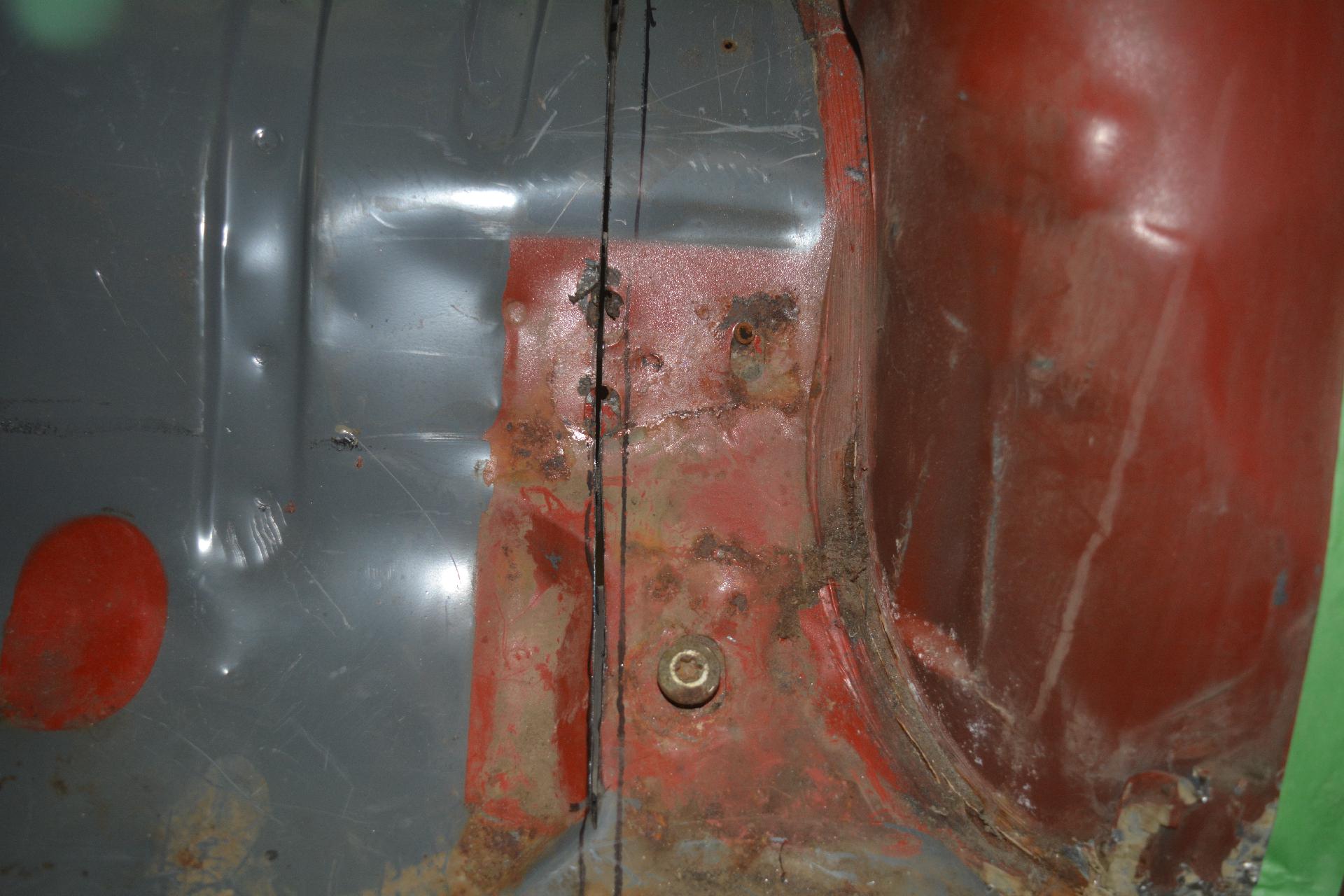

Double checking my 9 inch cut line with all the seam sealer removed

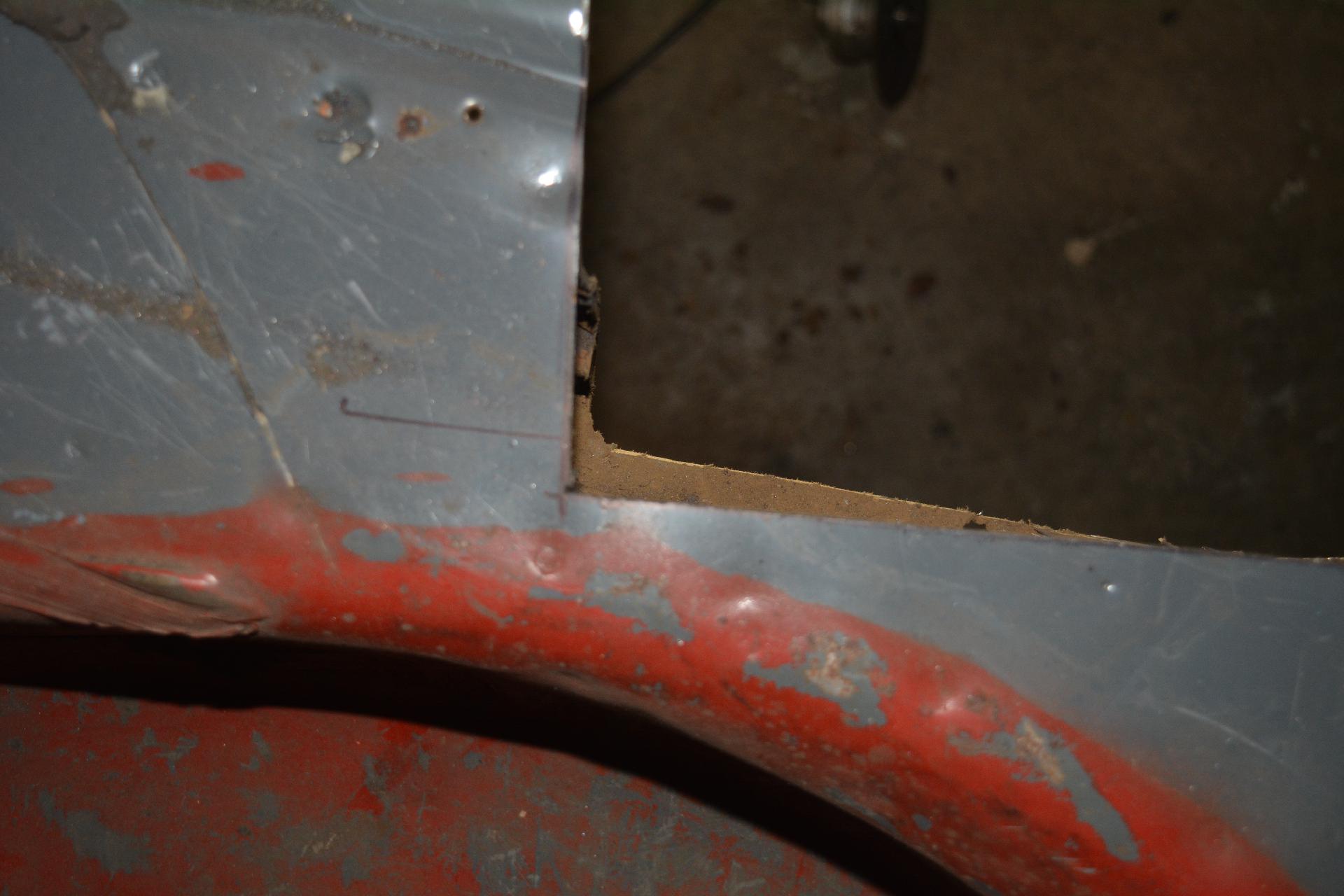

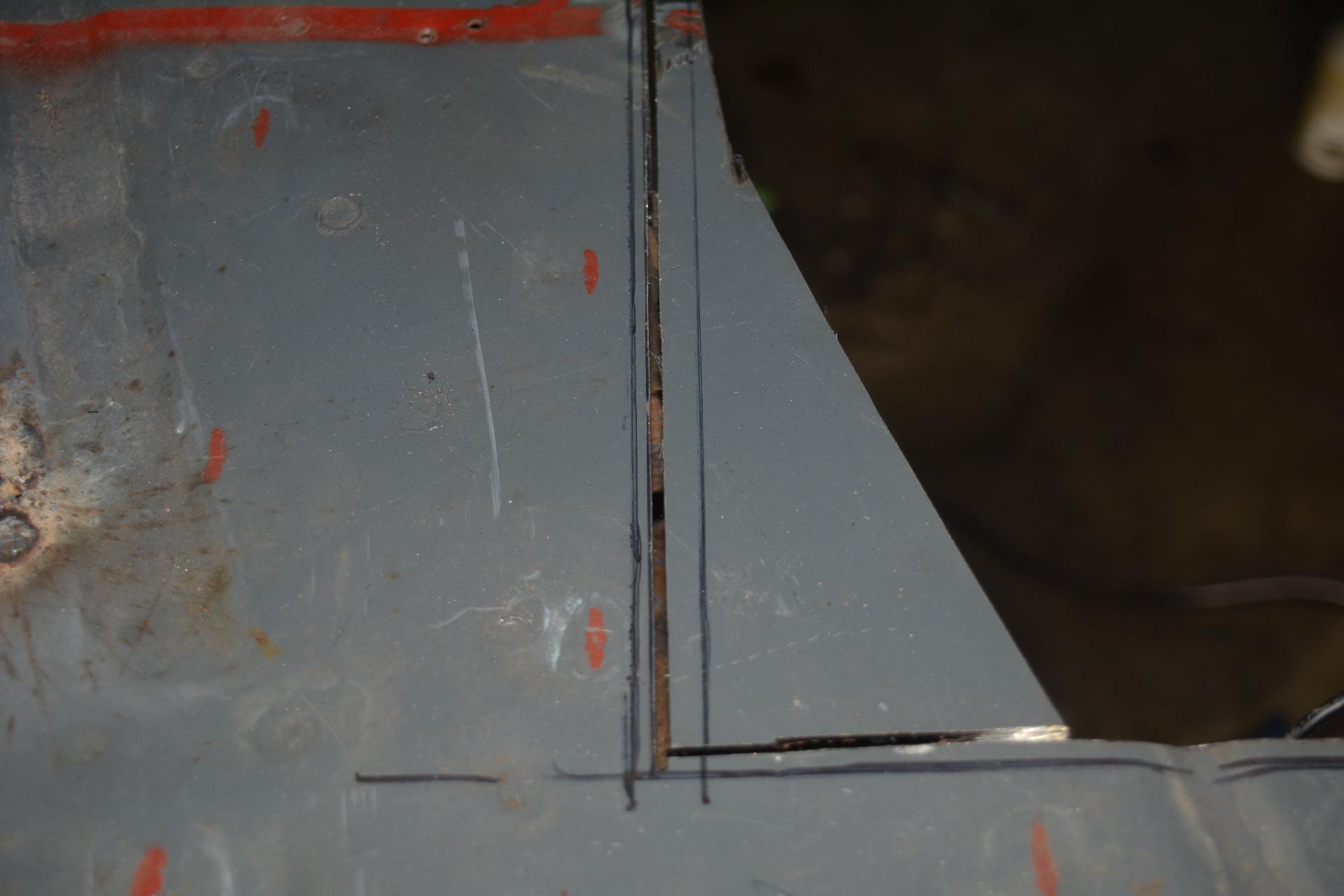

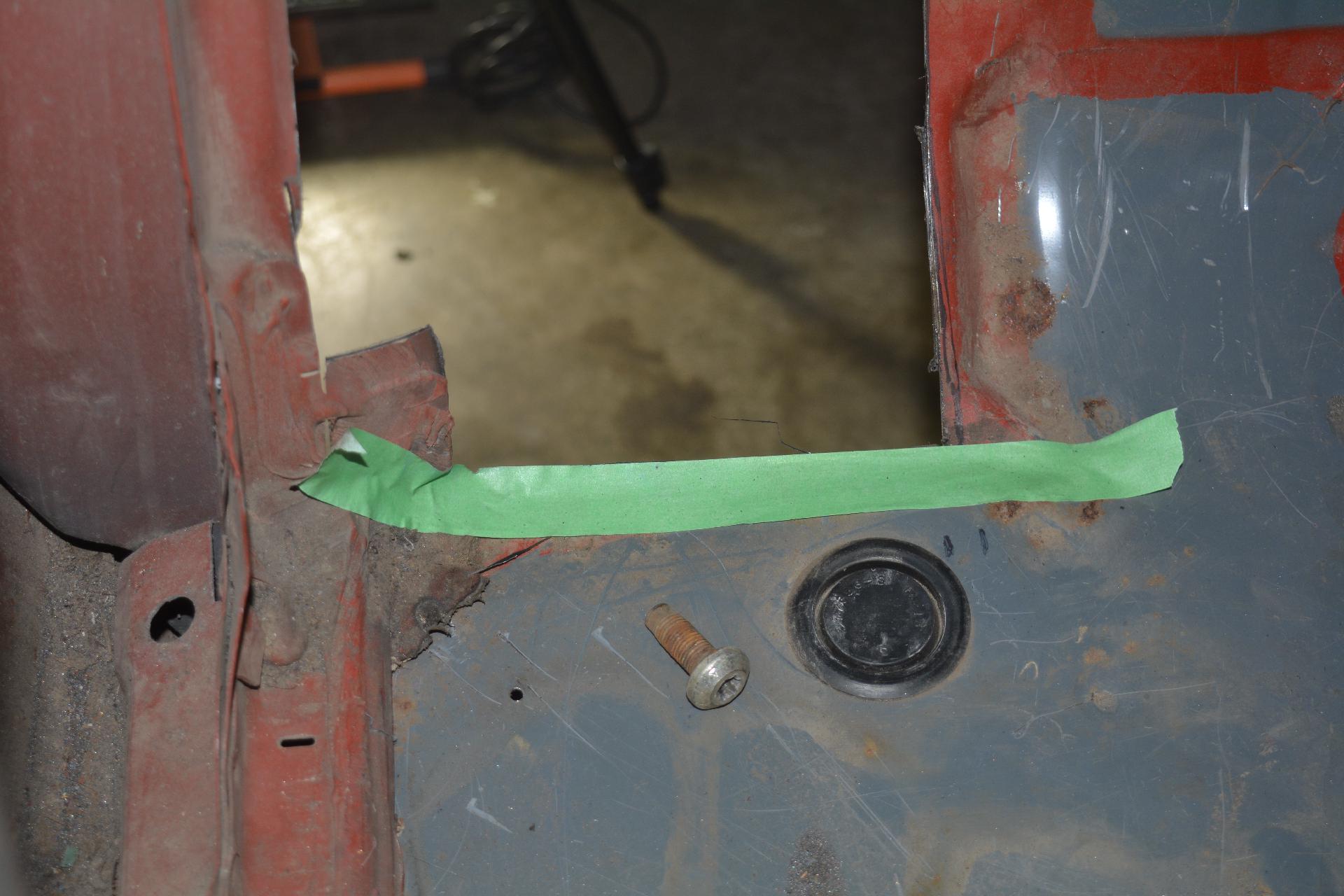

Re did the 9 inch cut line

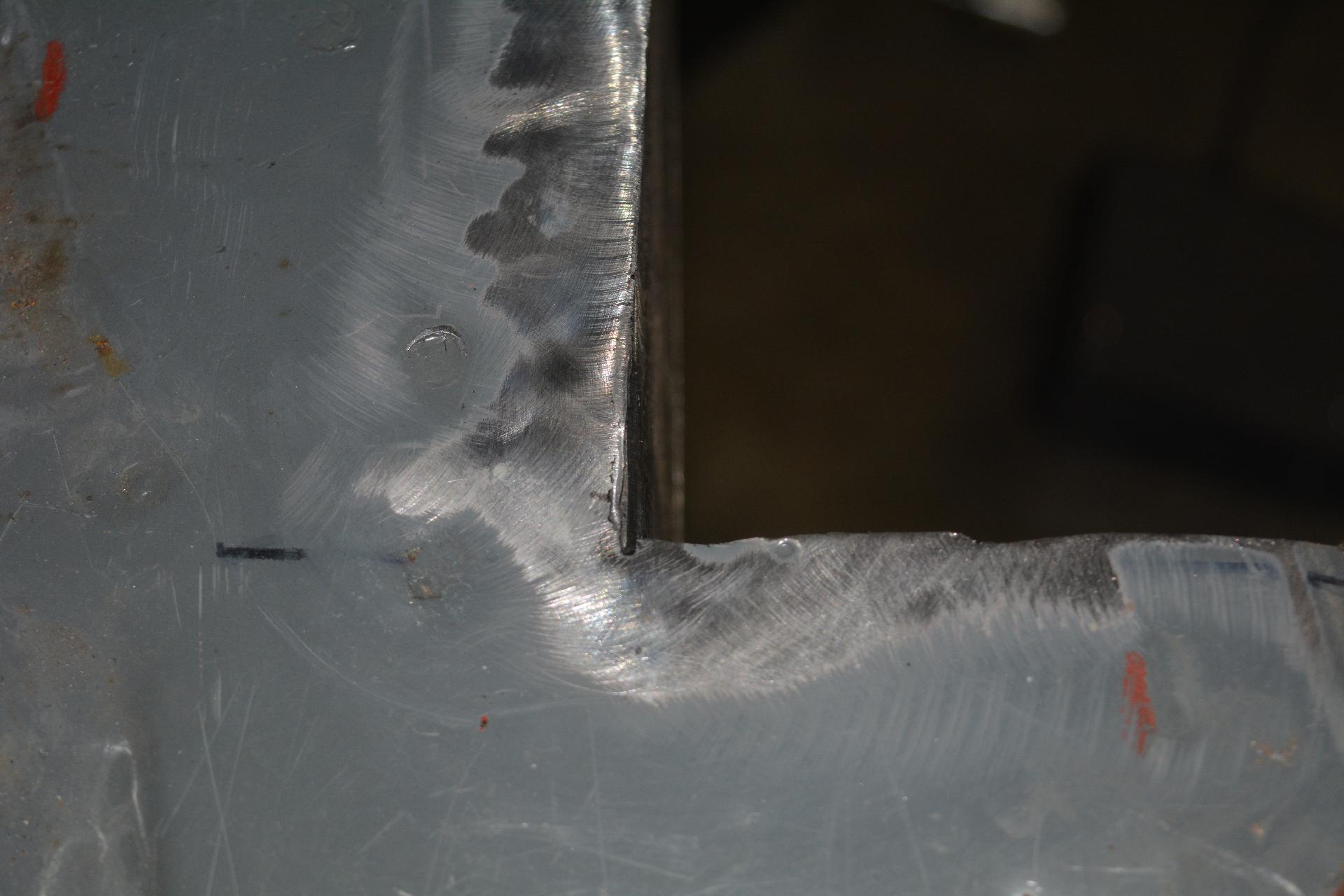

Making a strait cut along the bottom

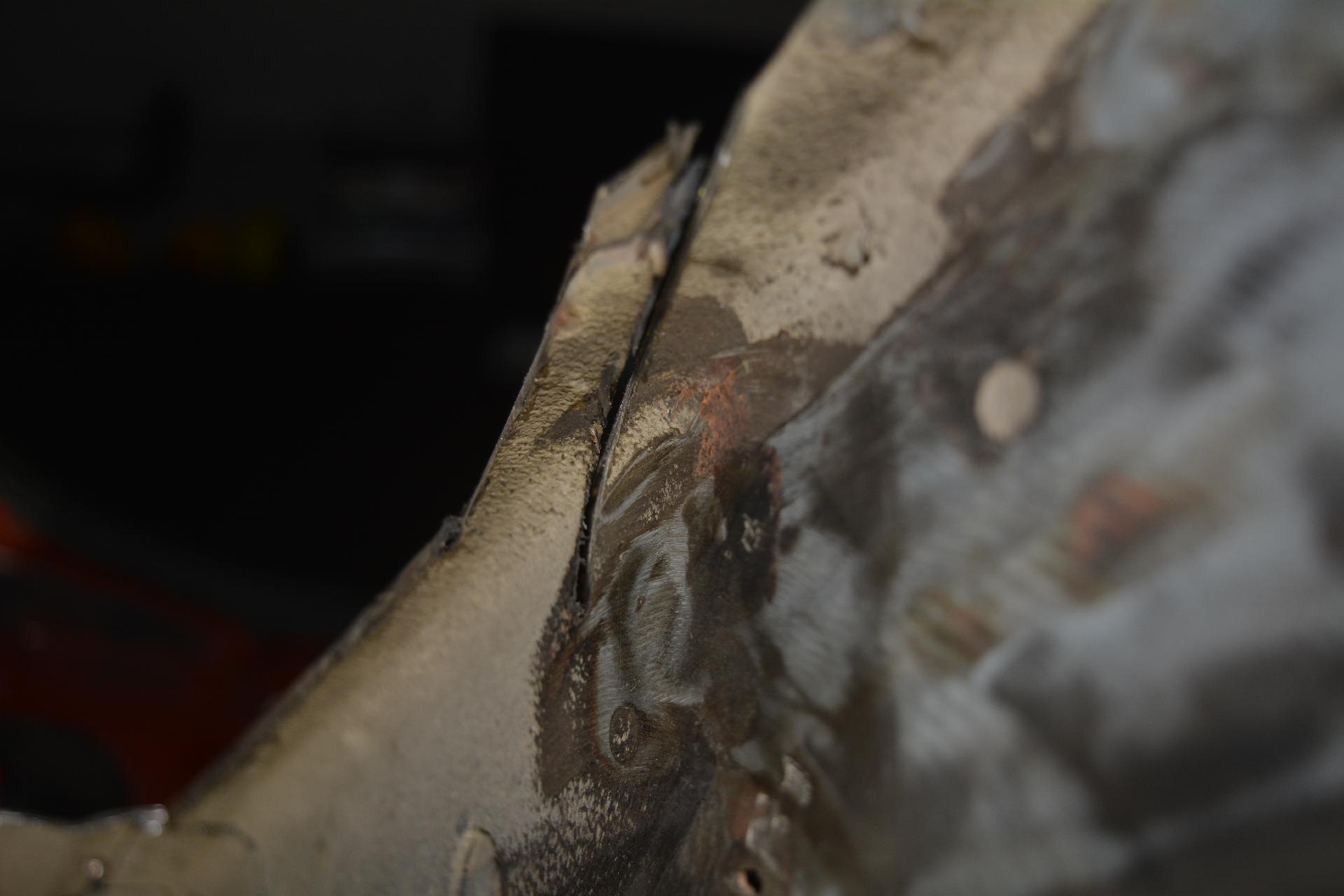

Initial cut into the frame from the top

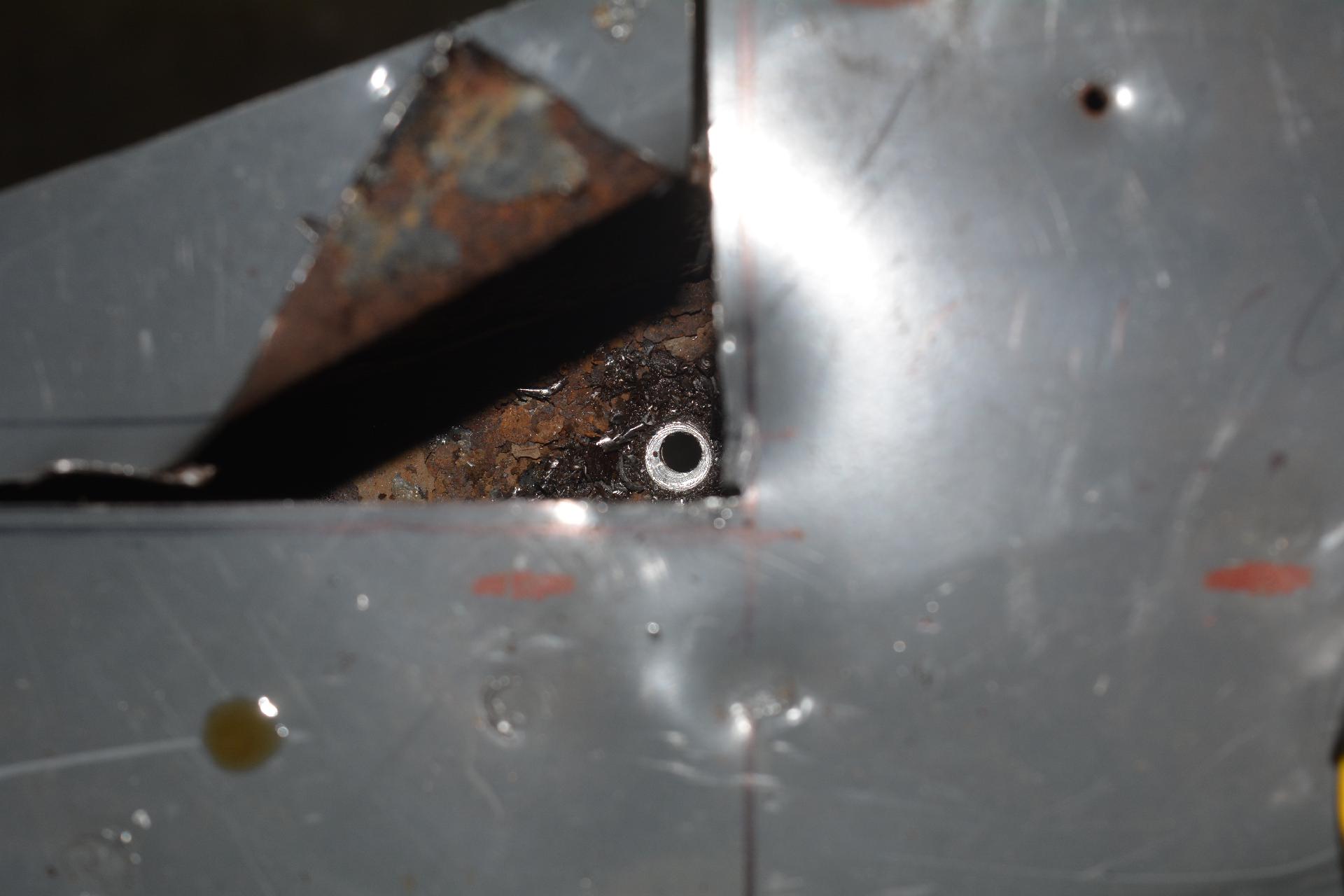

Where the cut starts going int the frame.

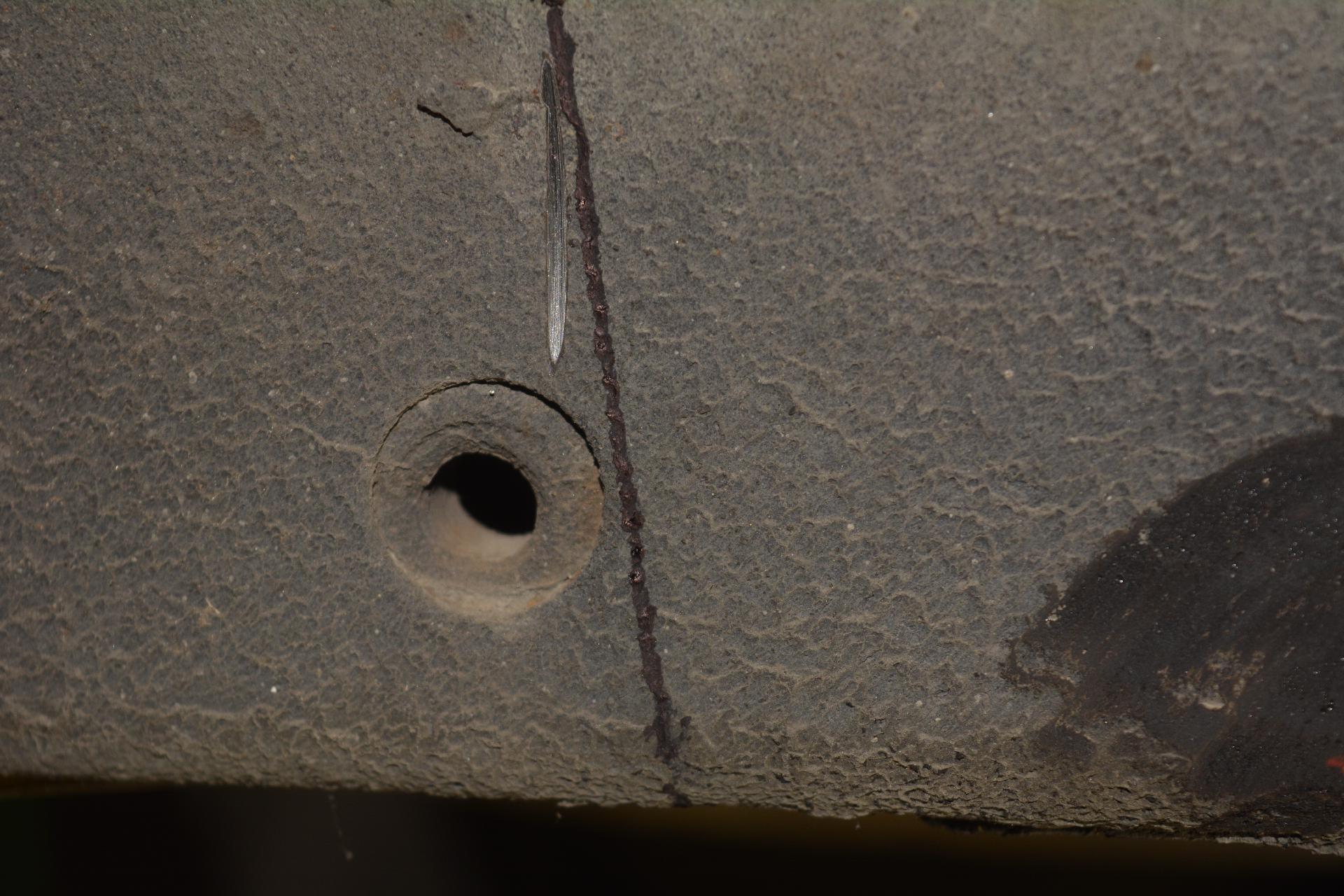

Drilled a hole as strait down as I could to figure out the bottom frame cuts

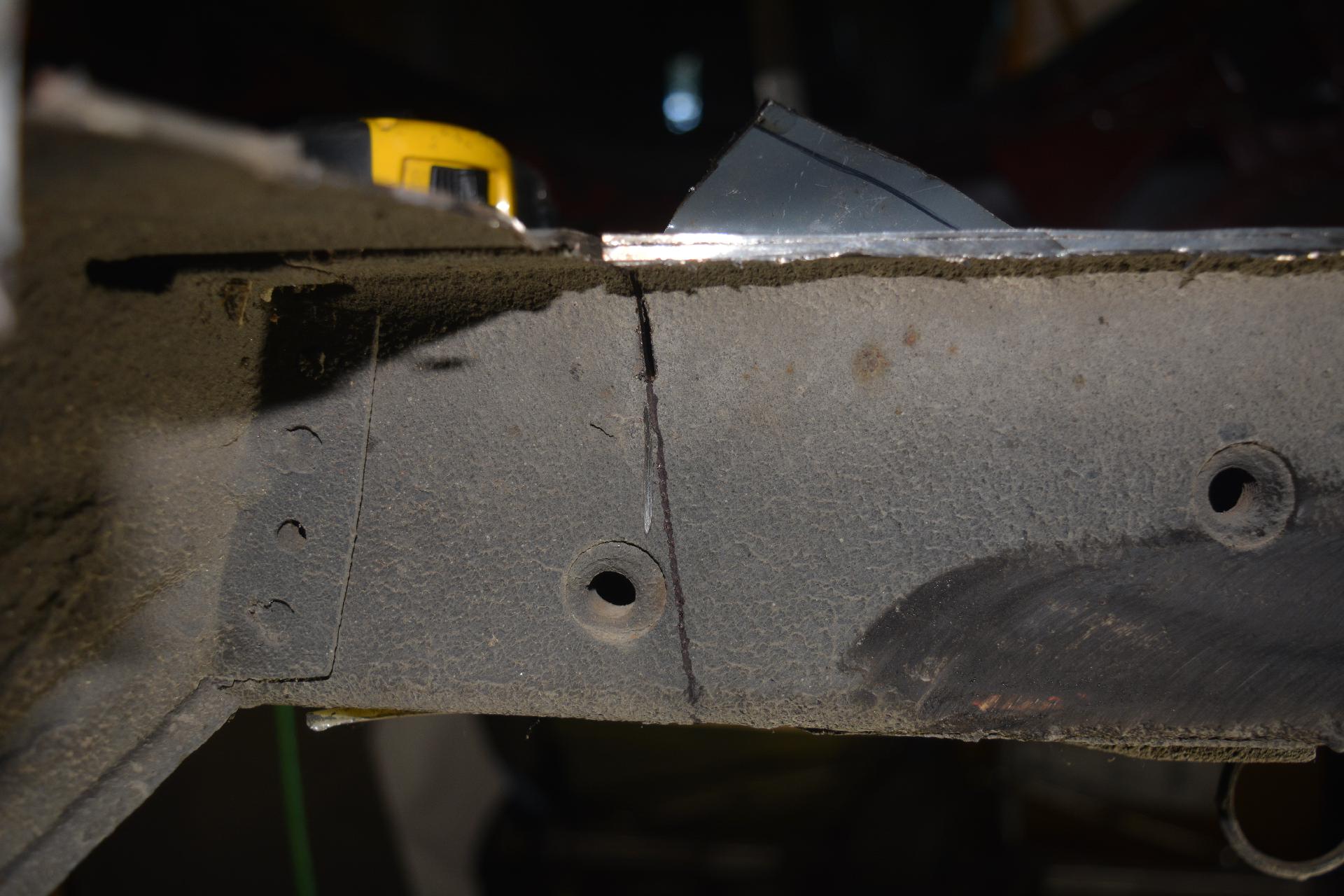

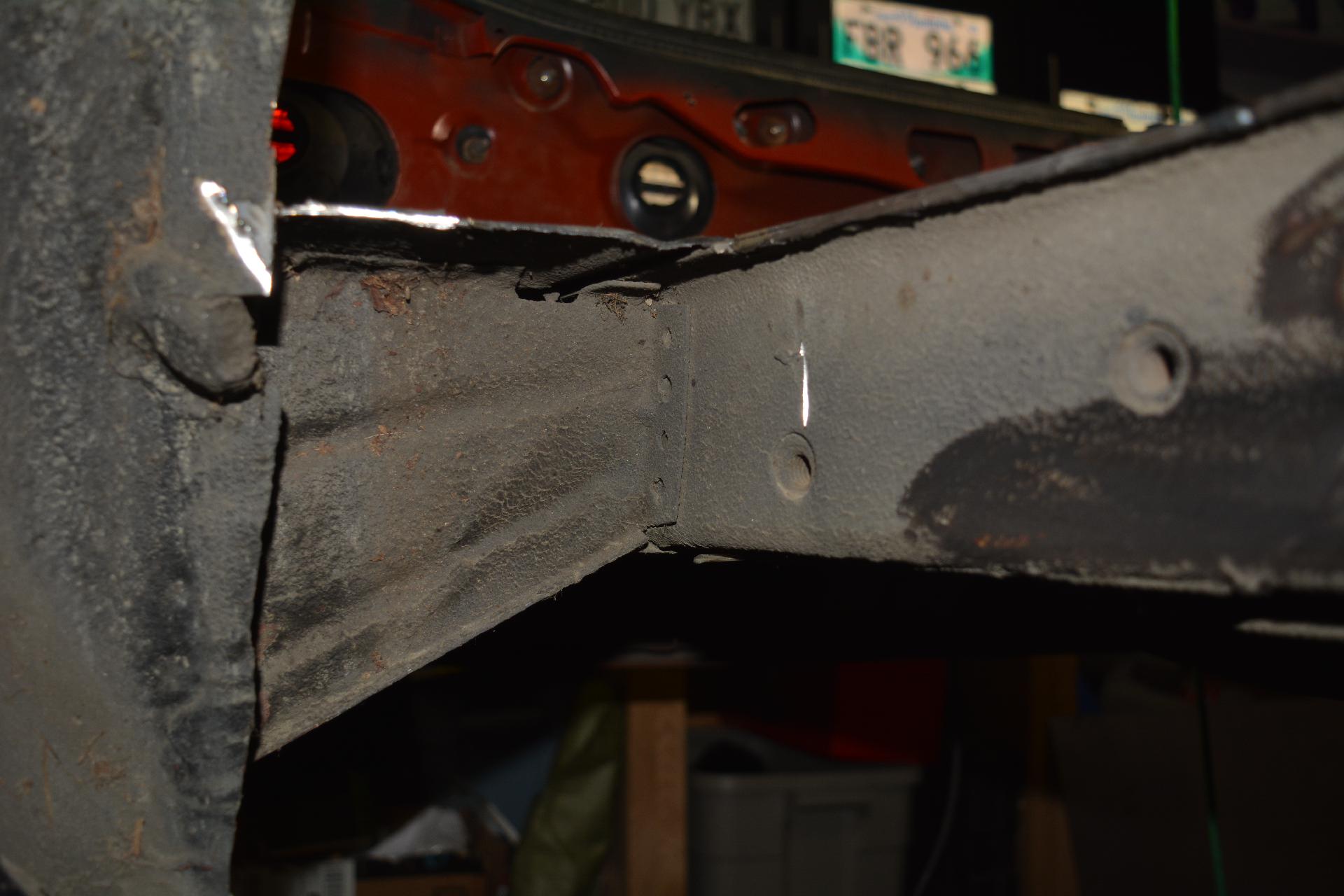

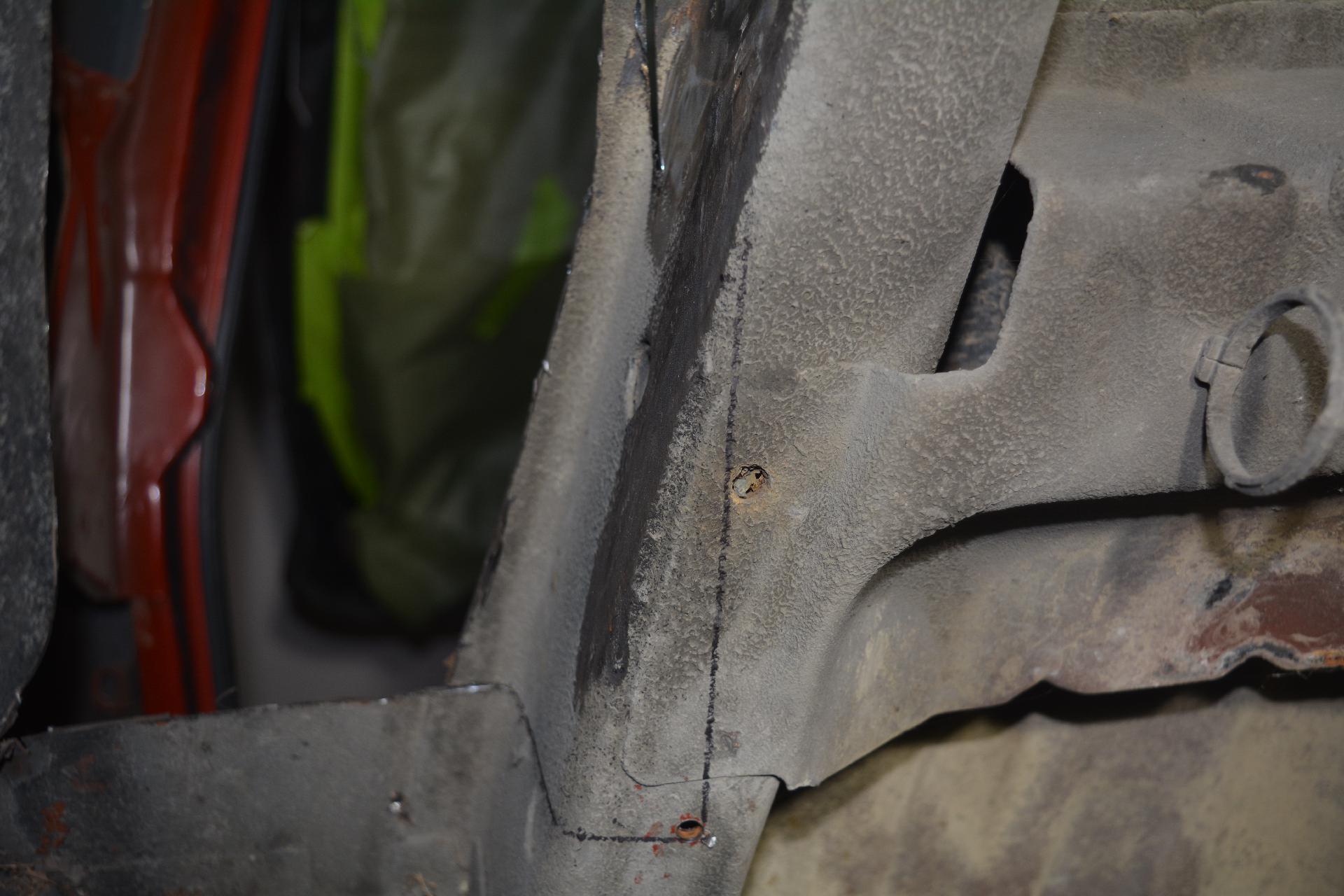

First cut line on the frame
Cut line on the bottom

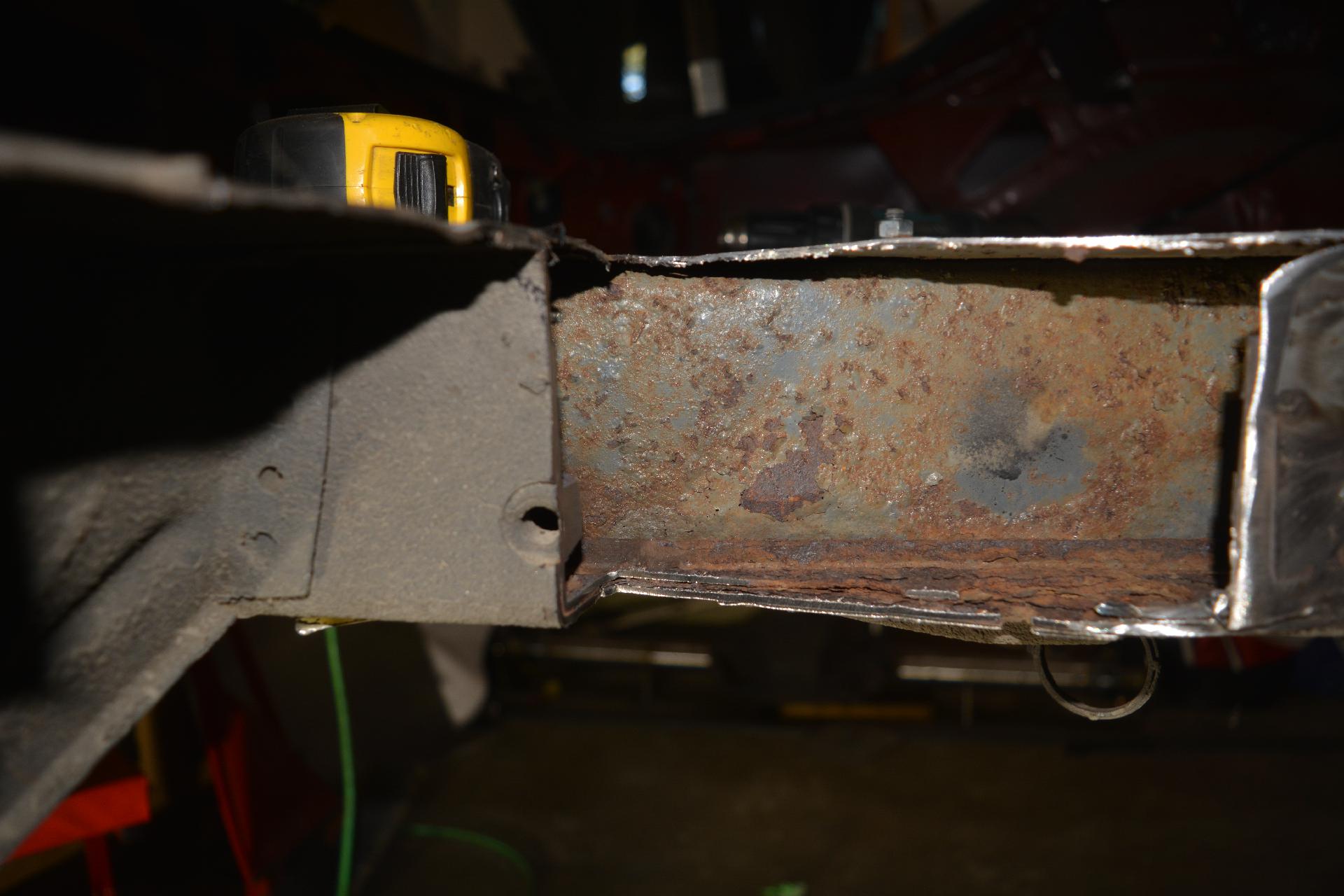

Rough cut of the frame
Looking strait down looks like there is still more needed to be cut back
Running a strait edge down this time
Much nicer
Looks better from the top too

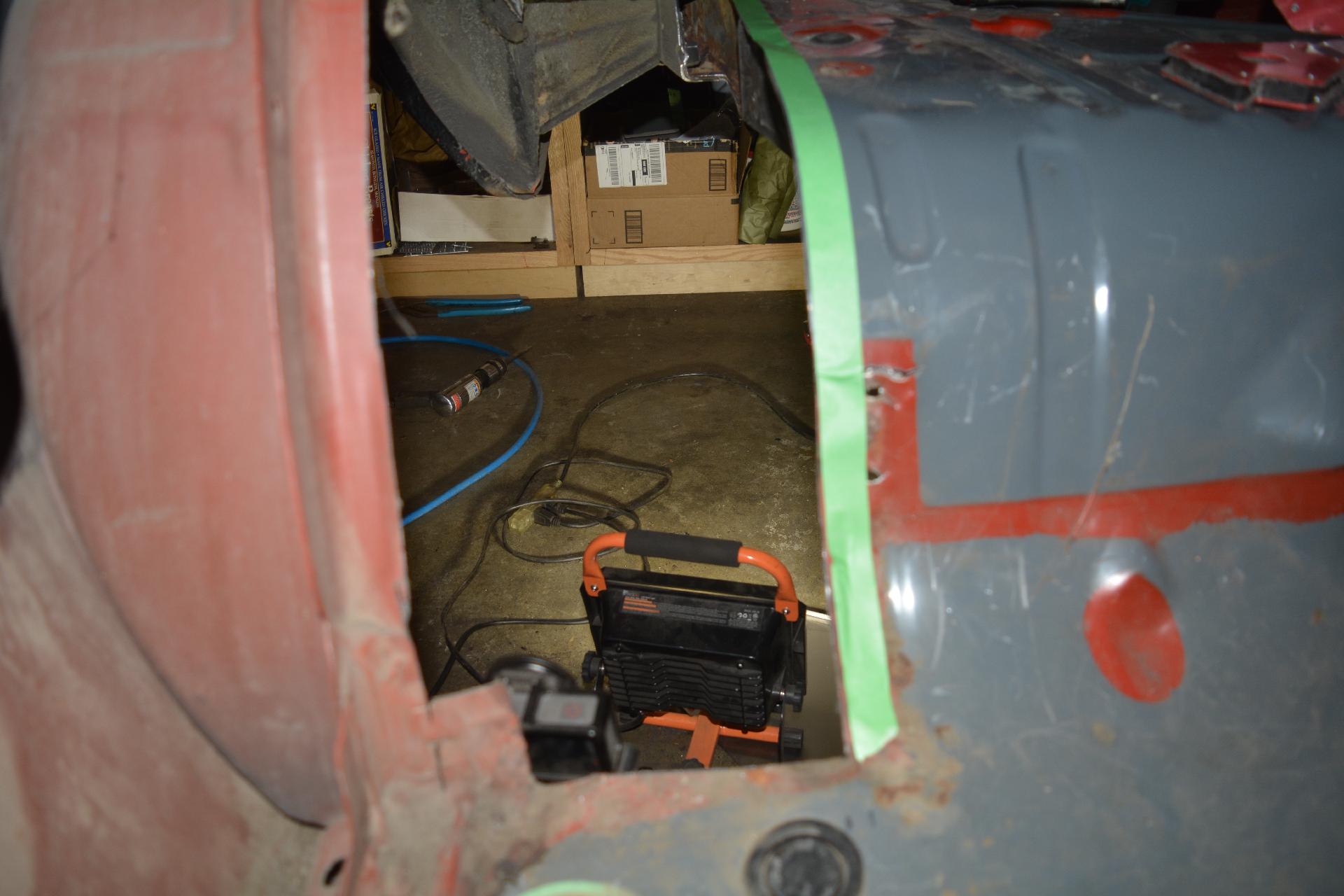

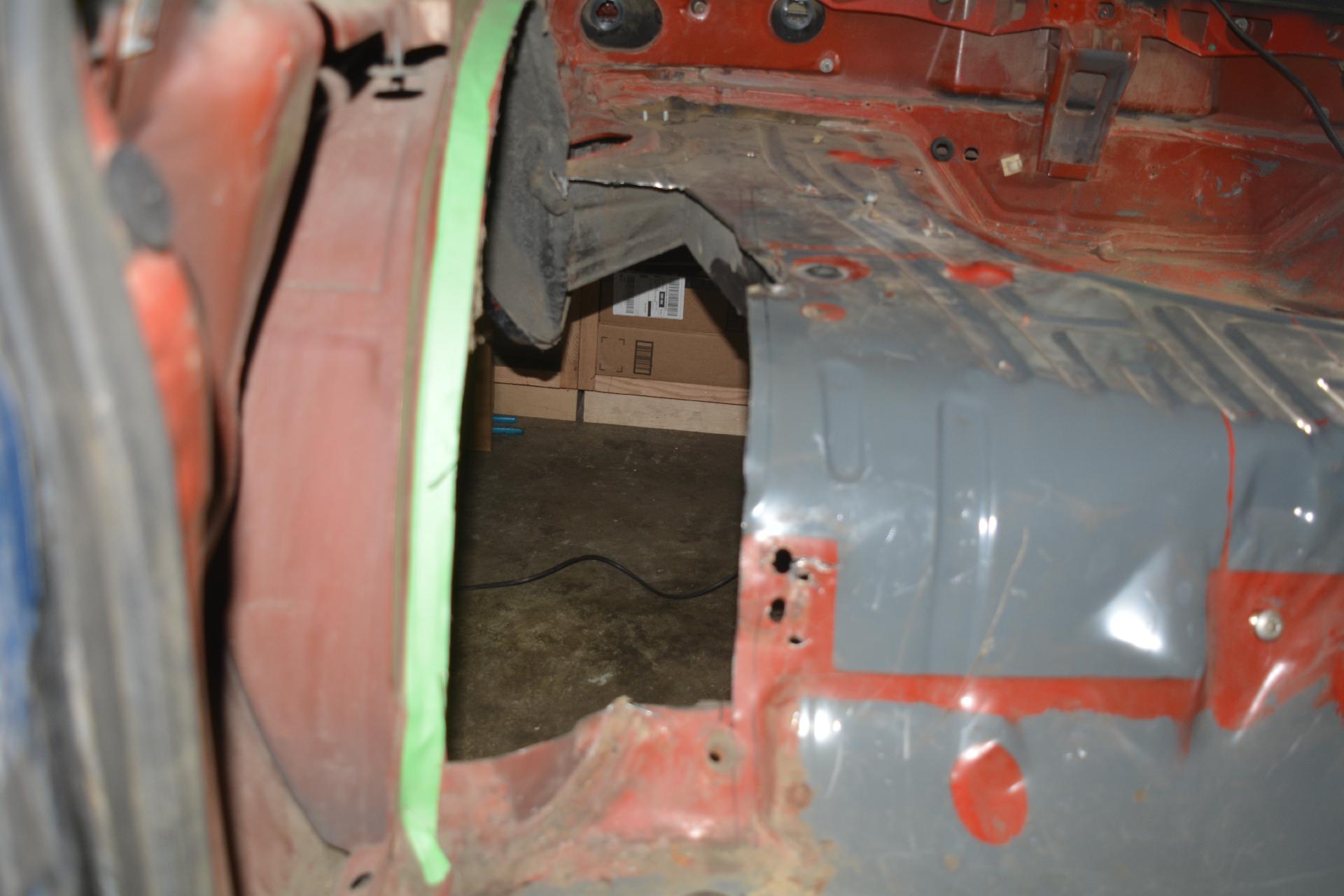

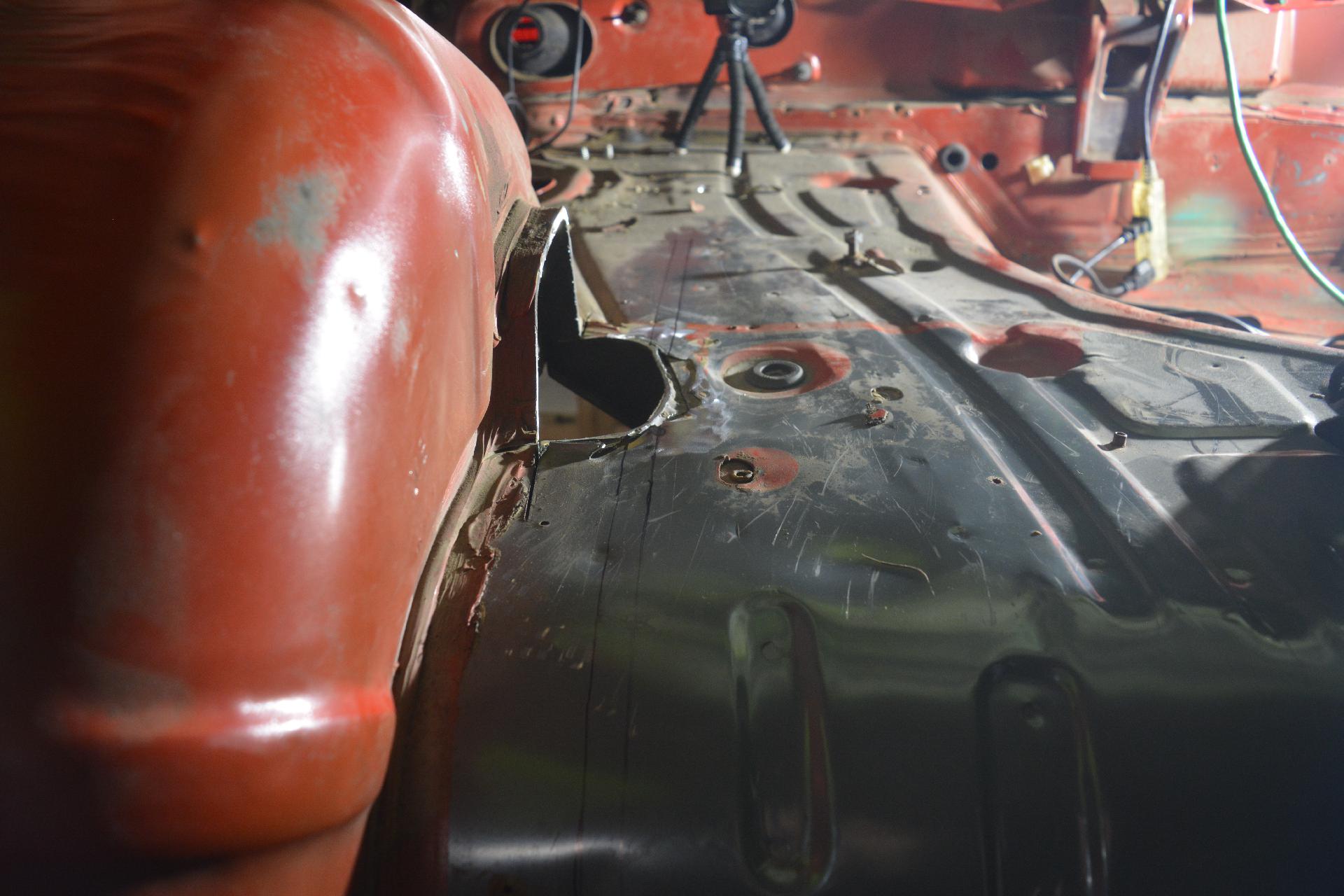

All the metal cut out

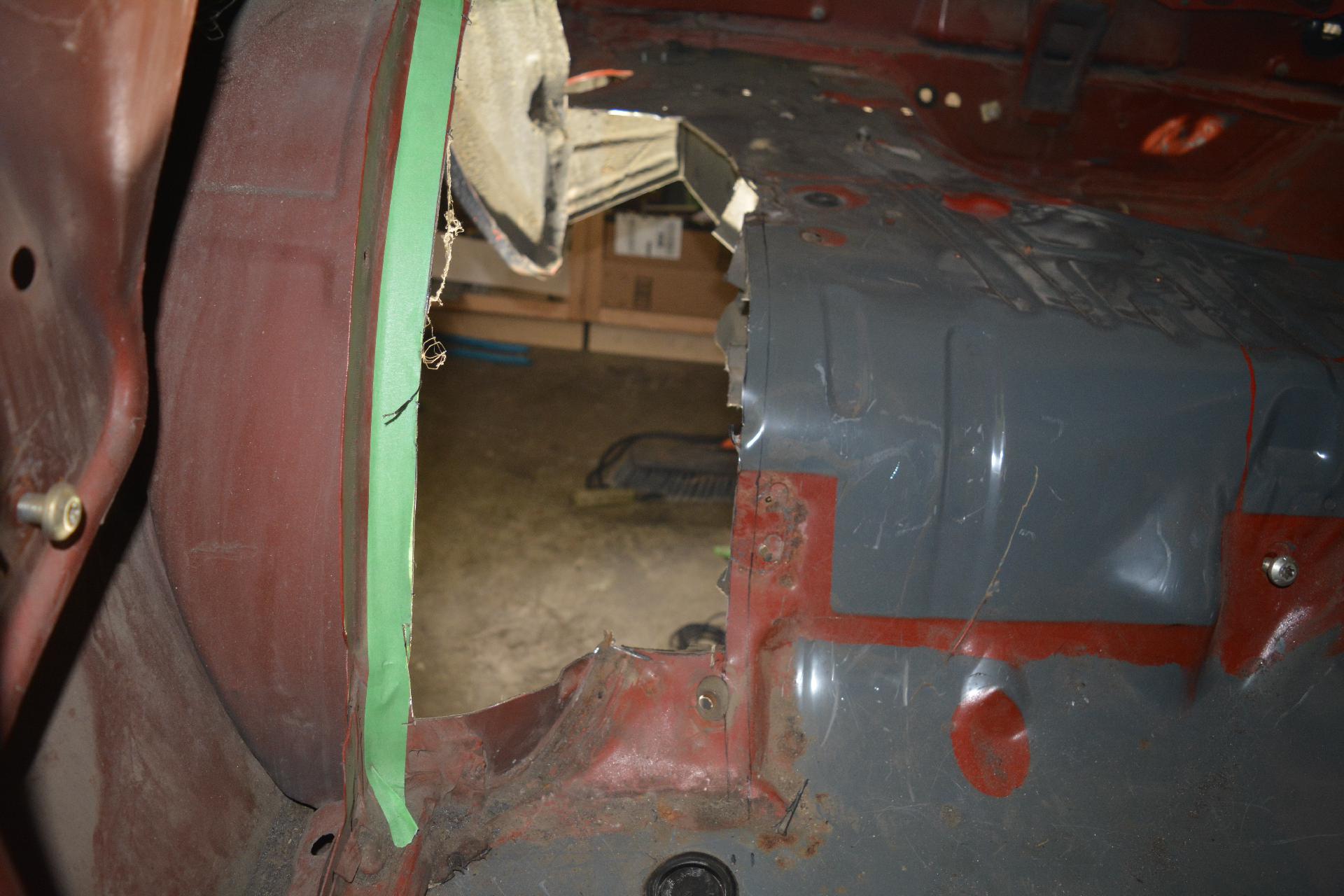

figuring out tub placement

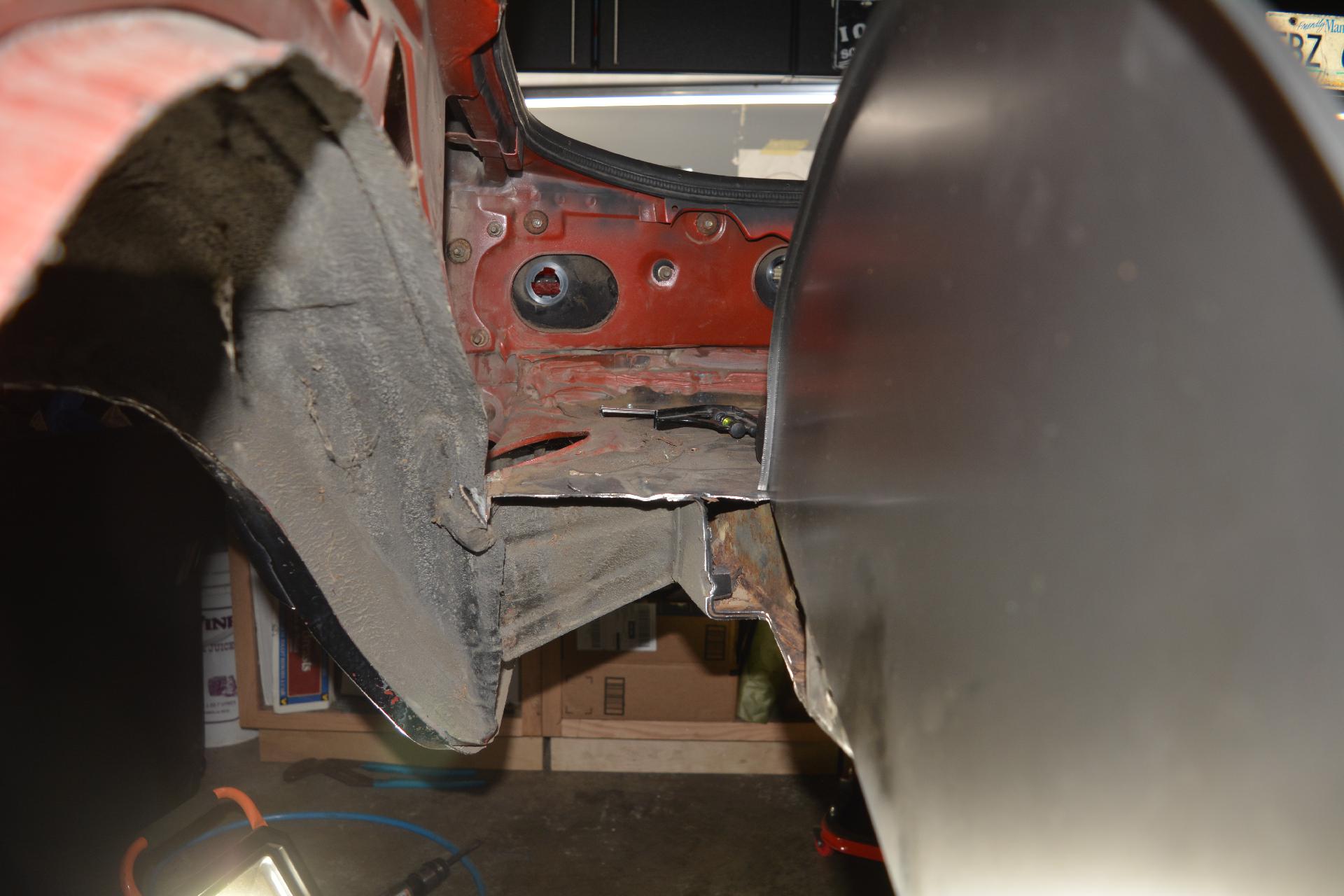

sits a lot higher than the original

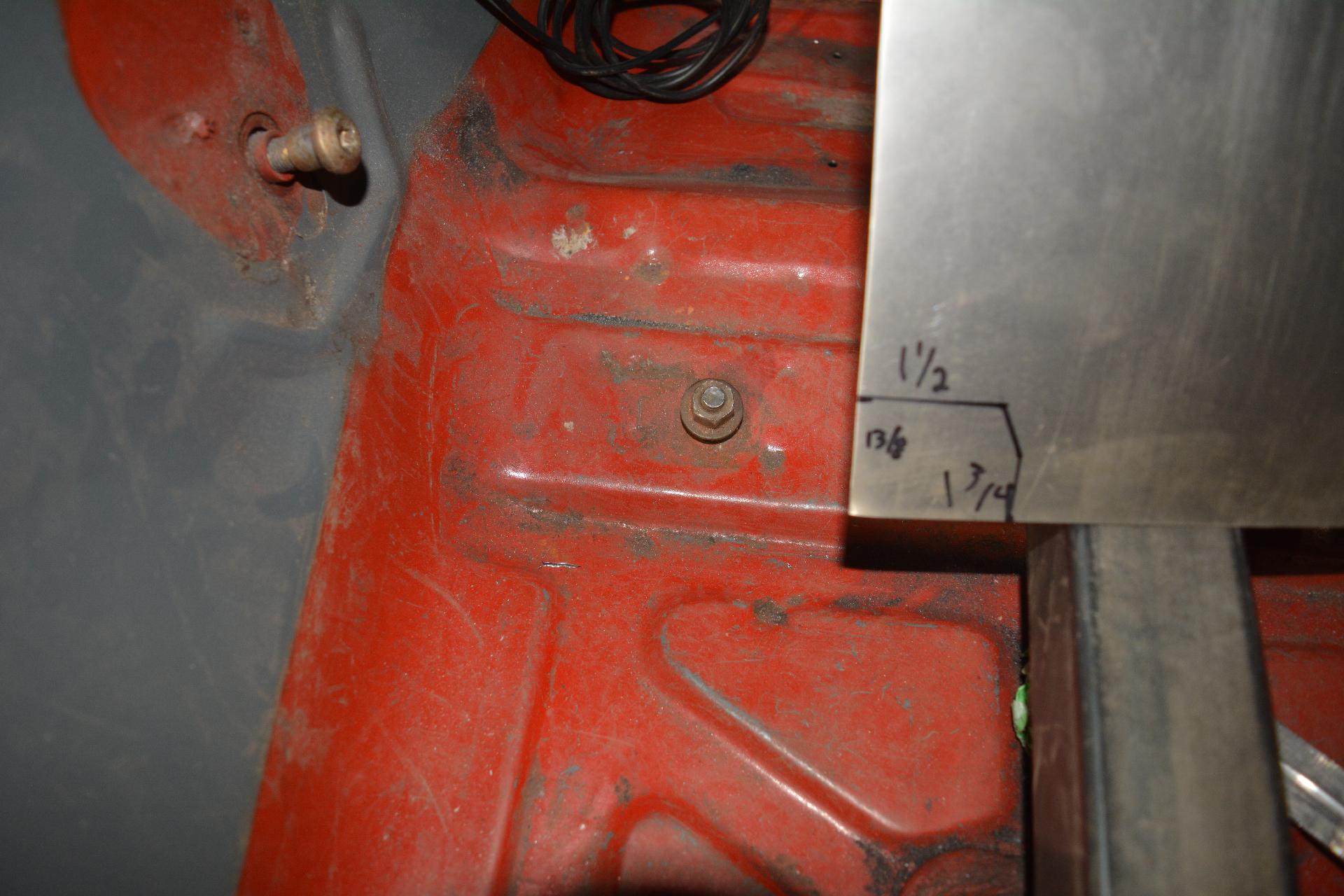

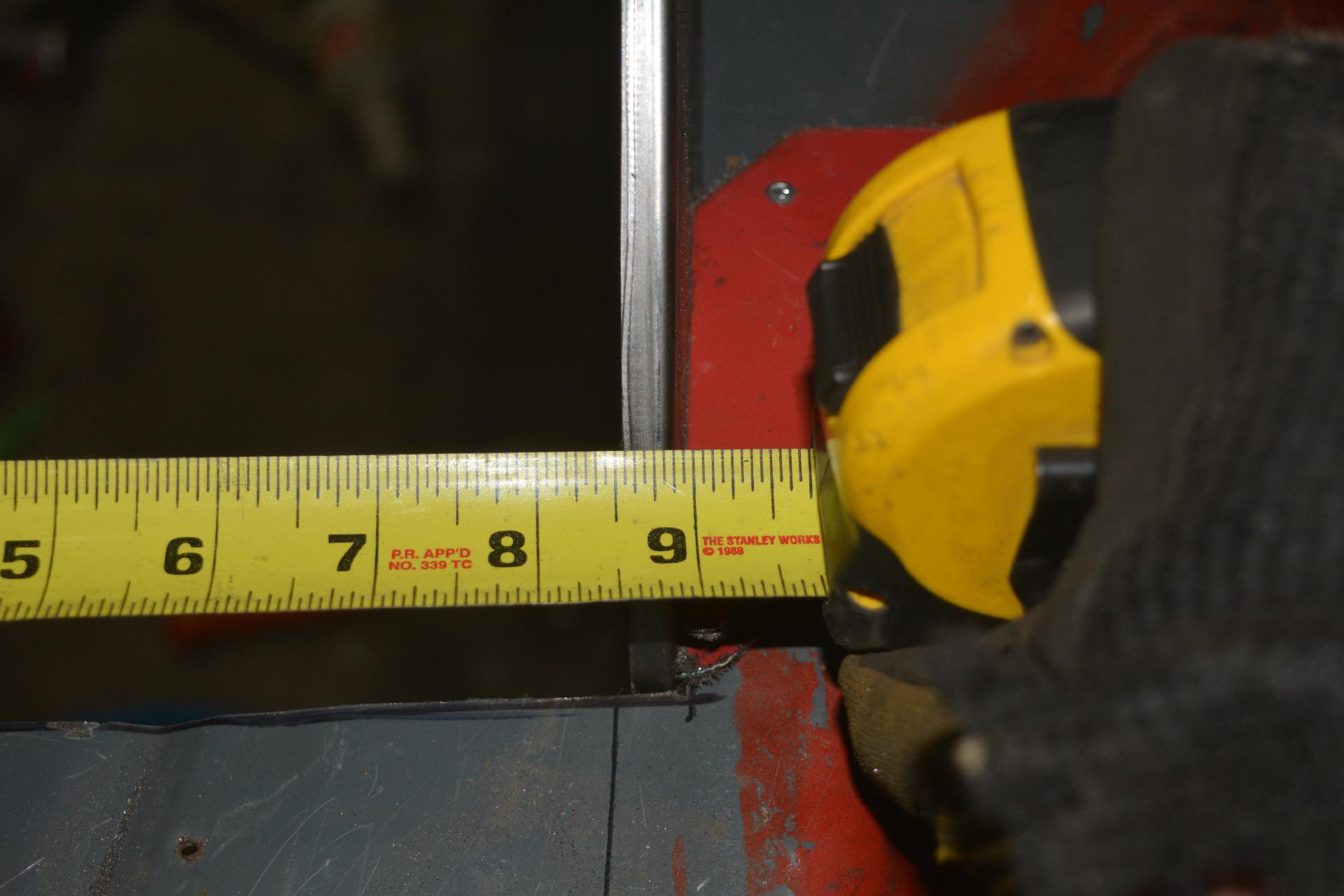

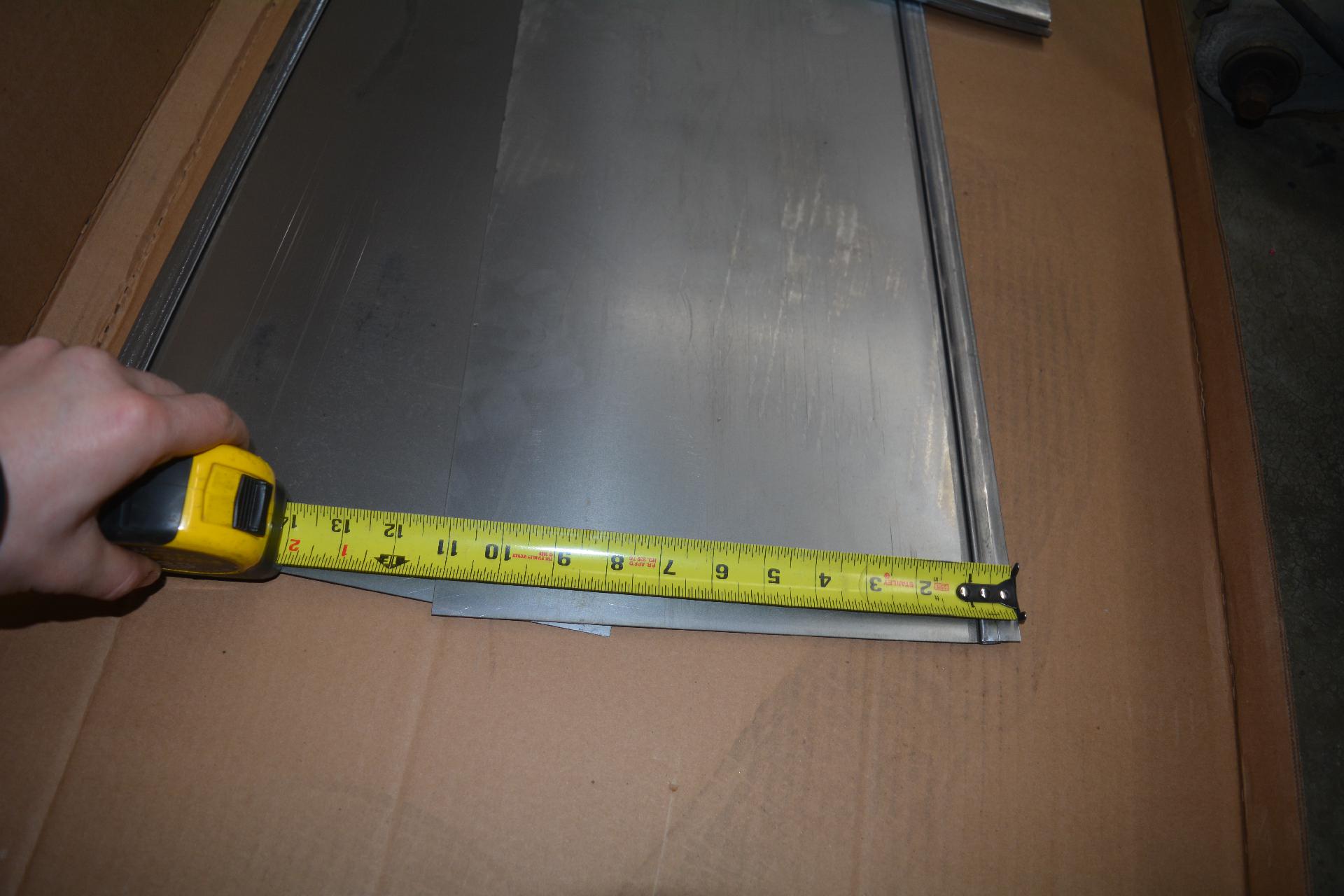

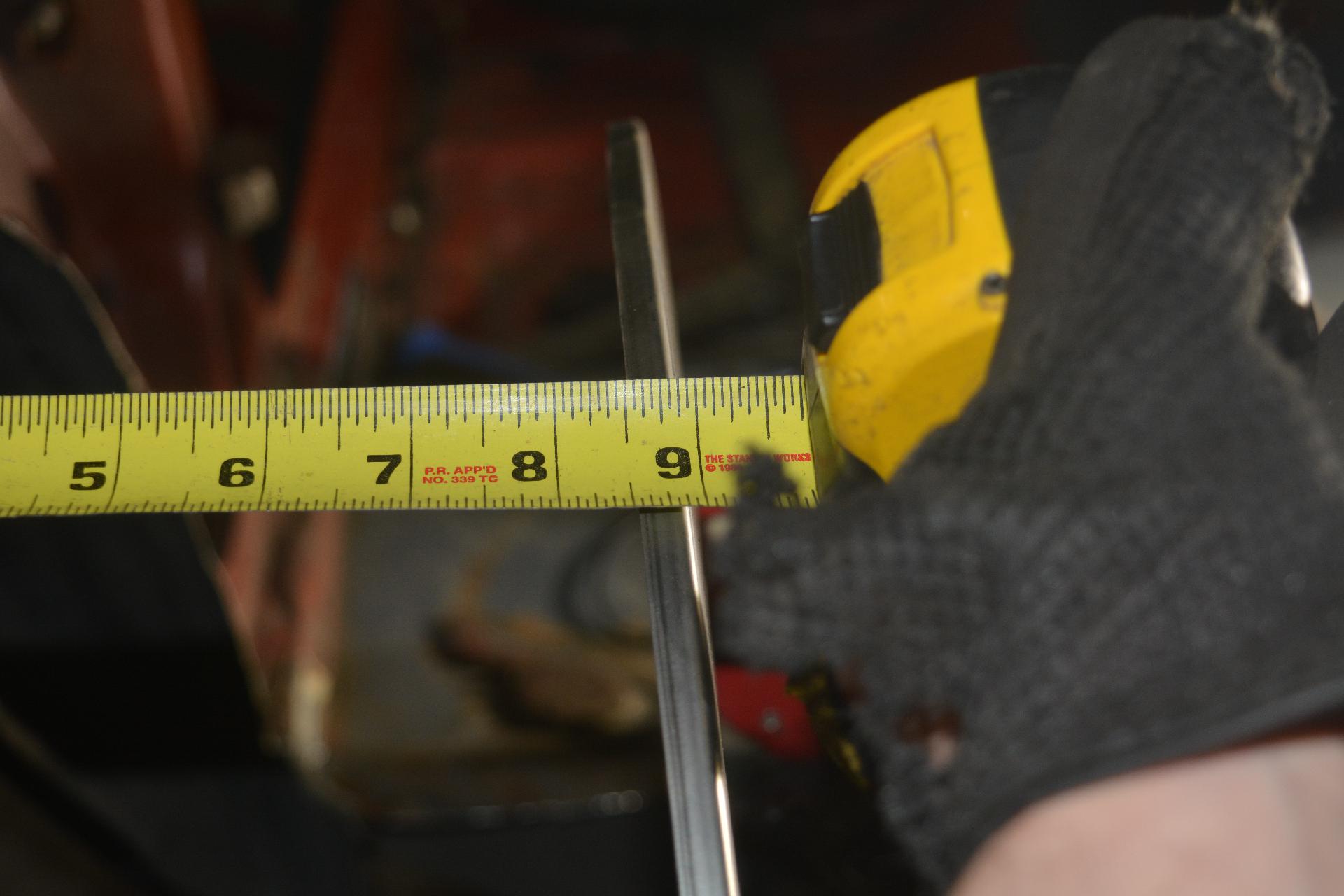

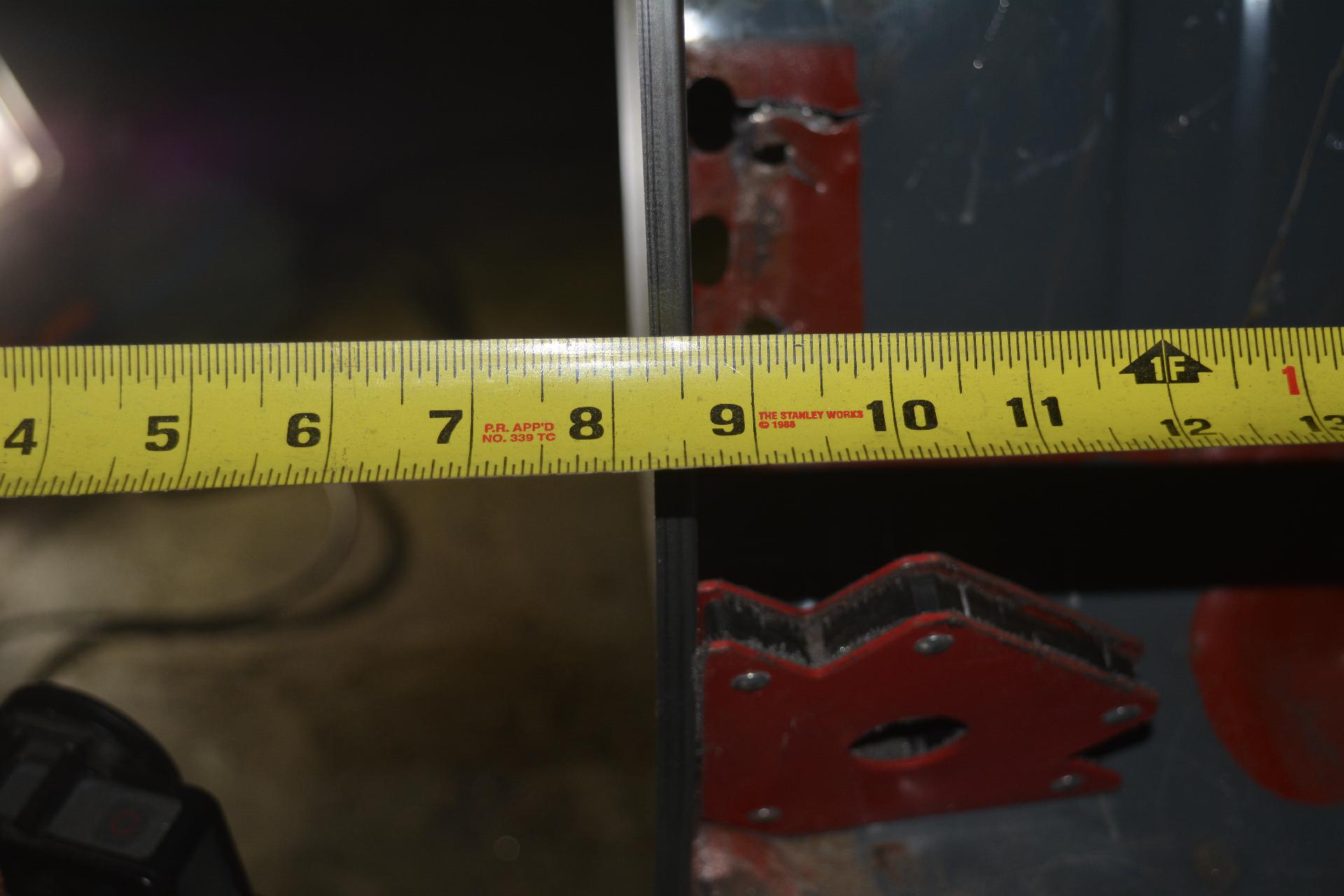

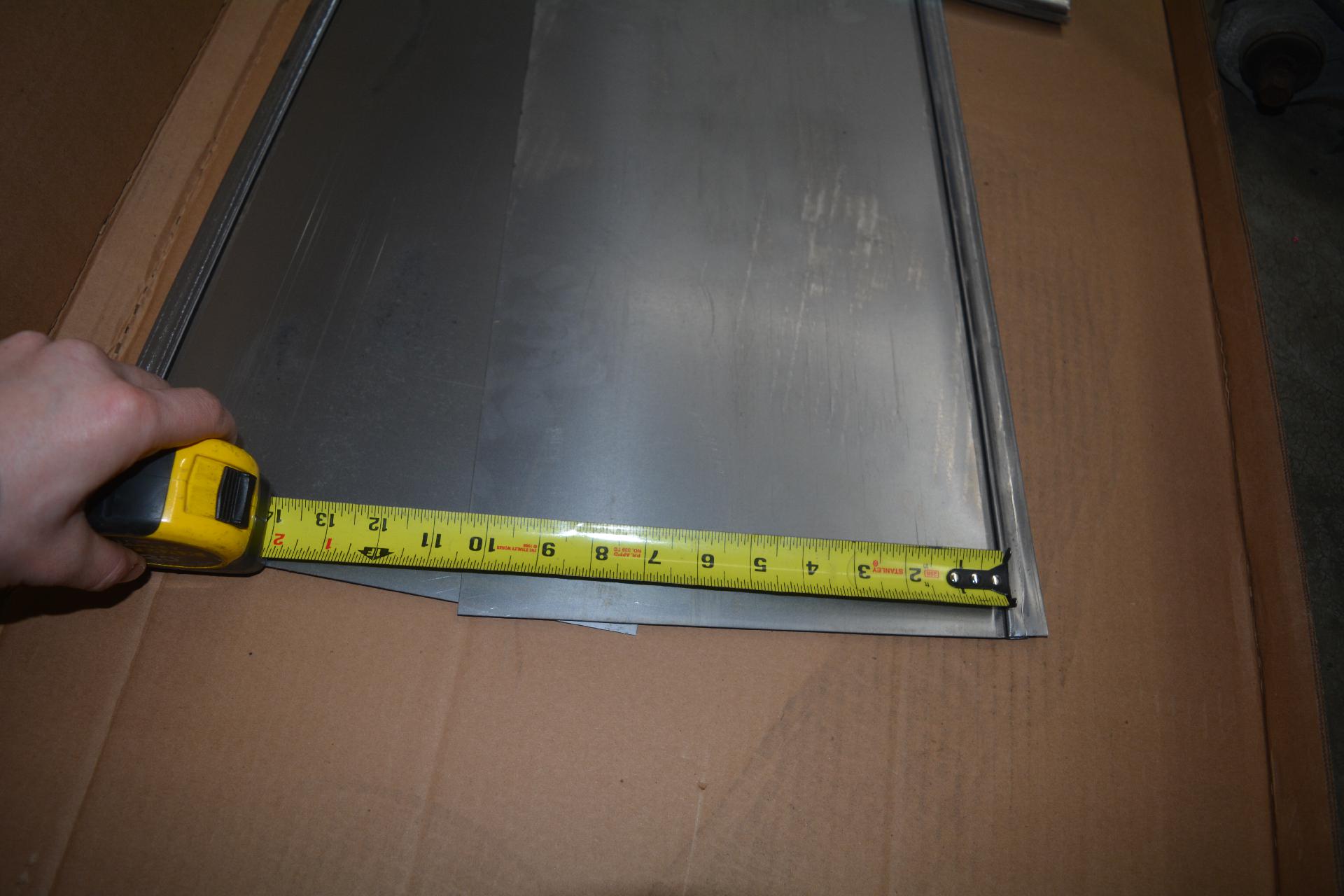

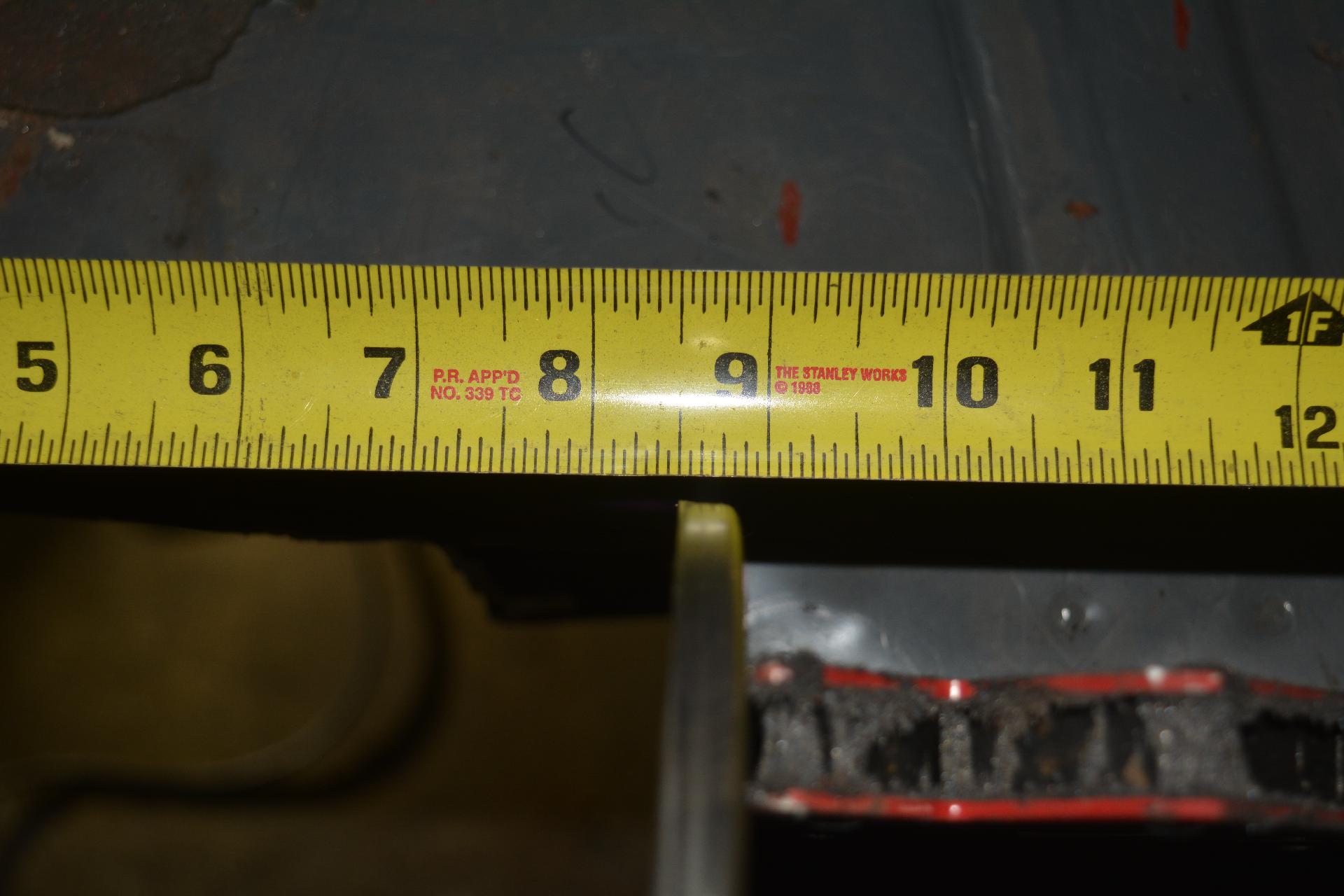

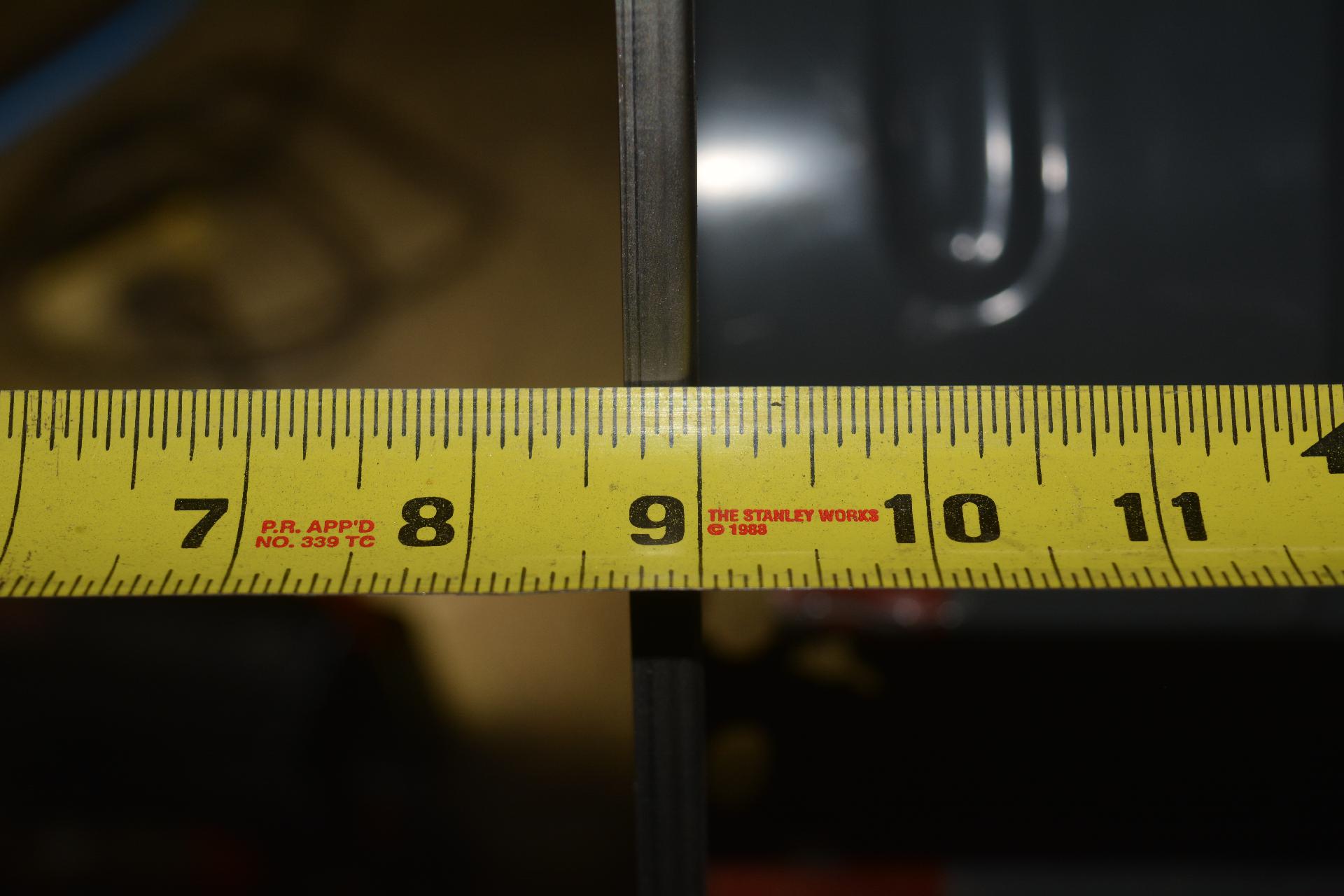

Measuring the width at both ends

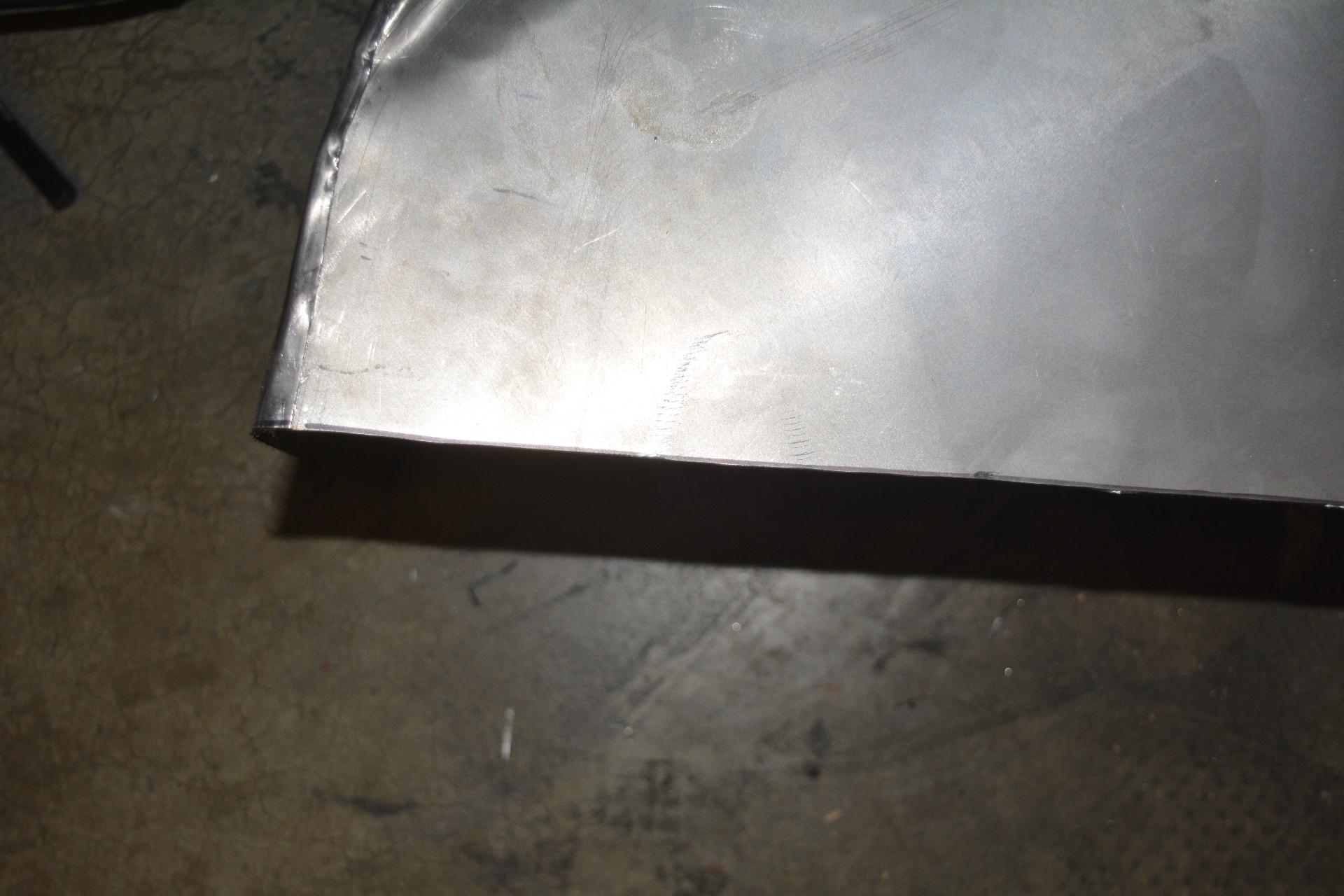

trimming the bottom a bit more

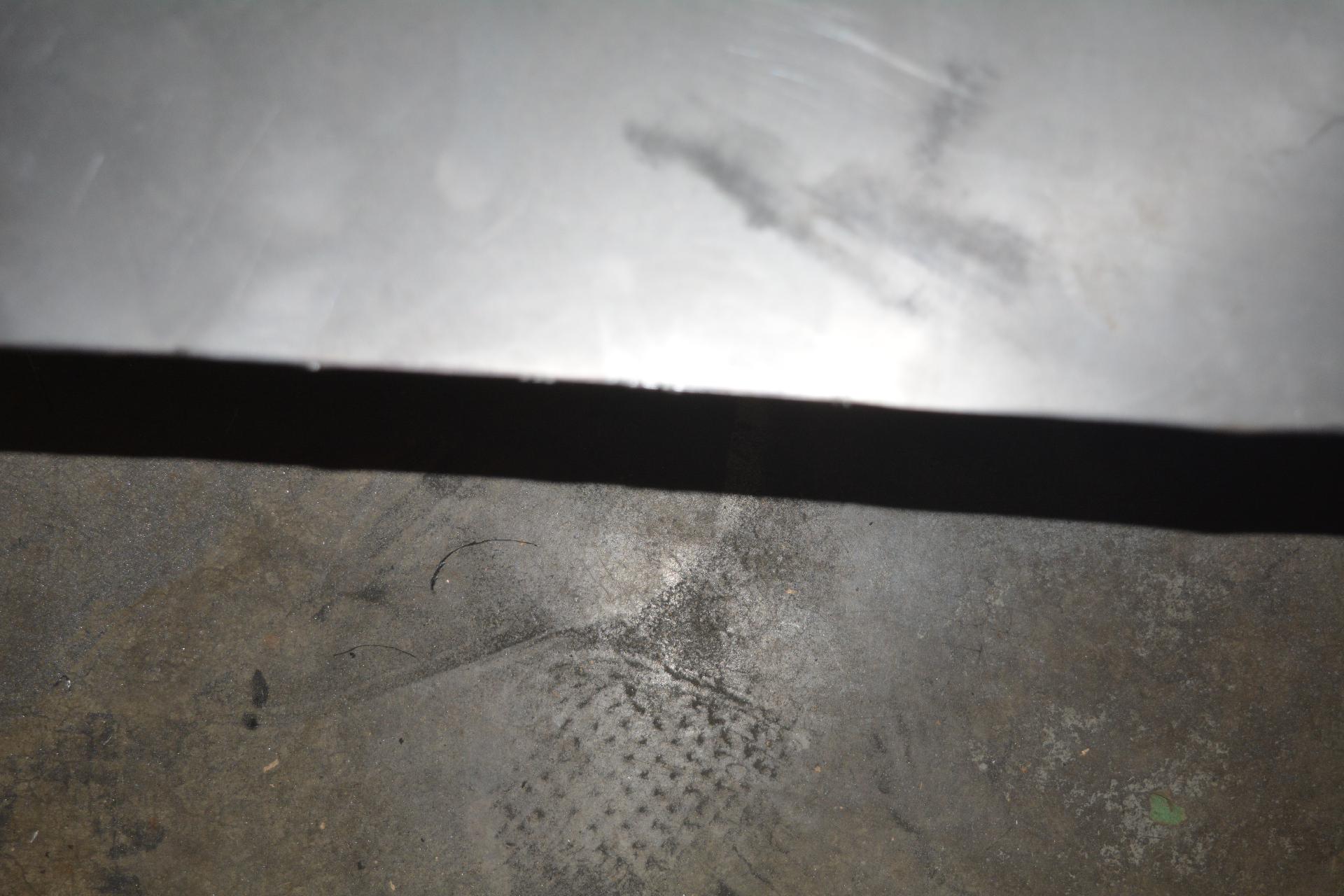

measurements are better this time

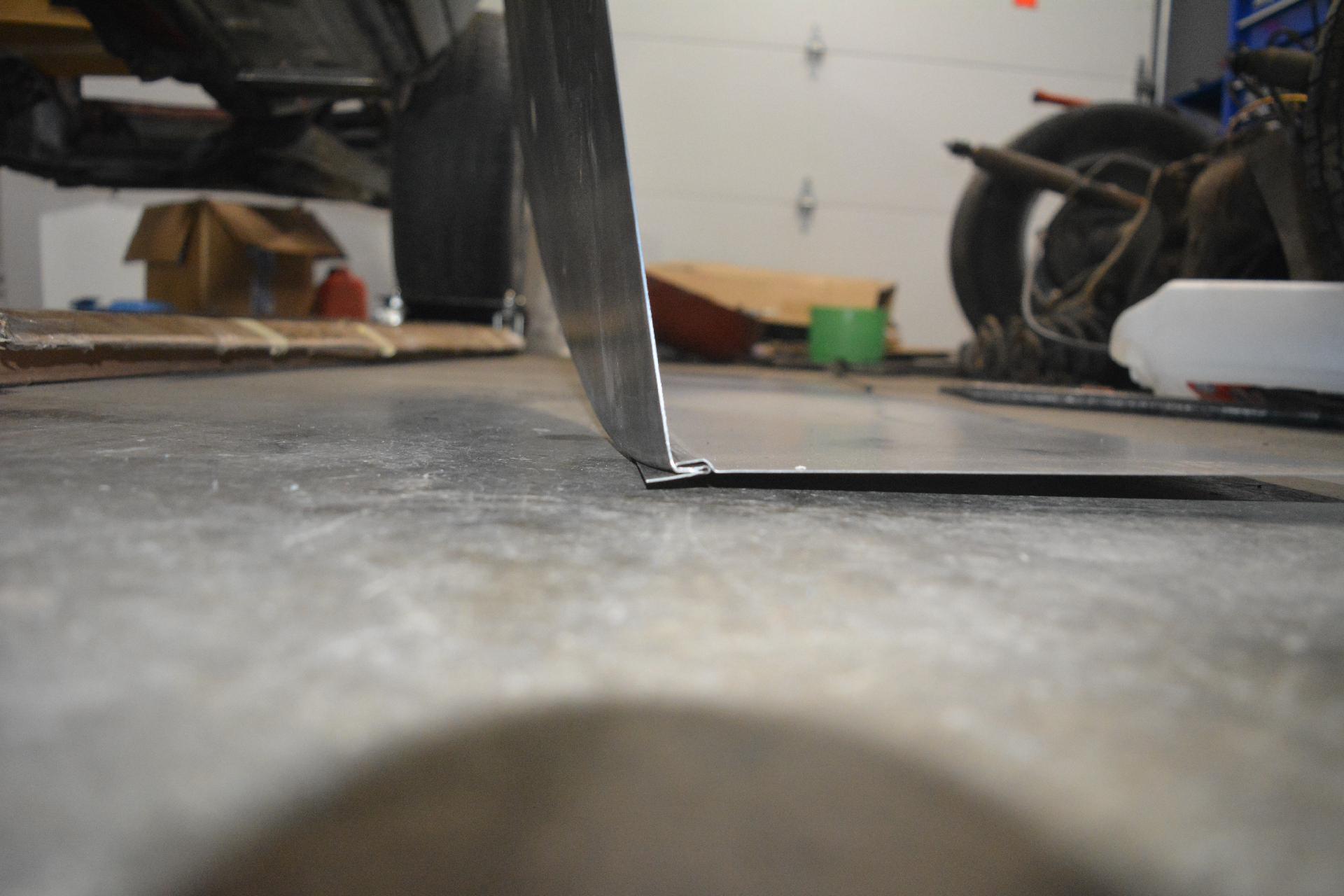

How the tub fits together

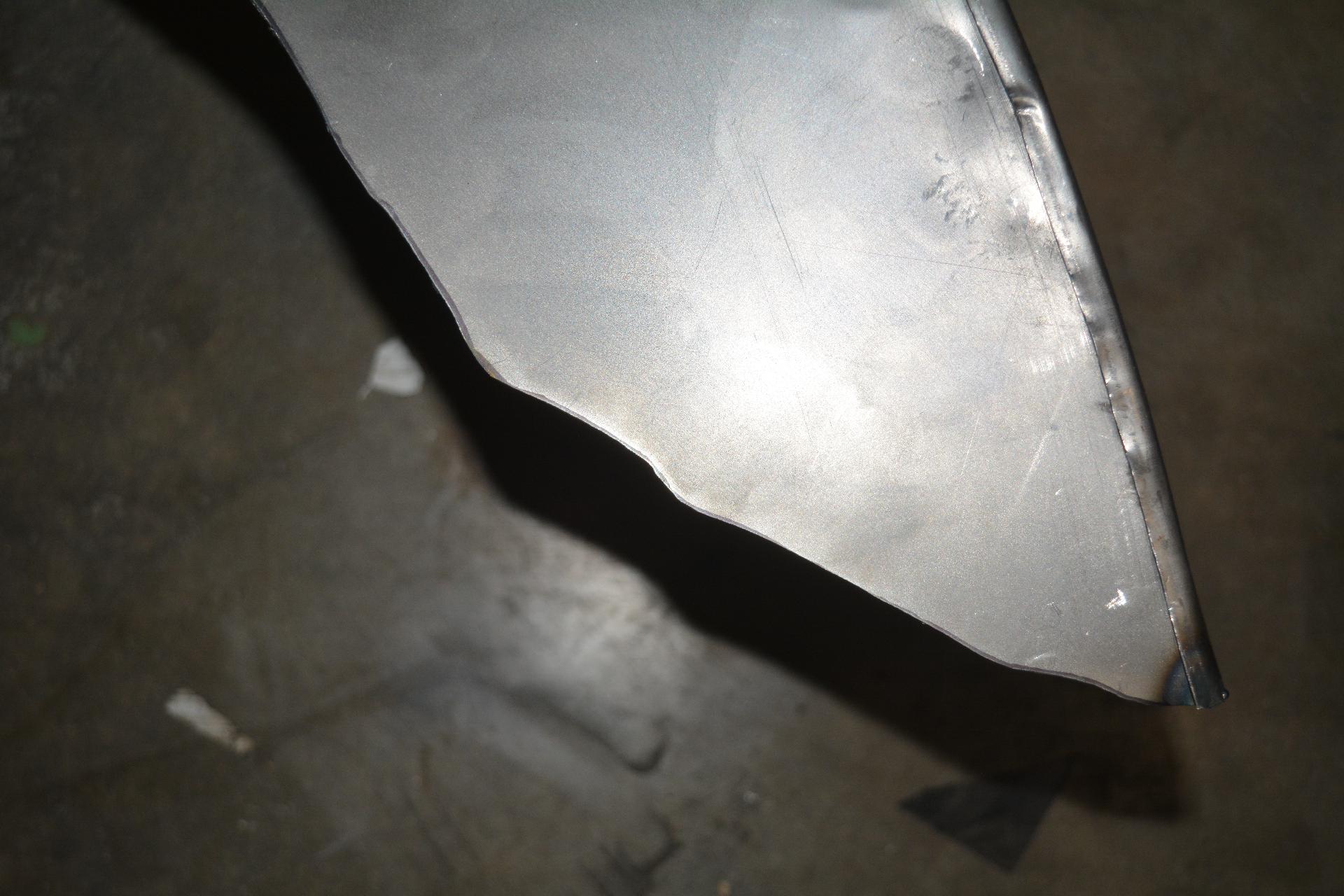

Cutting off the excess tub material
Measured from the inside lip of the tub

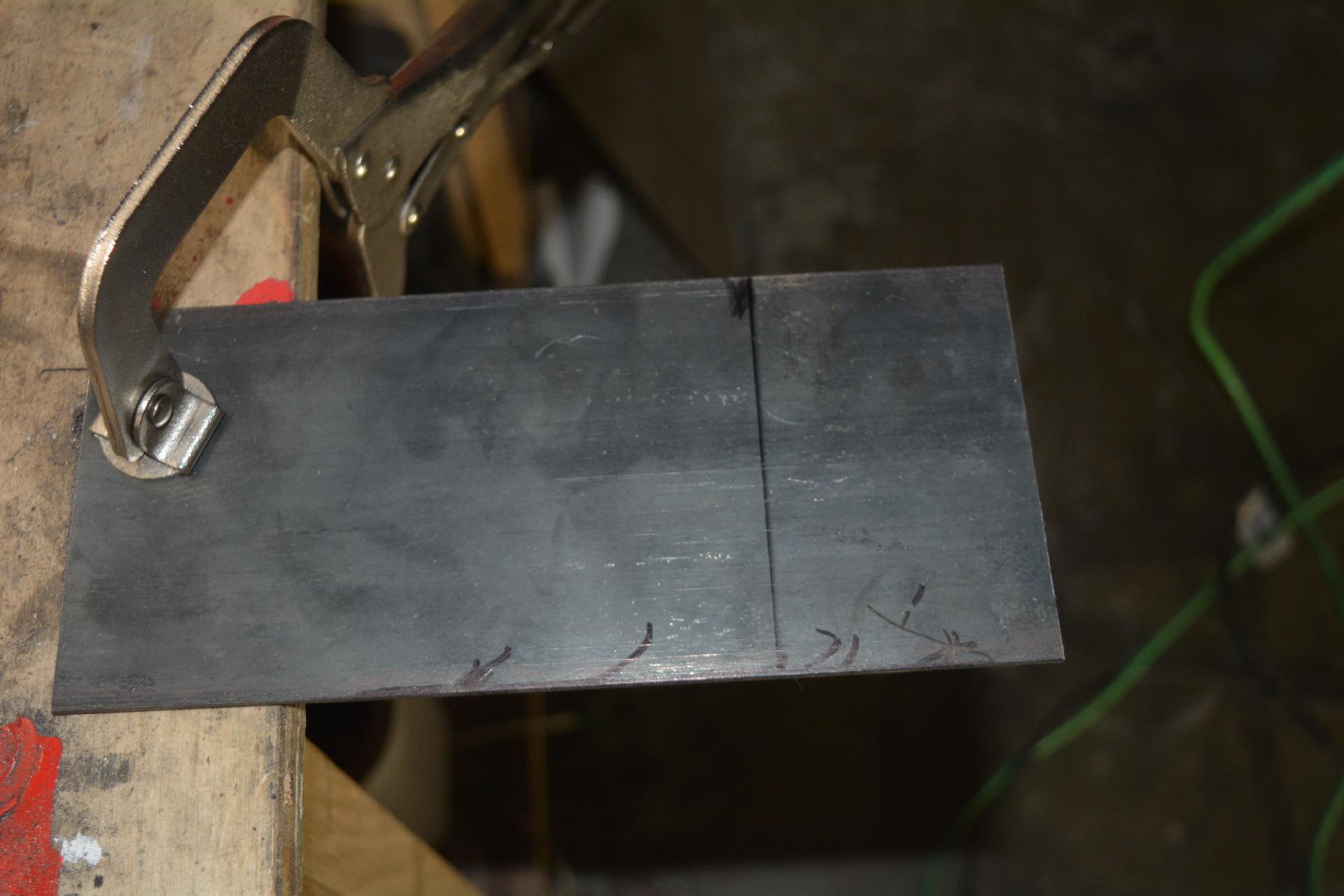

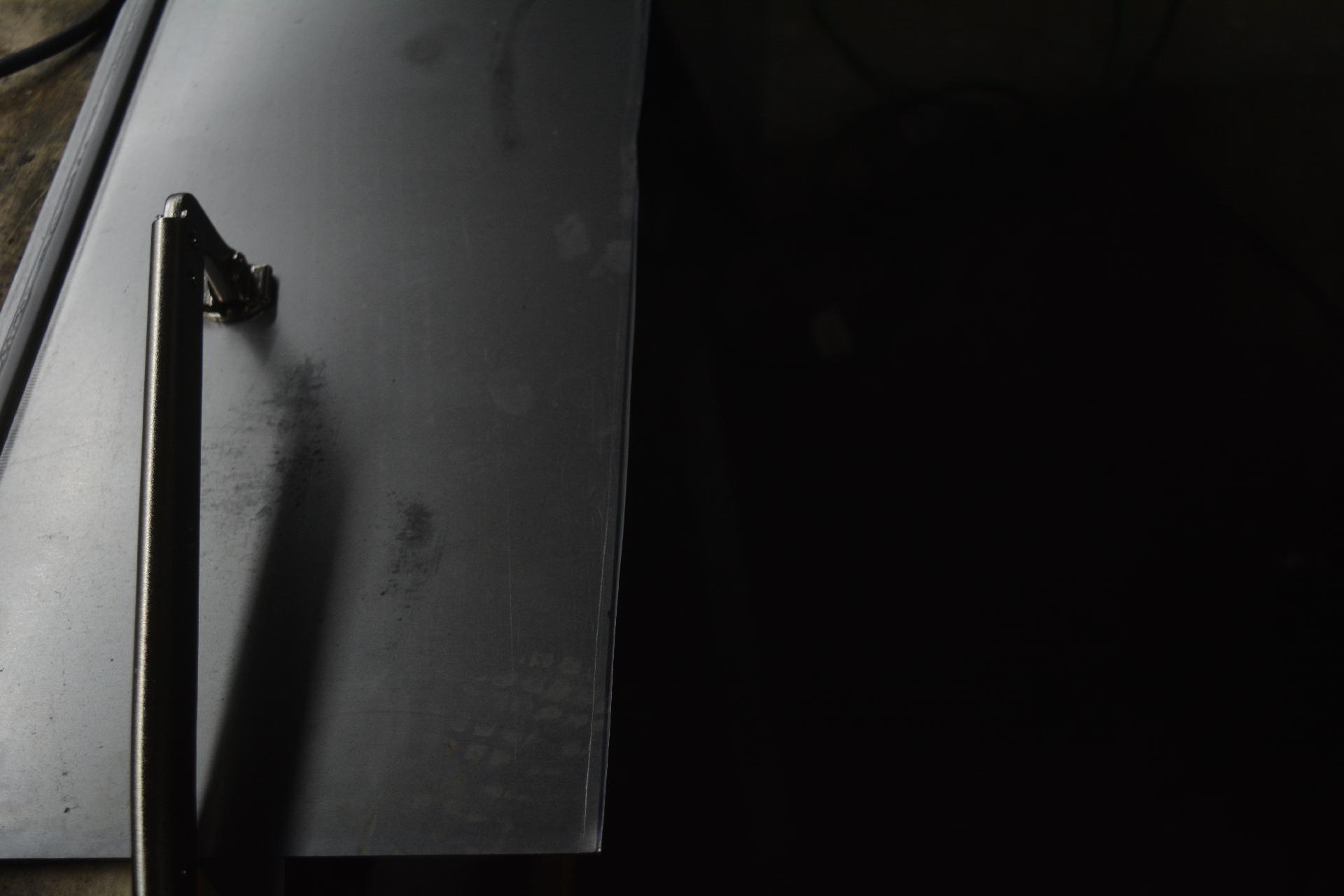

Clamped on my bench after making the cut

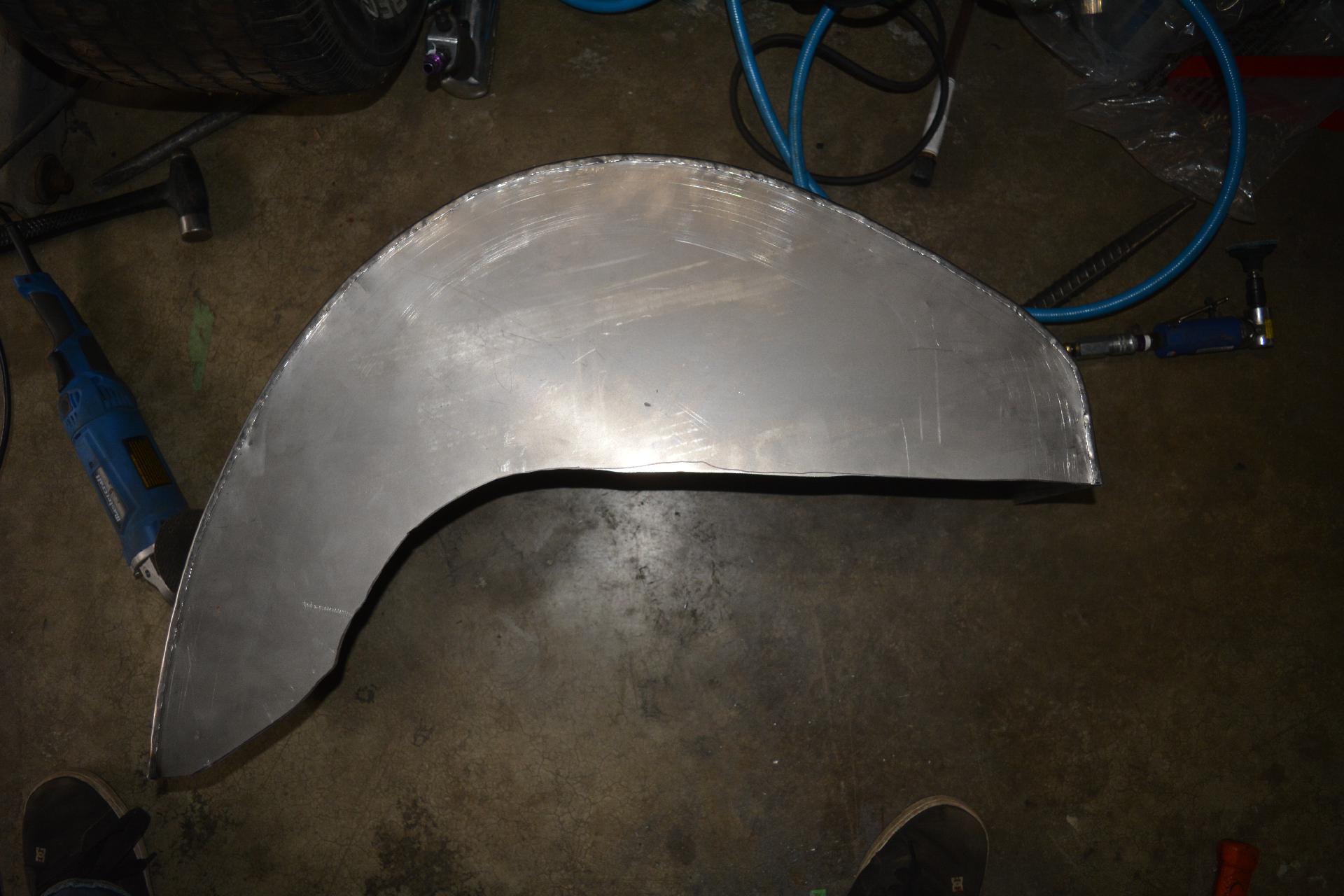

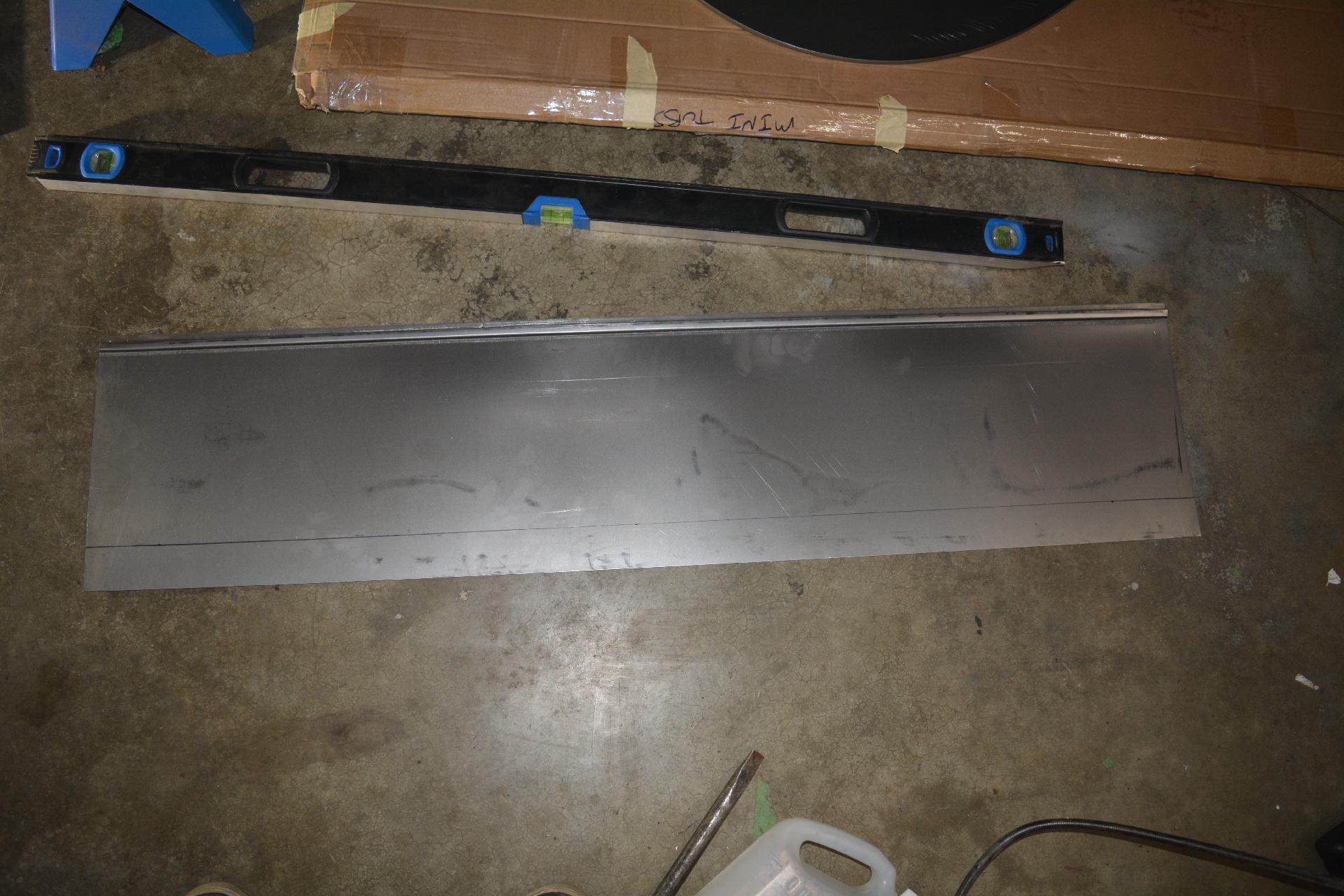

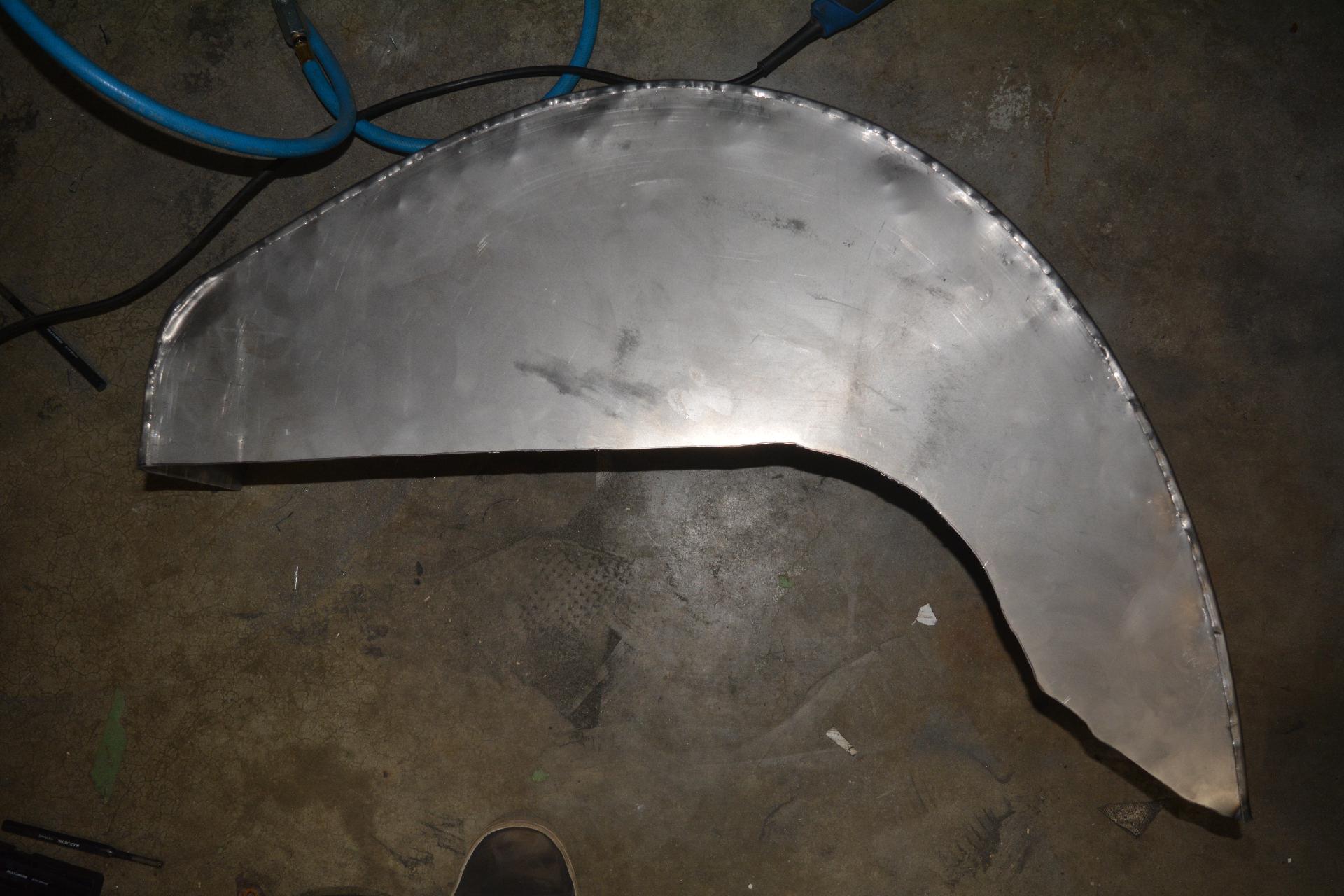

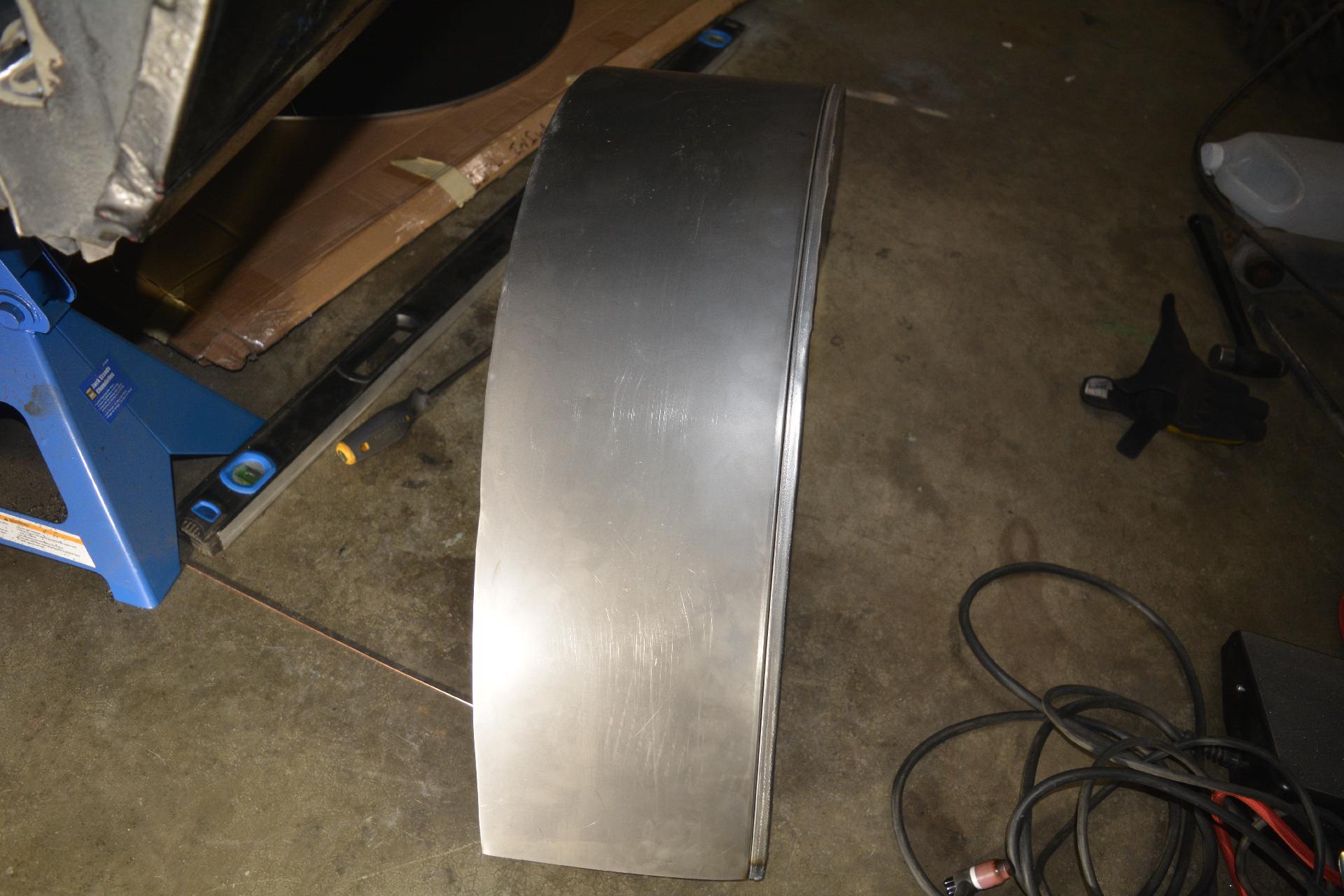

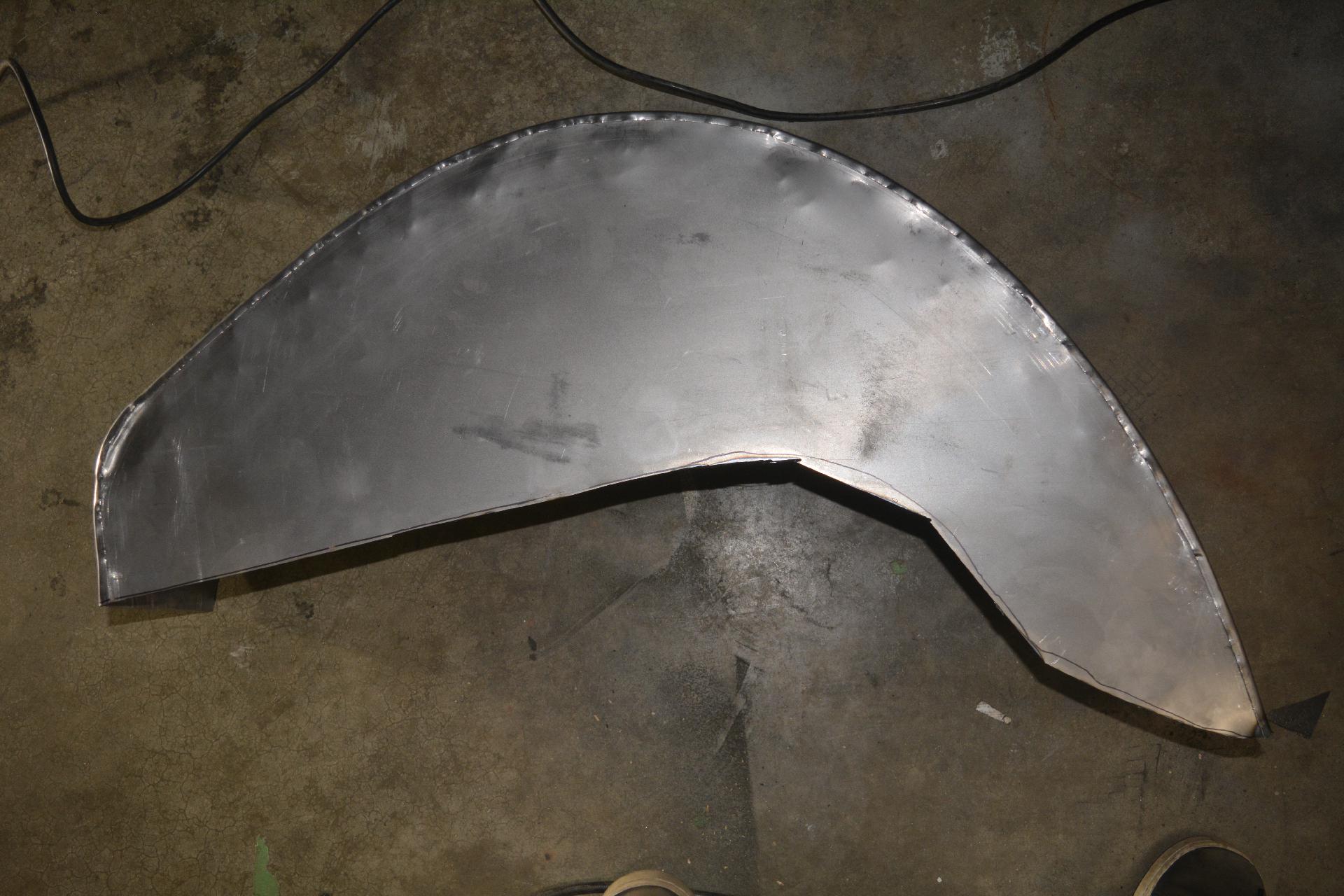

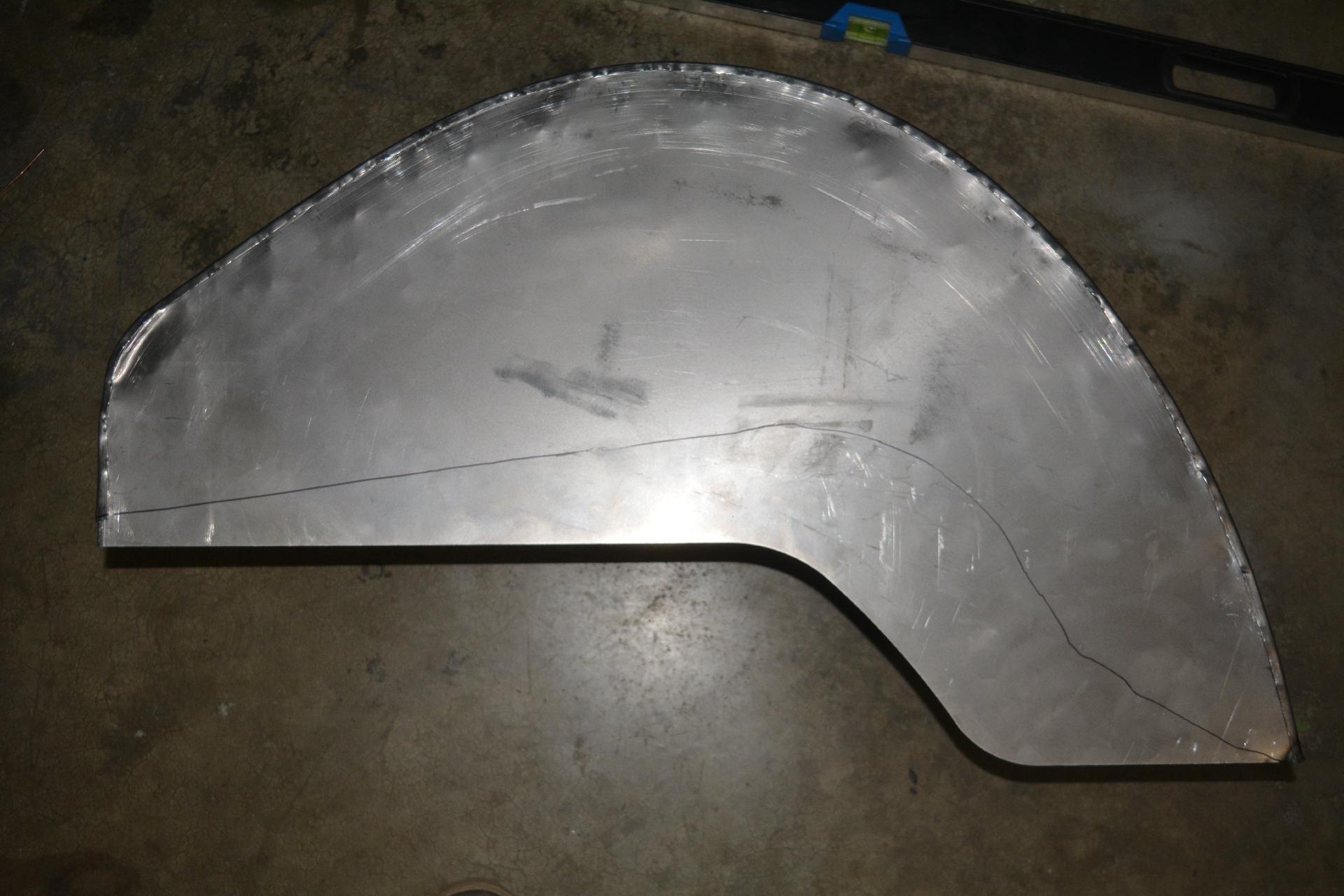

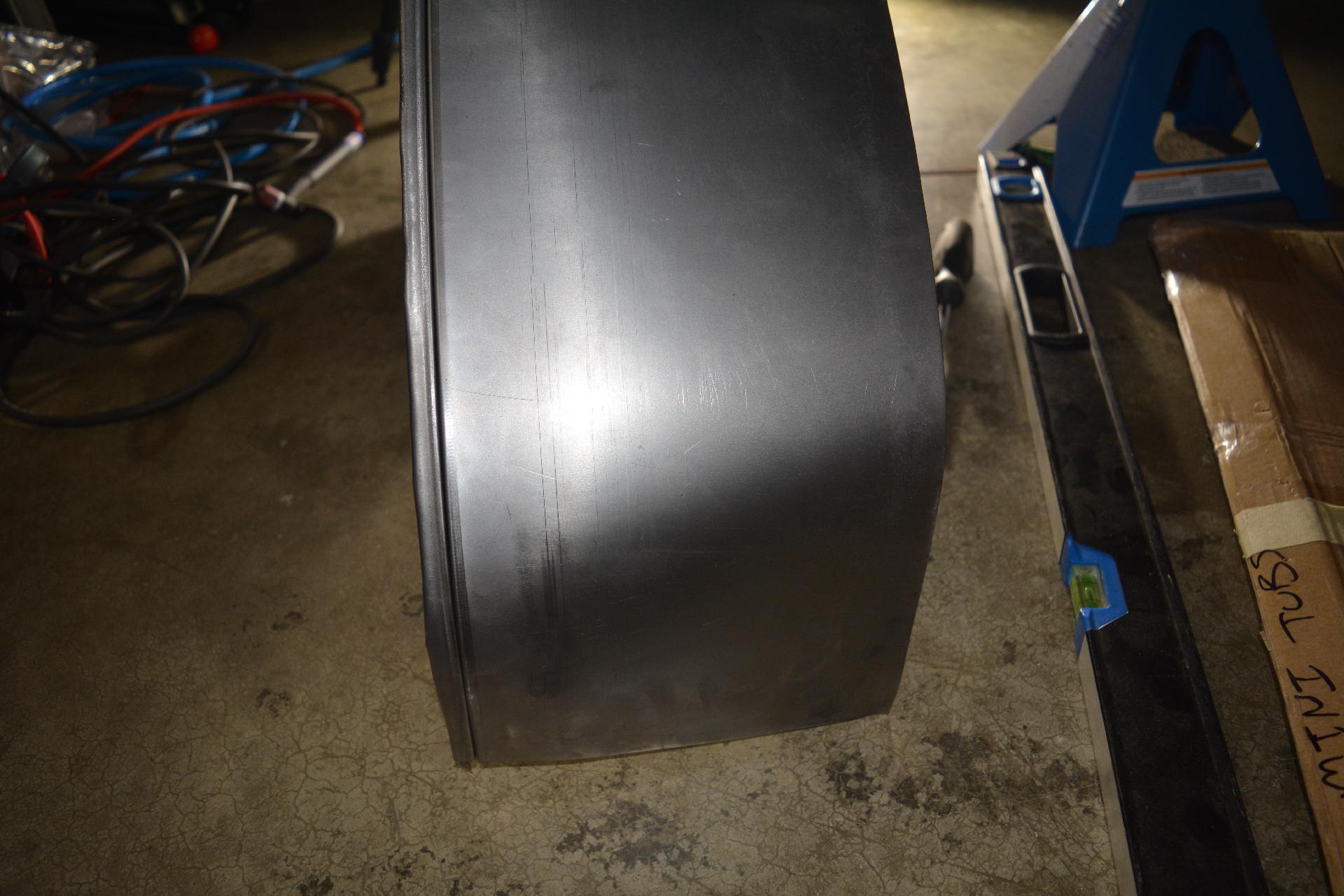

Tub built
Tub first fit in the car, need to cut out some of the bracing
Tub material is not 100% the size of back piece which is ok

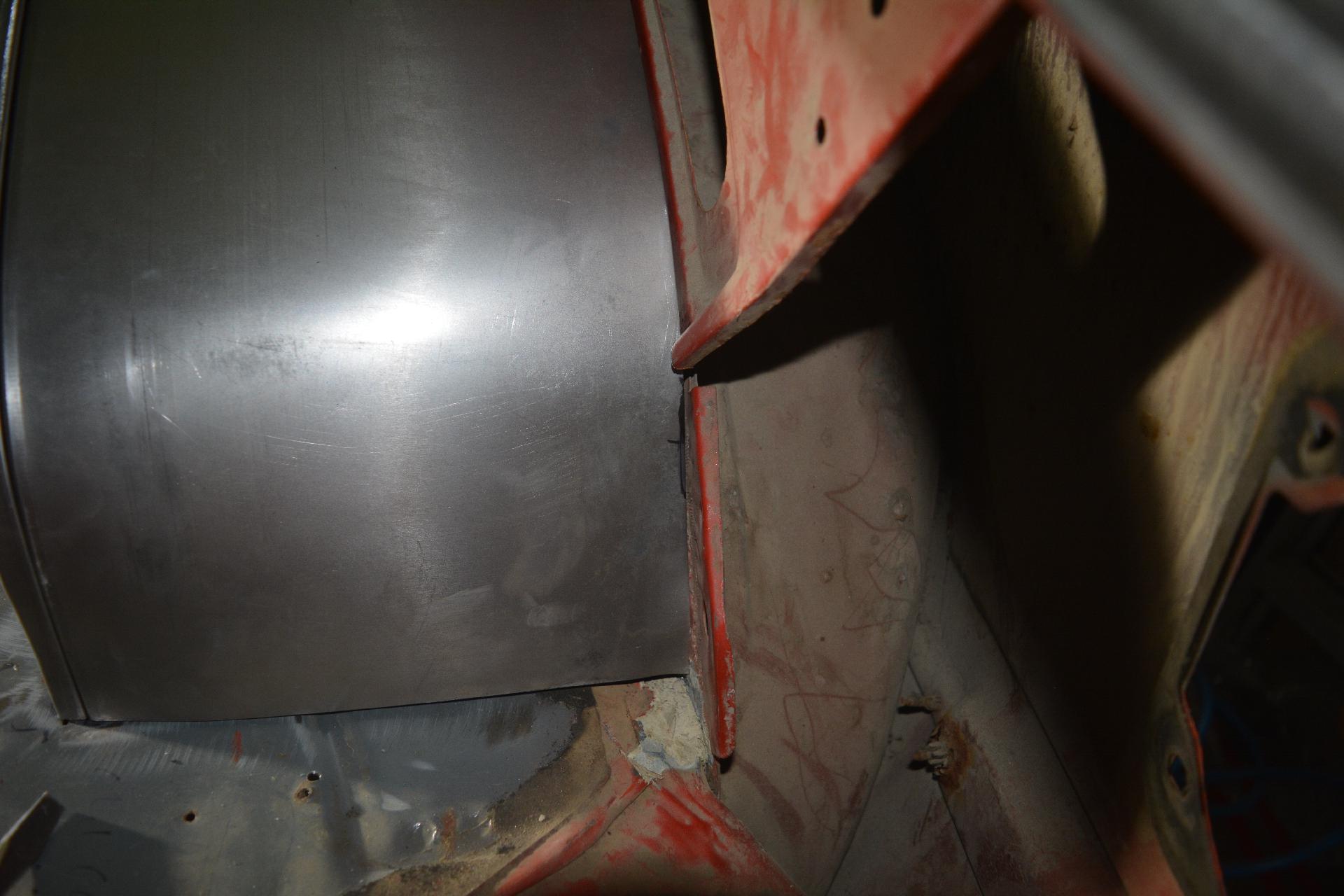

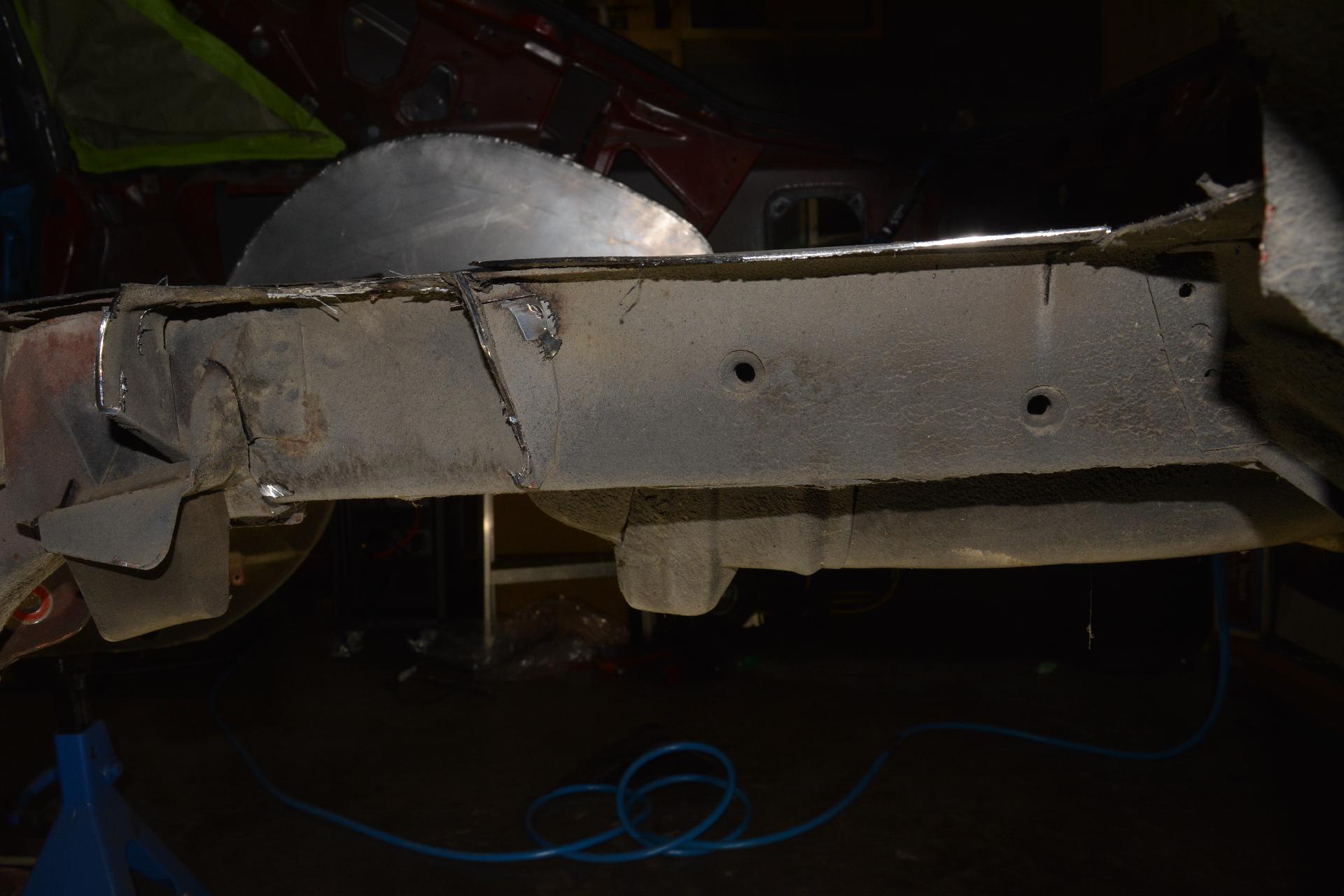

bracing cut out, tub fitting tight to the side

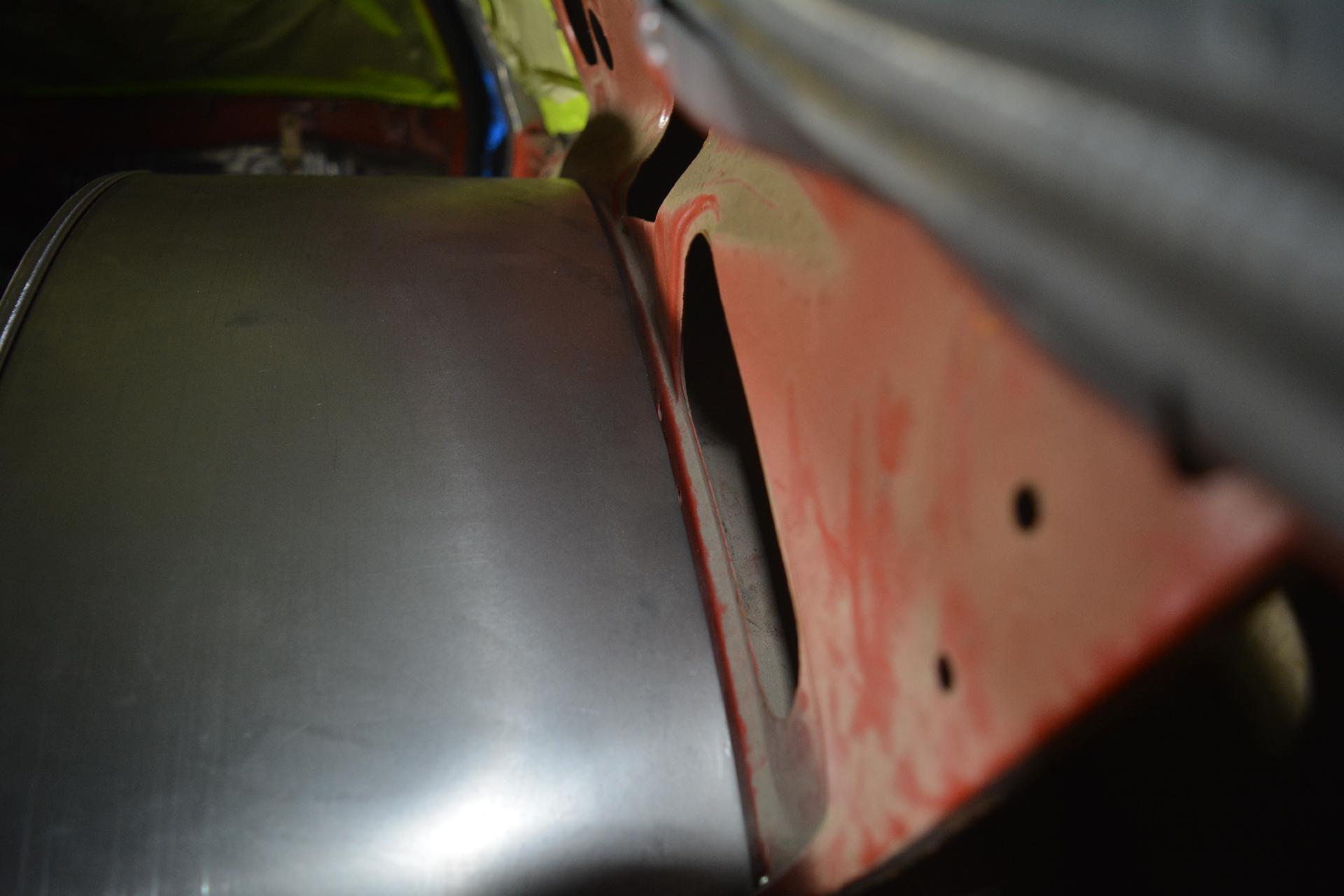

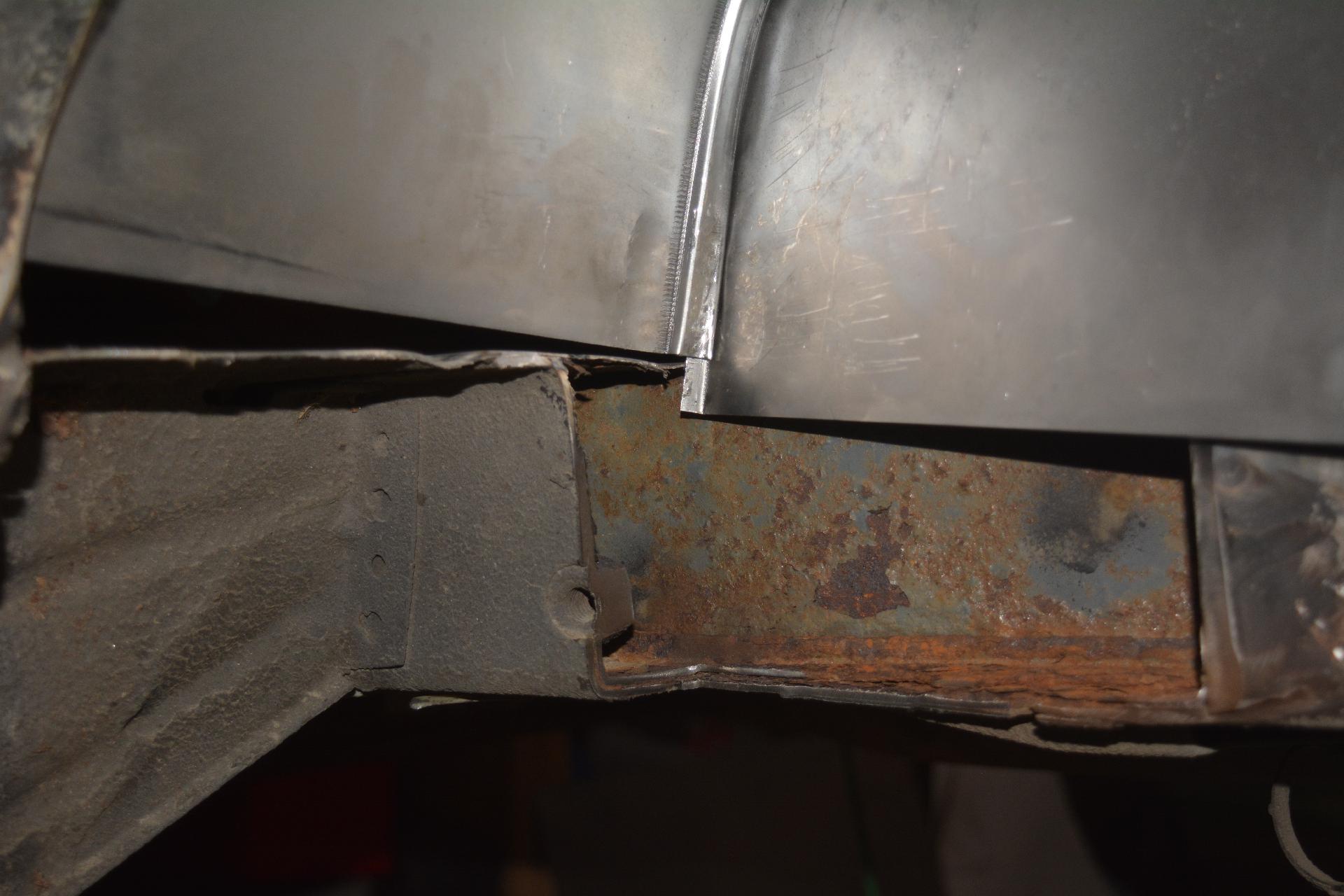

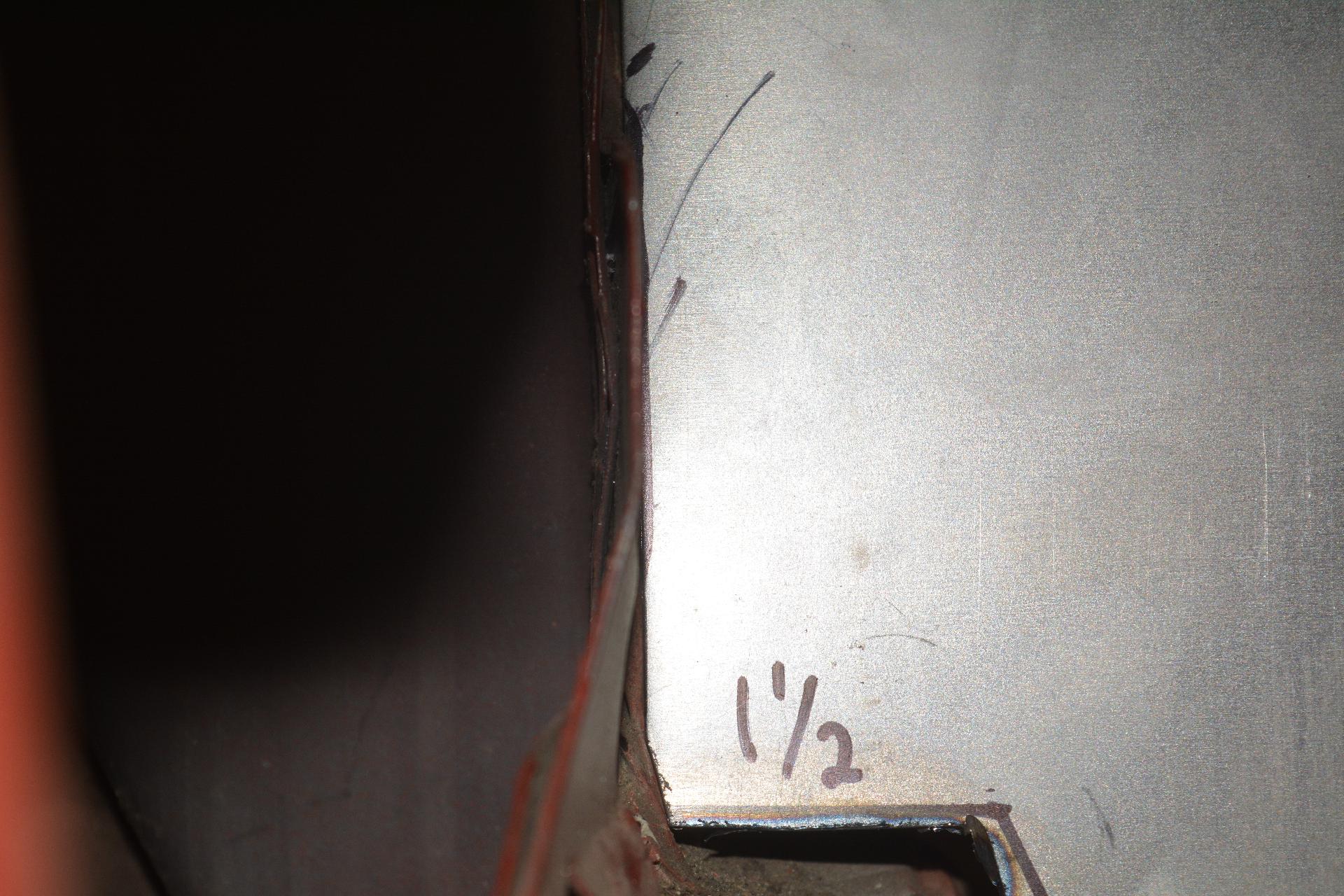

Need to notch out the tub to fit on the front side
A lot of trimming and fitting is needed

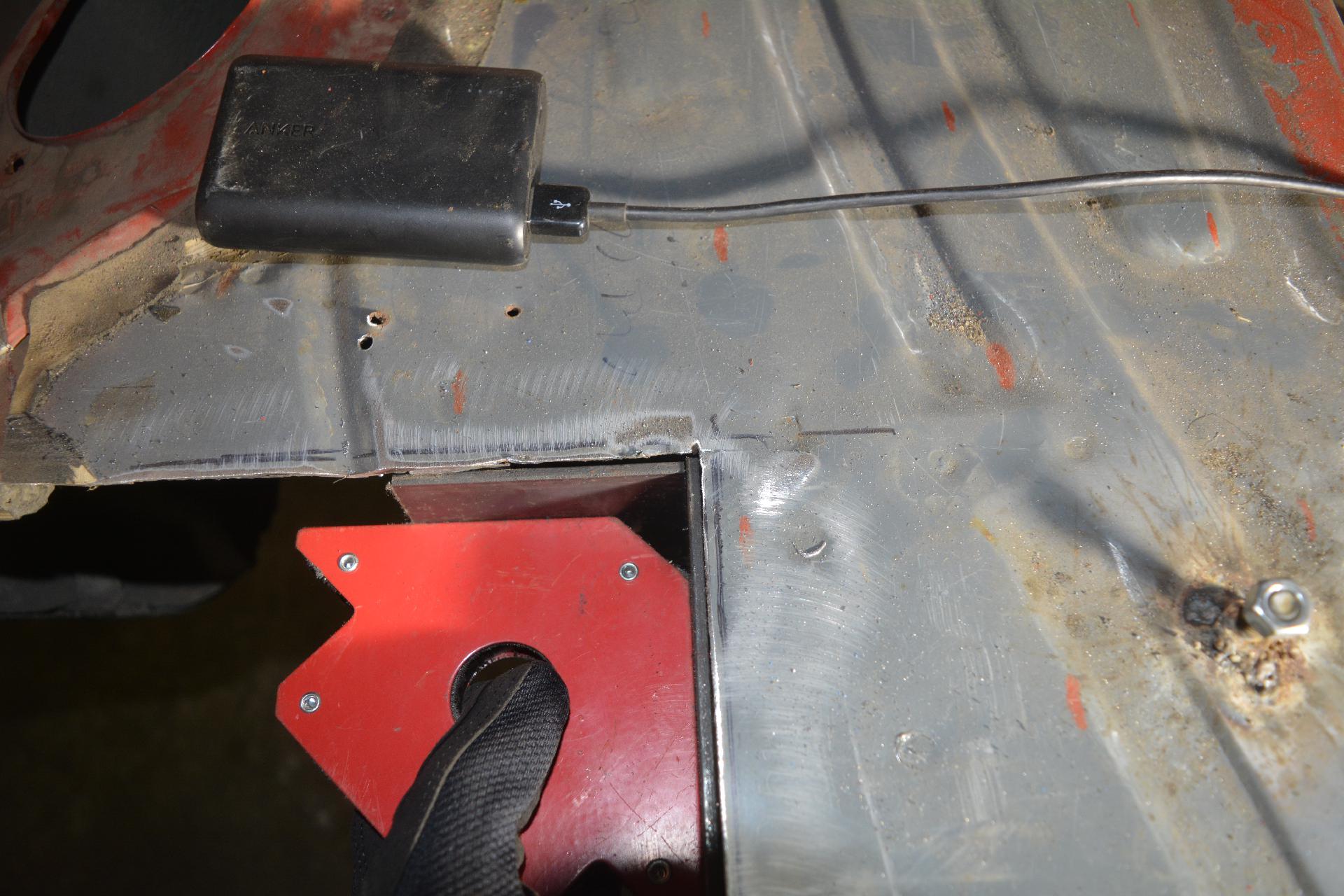

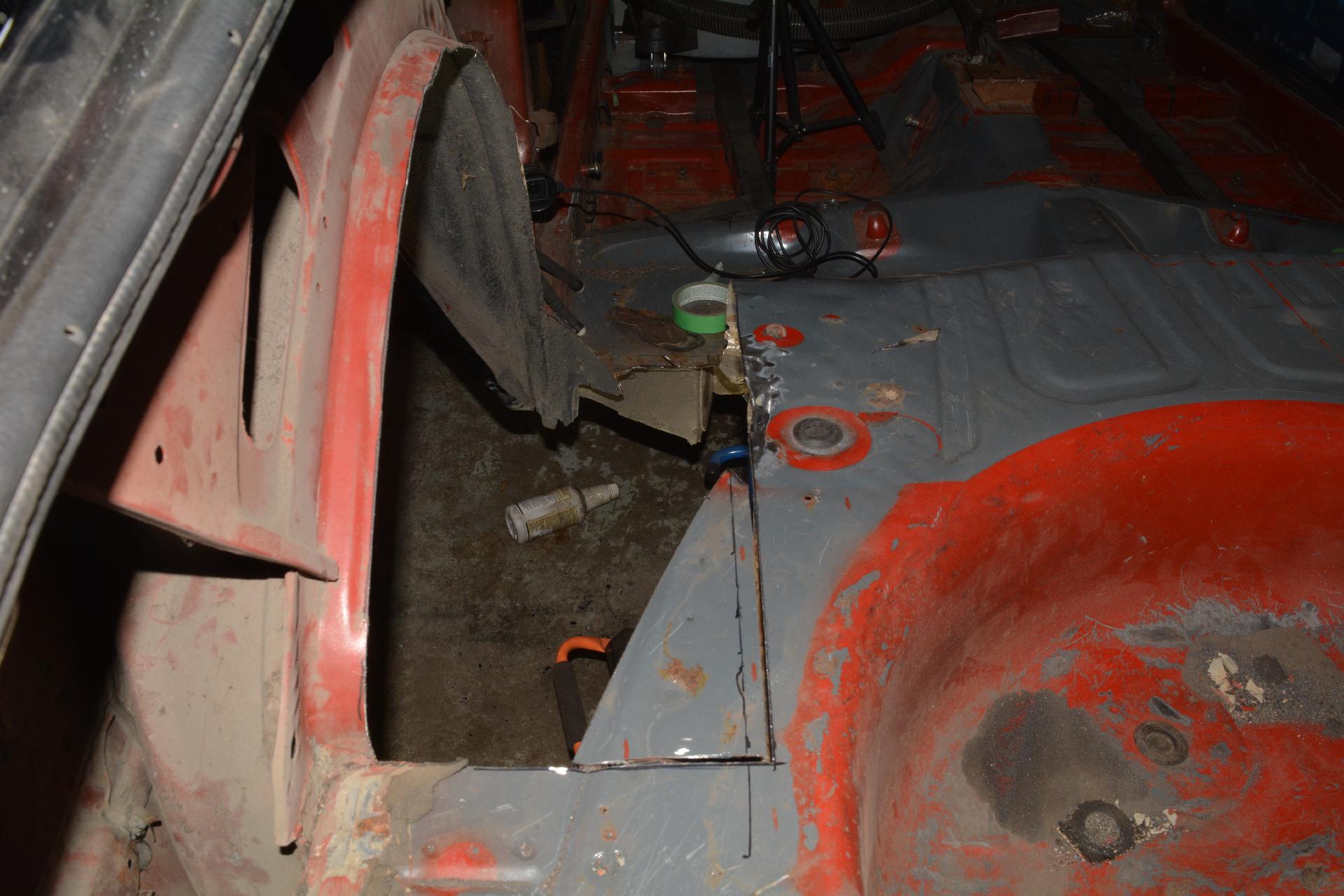

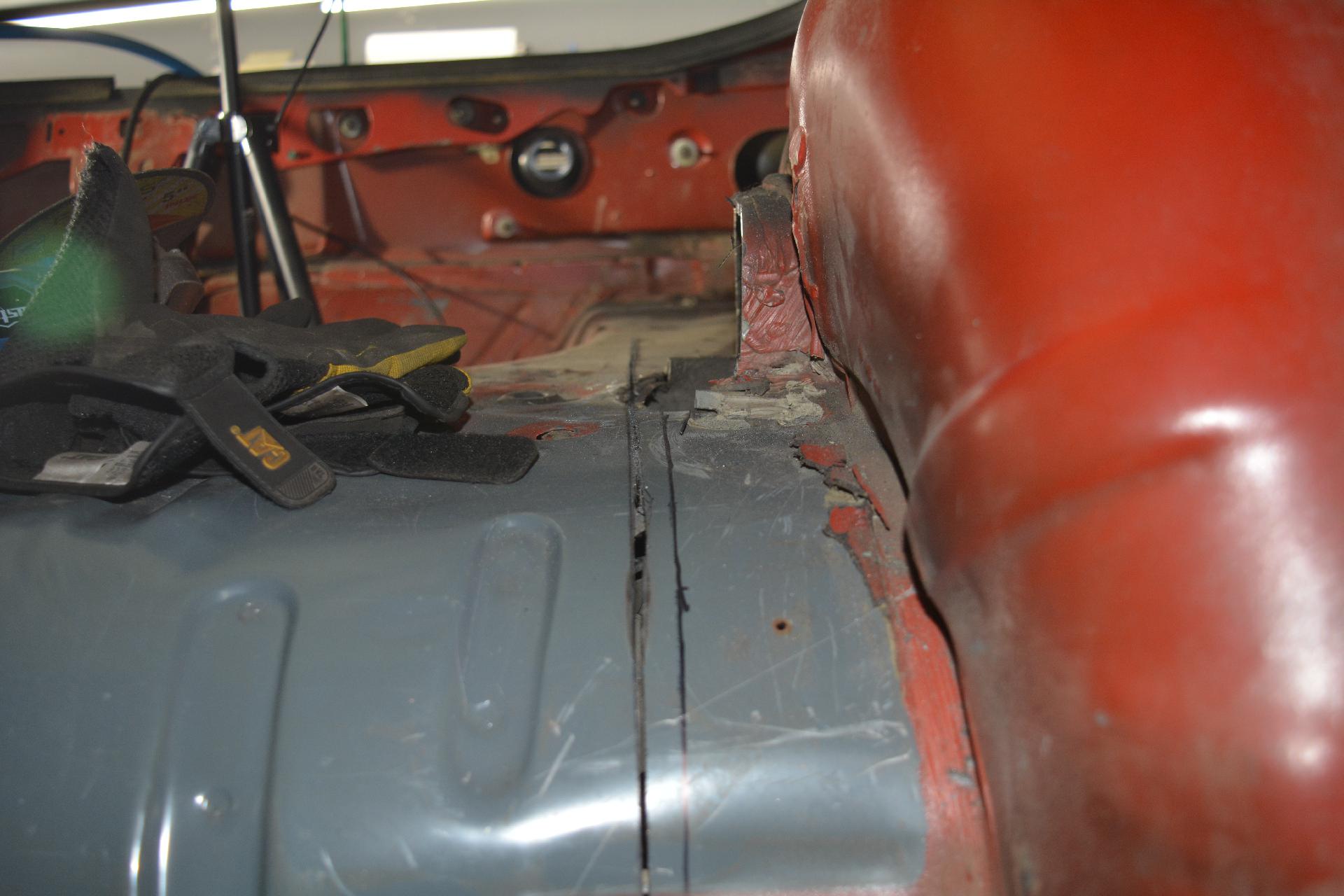

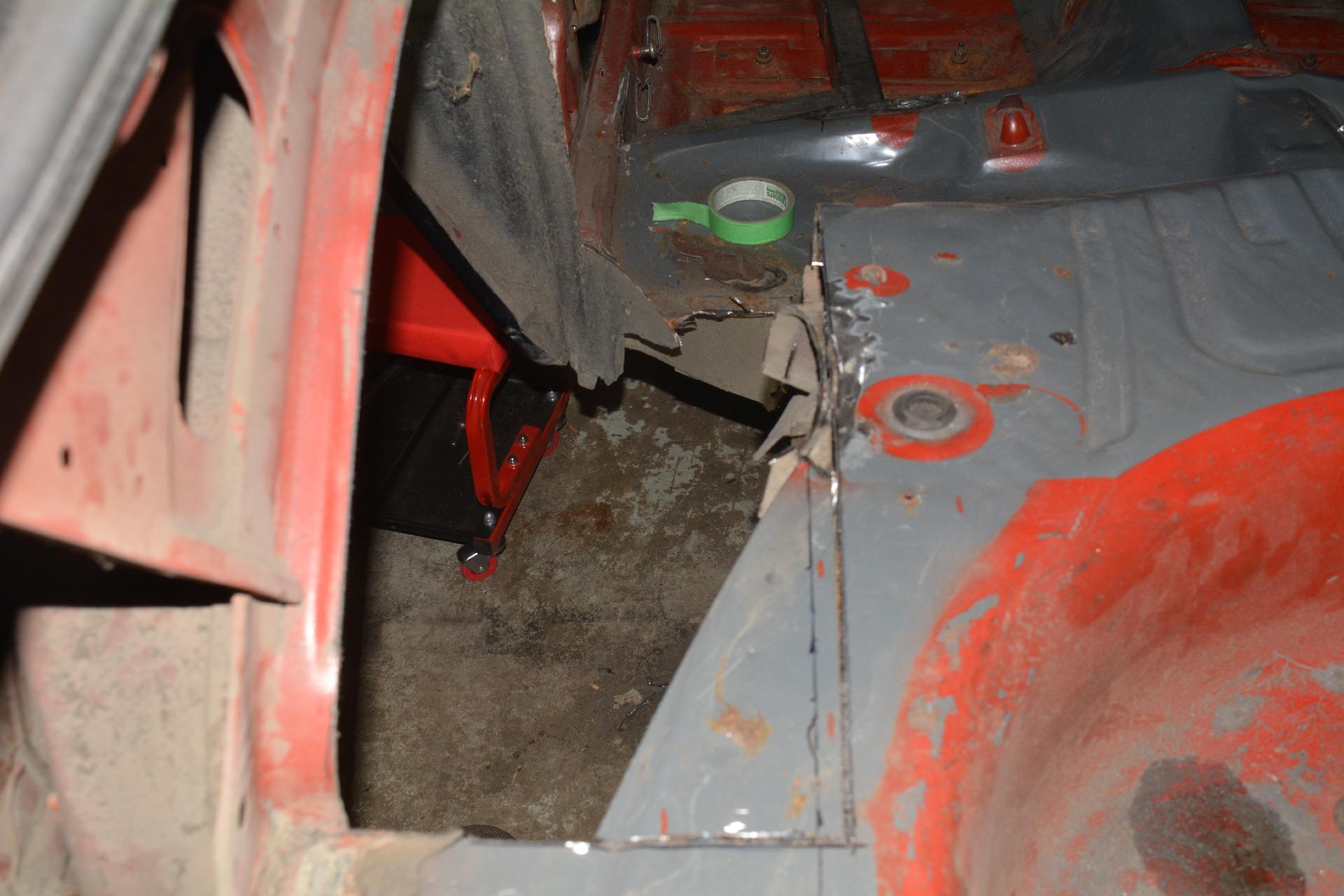

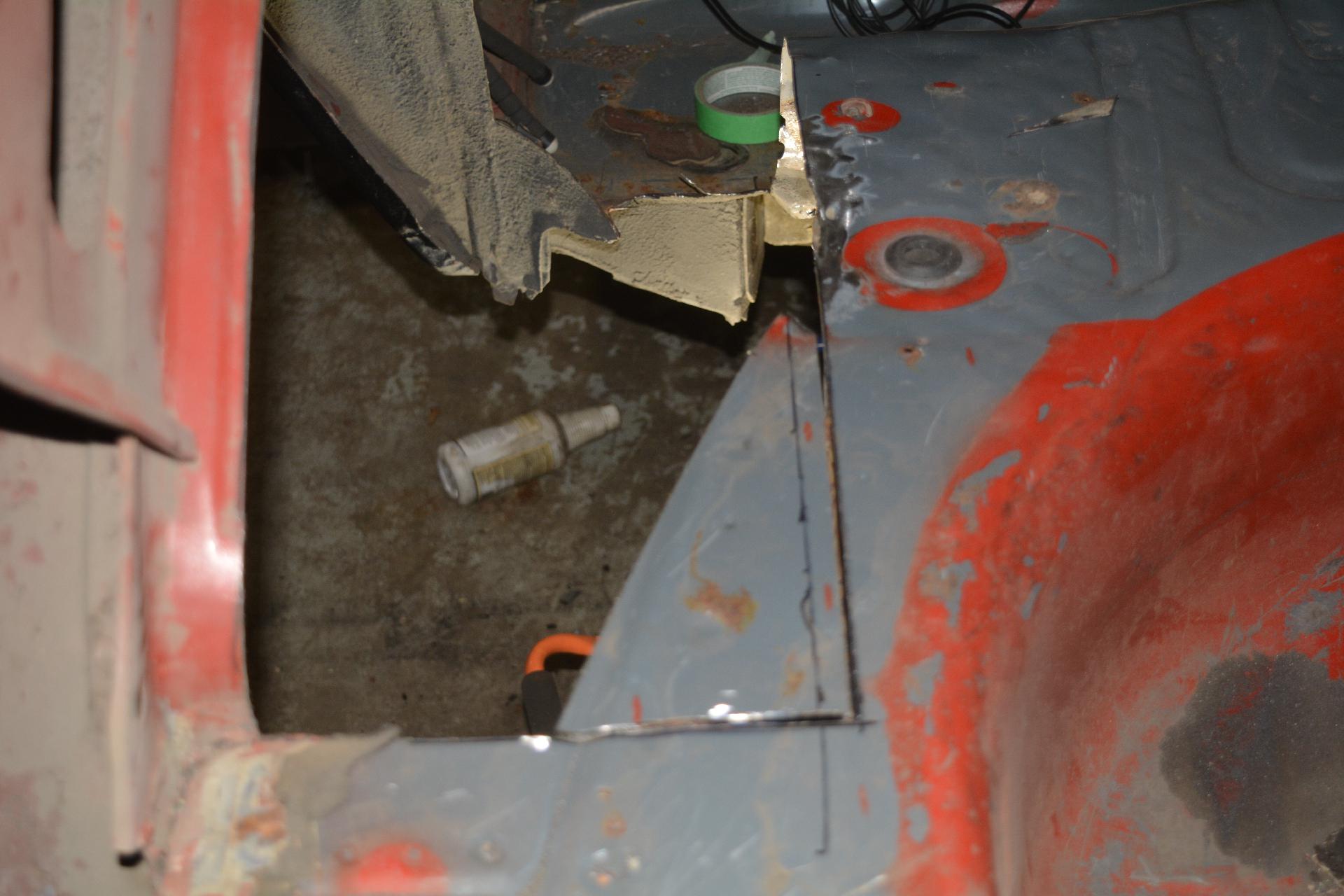

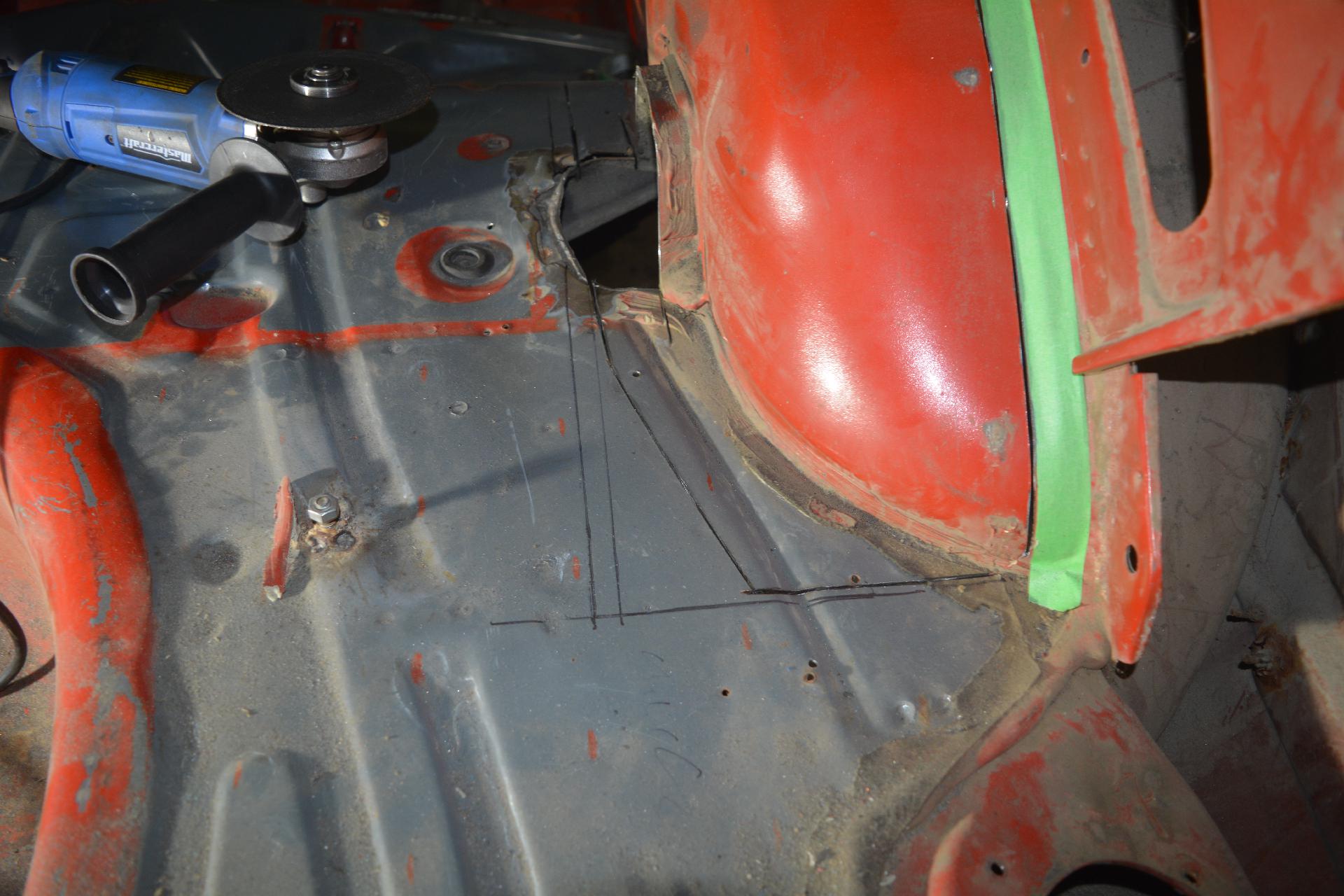

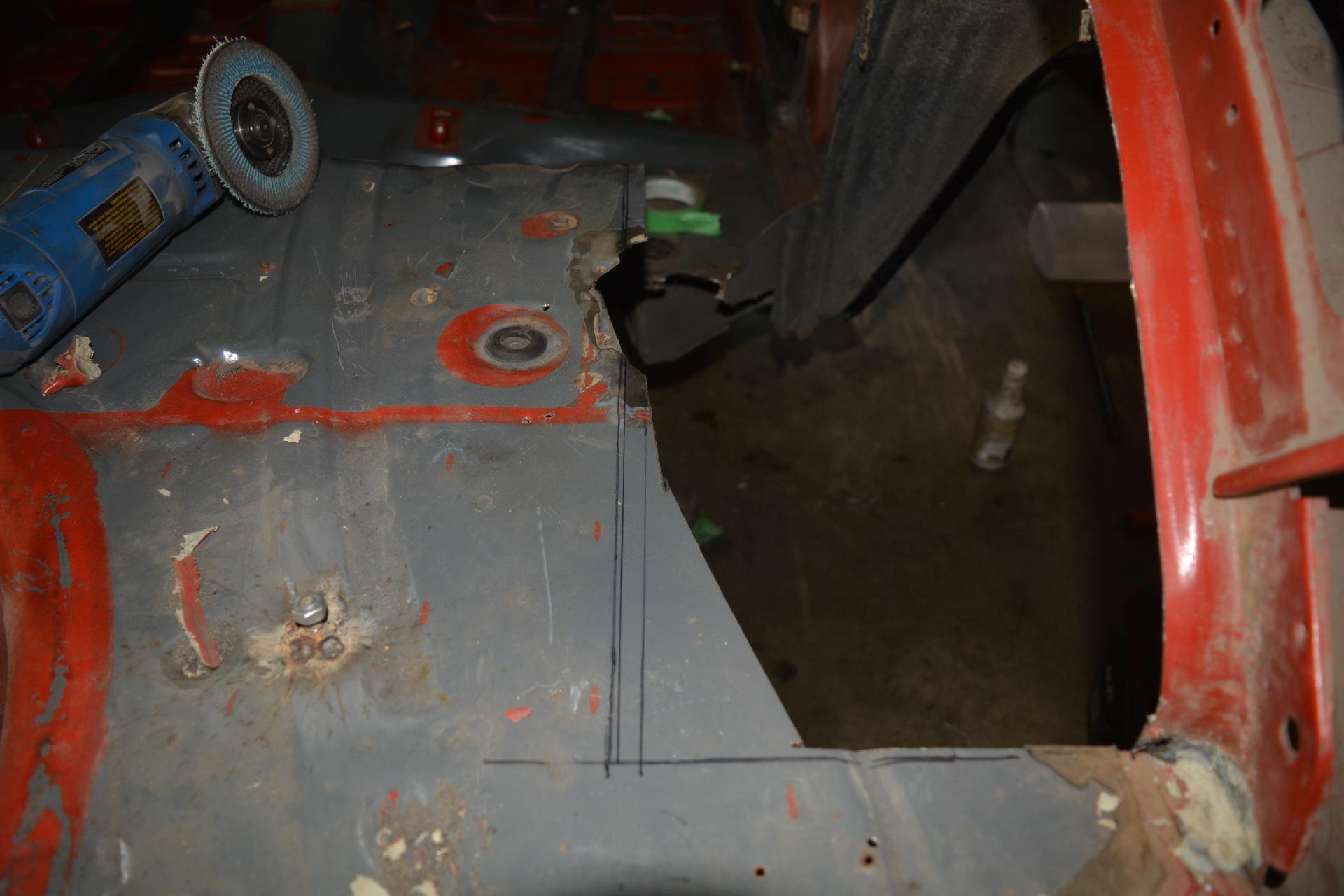

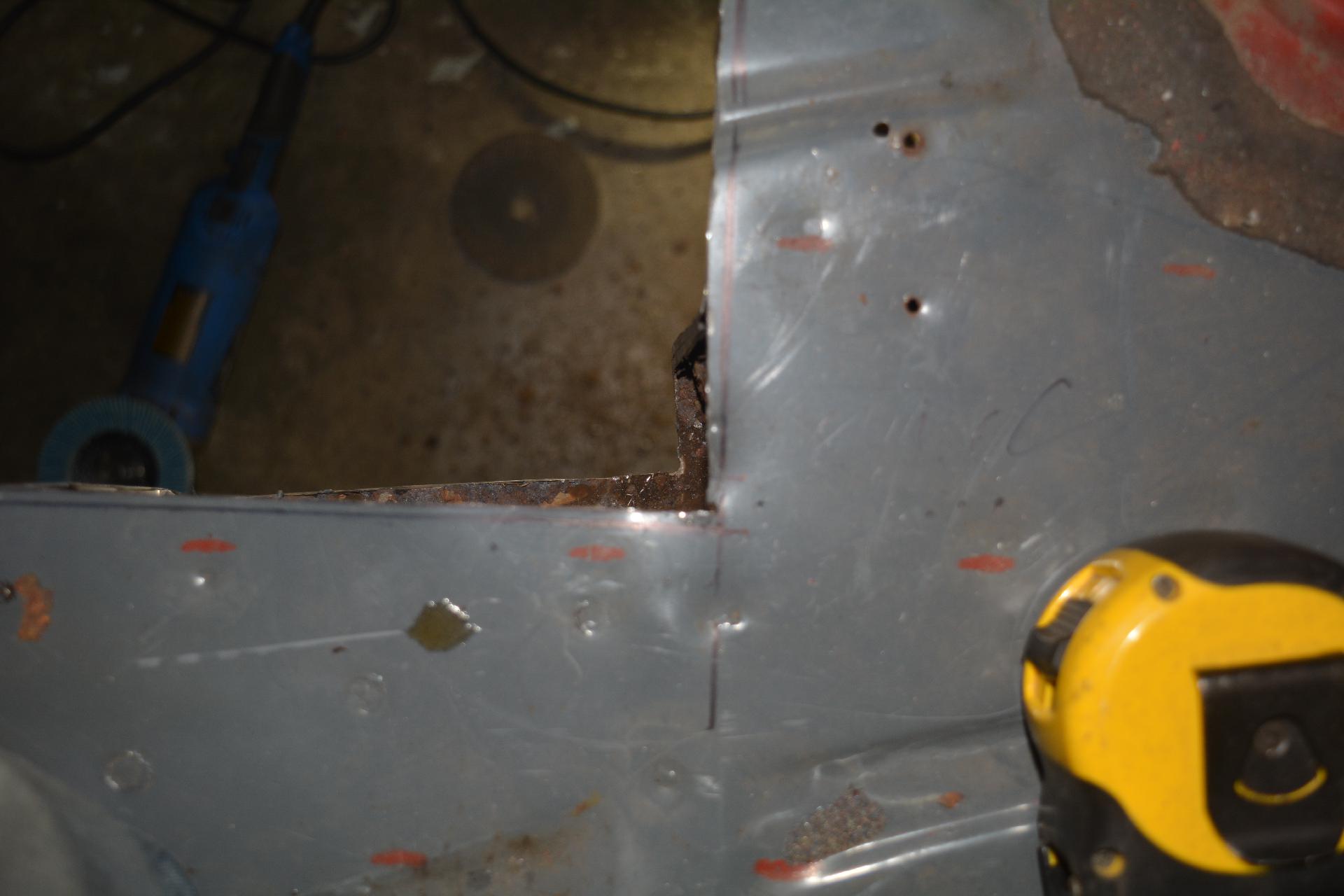

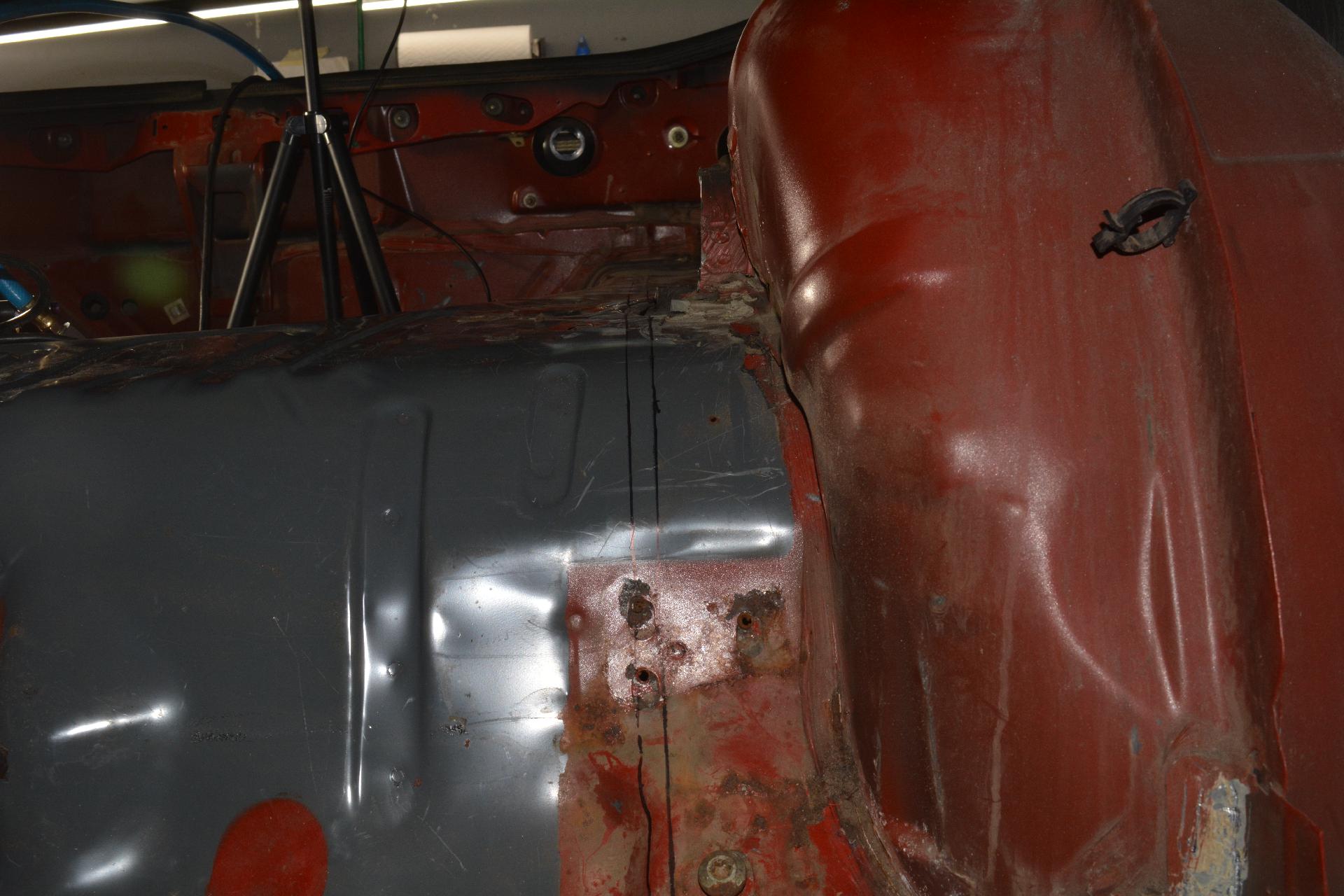

Cut line to maltch the floor in the car
Rough cut using the 5 inch cut off disk

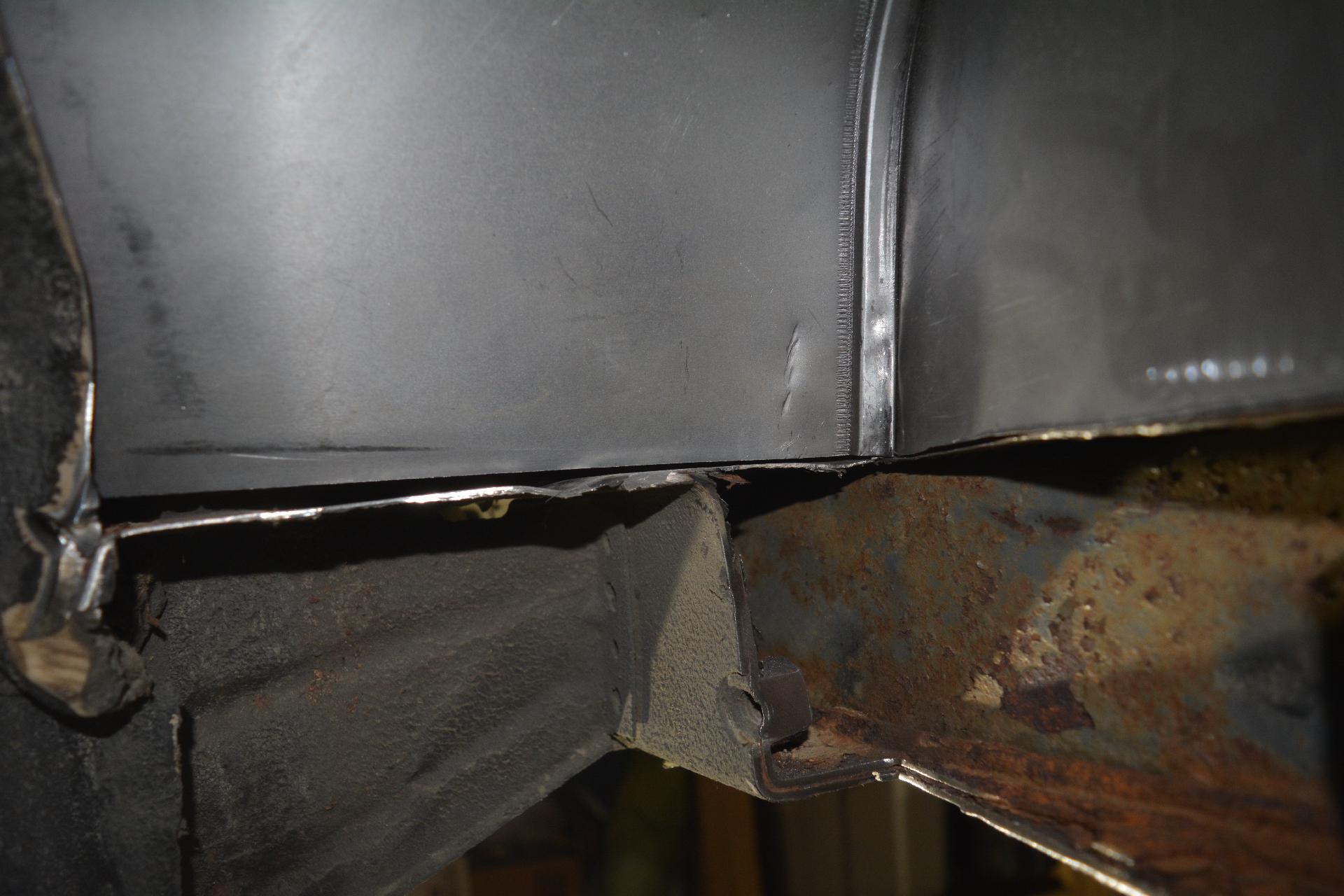

Tub sits over the lower torque box
tub trimmed to fit the floor
Cut Lines on the drivers side

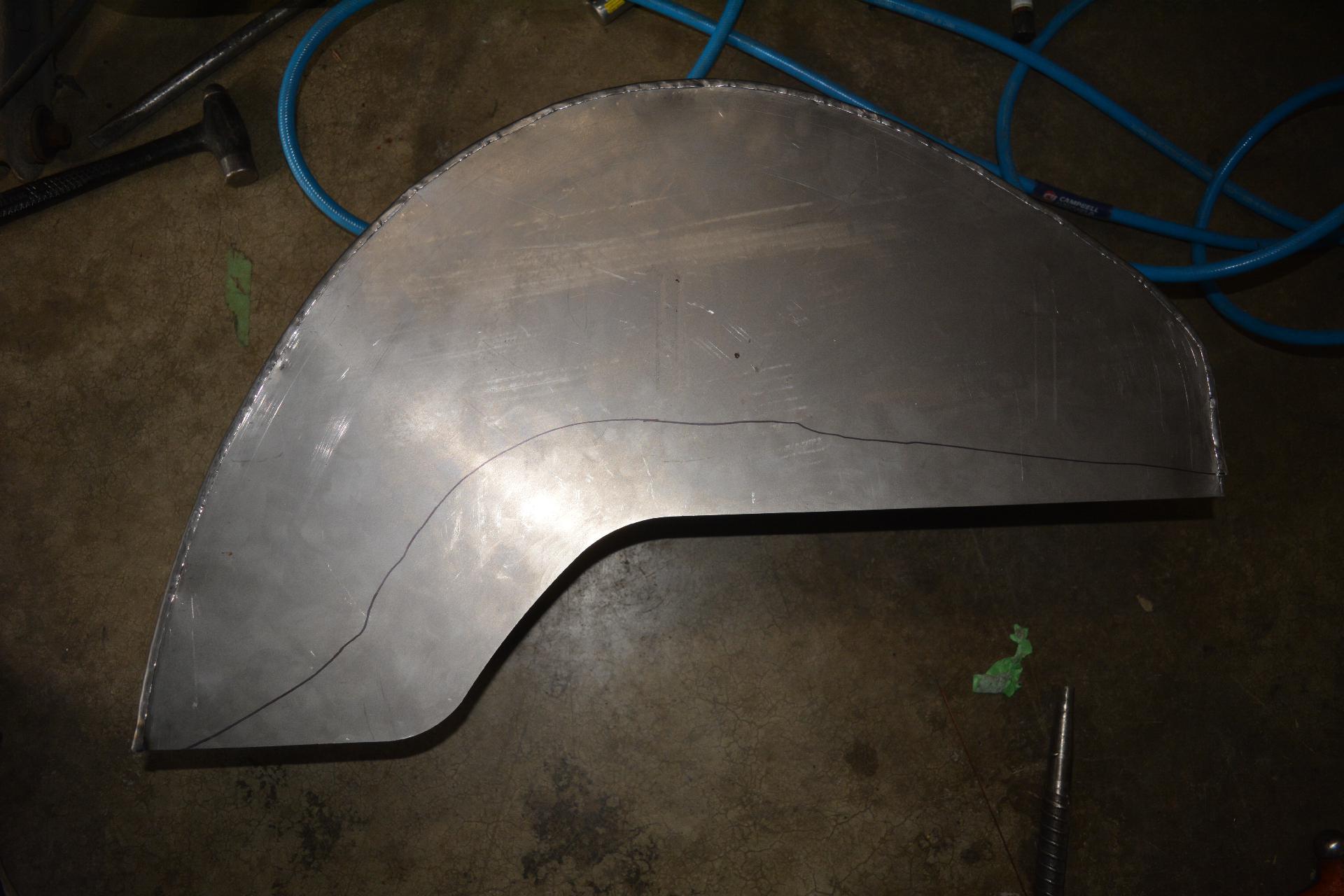

Tub rough cut
Brackets to remove again

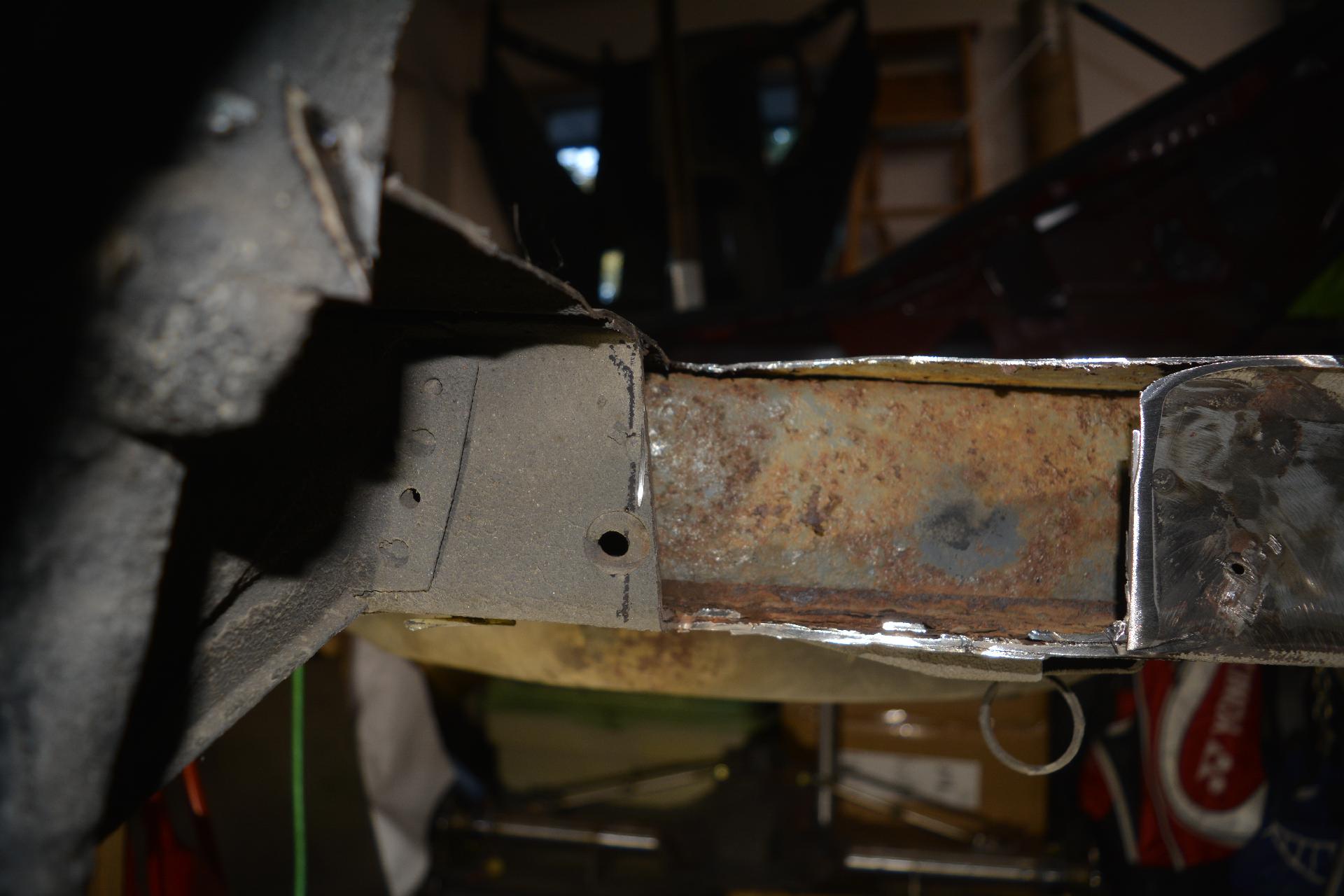

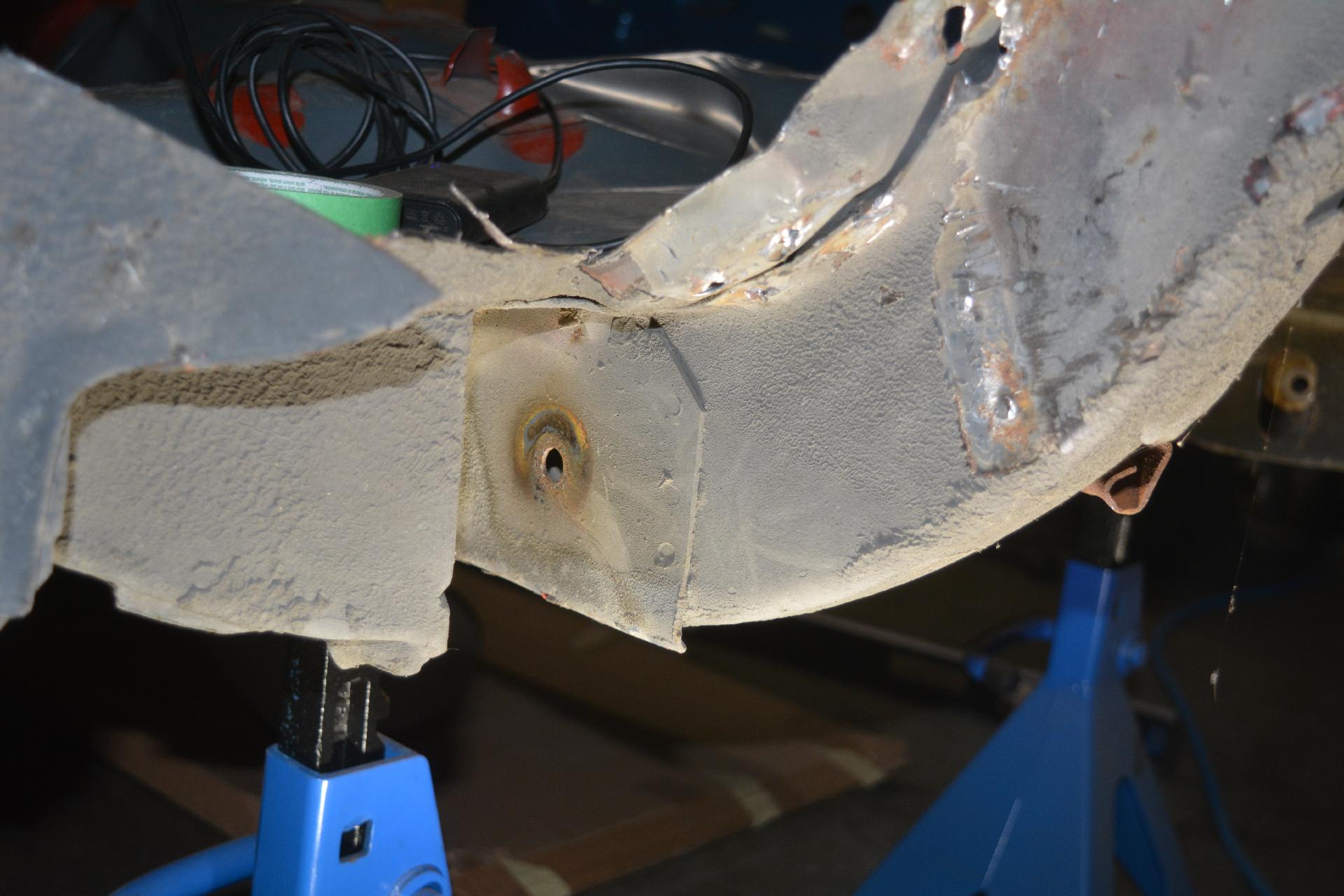

Frame with brackets removed
Frame with the top cuts made
Need to trim the frame more

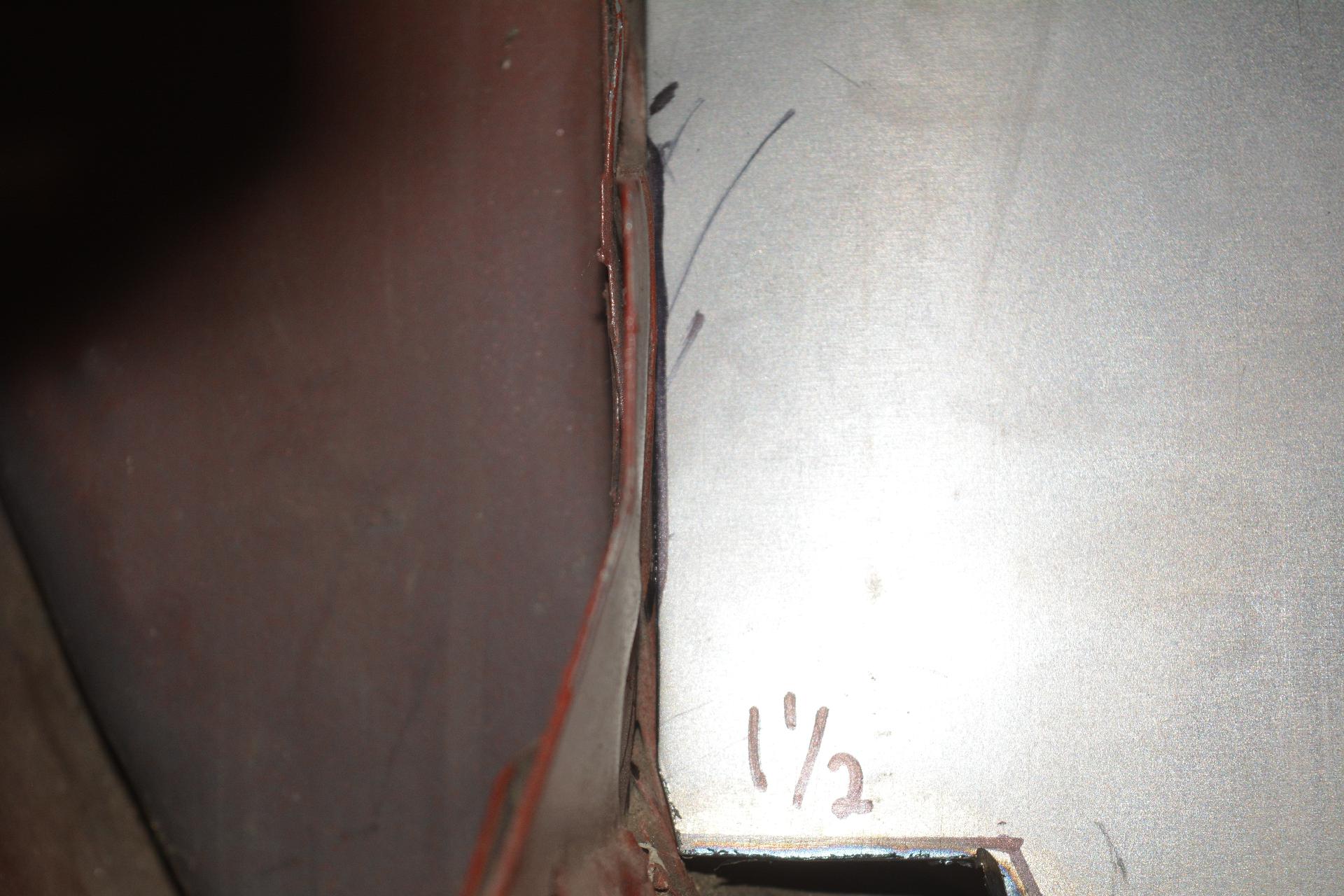

Measuring the tub width
Tub rough fit in with some of the bracing cut out
Same floor cut line process
Rough cut with the 5 inch angle grinder
Used a 2 inch flap disc for final trim to the line

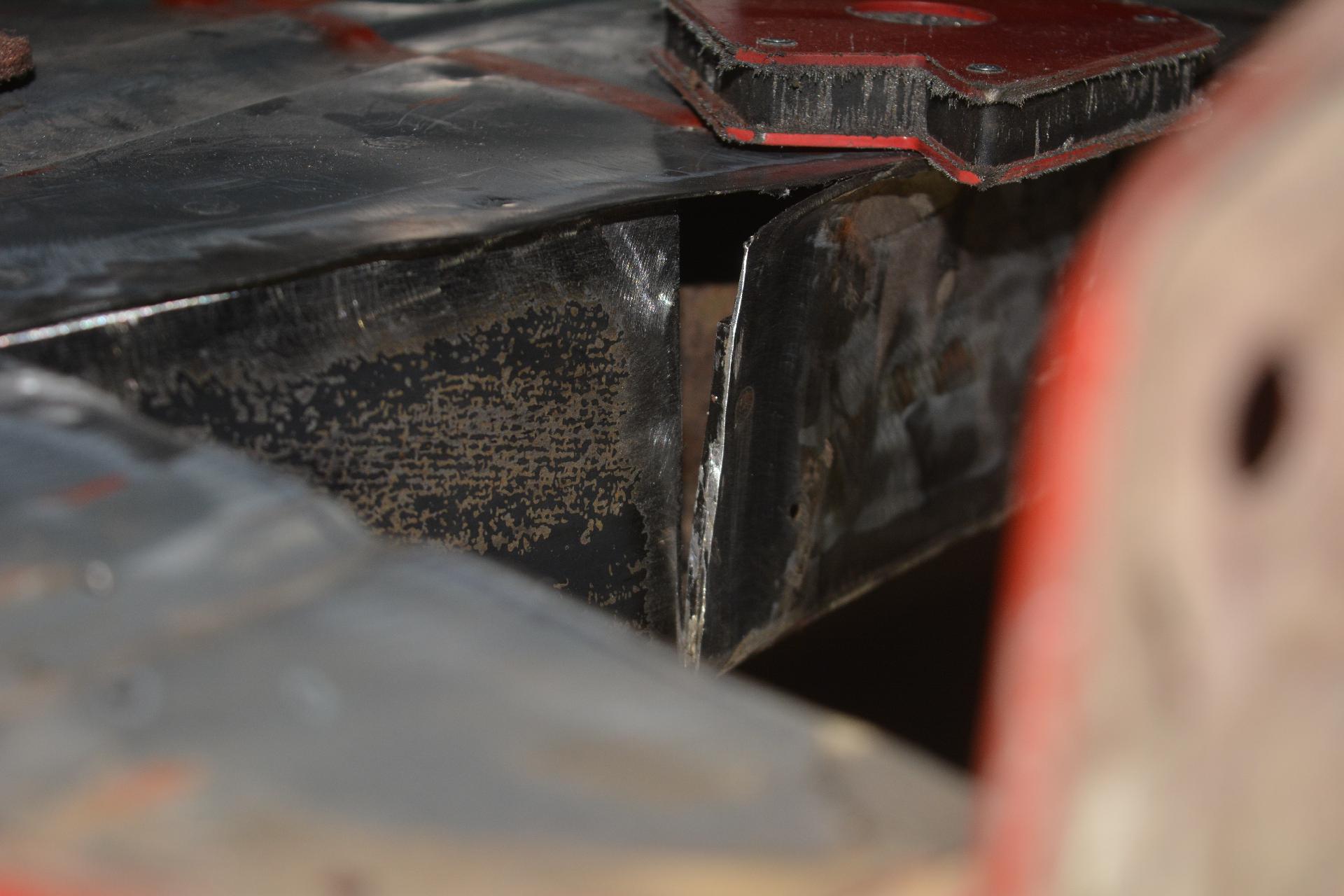

sInitial Frame plate fit up, need to trip the frame back 1/8 inch

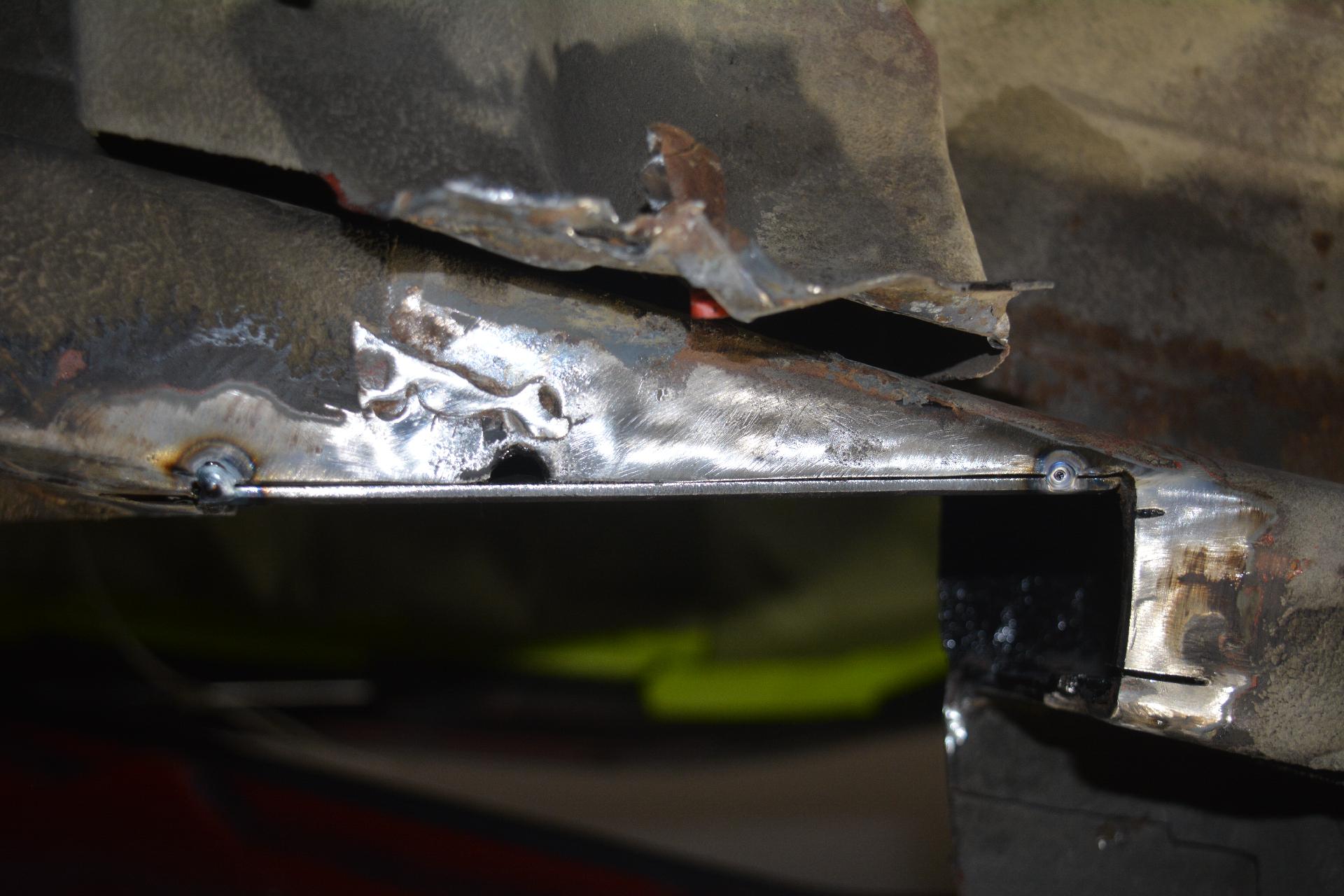

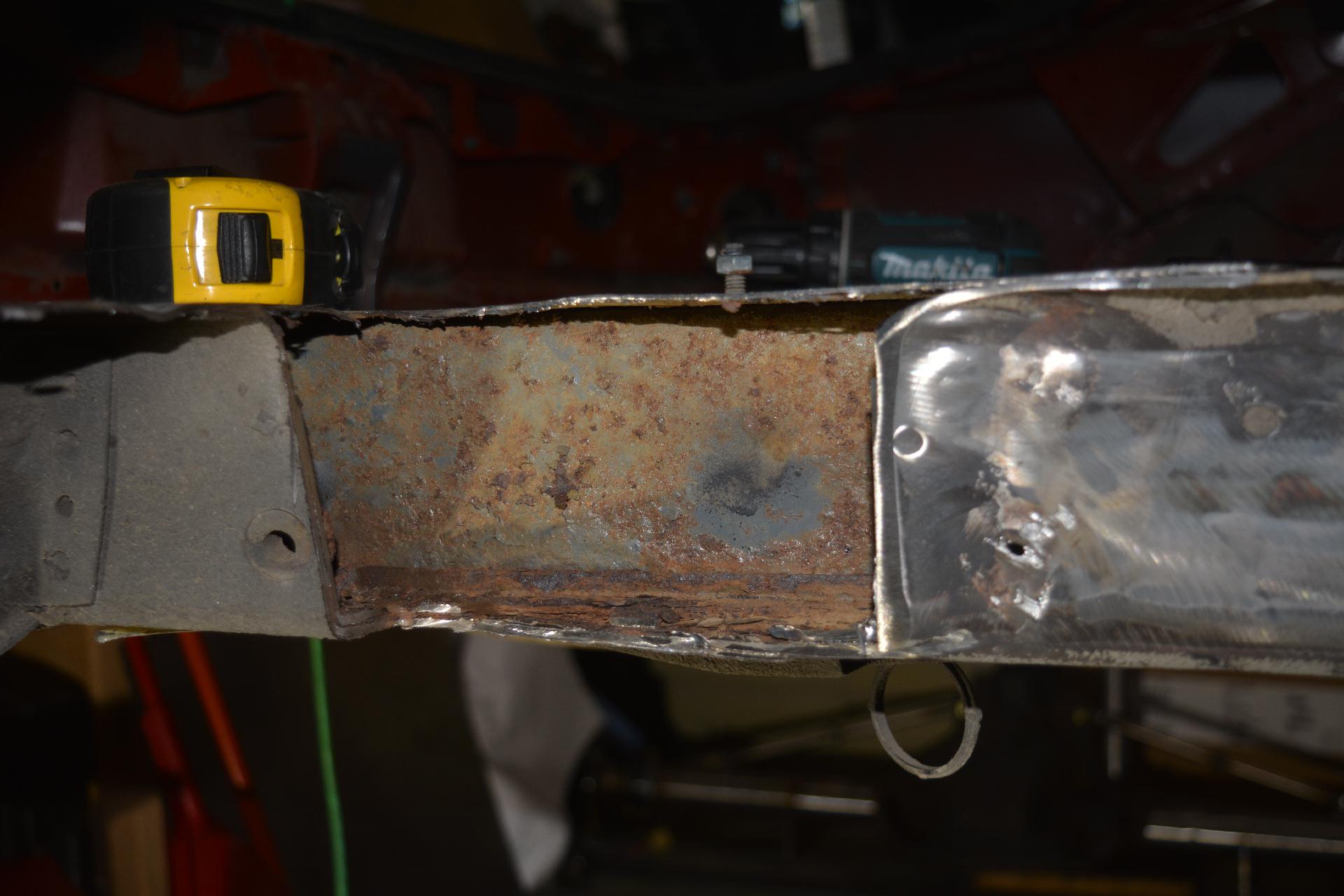

Frame trimmed a bit

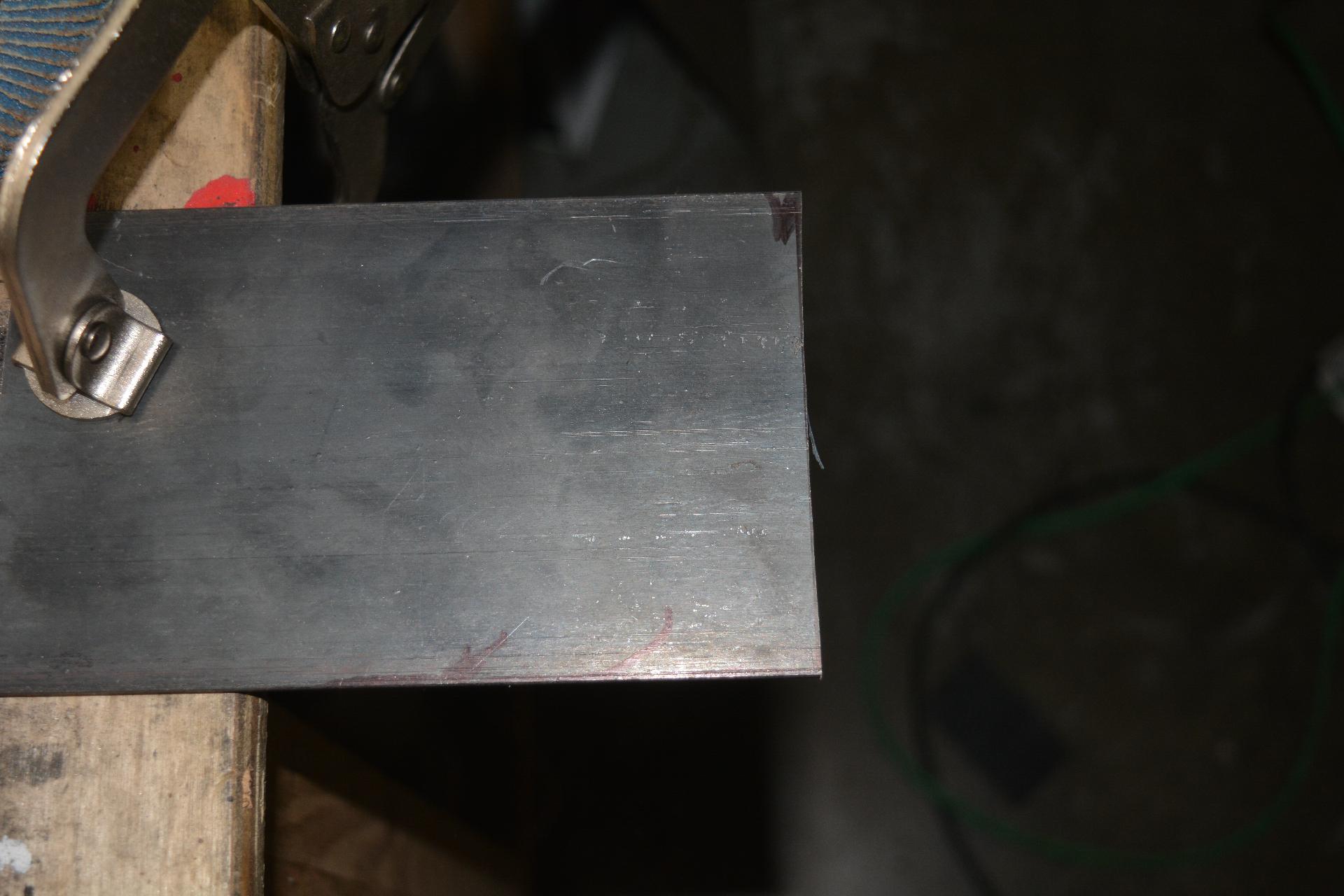

need to cut my piece down
Rough Fit

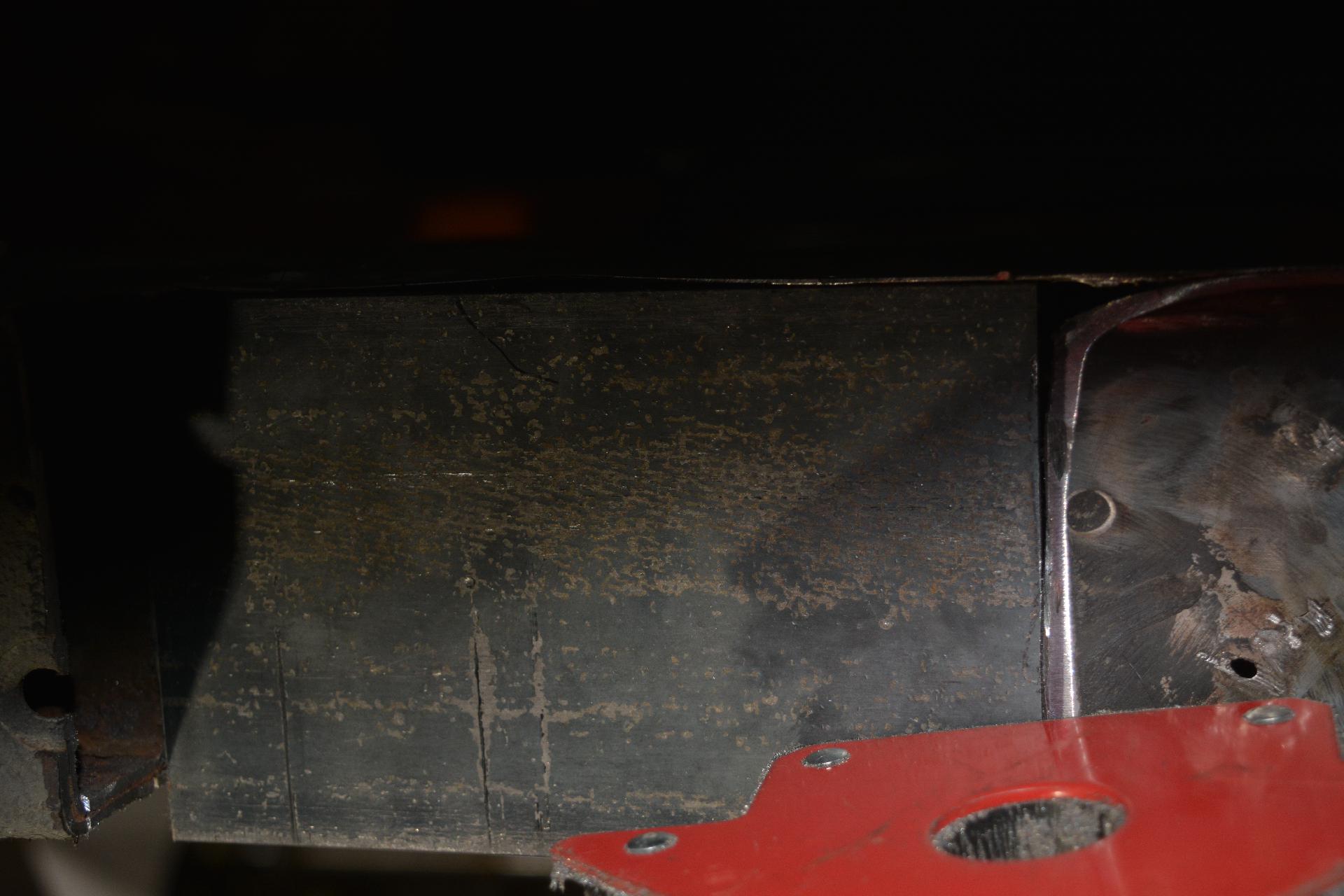

View from the bottom side
Ned to make the plate fit a bit tighter

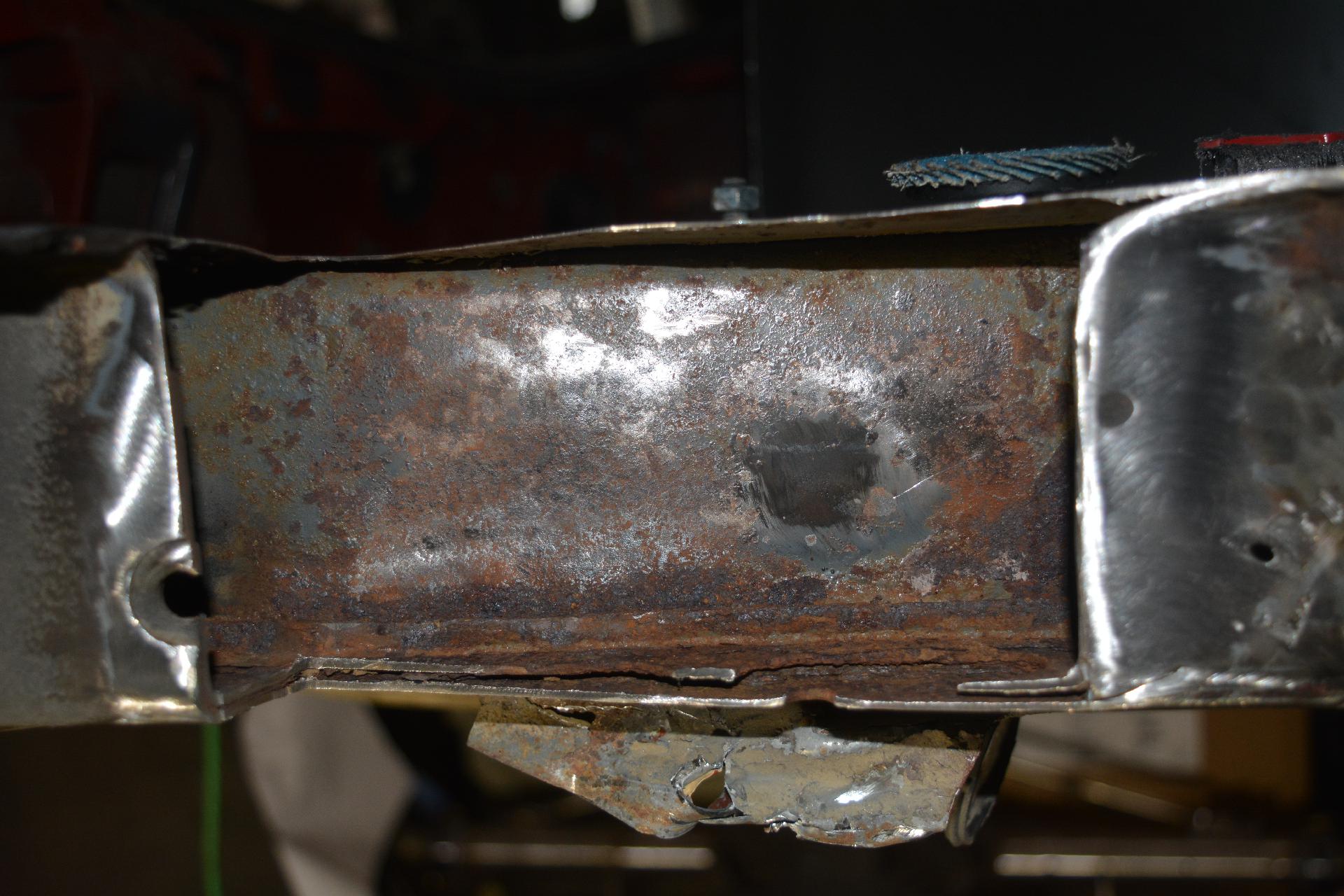

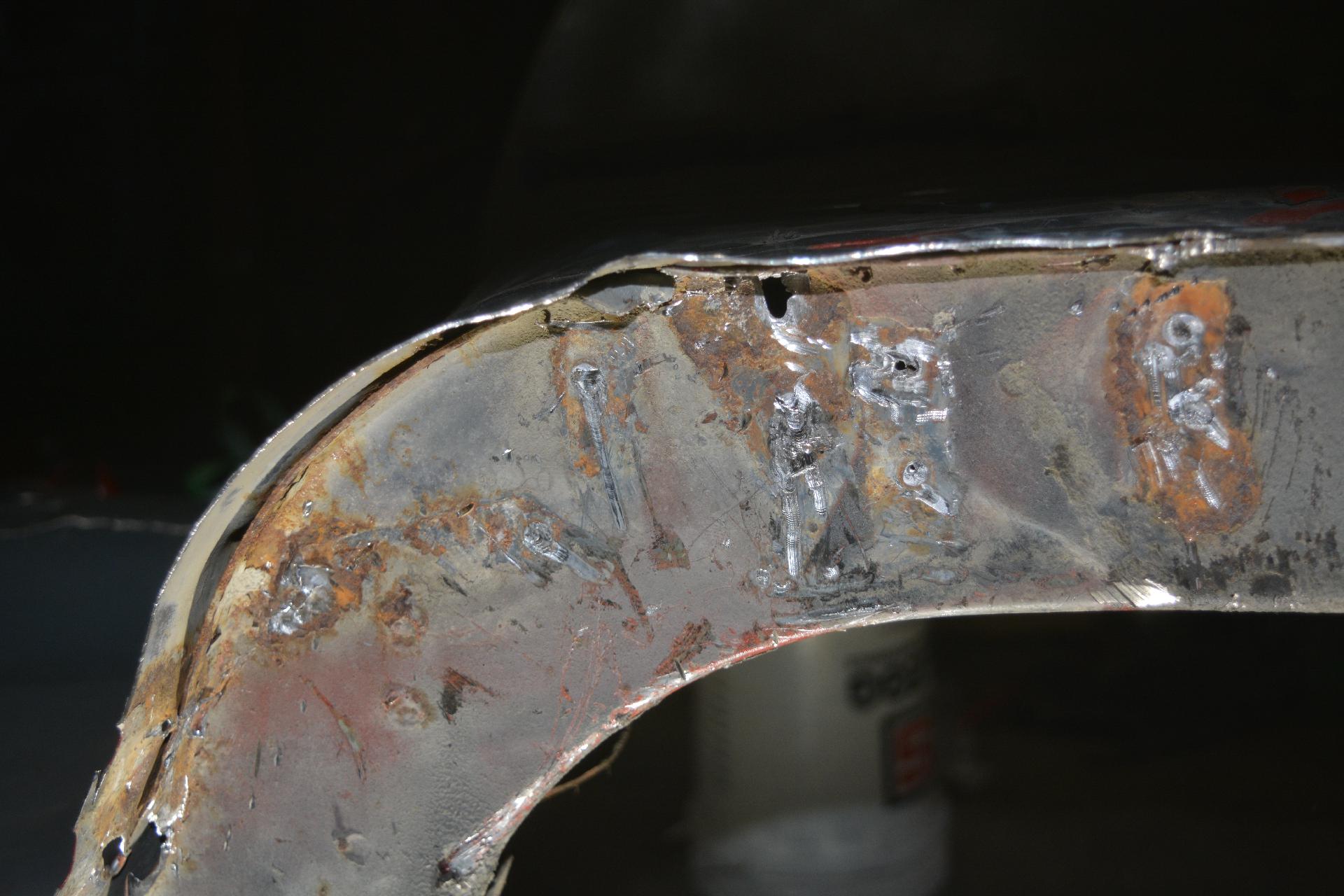

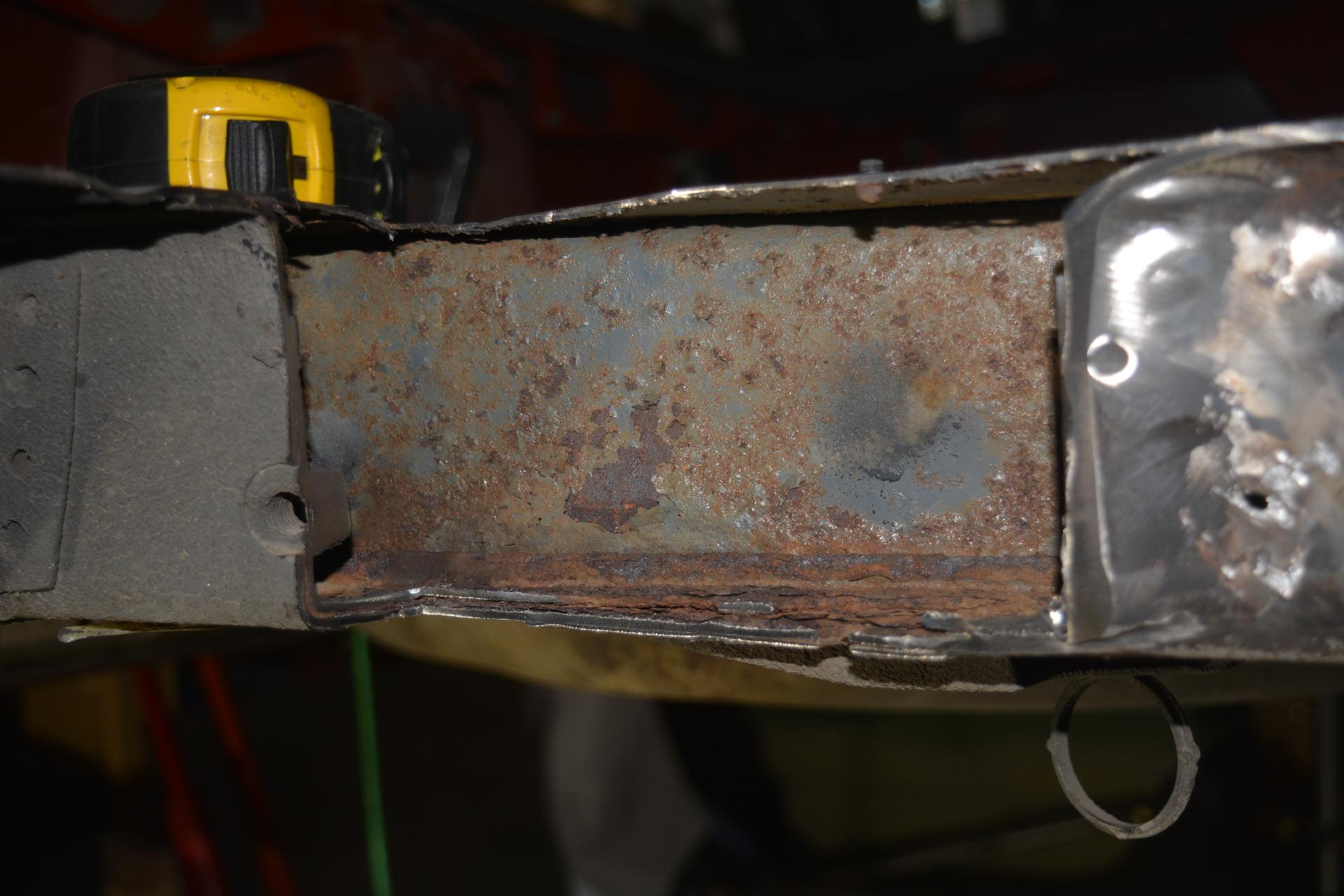

Cleaning up the frame

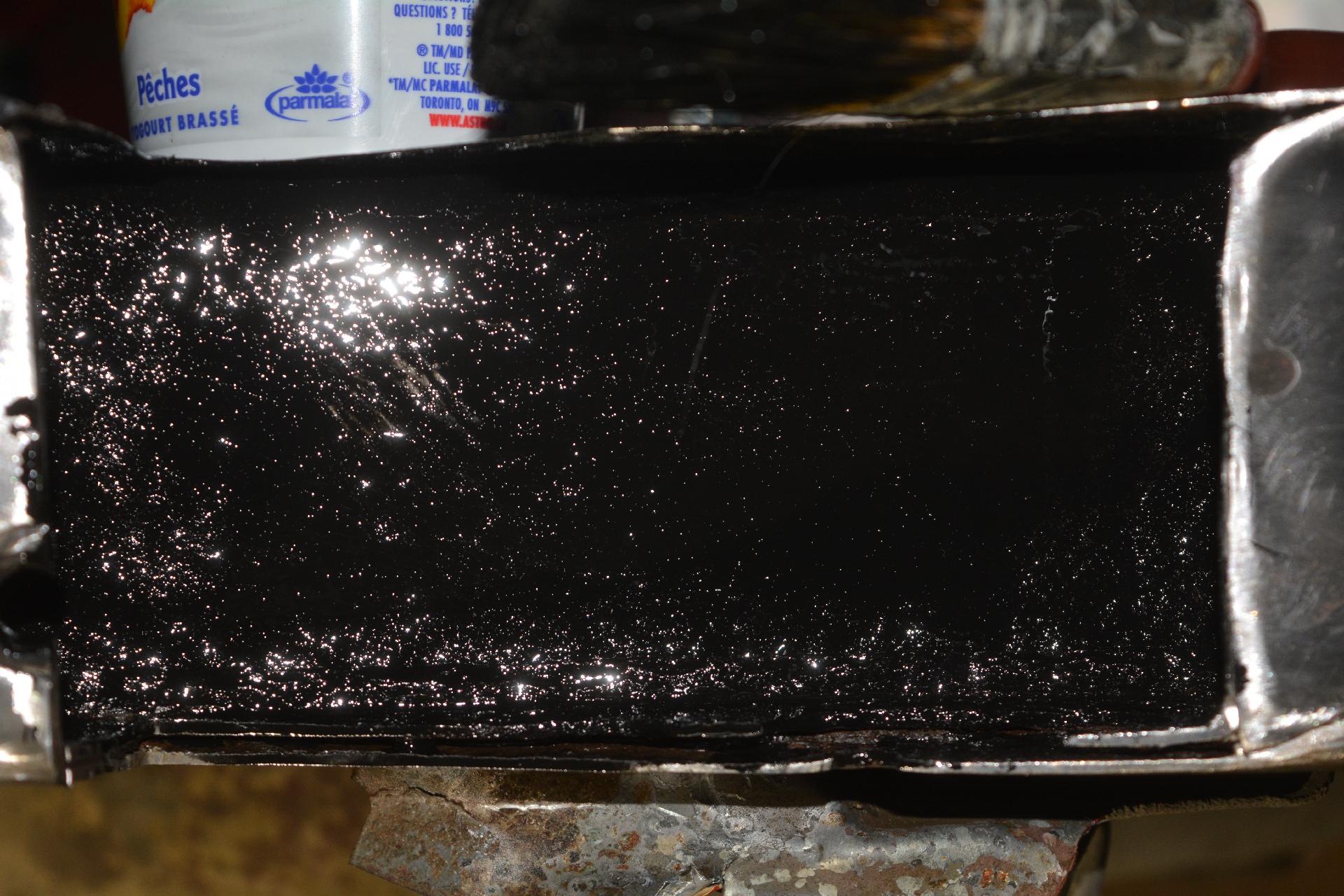

Por 15 on the frame to protect it

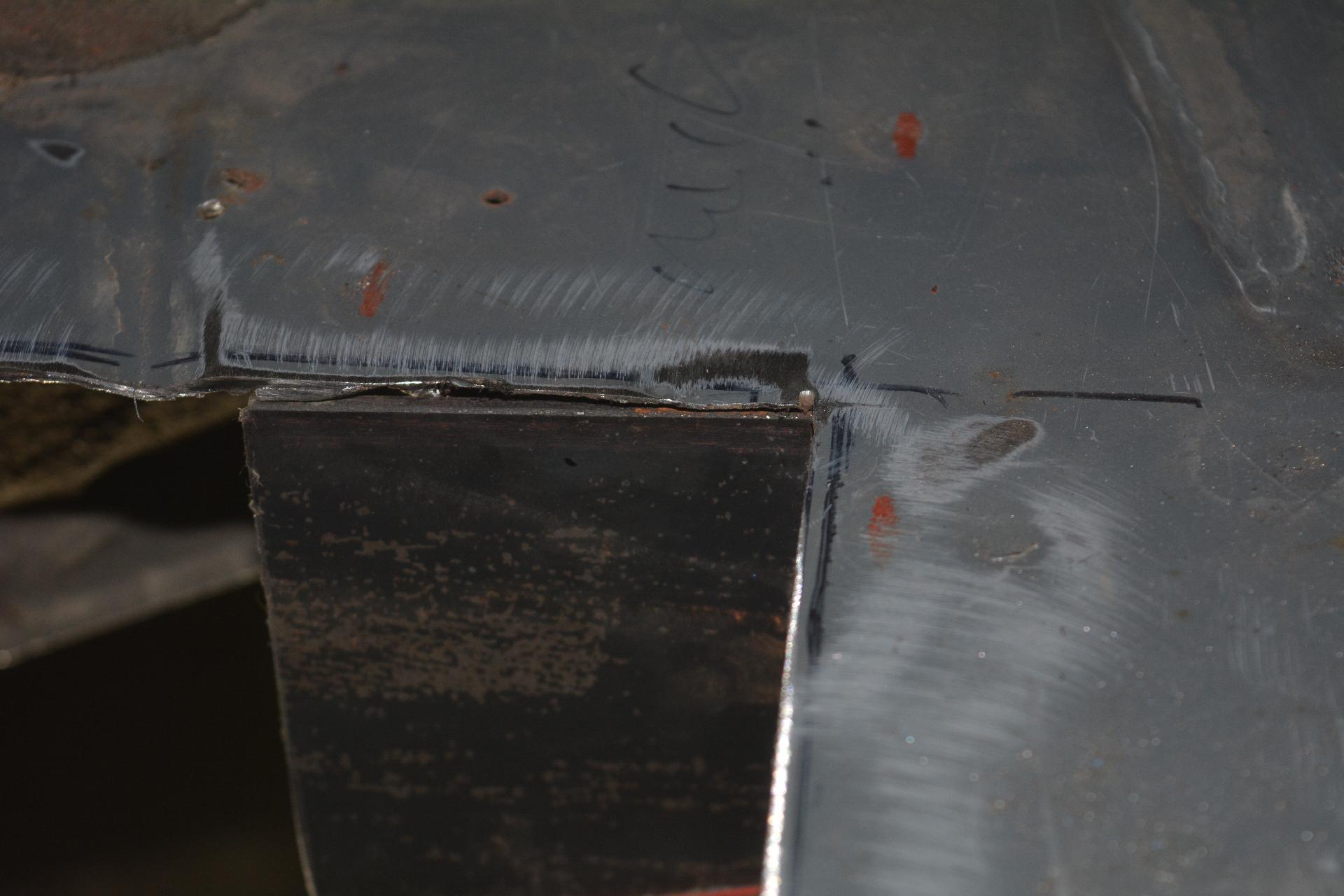

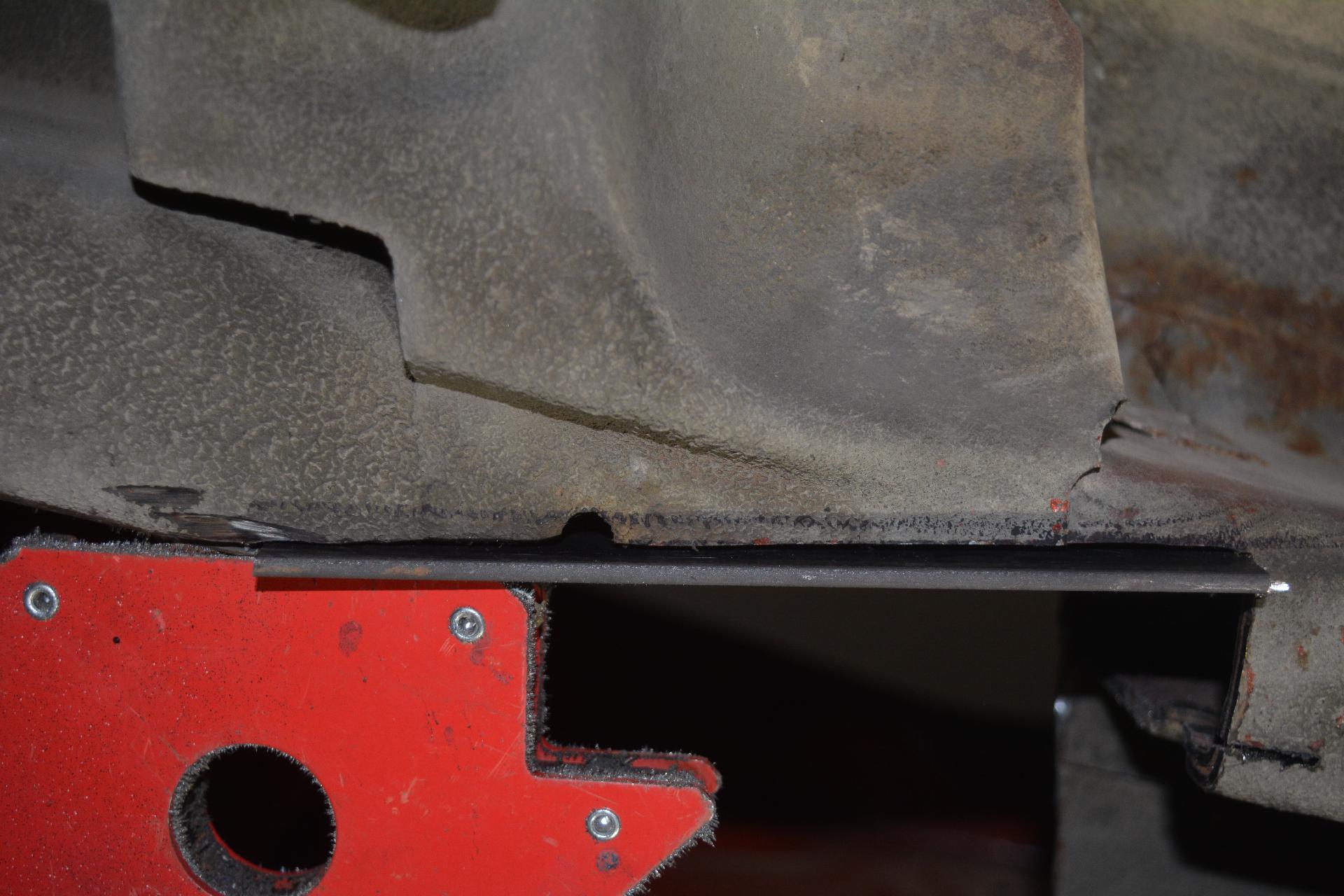

Plate trimmed and ready for tack welds
Gonna need to massage the frame back a bit

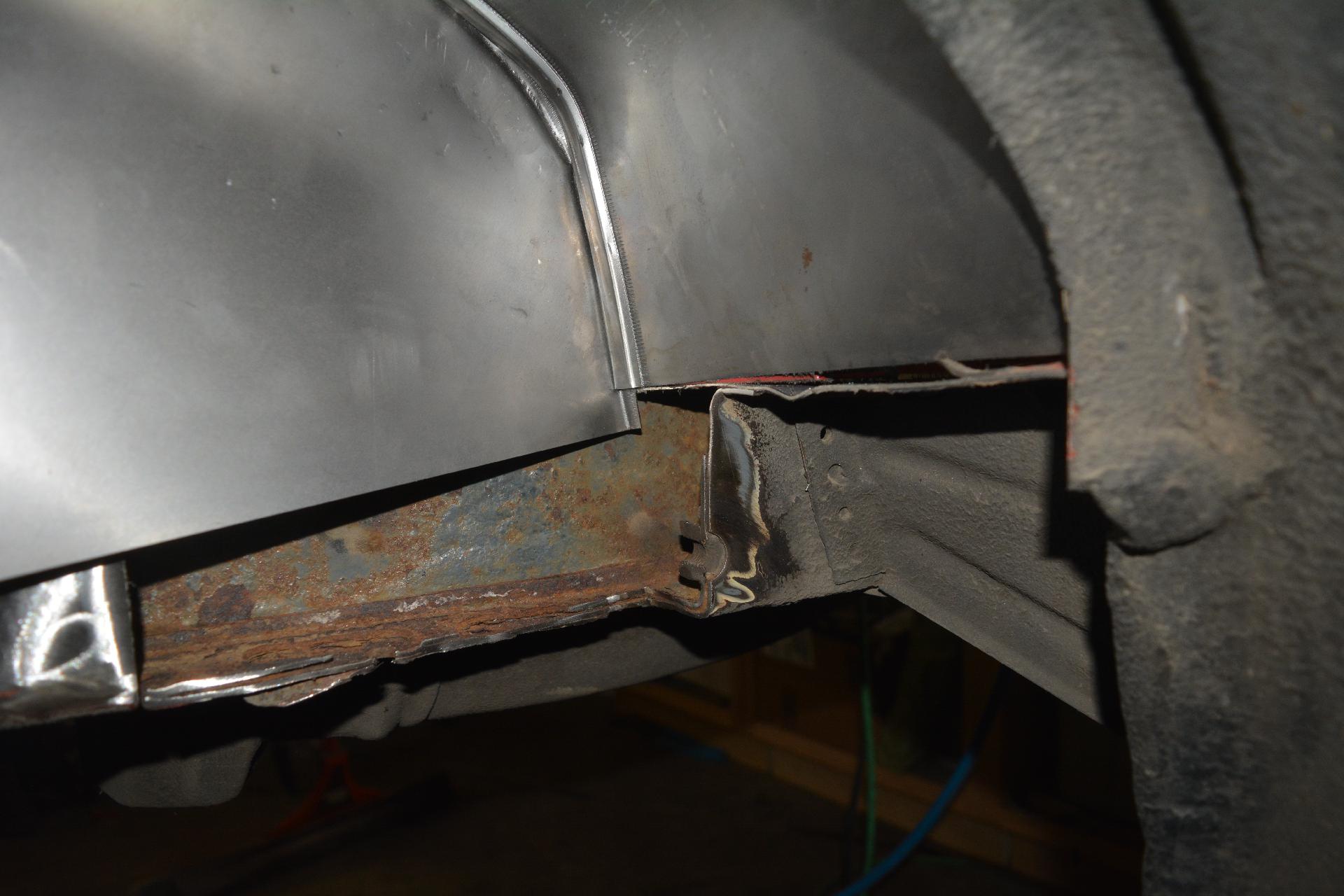

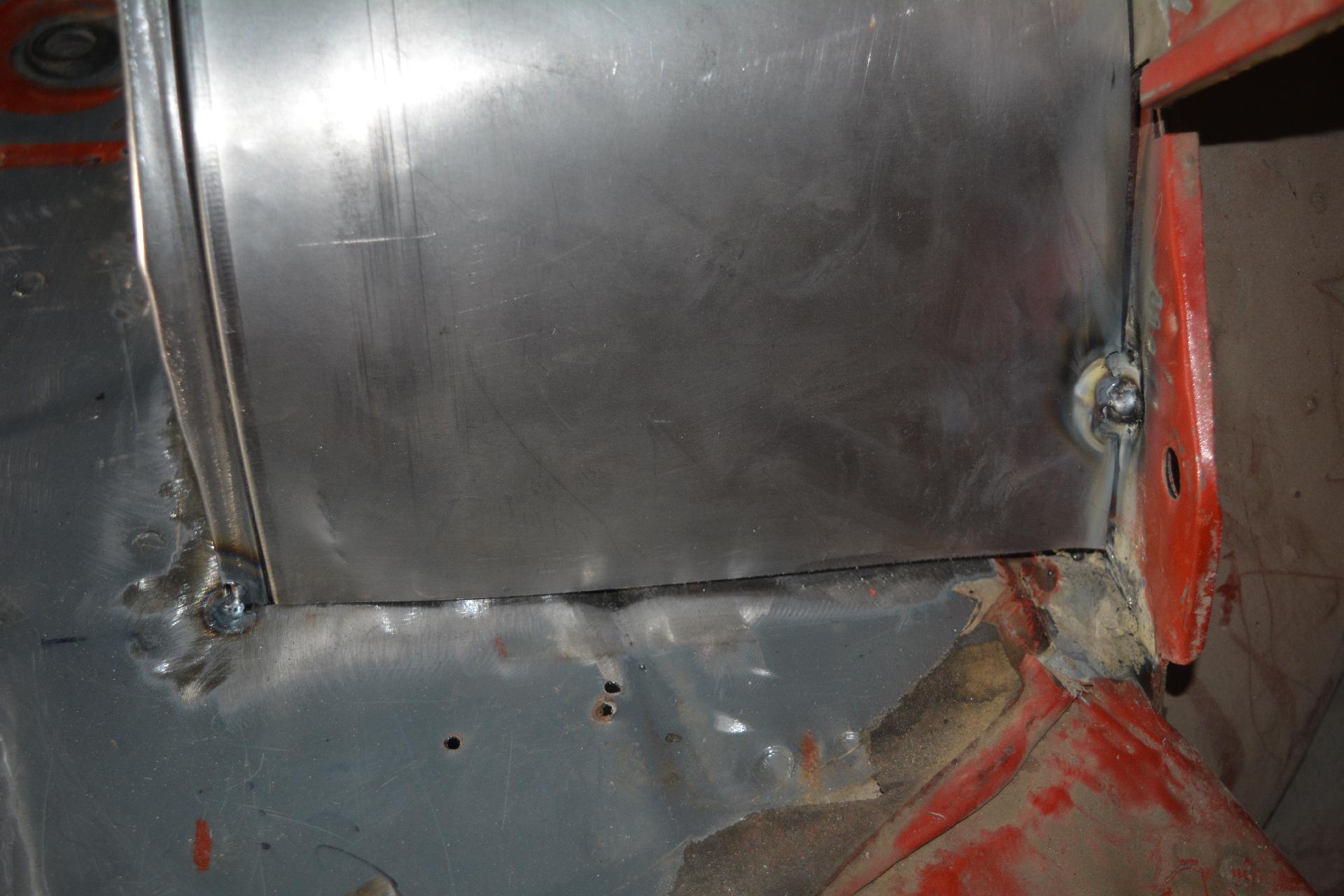

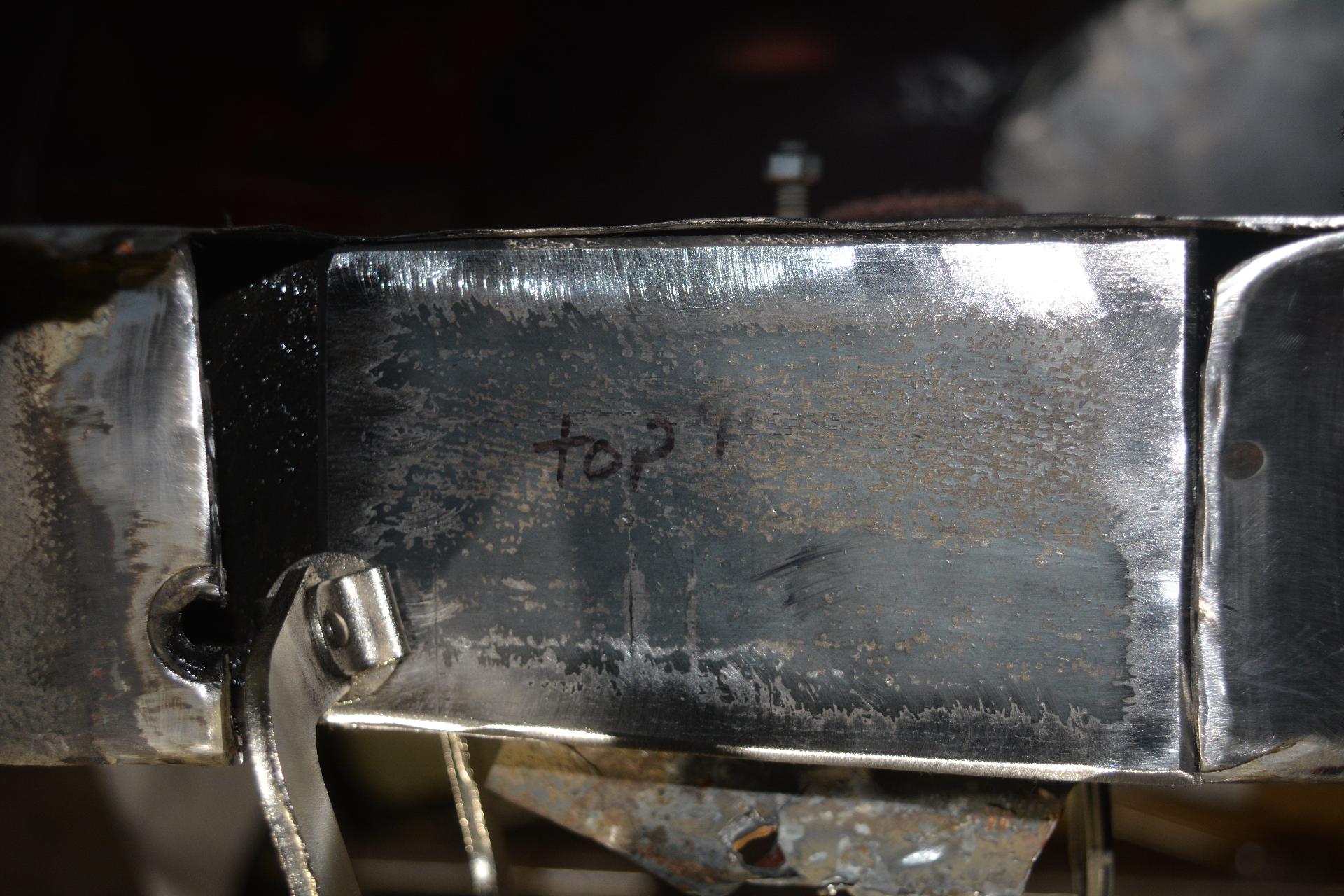

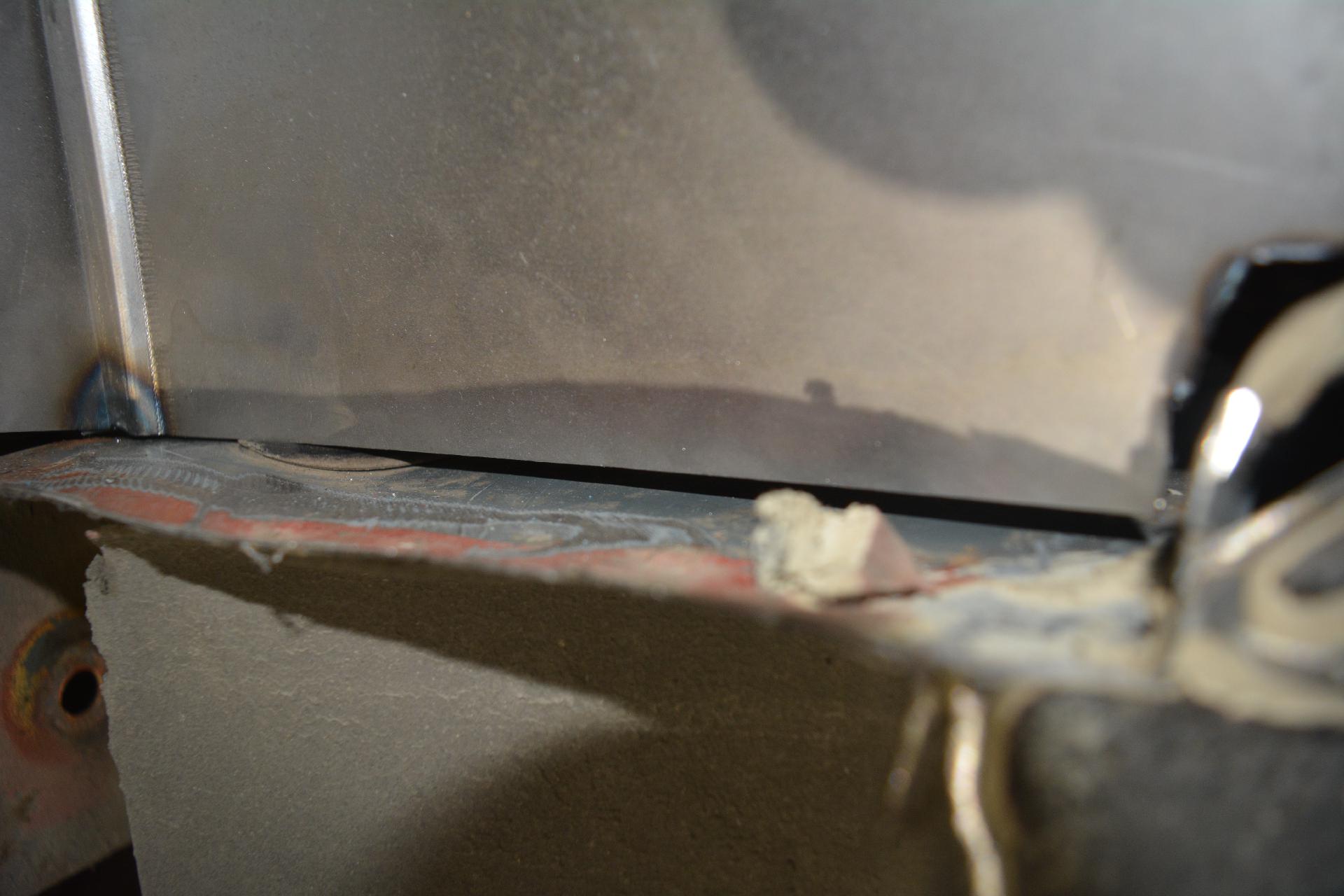

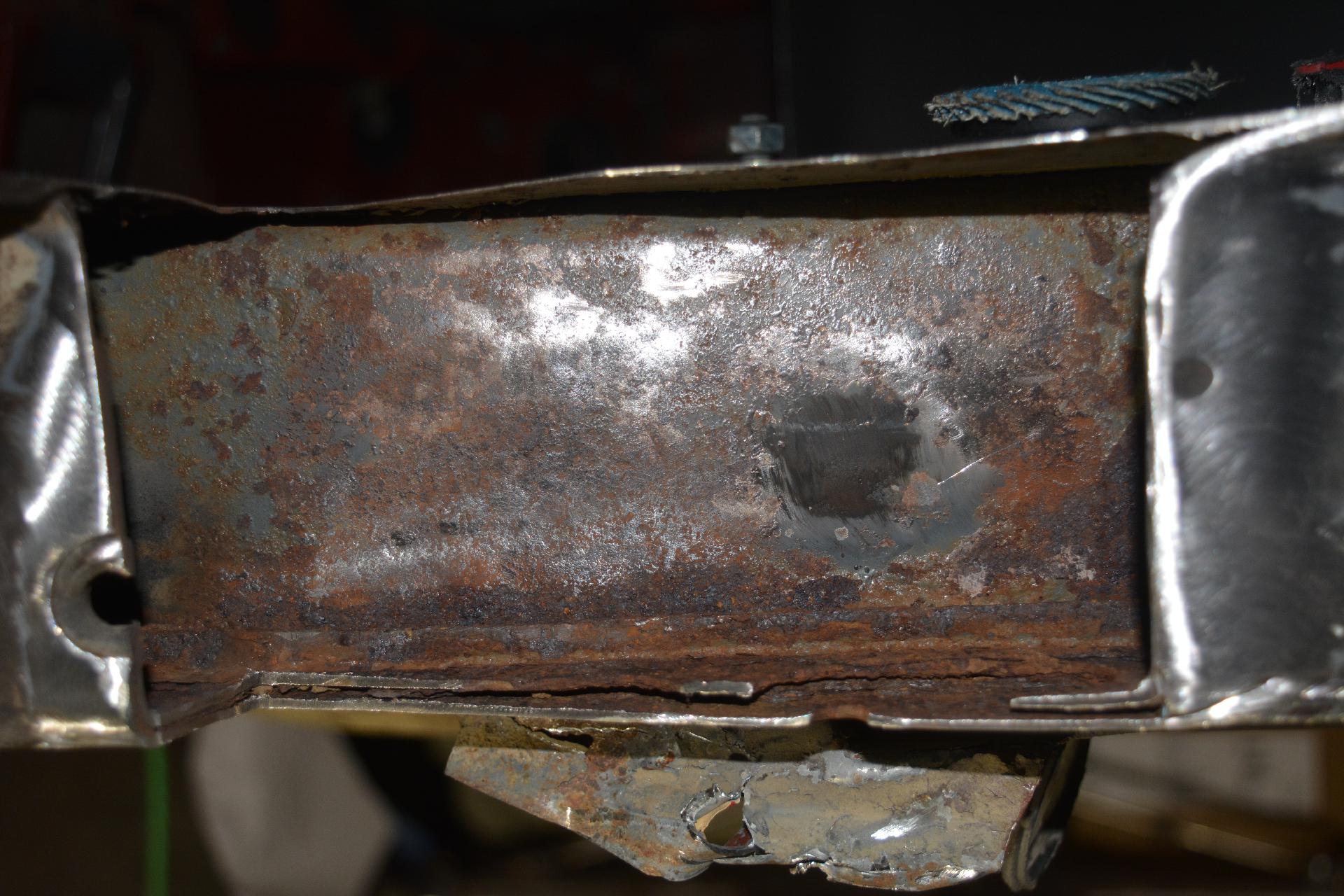

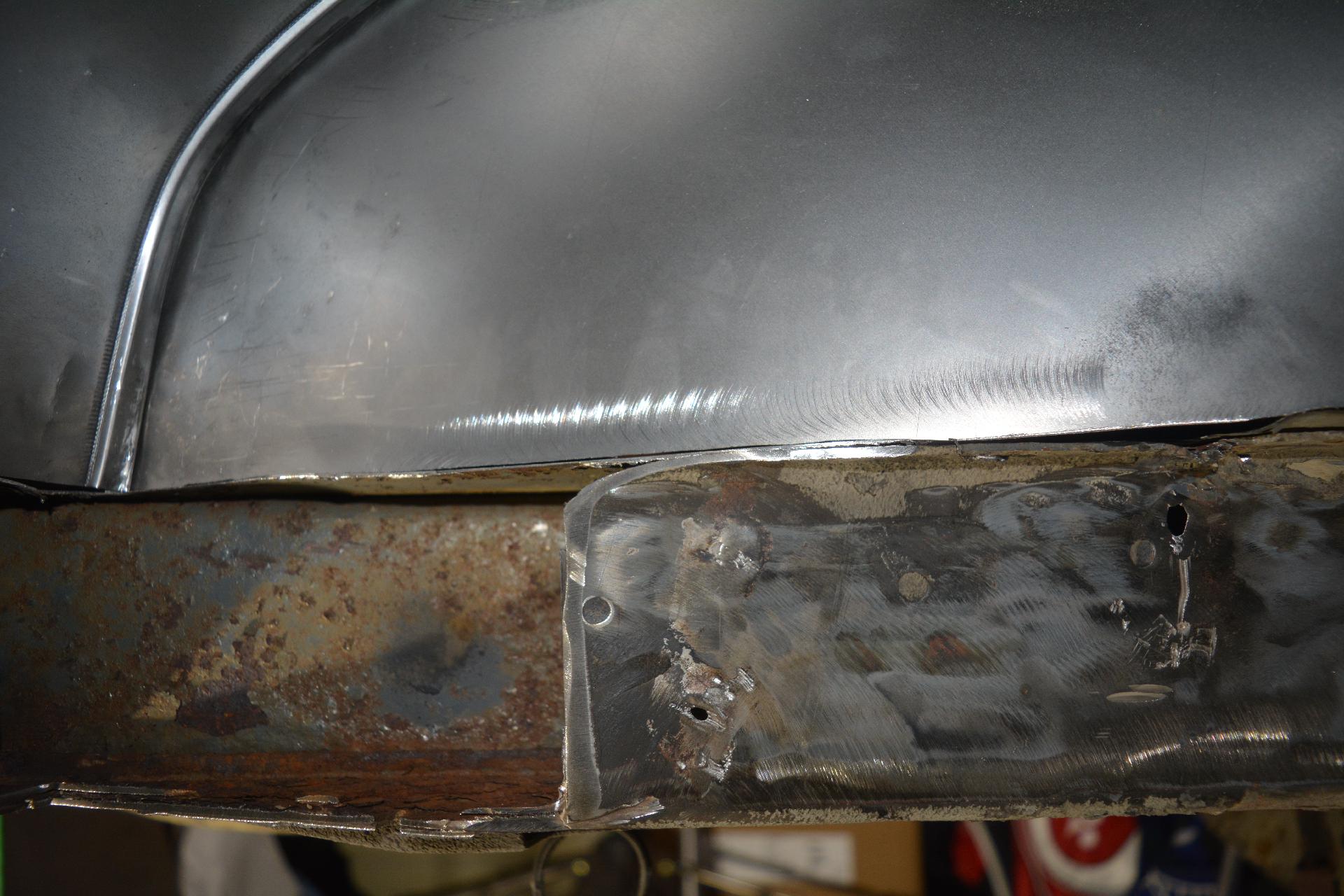

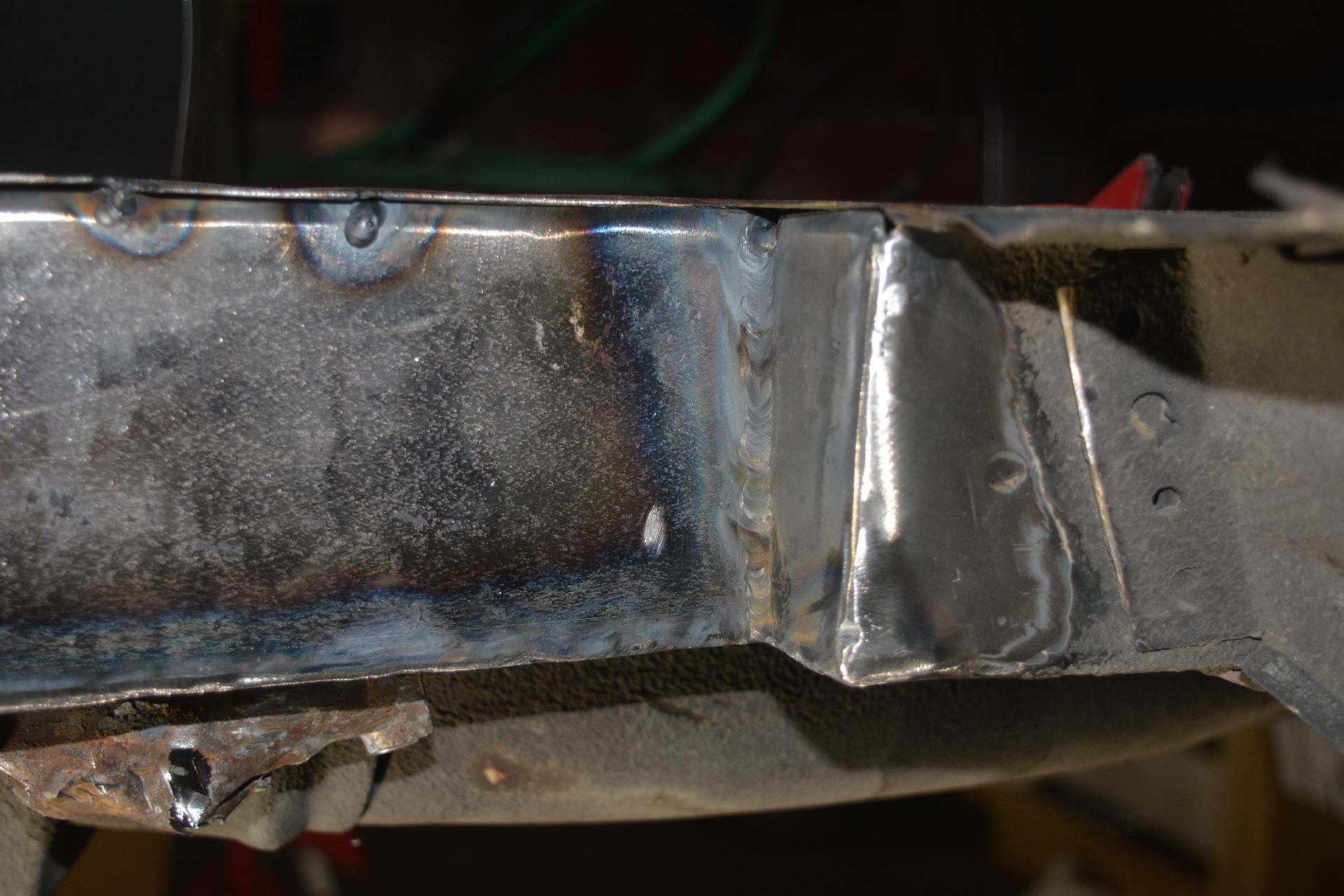

Plate from the bottom
View from the top

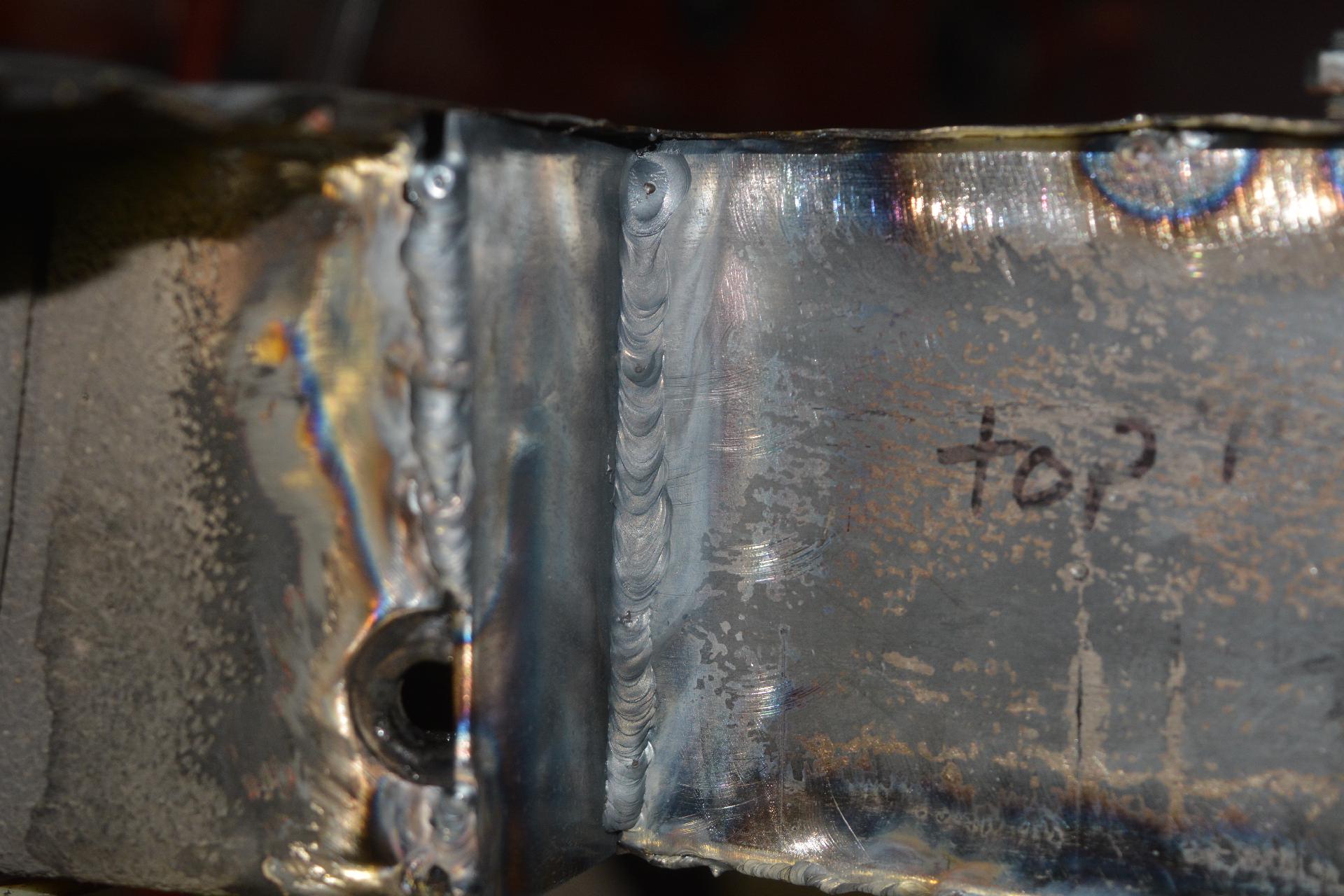

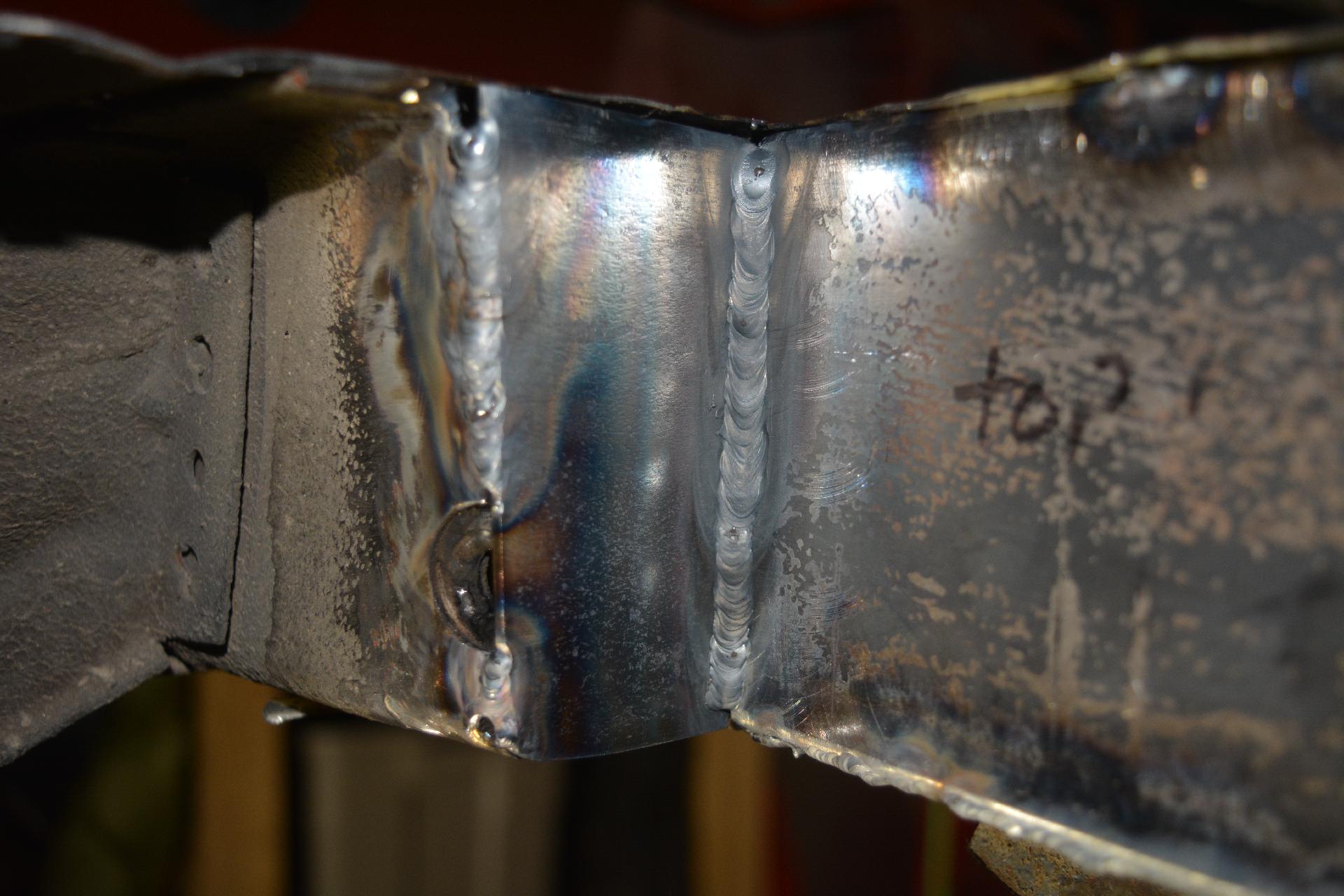

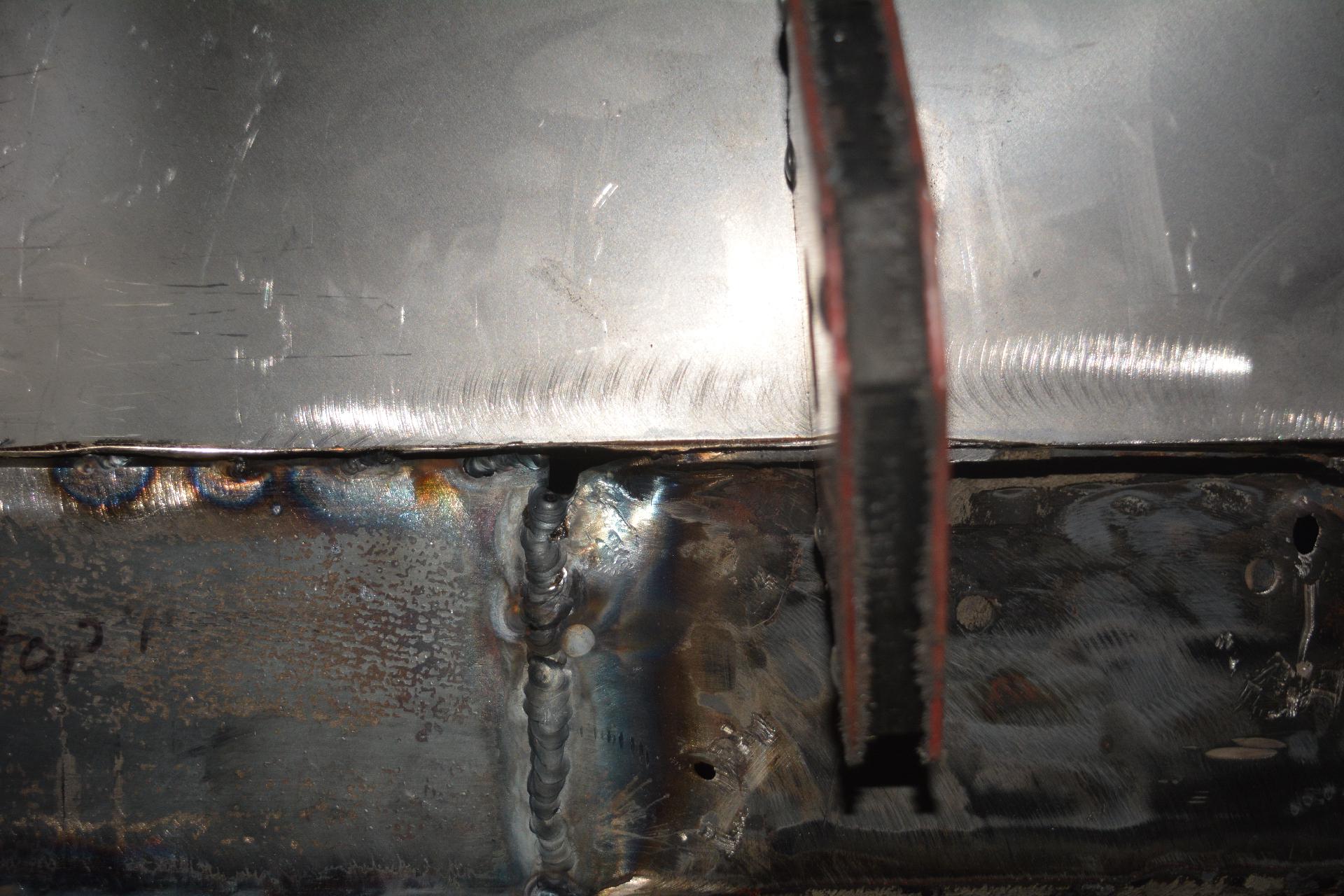

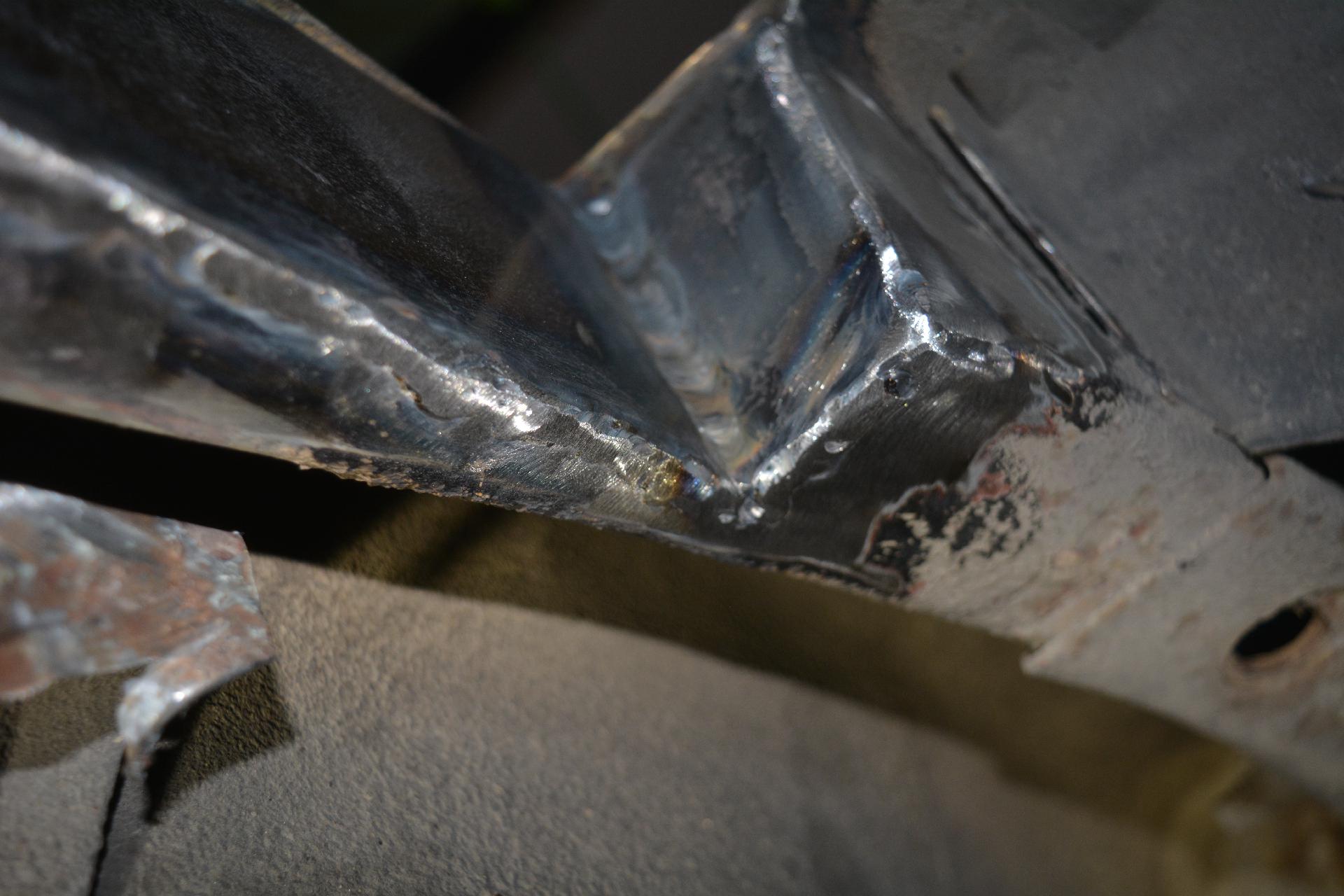

Both pl;ates welded in

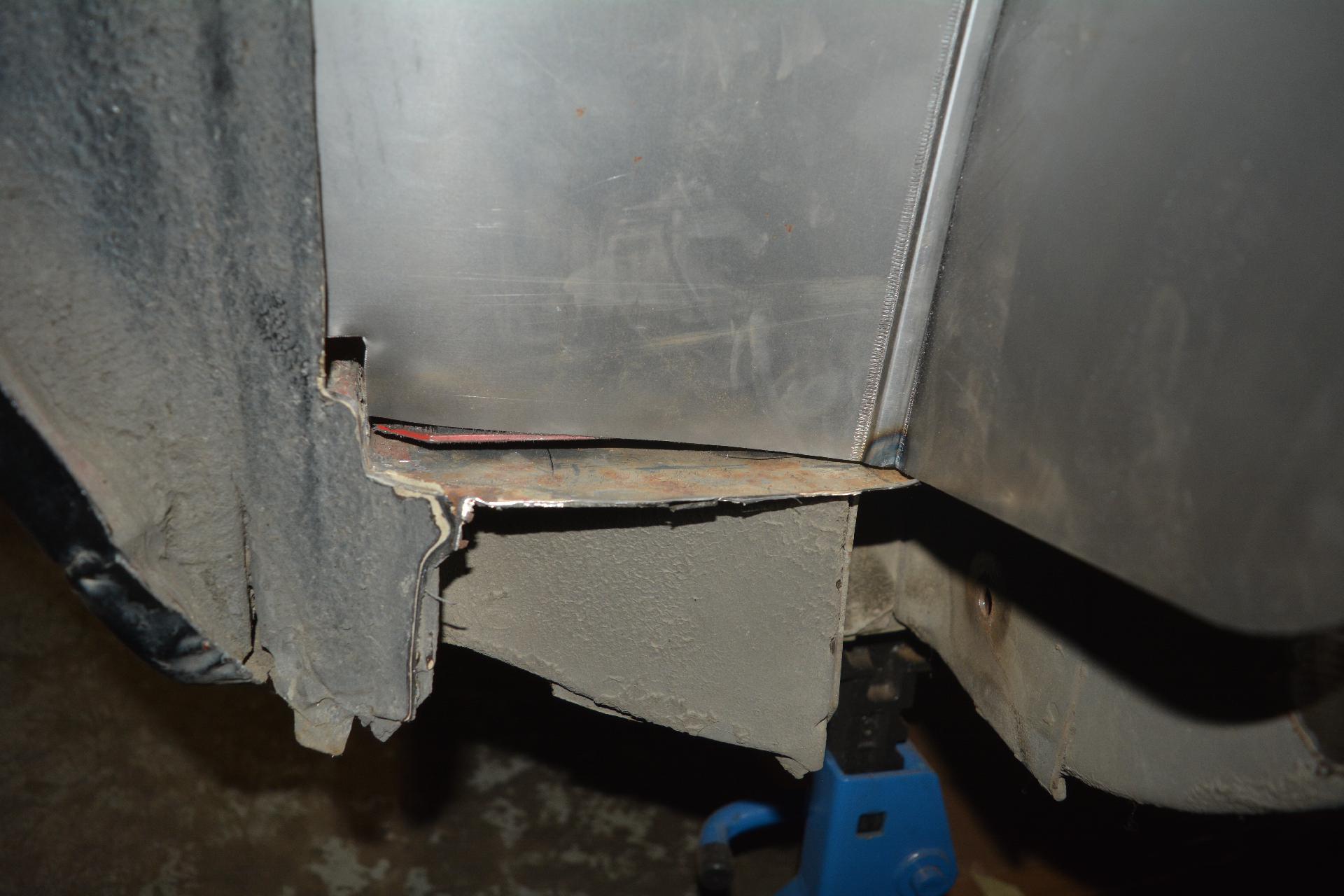

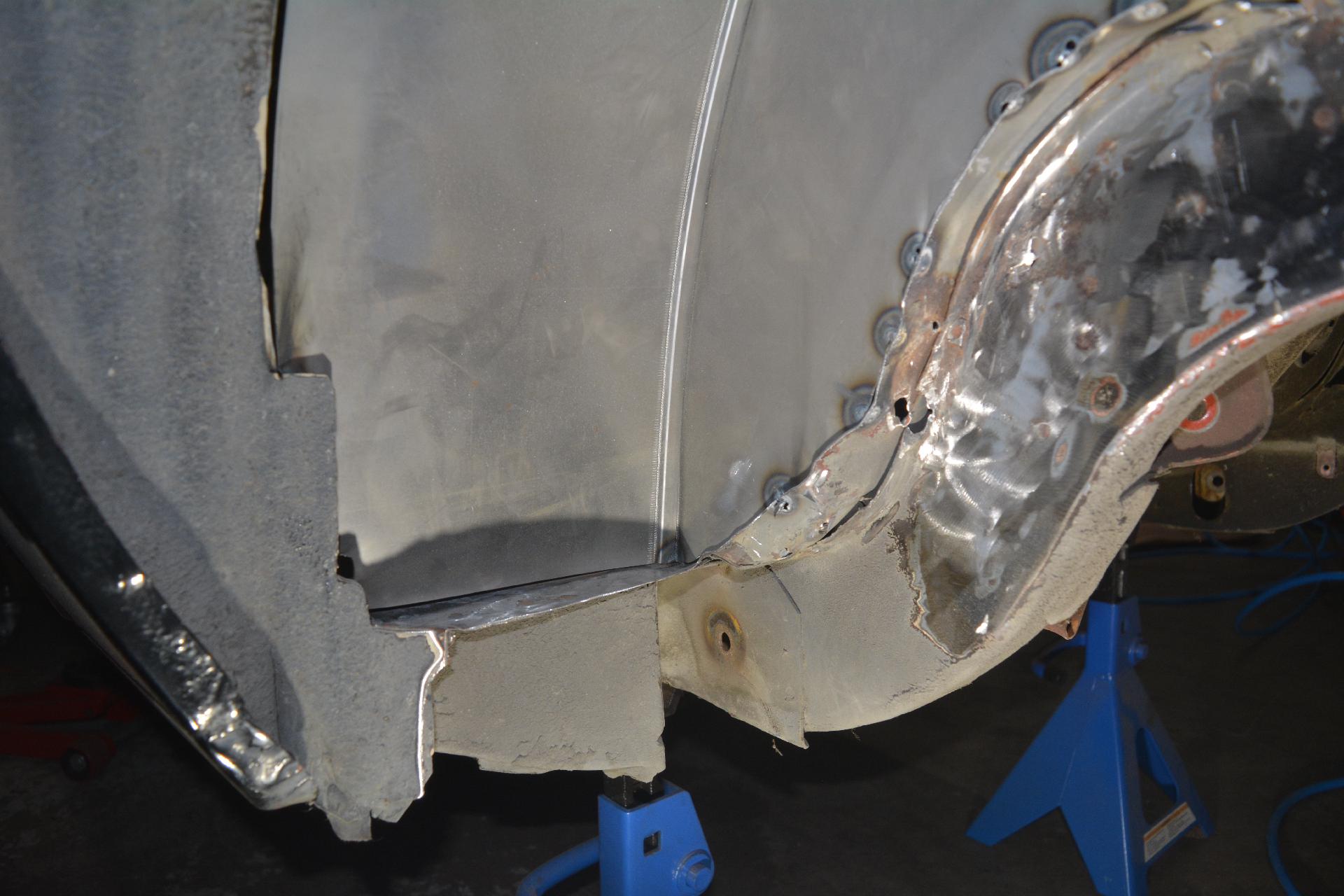

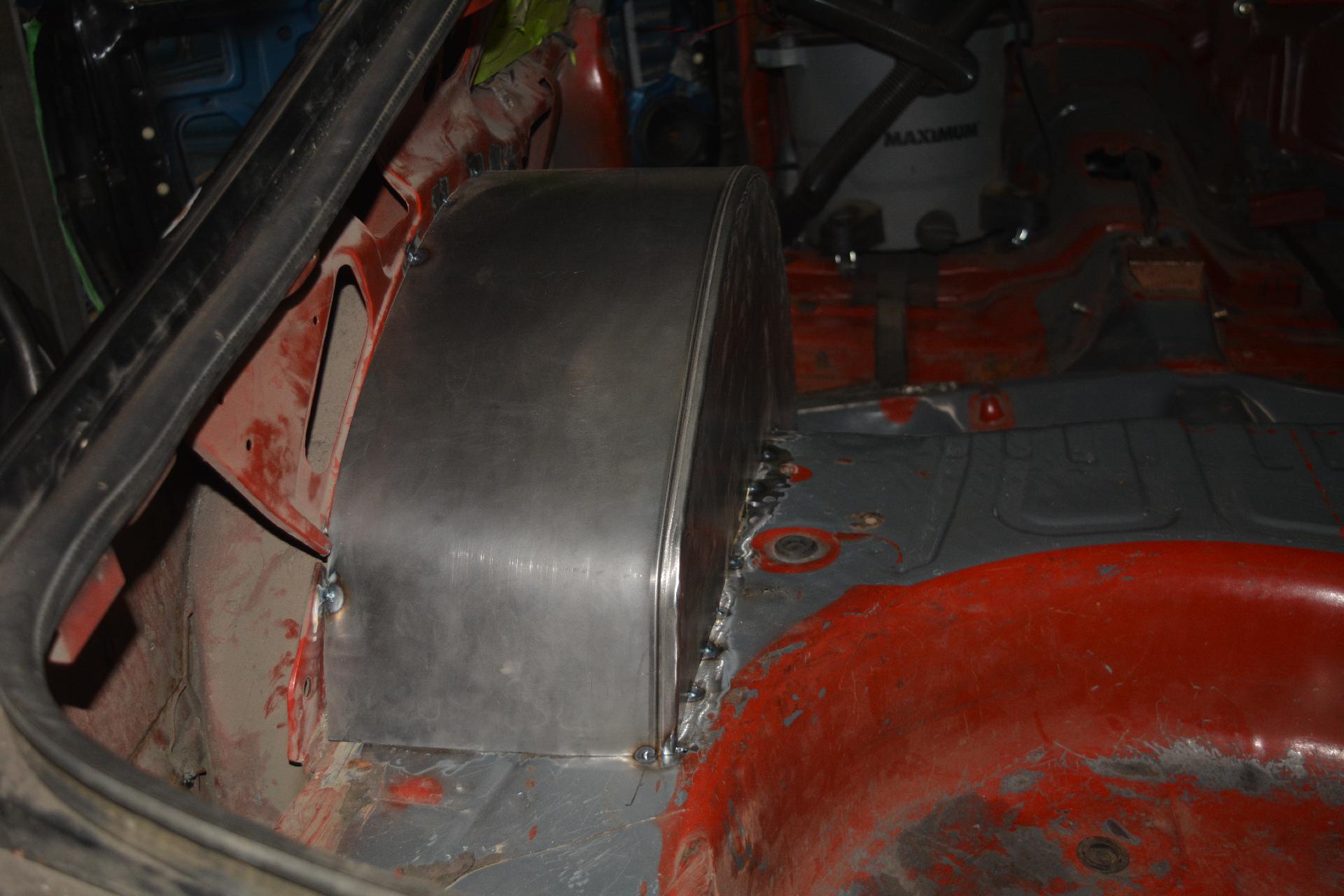

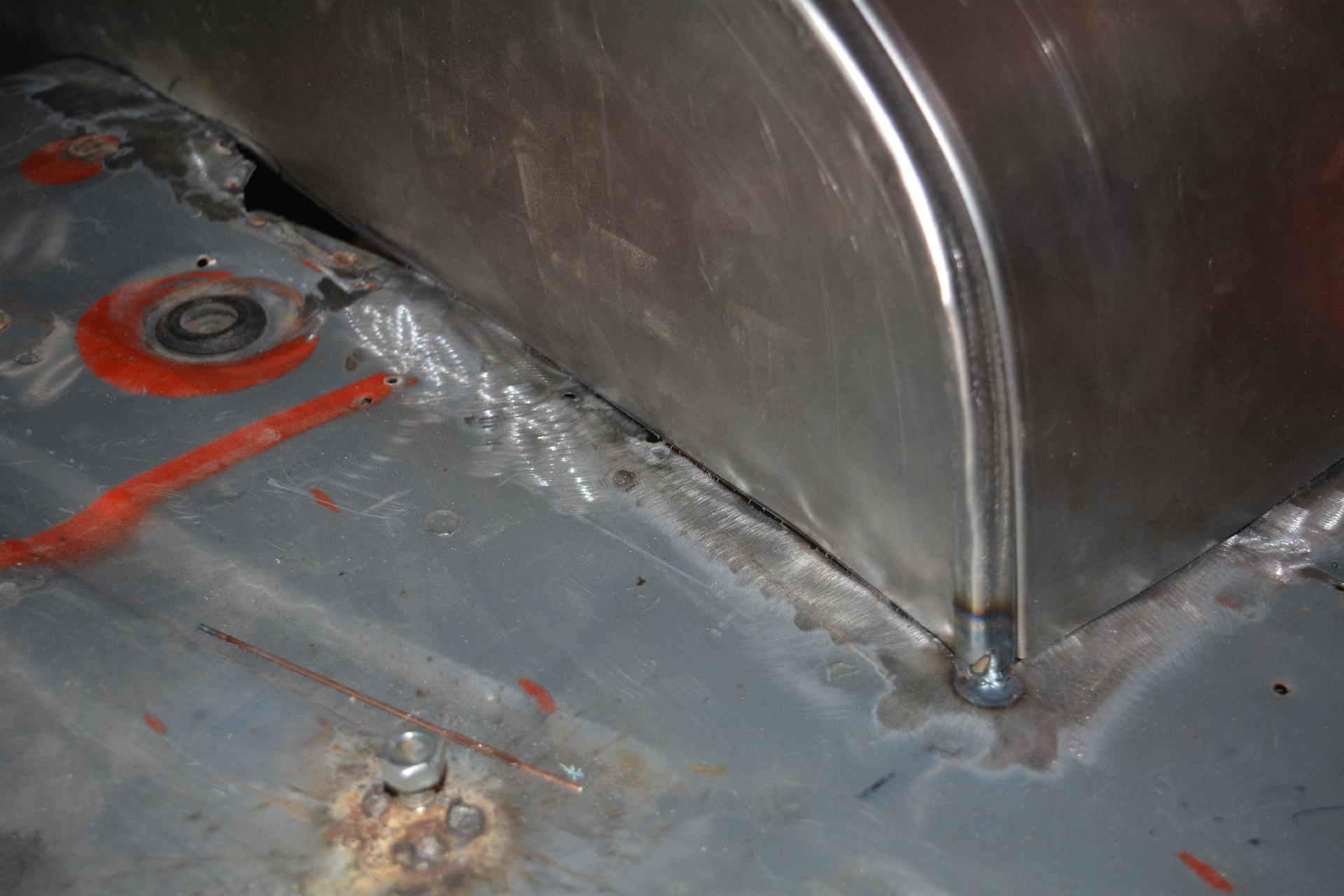

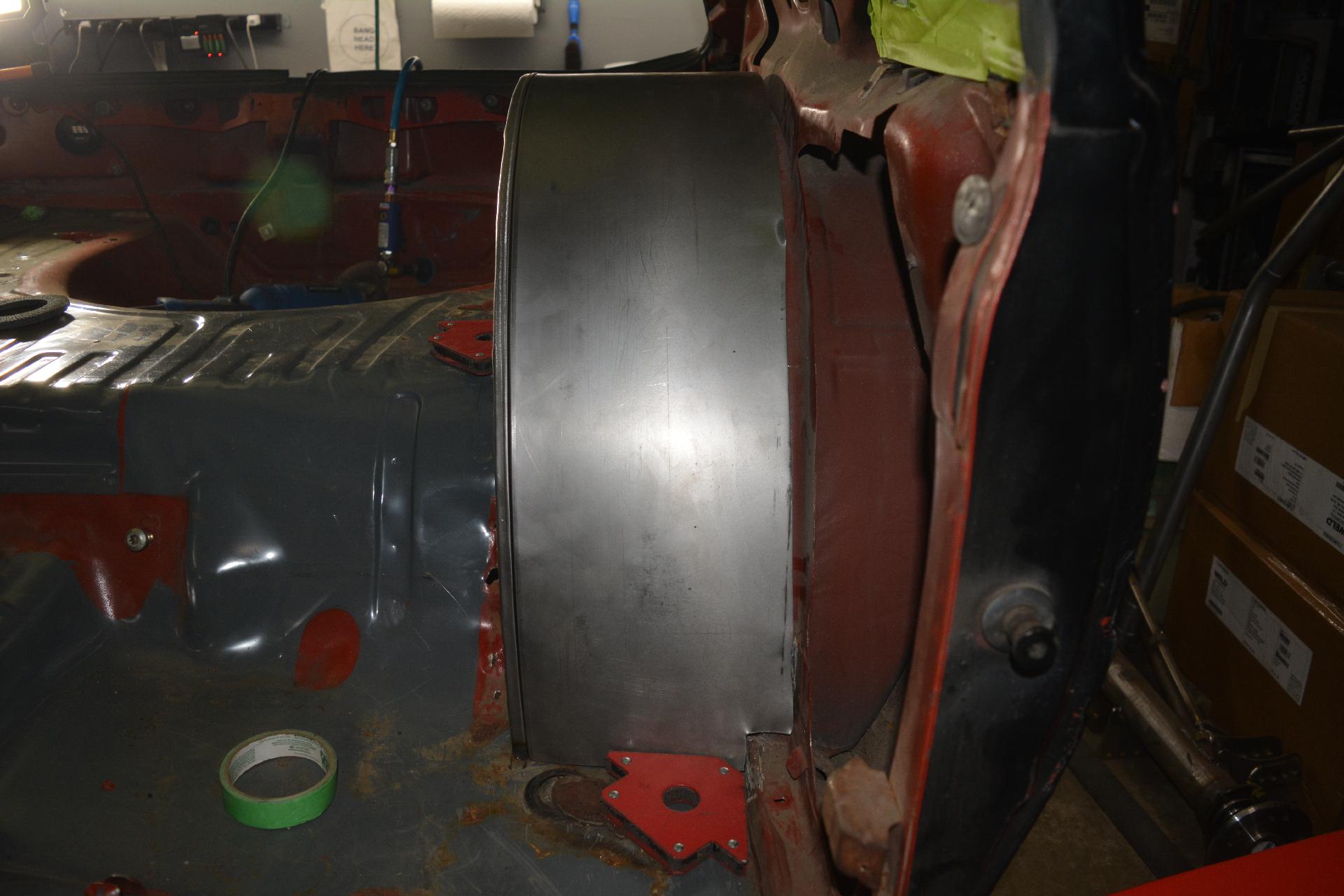

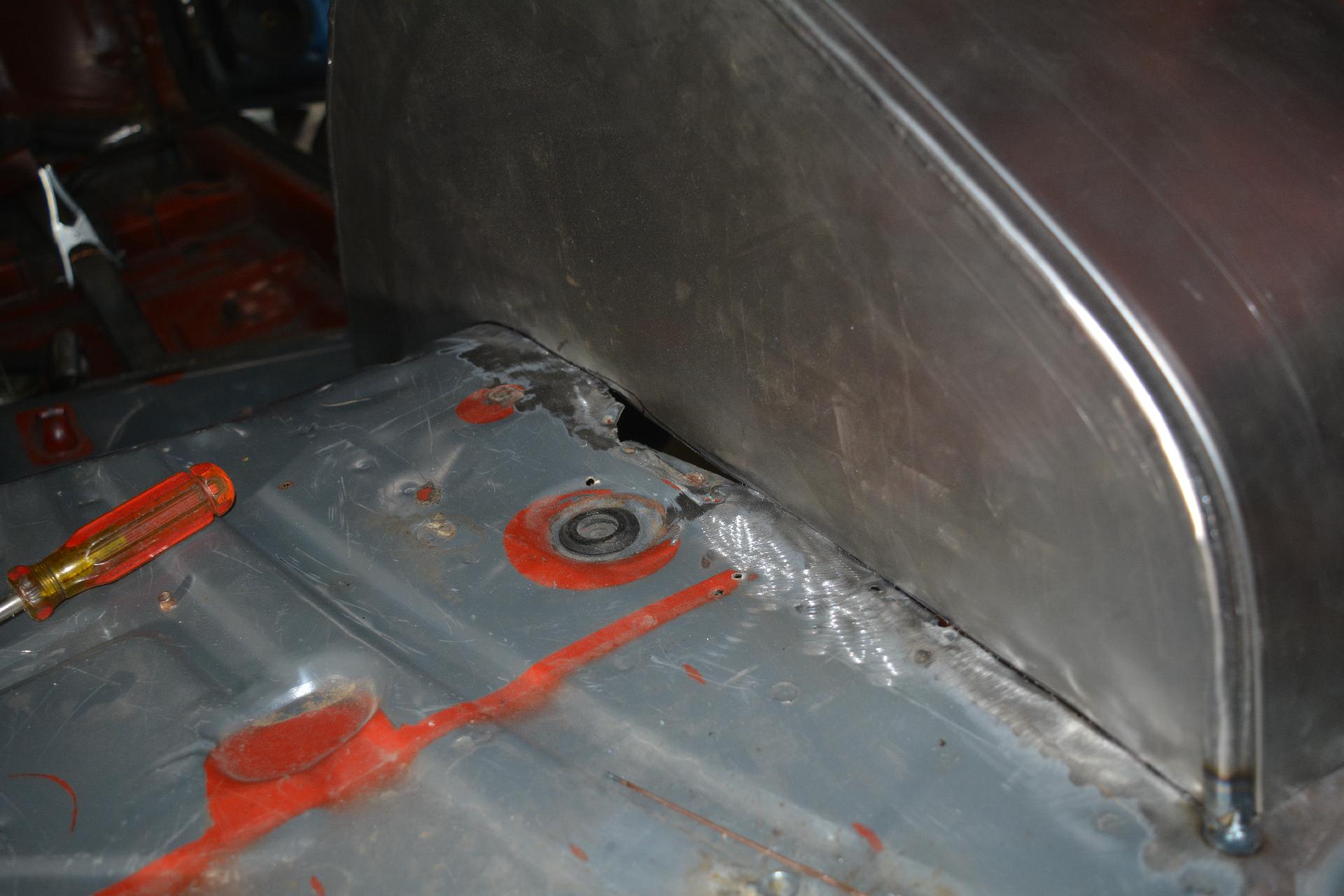

Tub Tacked in

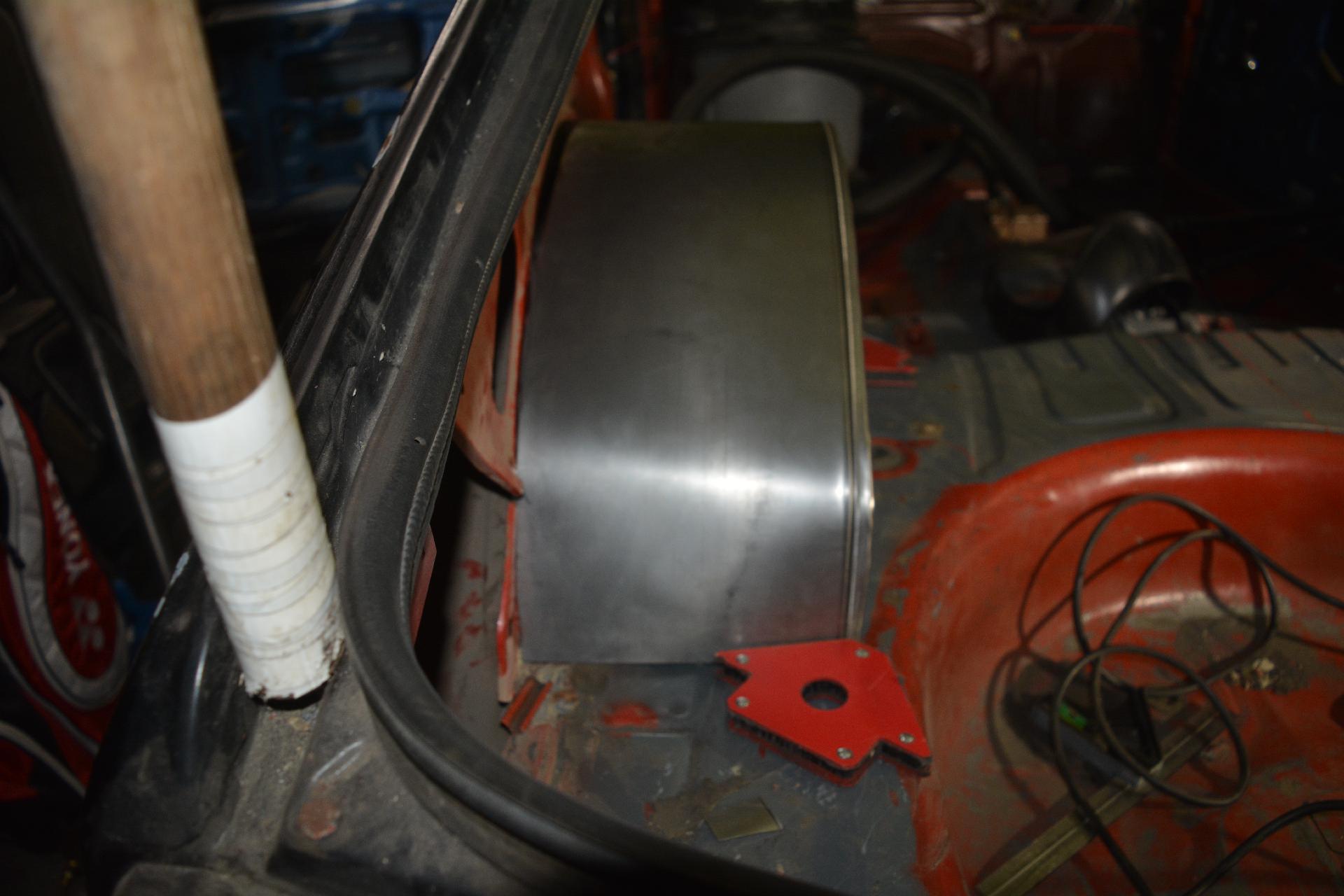

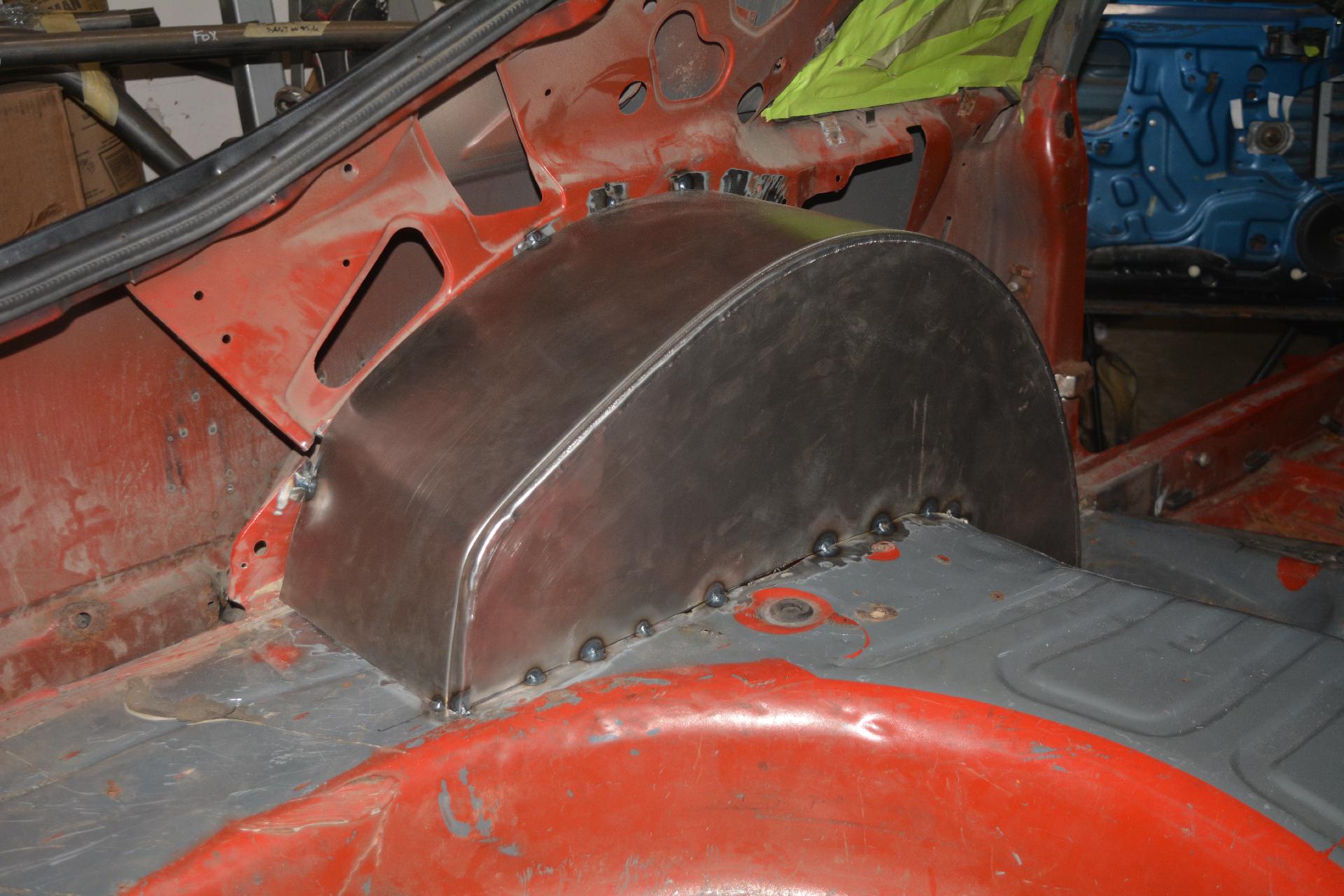

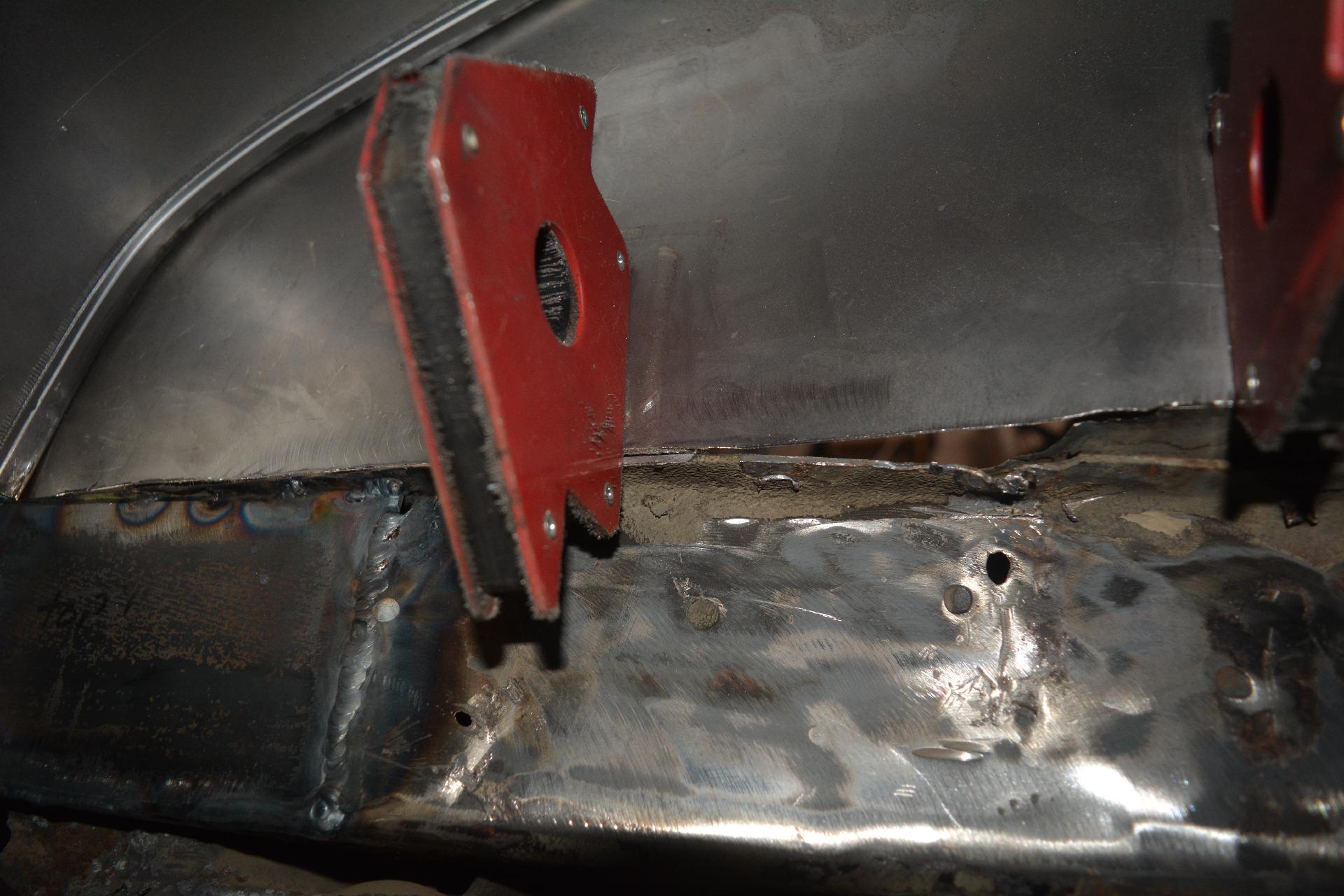

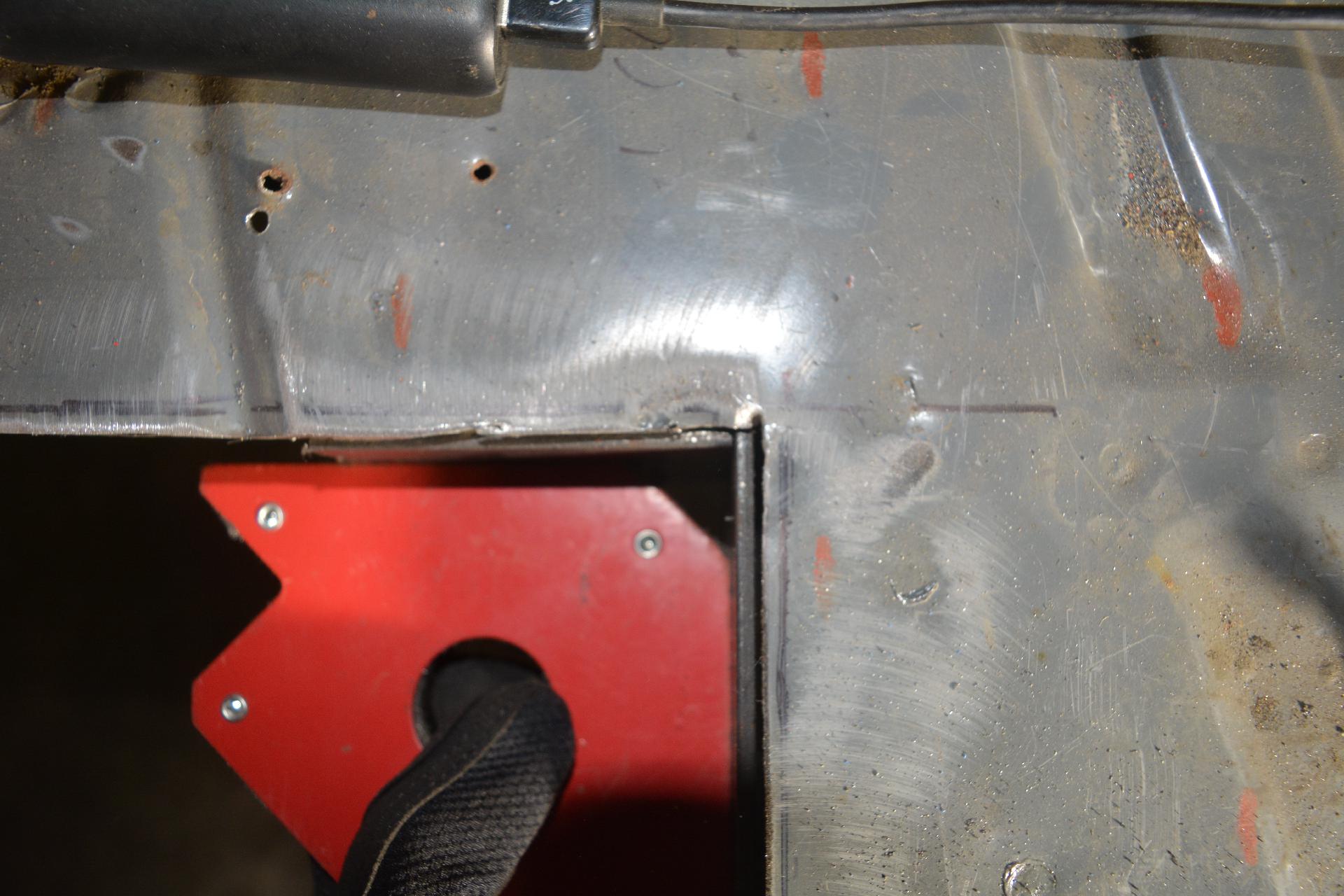

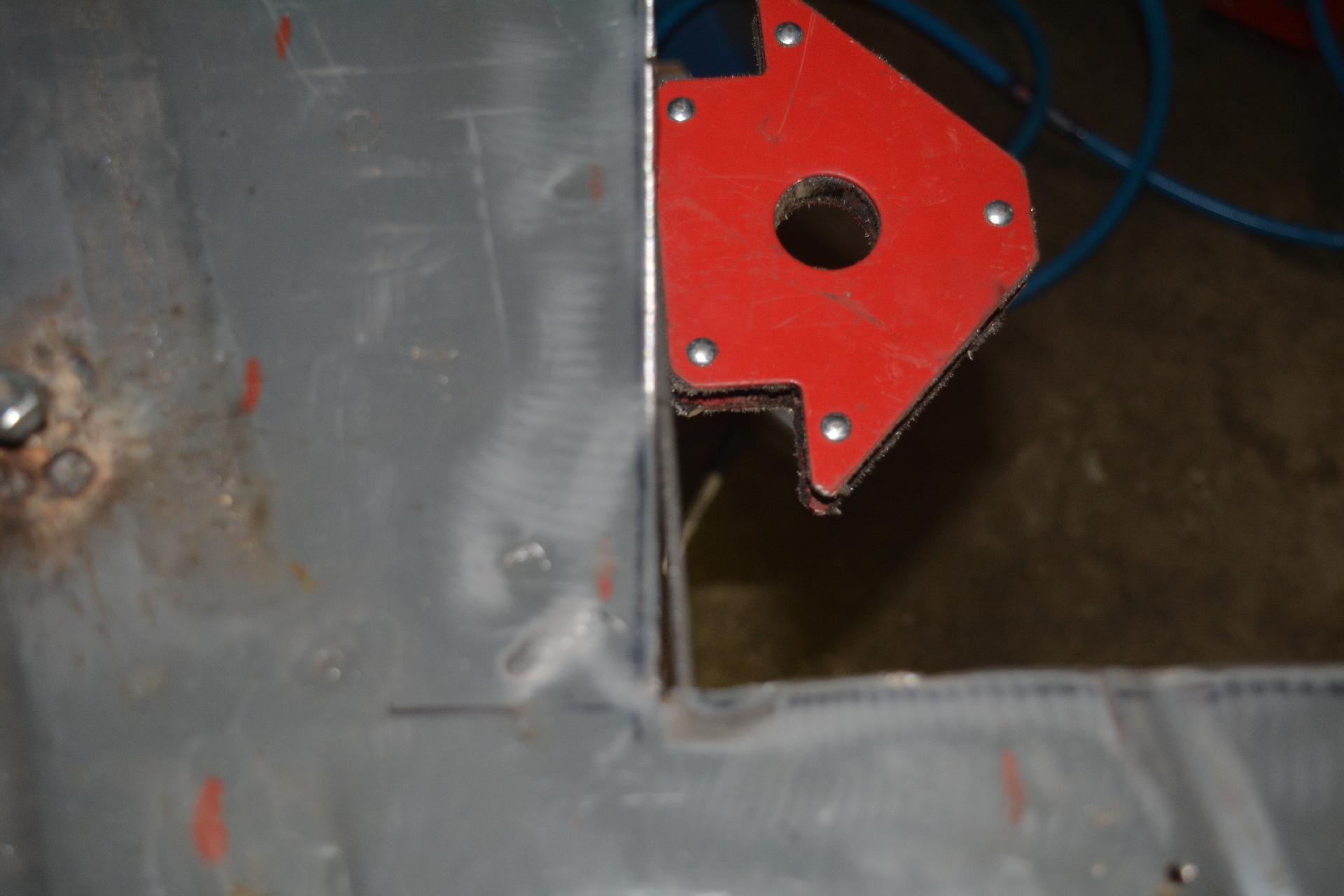

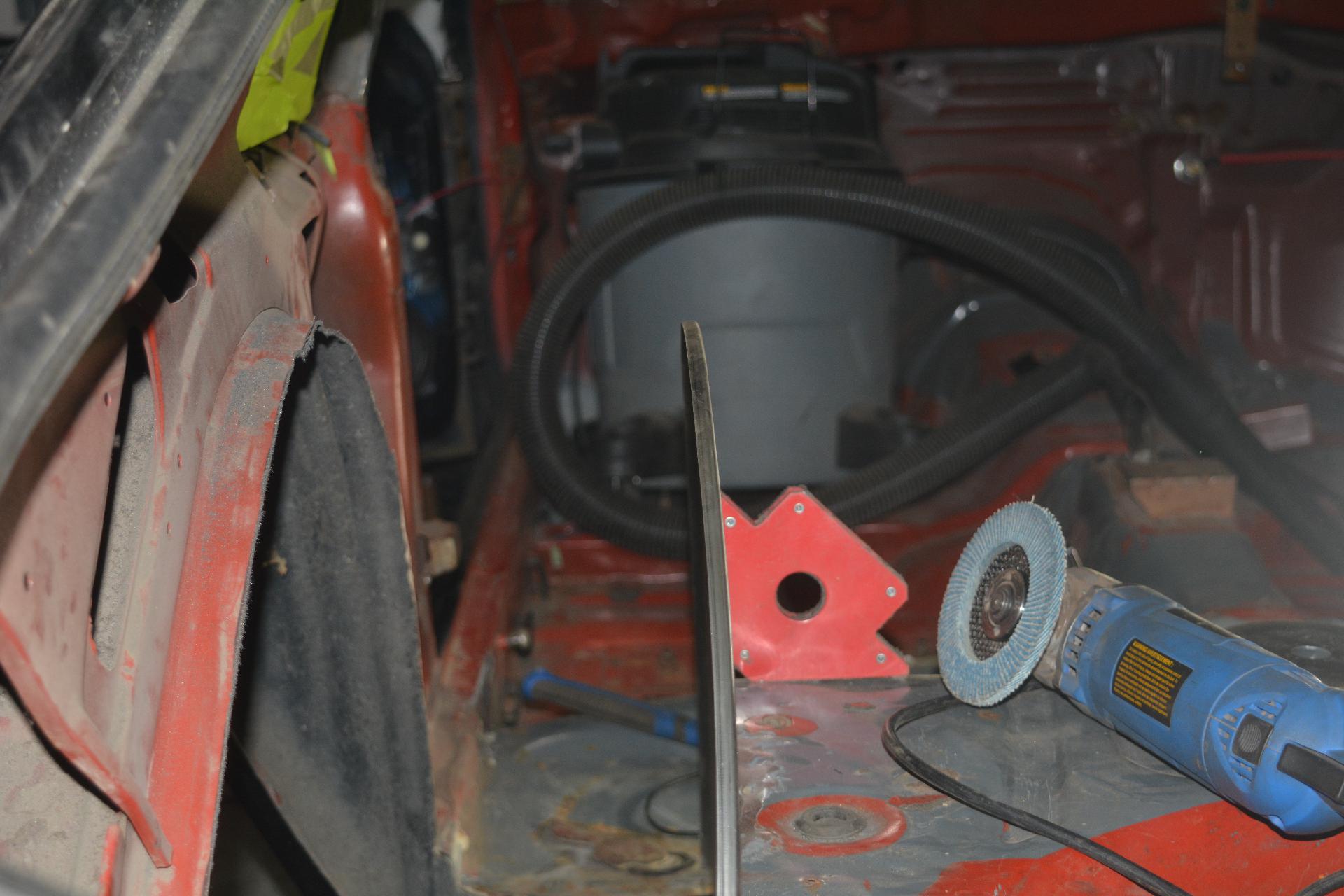

Using magnets to keep the tub in line while it's tacked
Gab from teh shock tower will need to be filled

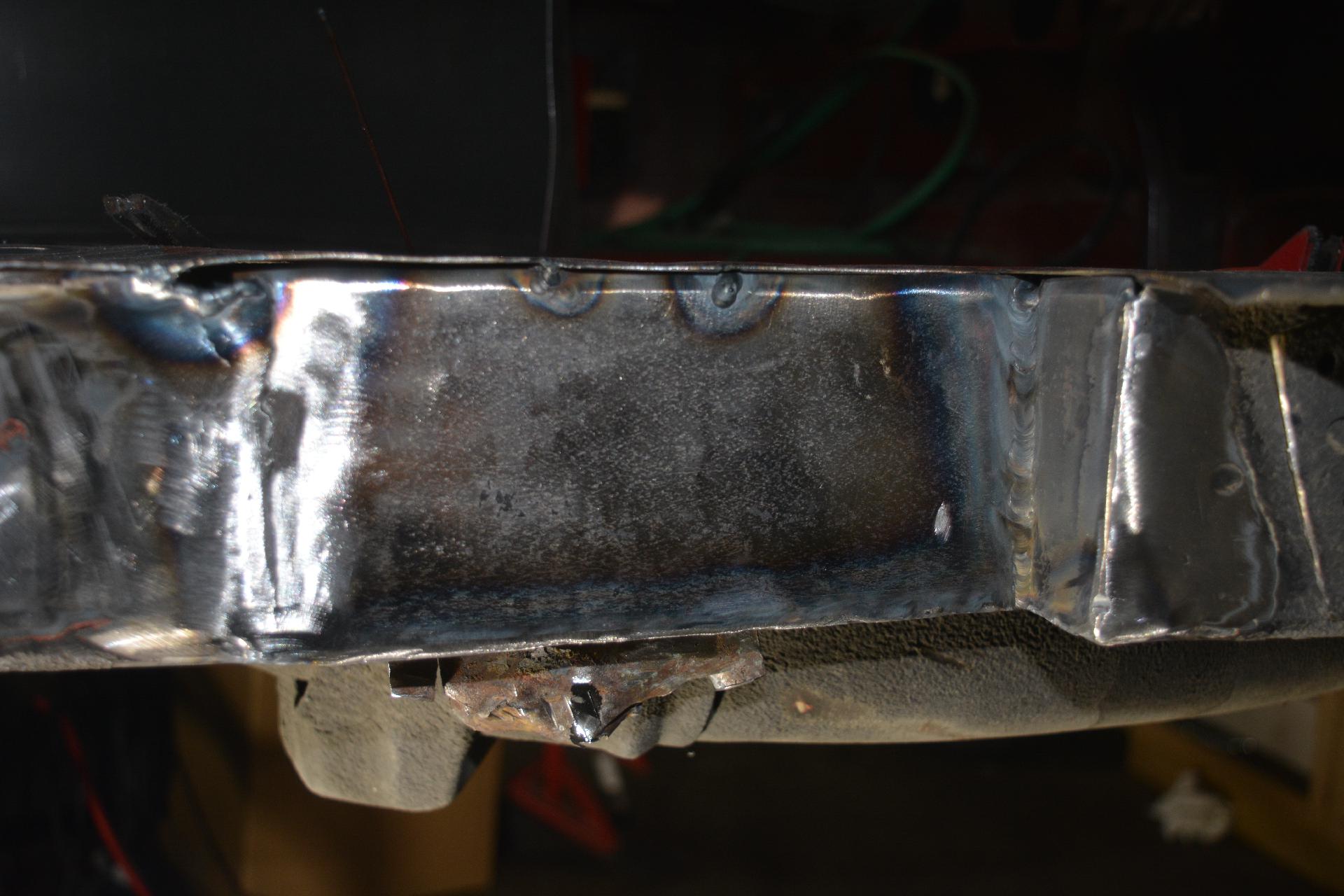

driver side plates

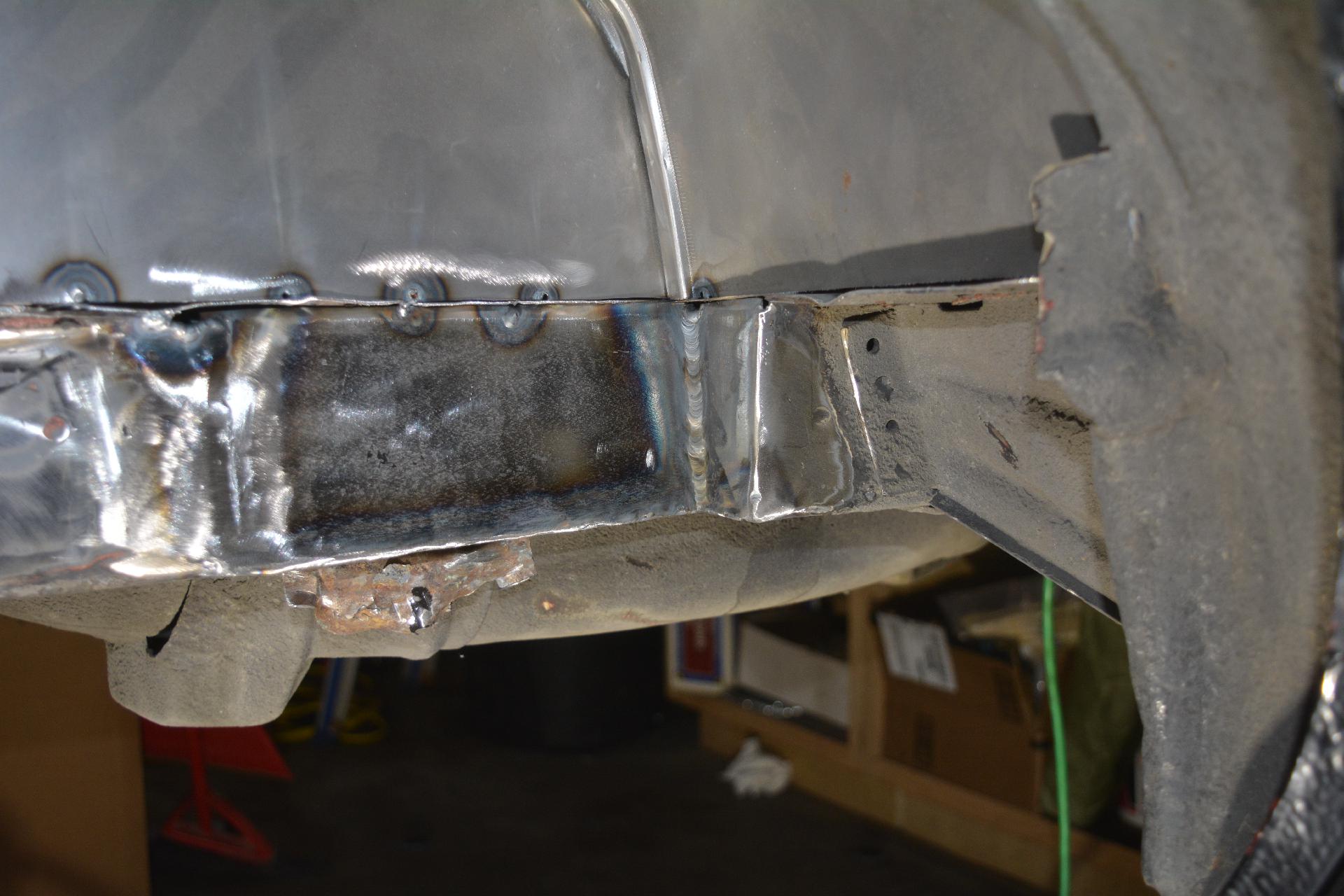

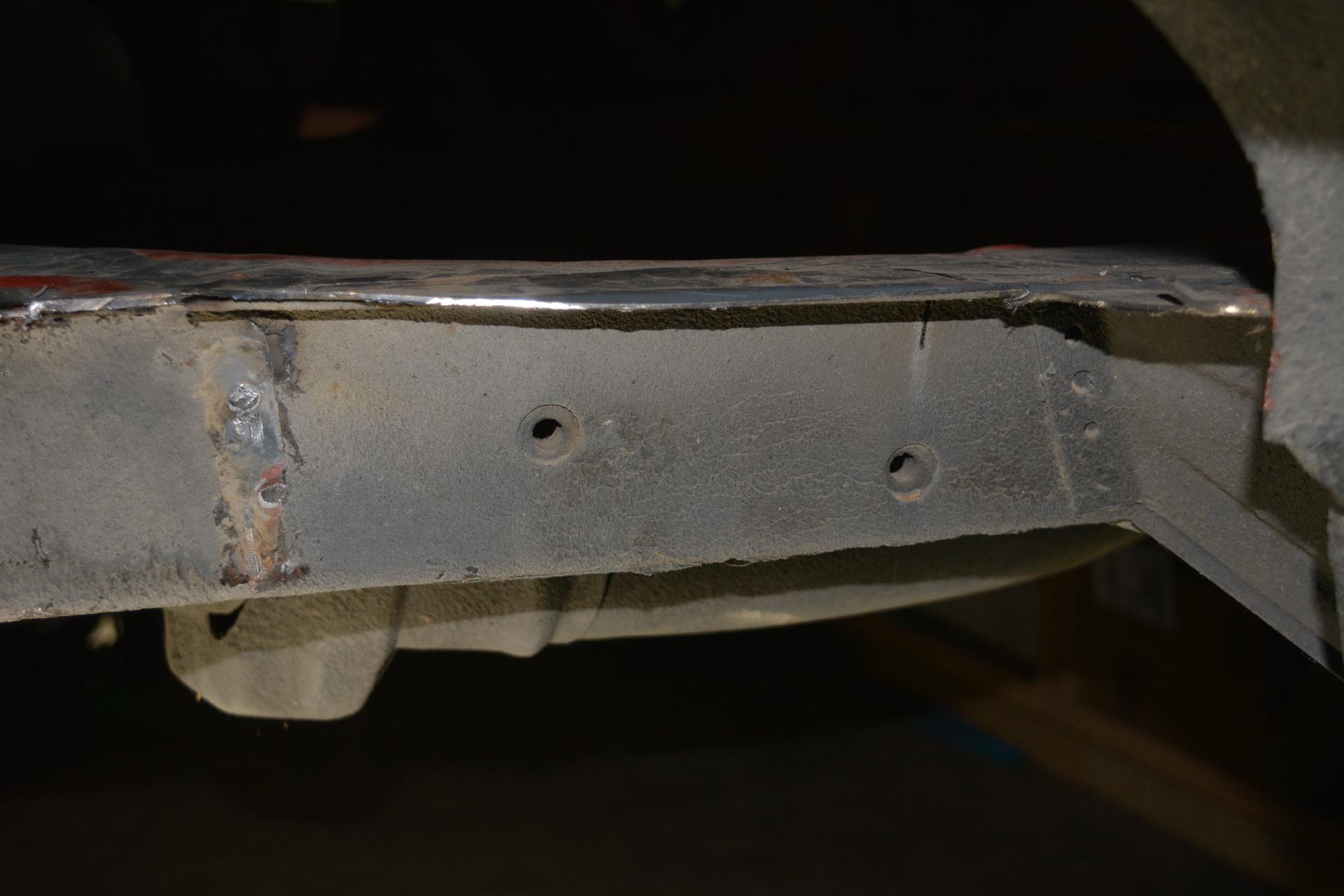

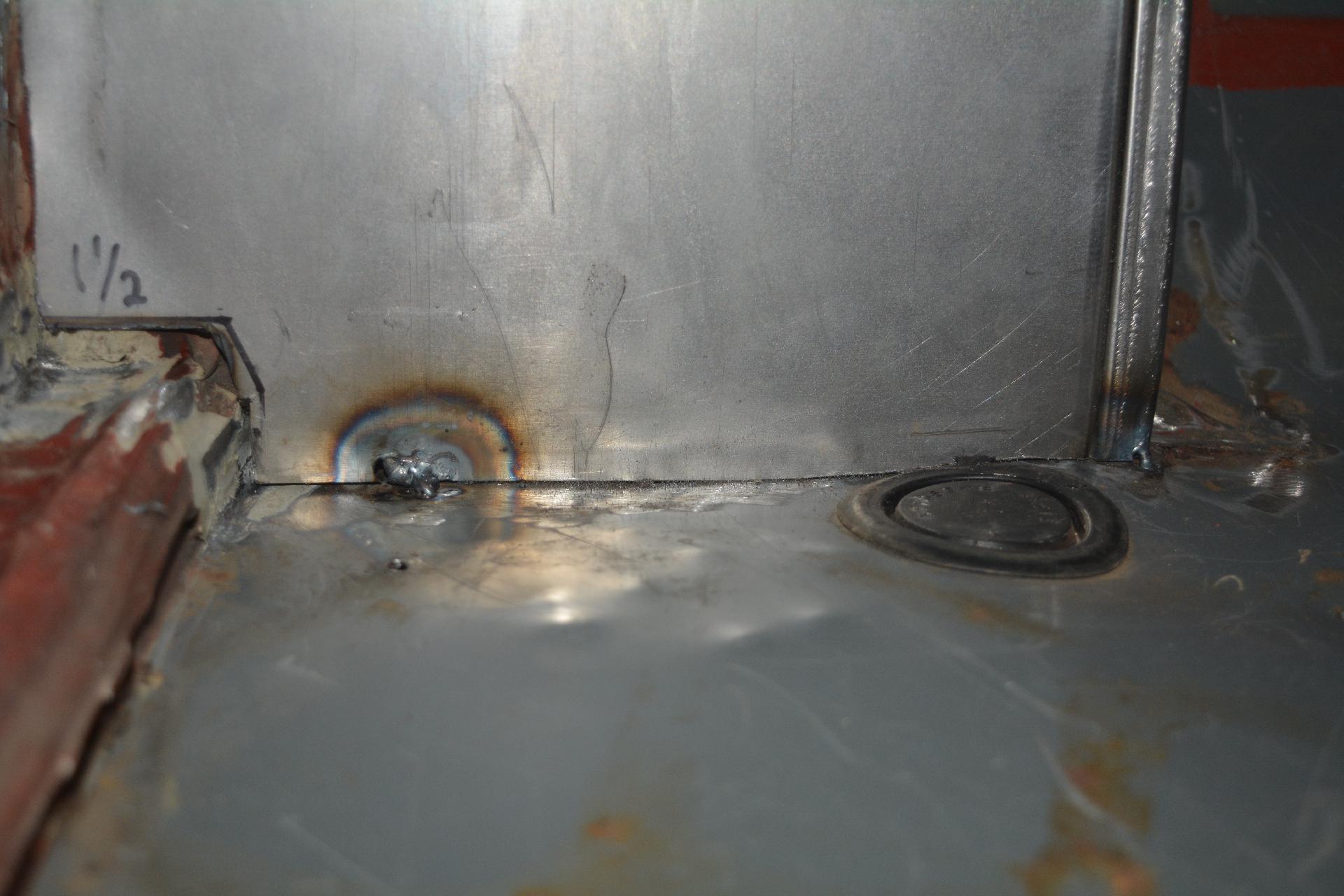

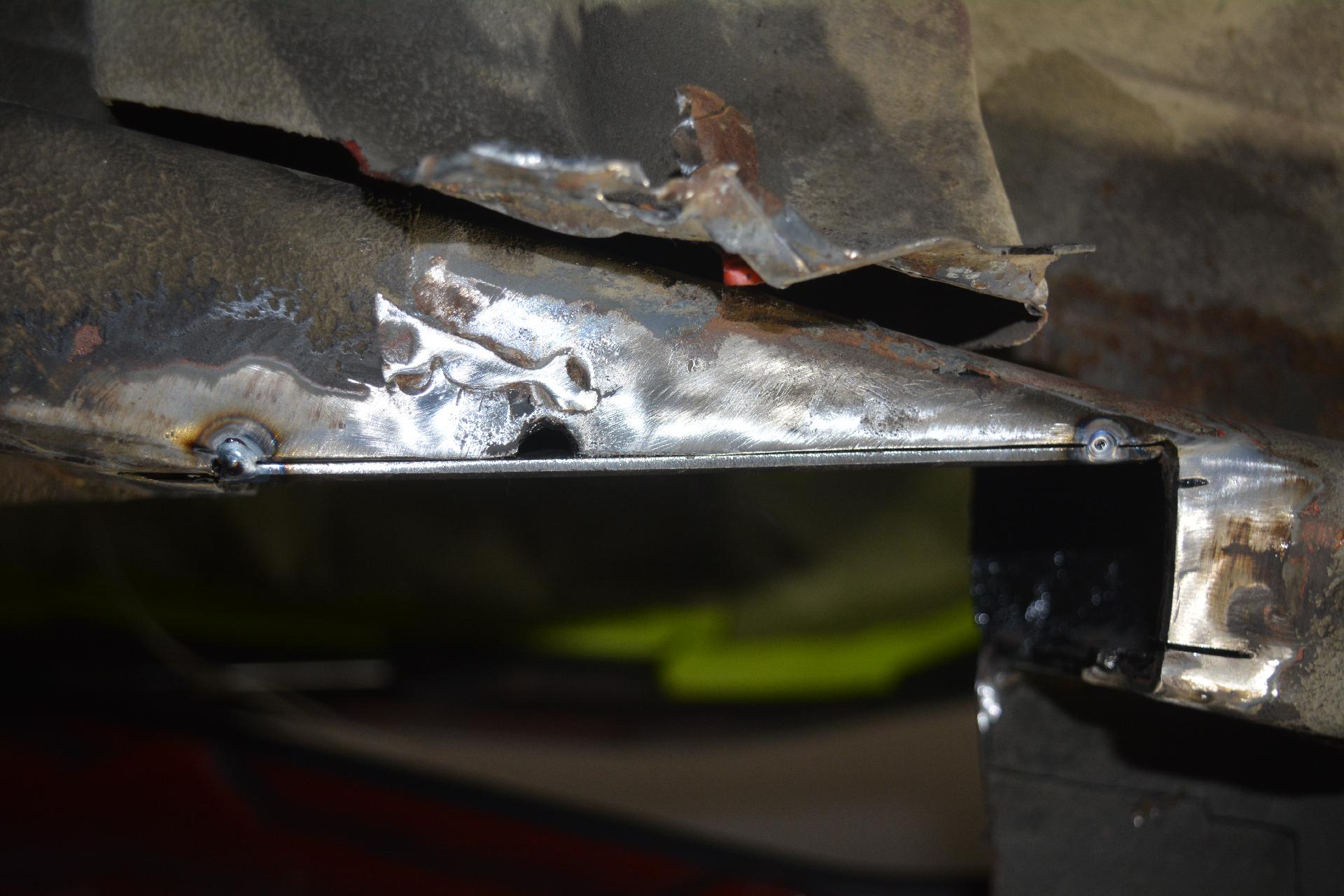

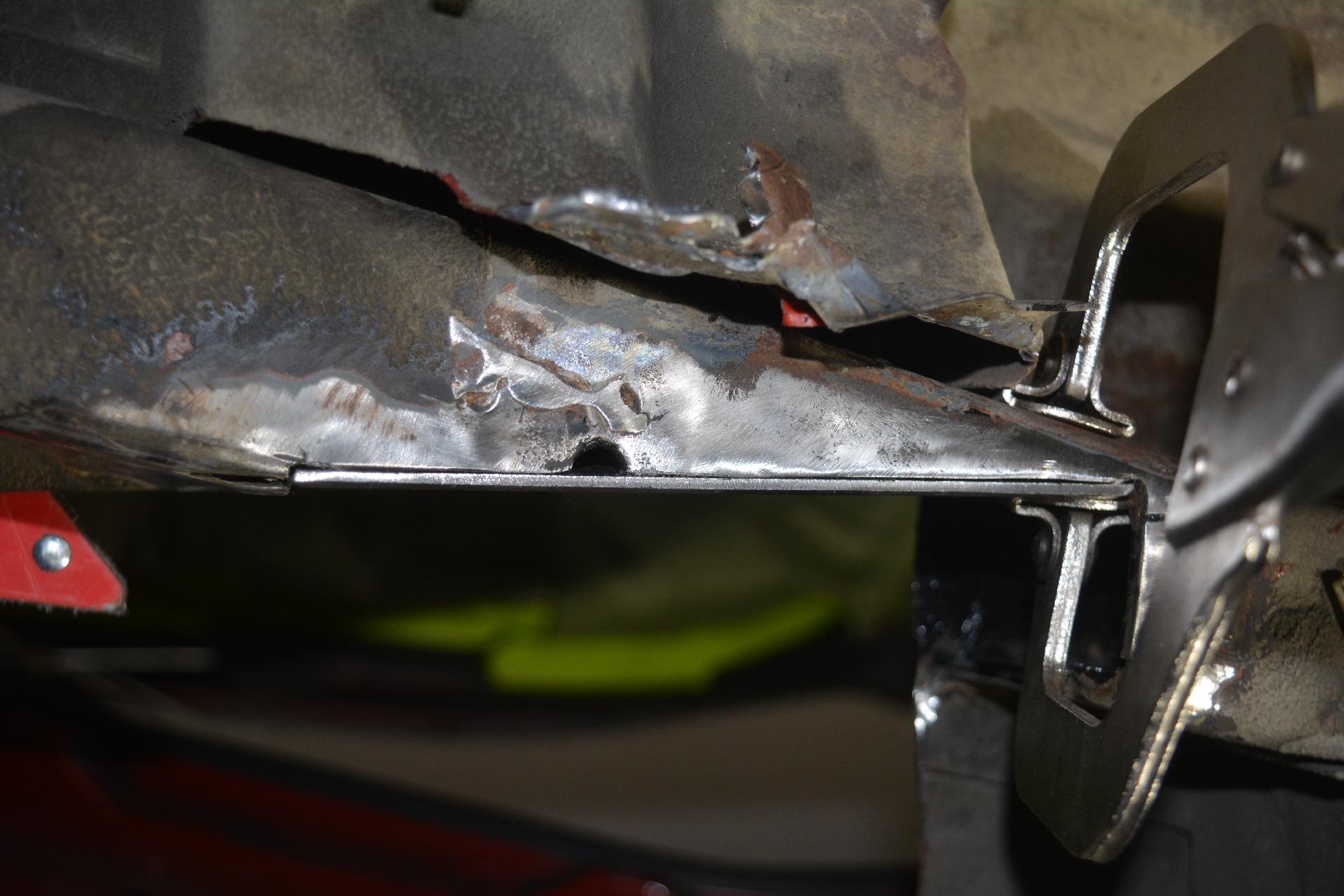

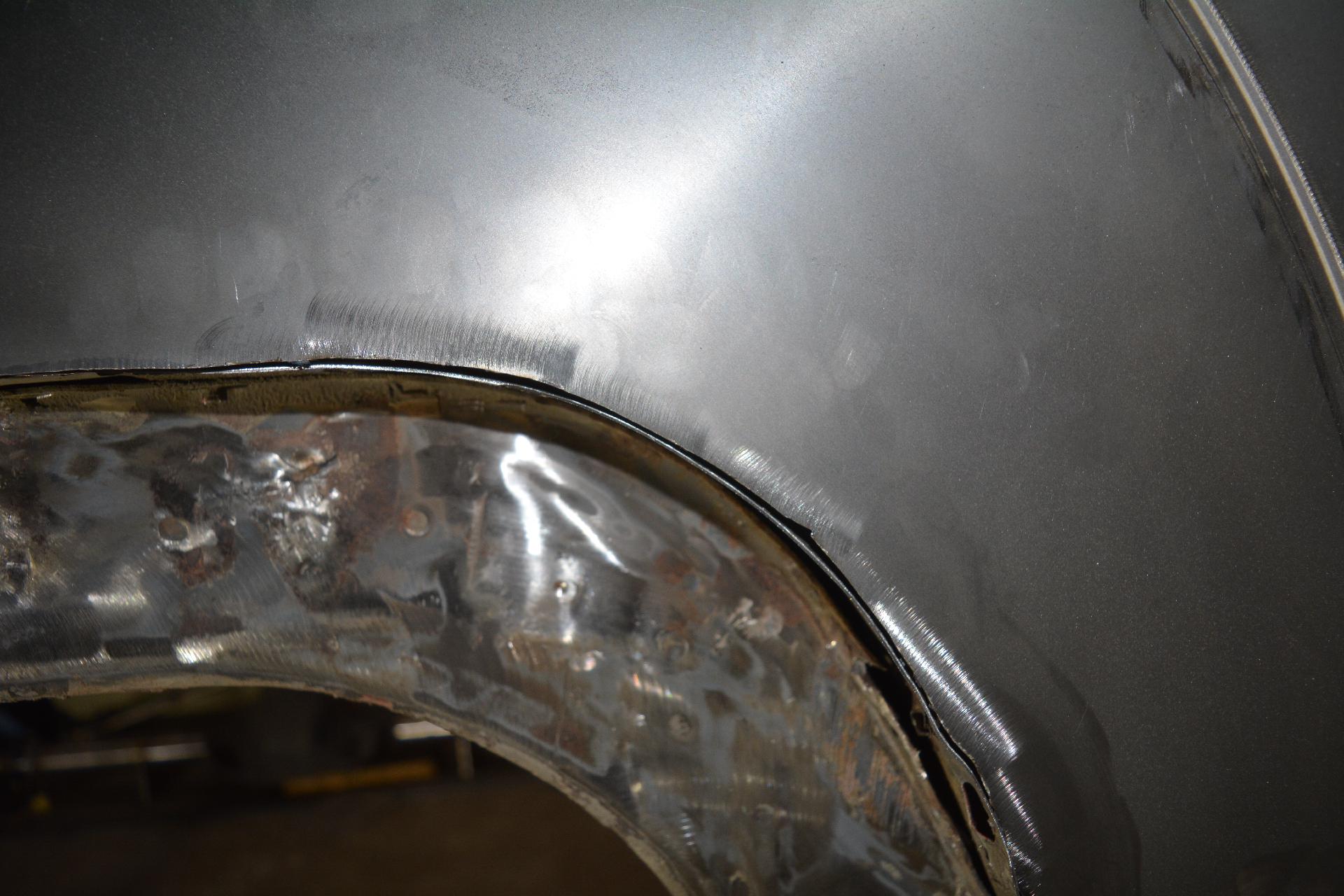

welds cleaned up a bit

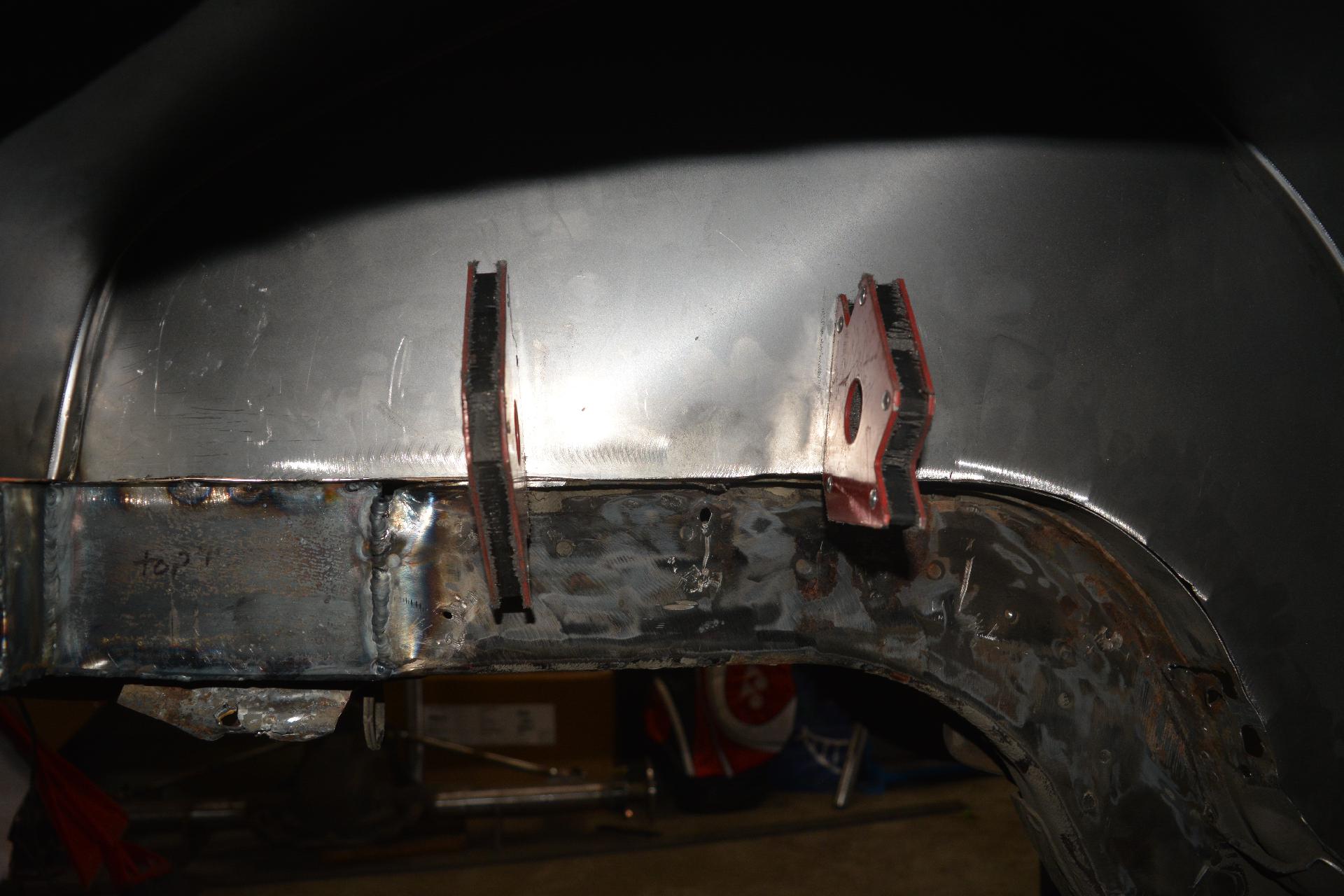

driver side tacked in
