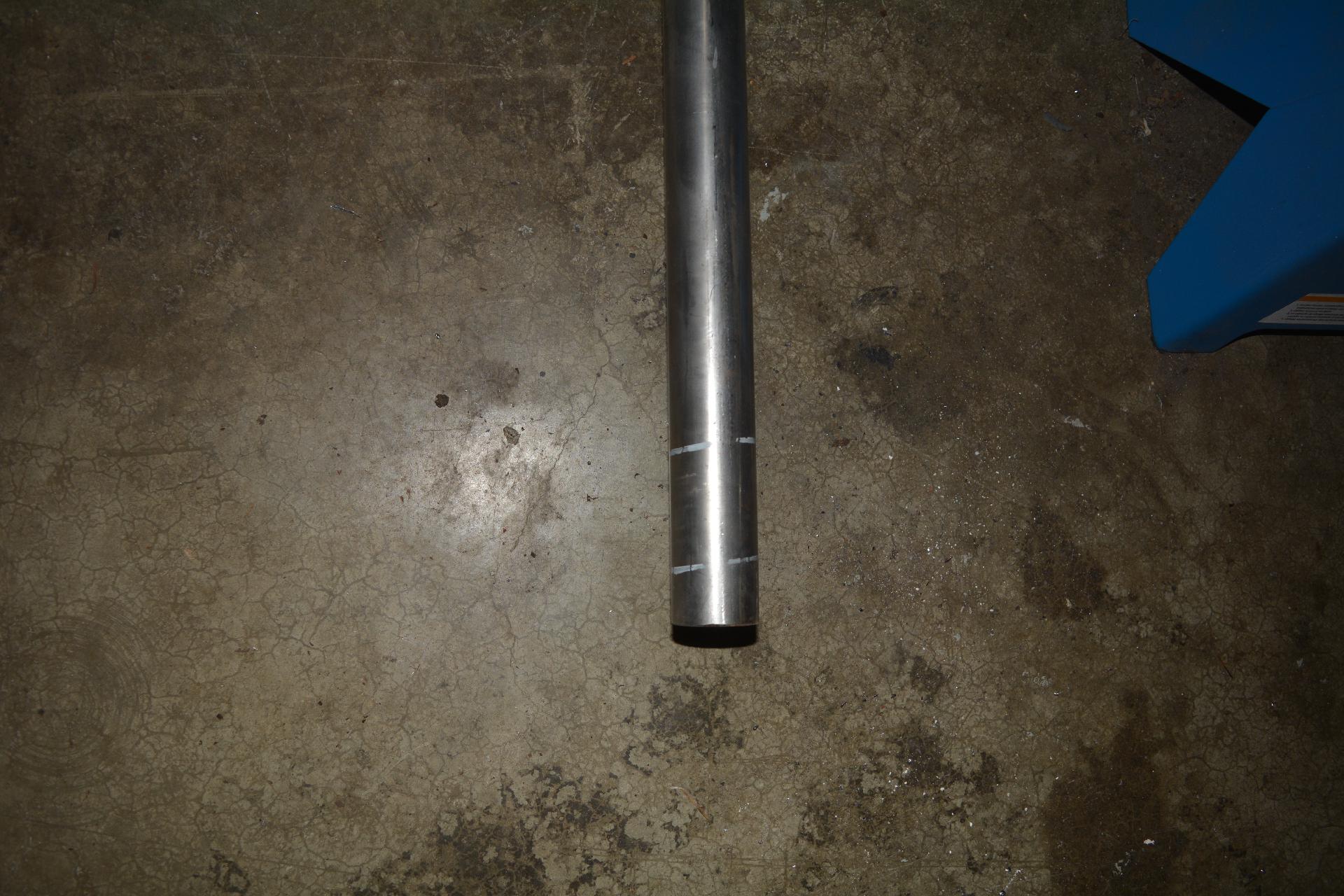

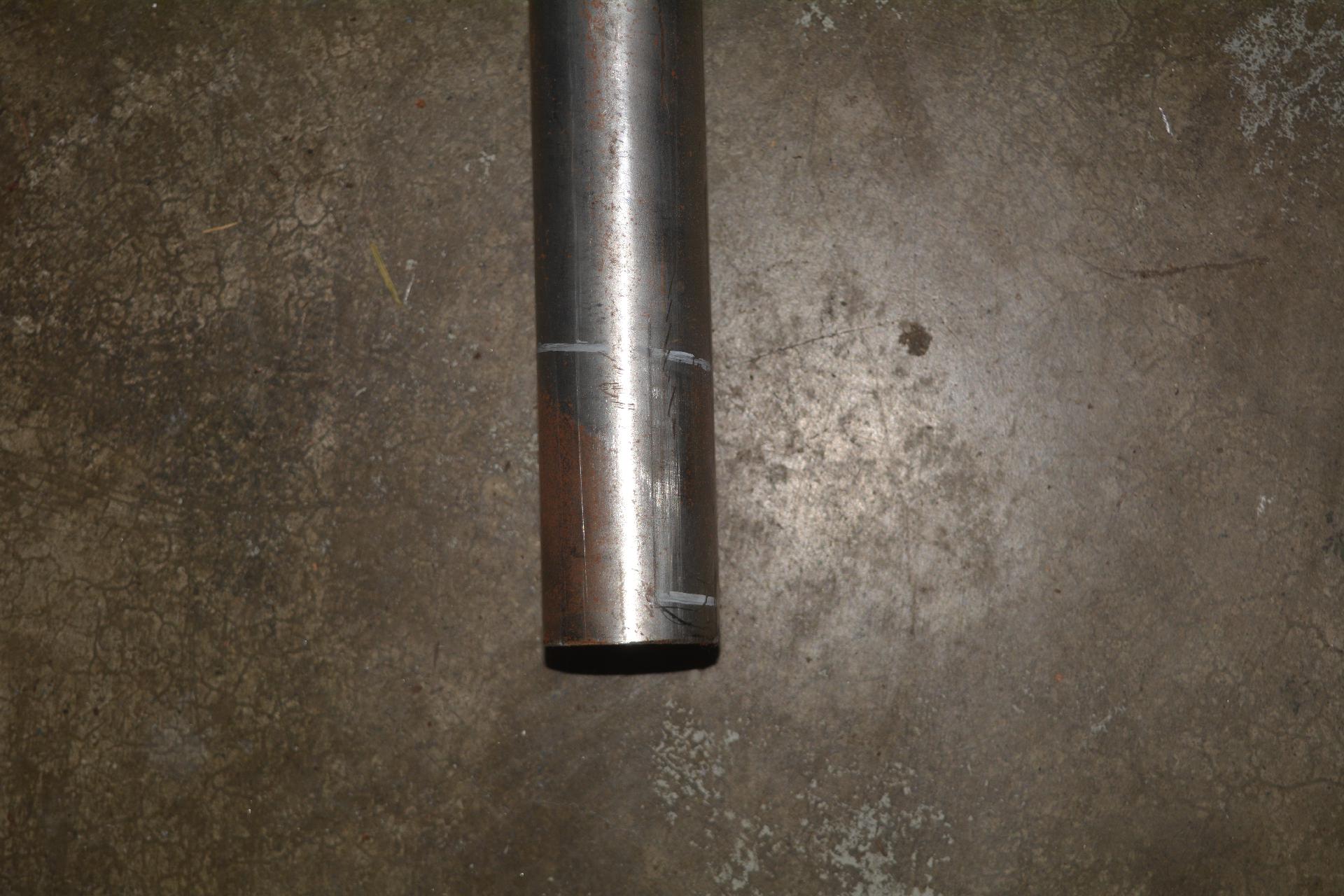

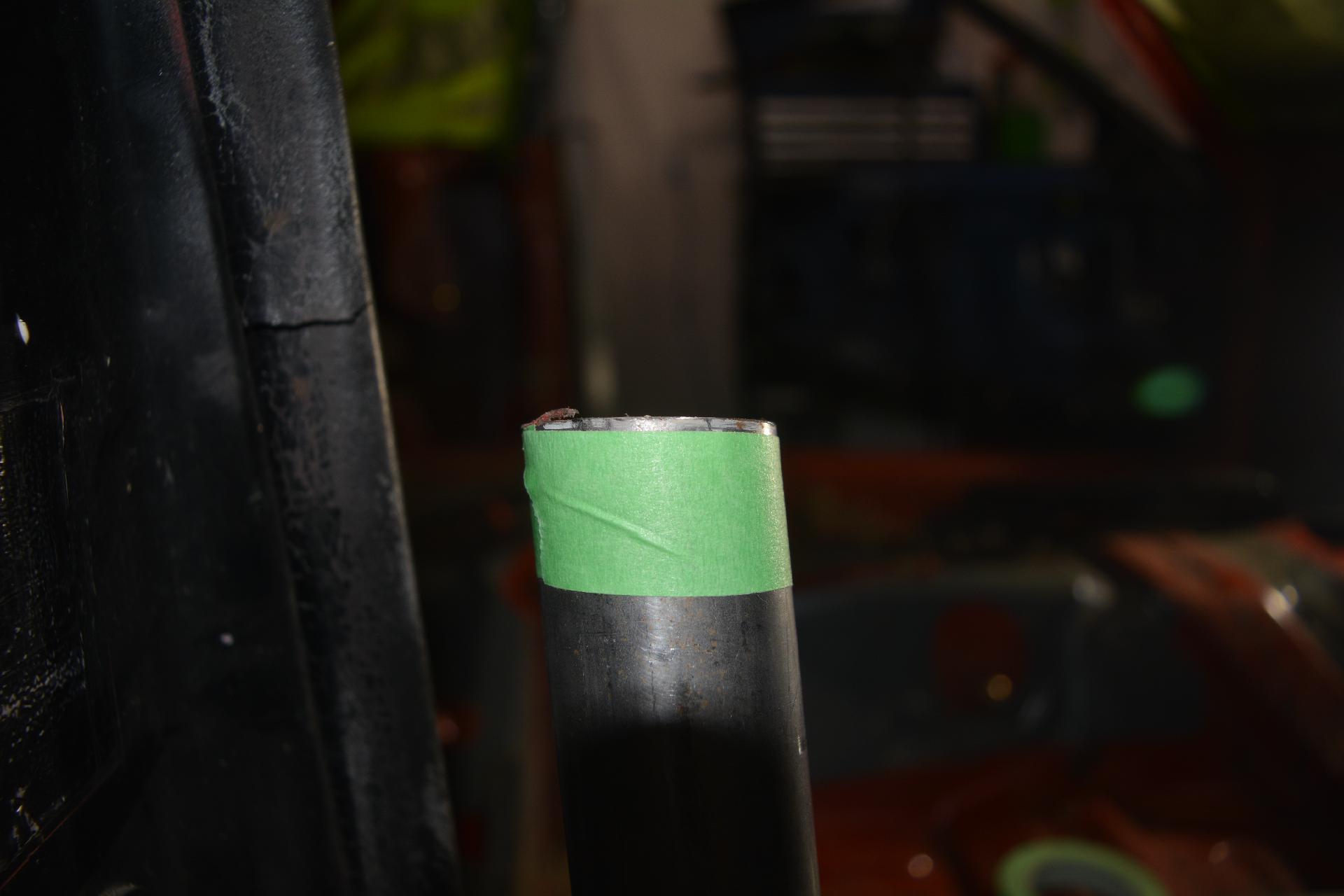

Cut lines on main hoop/a-pillar bars. bottom 6x6 plates, top through floor subframe connectors

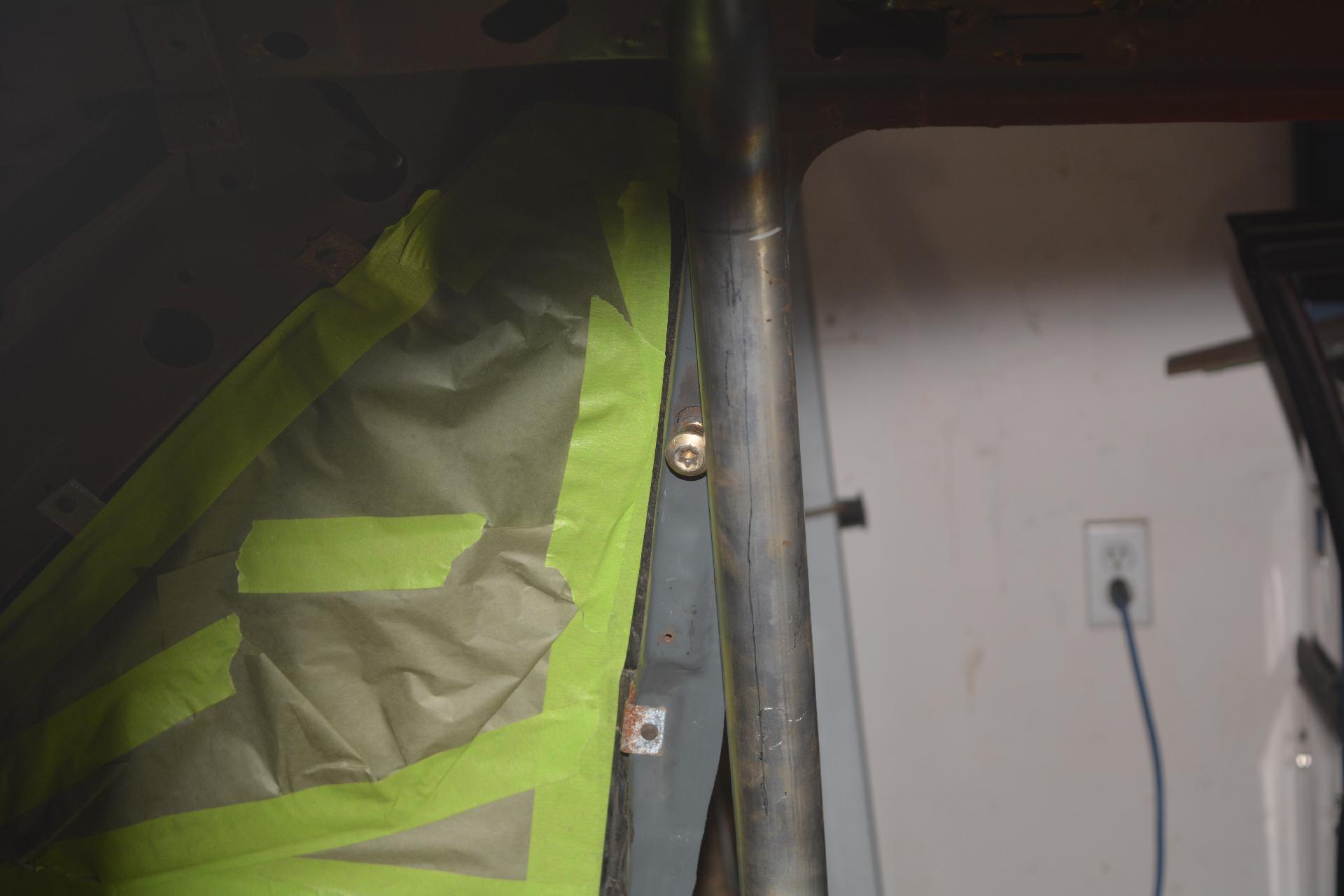

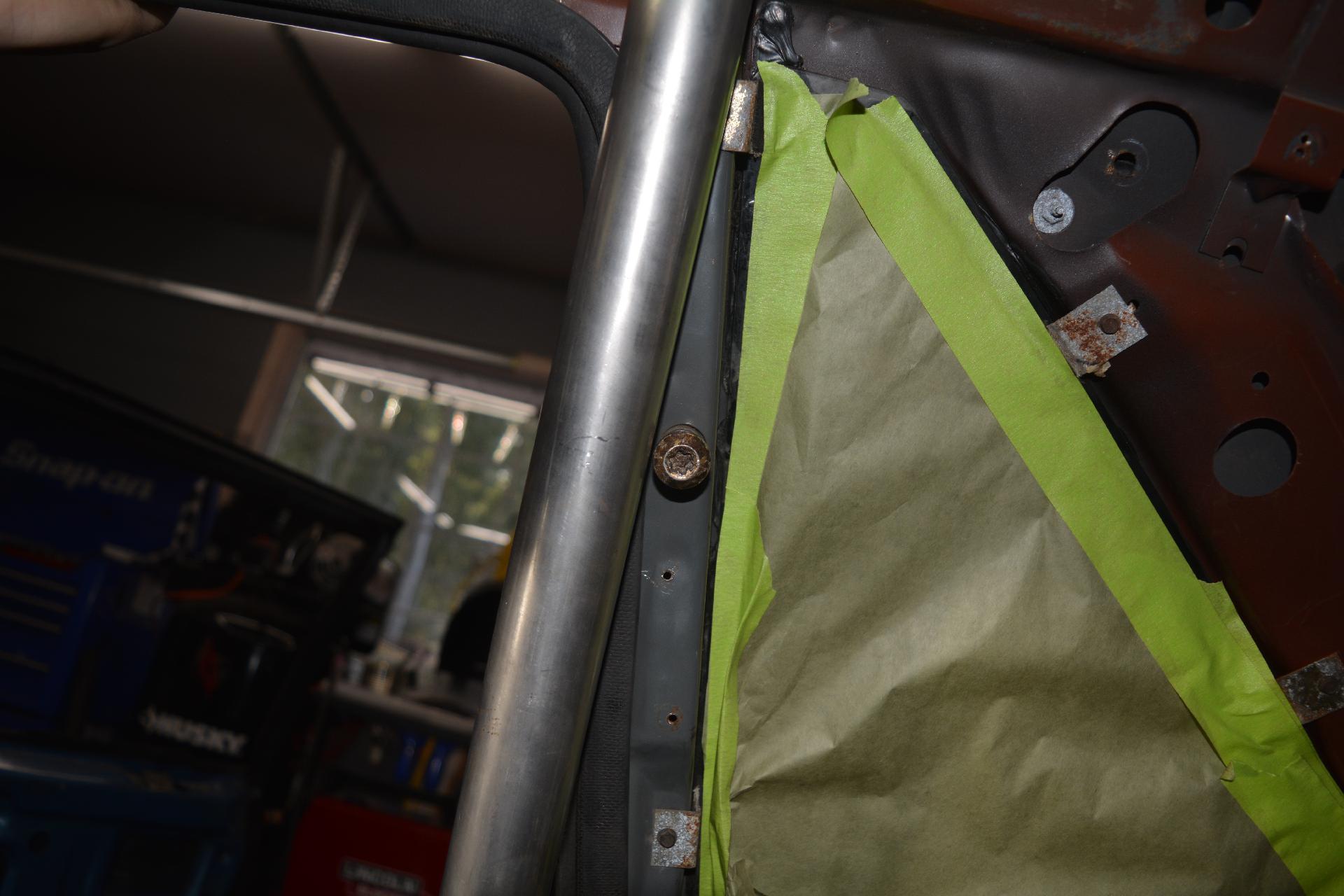

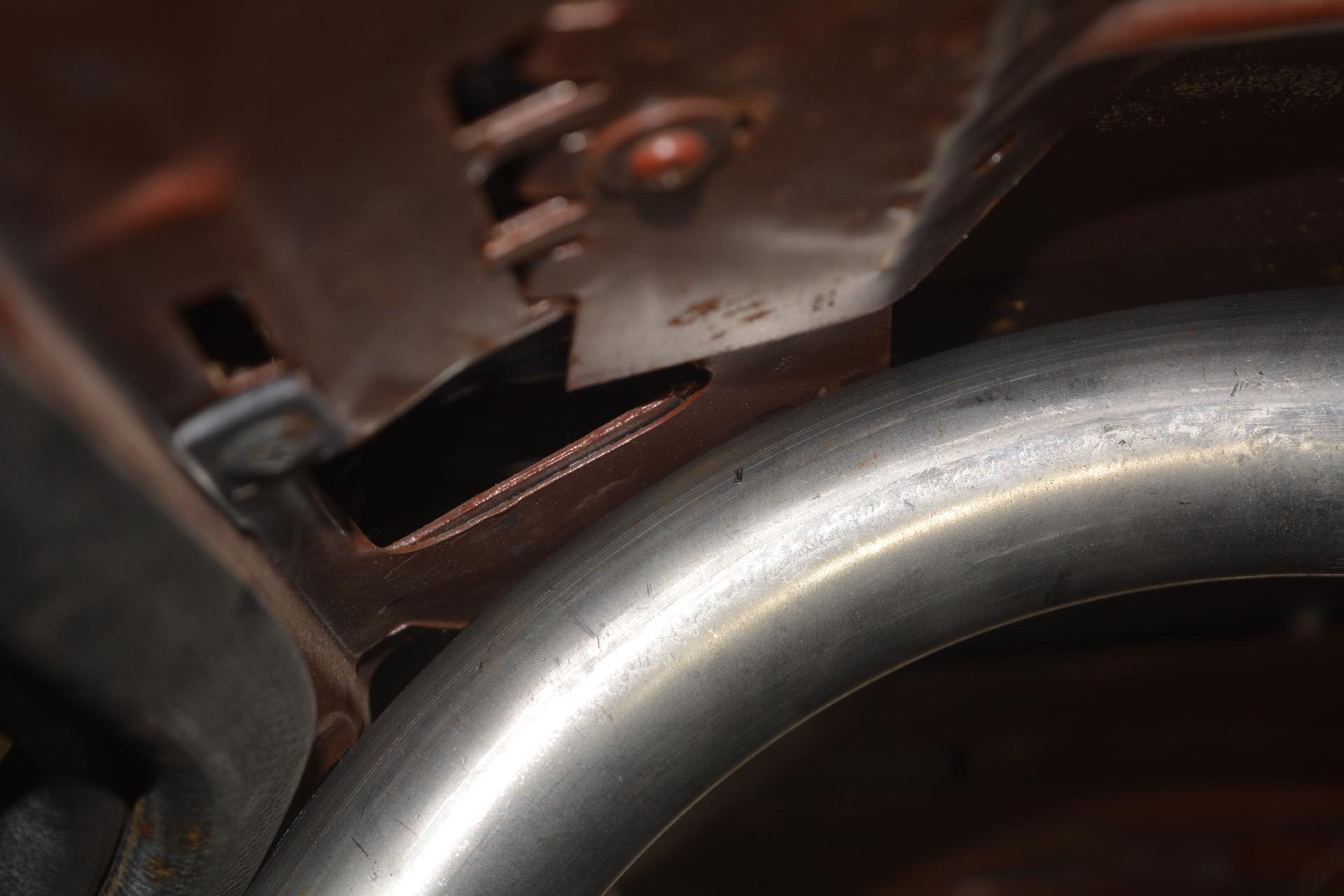

main hoop is touching the roof structure

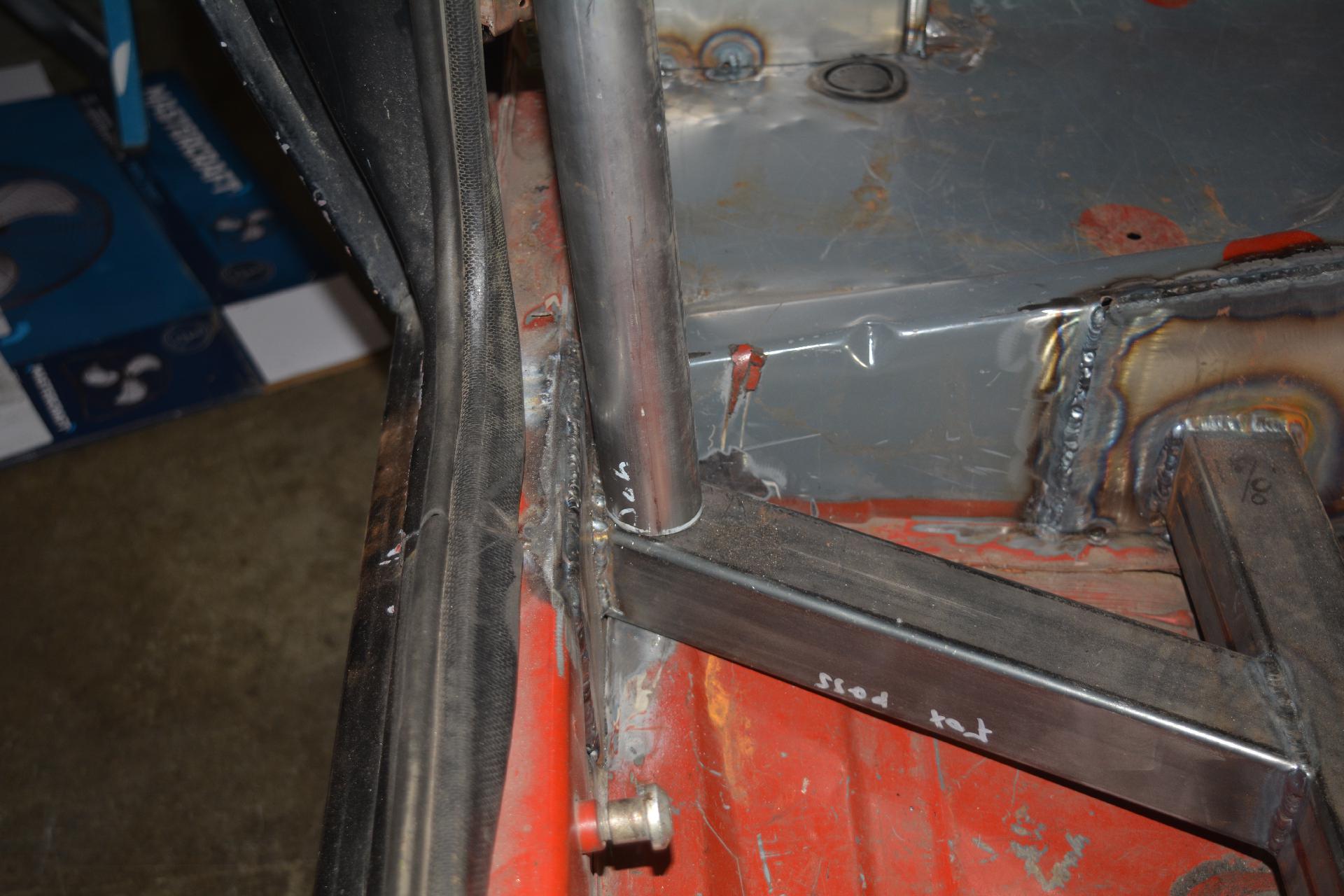

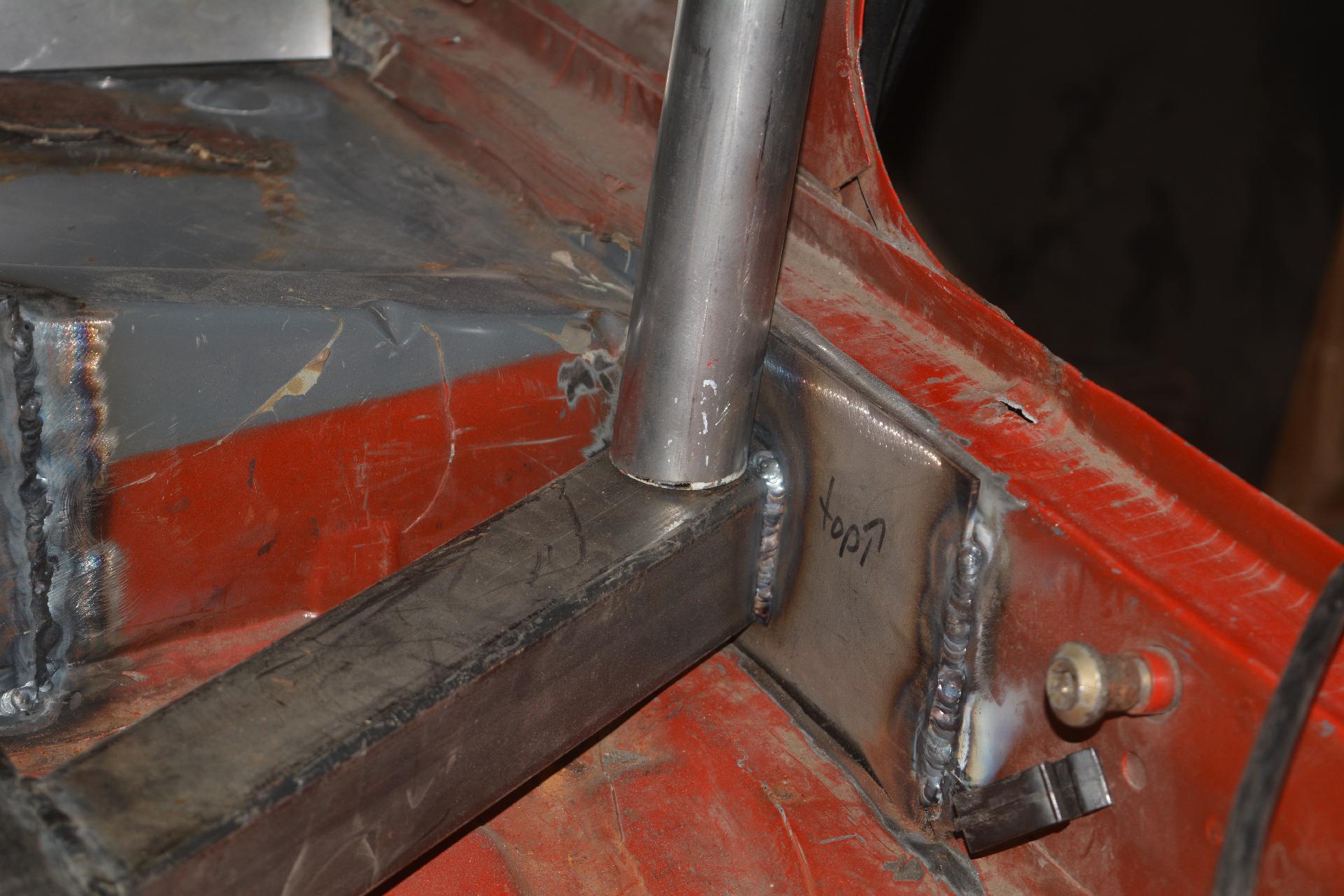

Where the main hoop sits on the frame connector
Other side
Main hoop leans back about 3 degrees
More trimming down required to get it off the roof

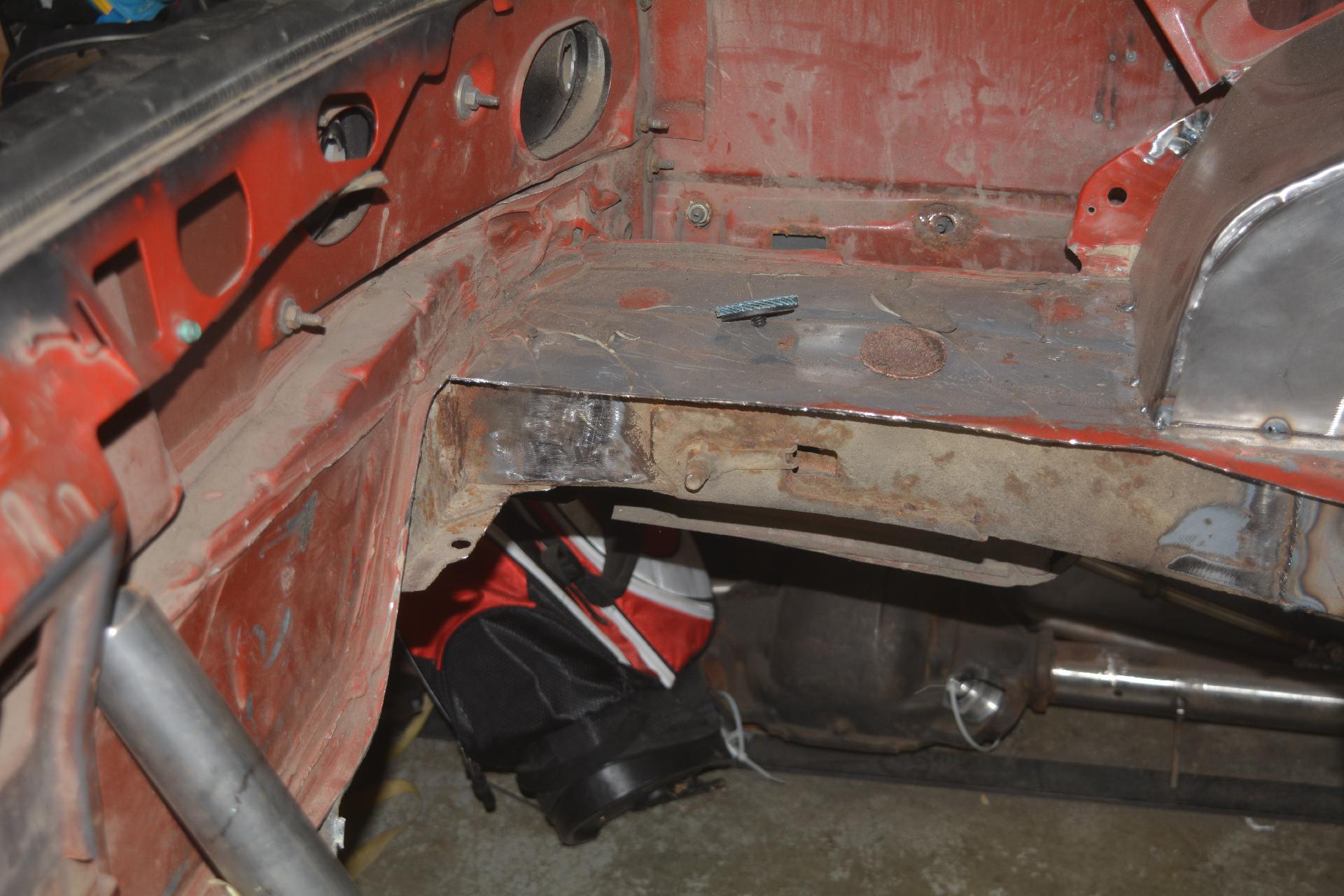

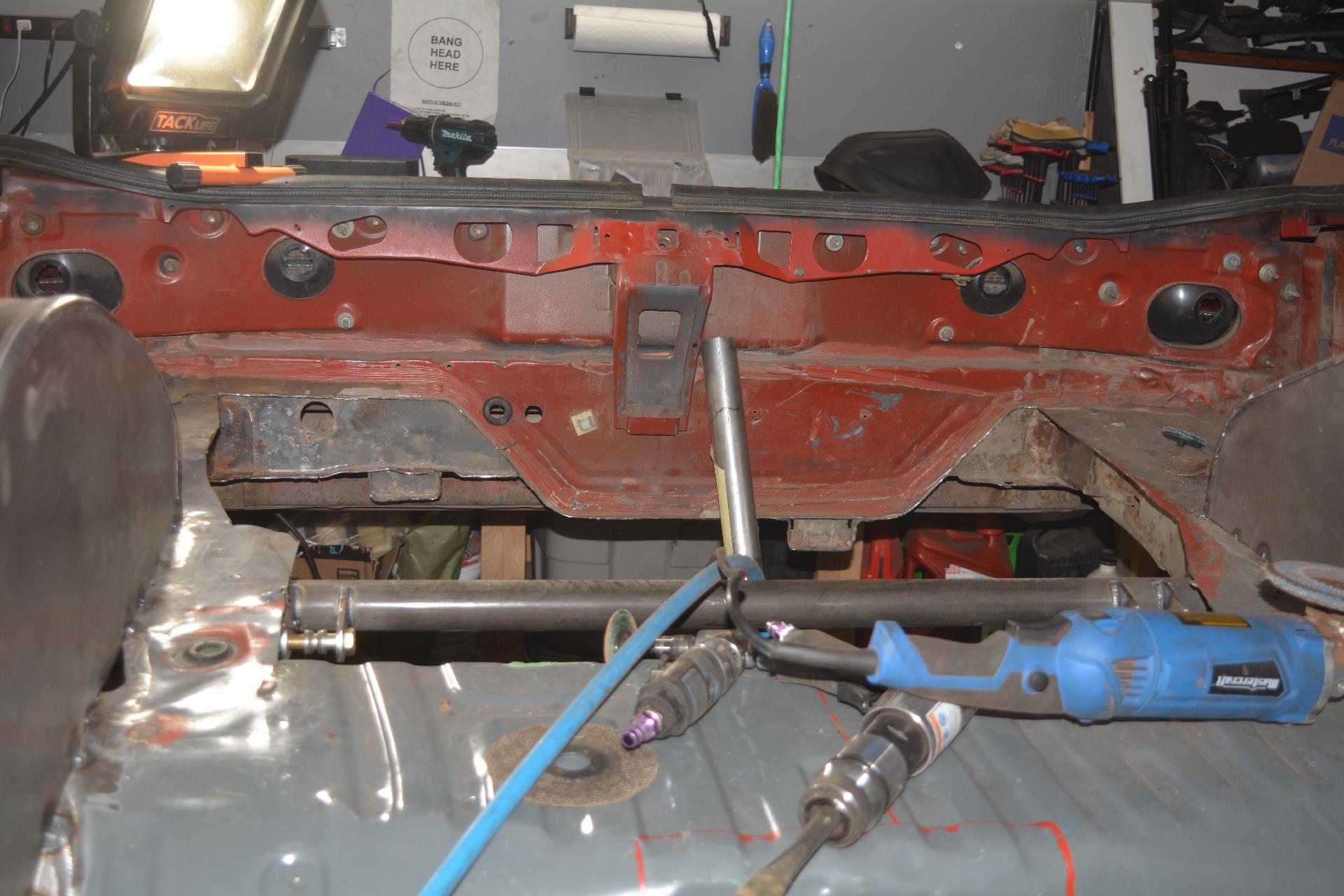

Area neesd to be cleaned/cut back for the rear bars cross beam

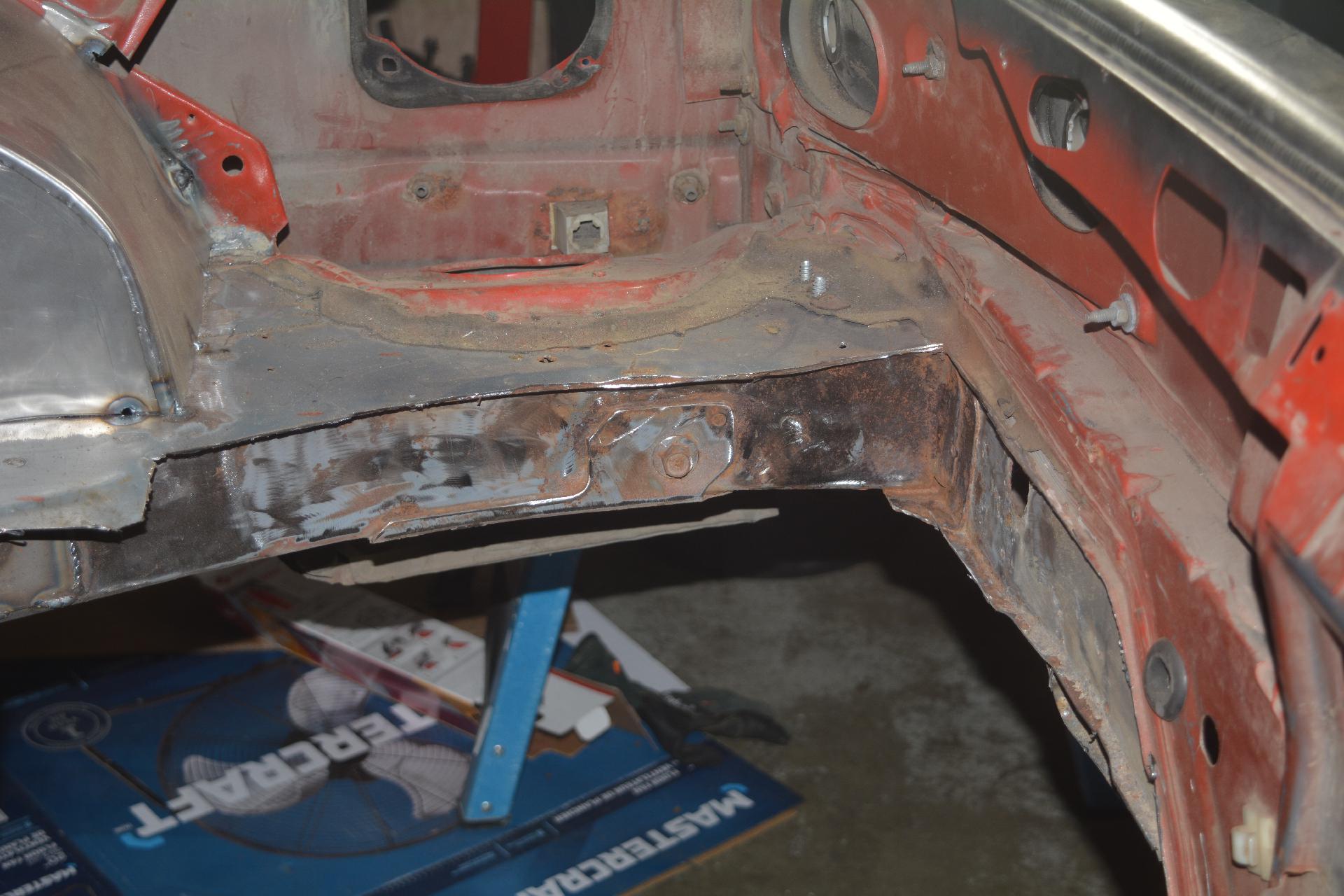

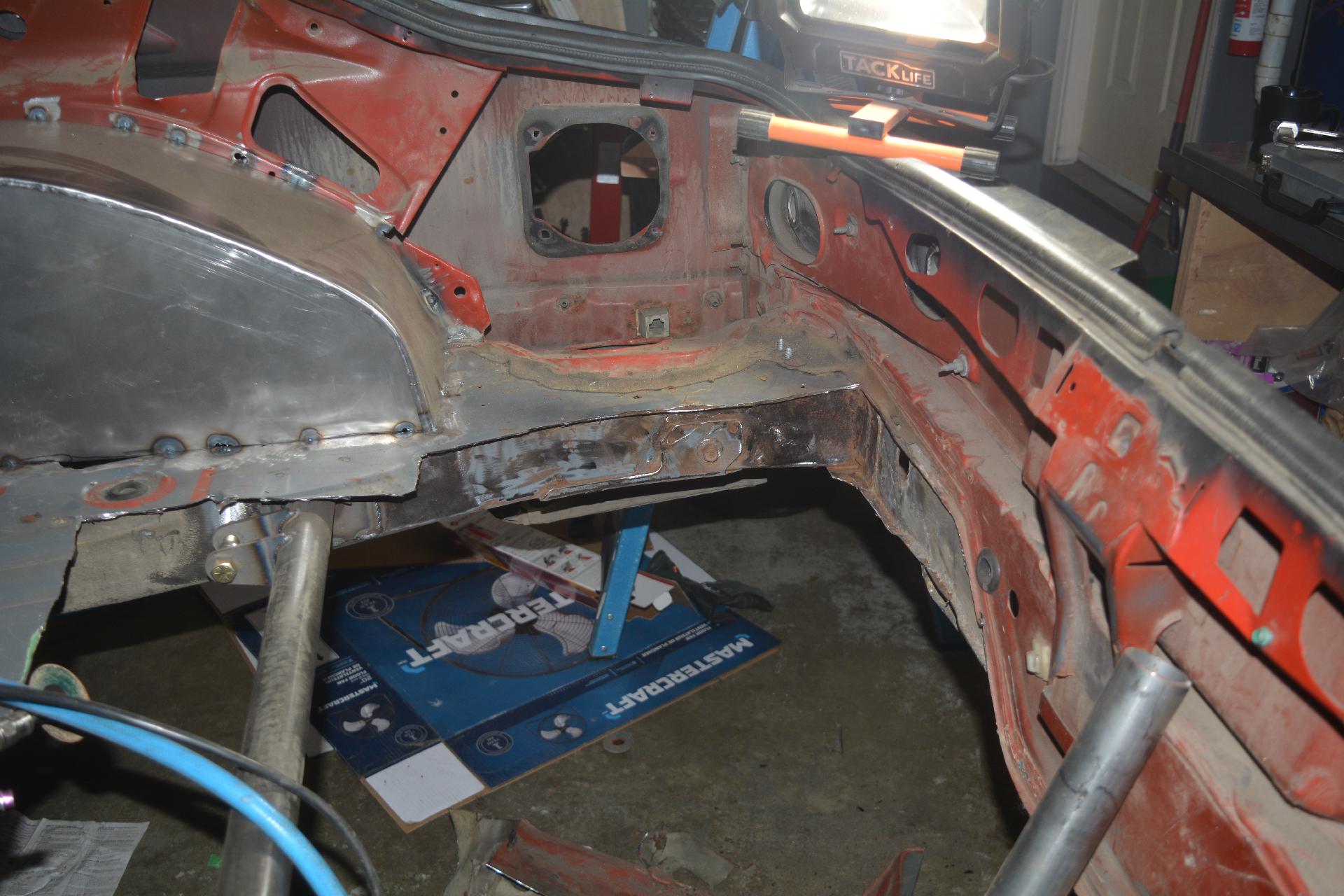

Back shot of the trunk cut out more

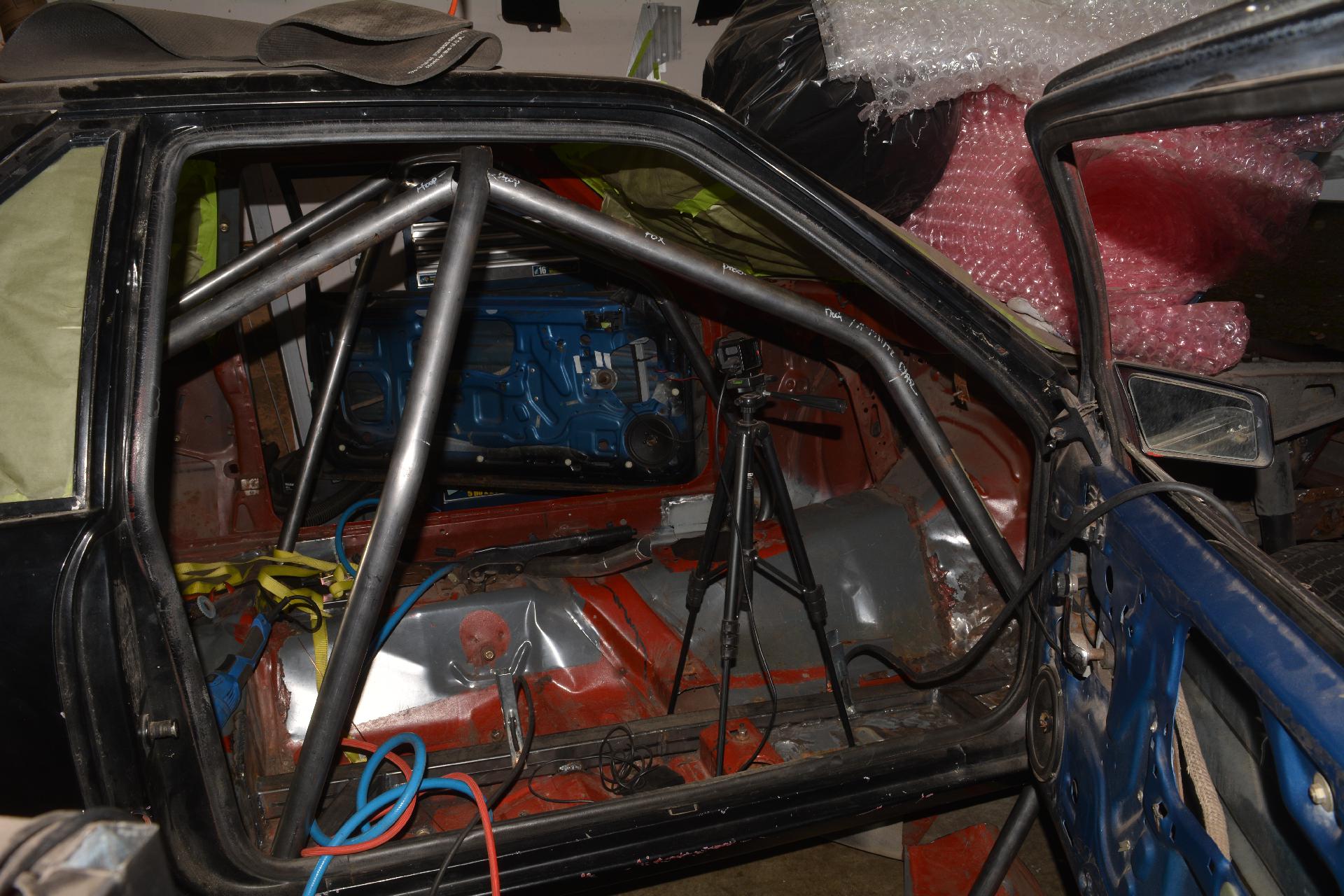

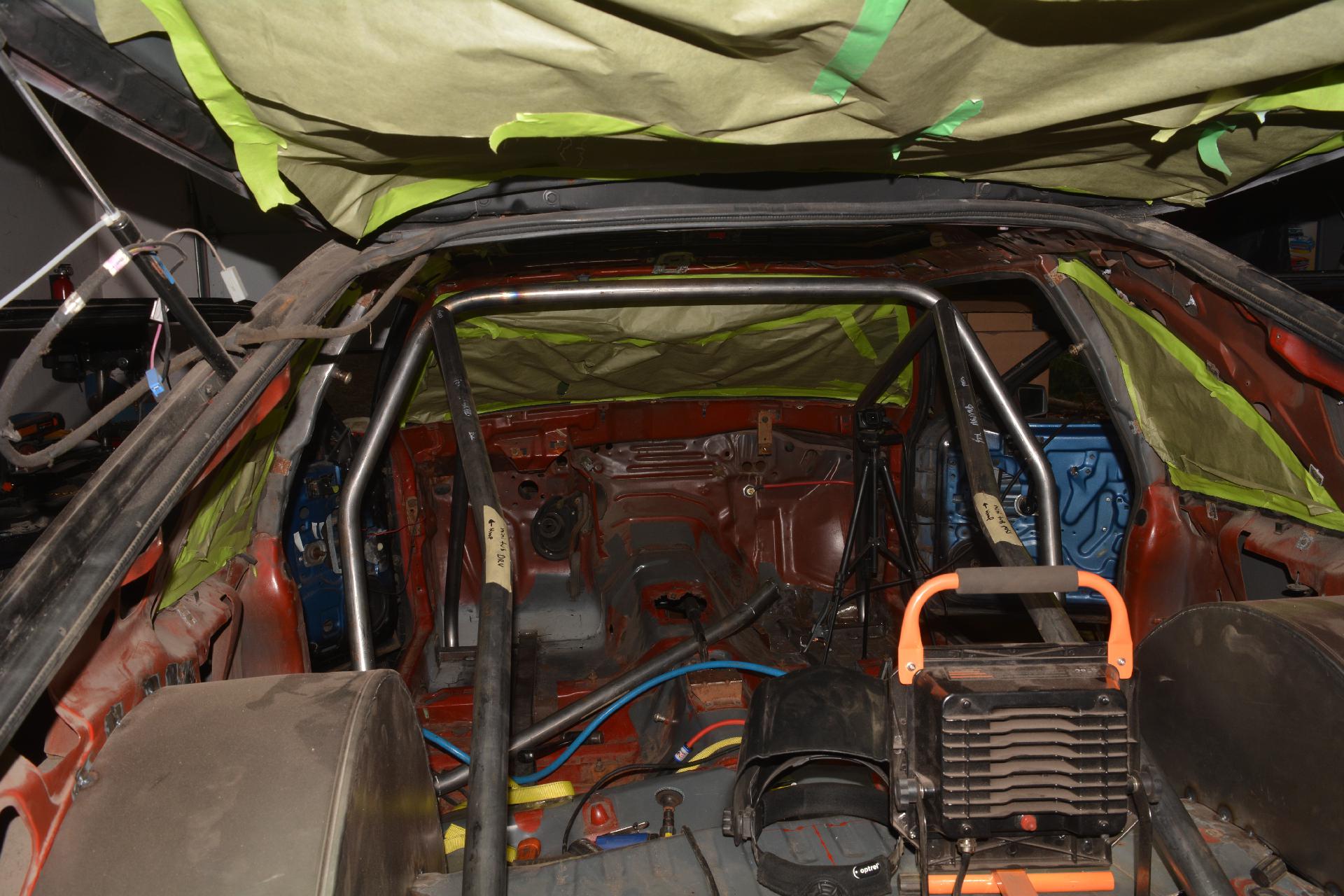

forward shot with main hoop and apillar bars placed in
Cage dropped to weld top of apillar bar and rear bars

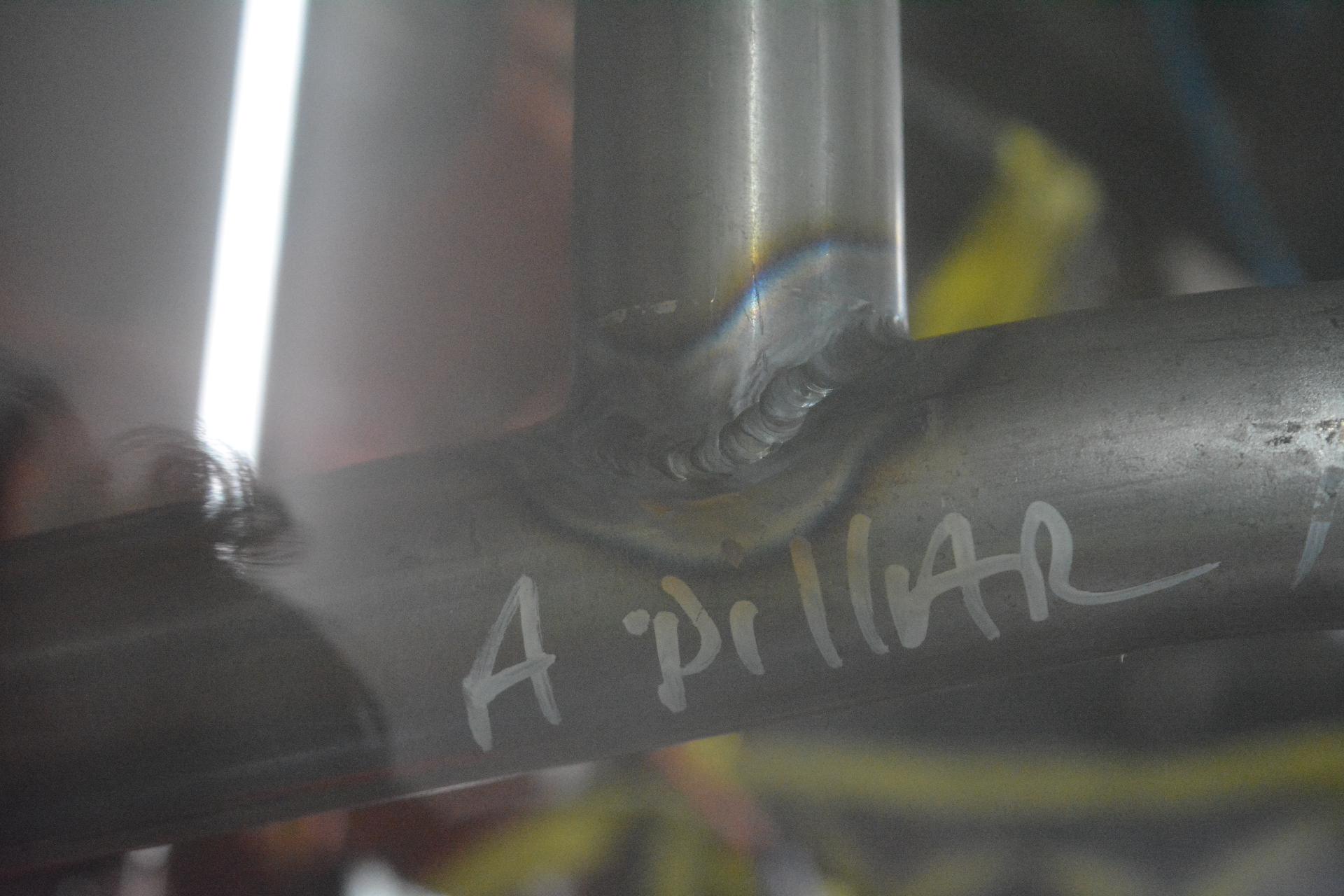

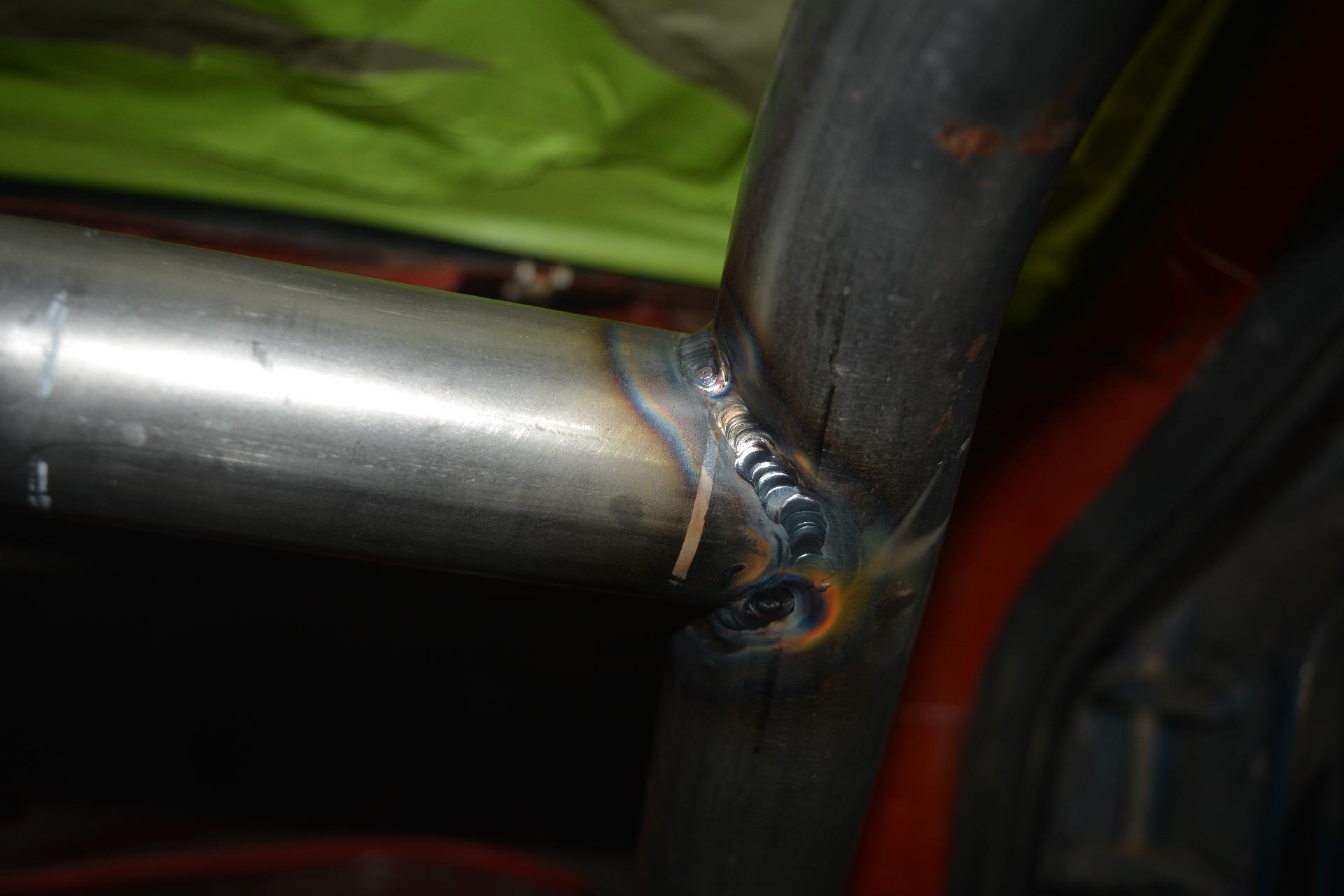

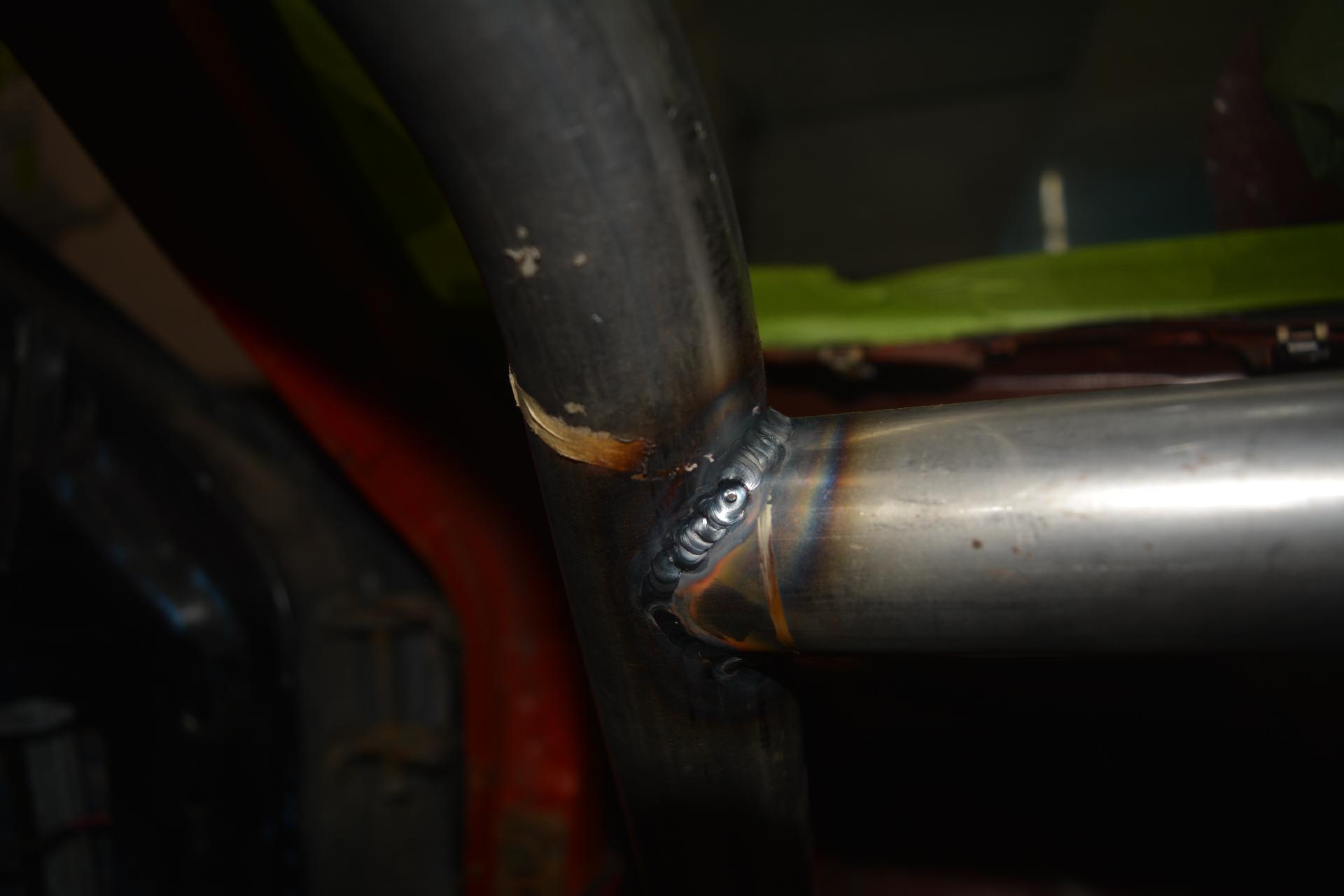

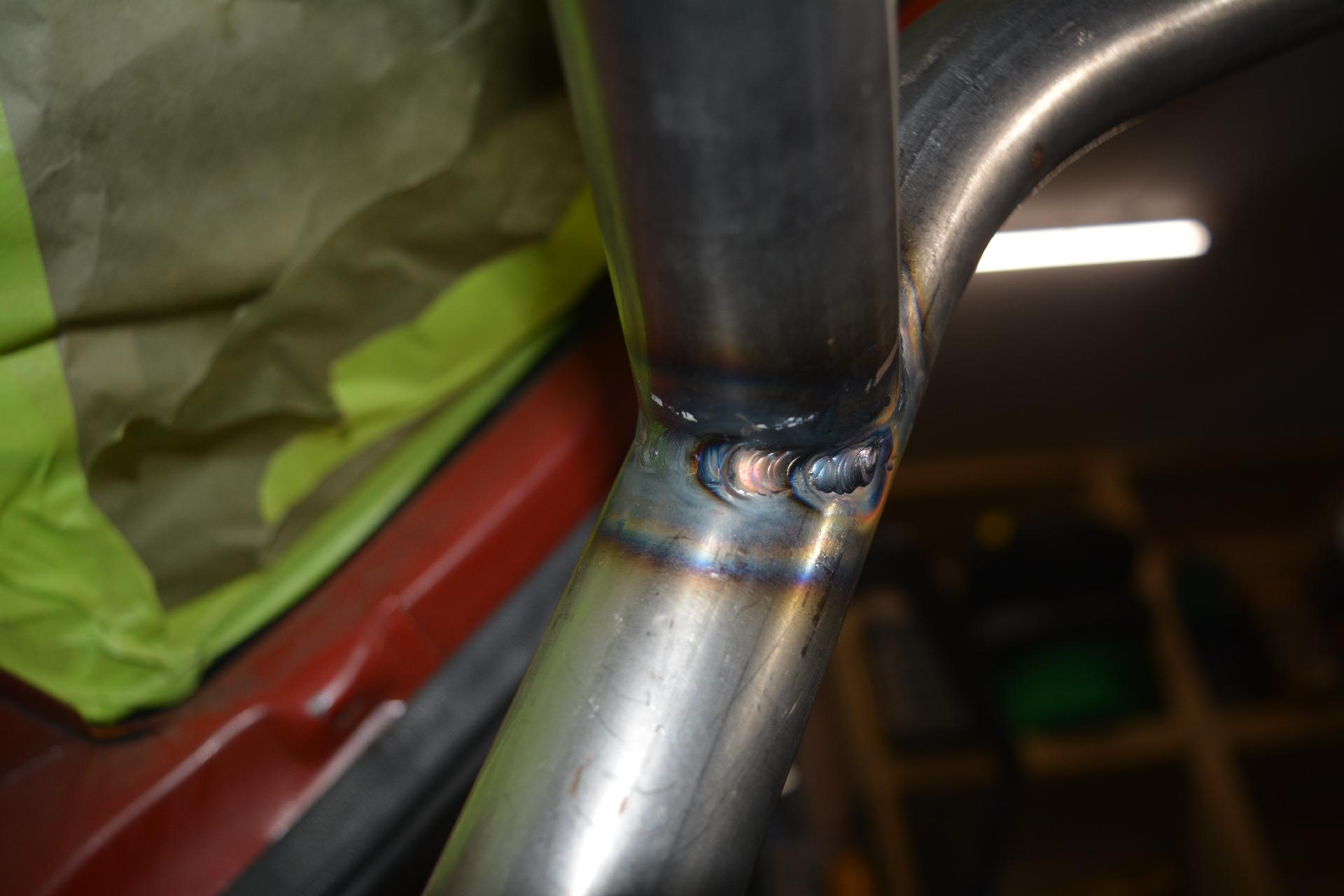

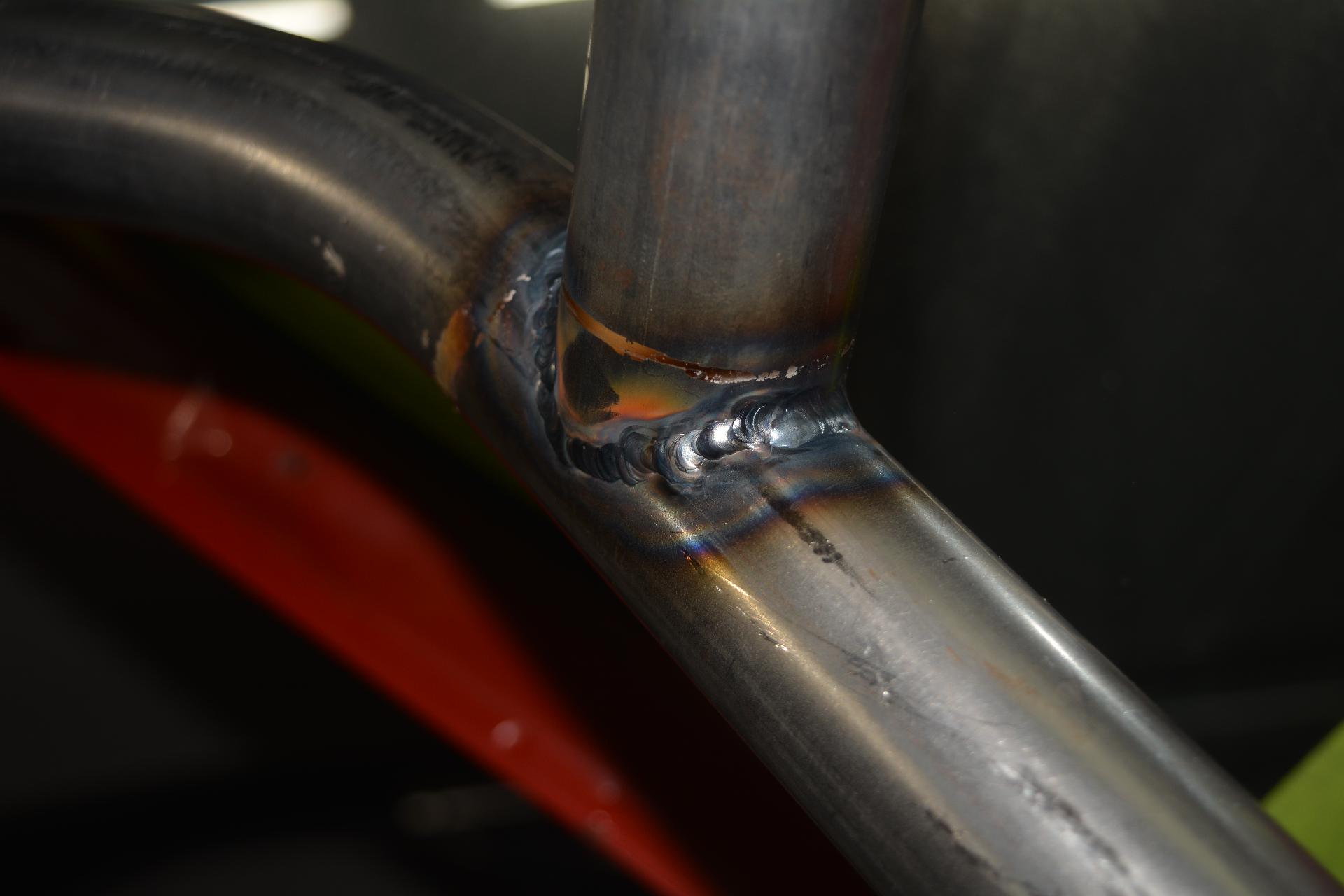

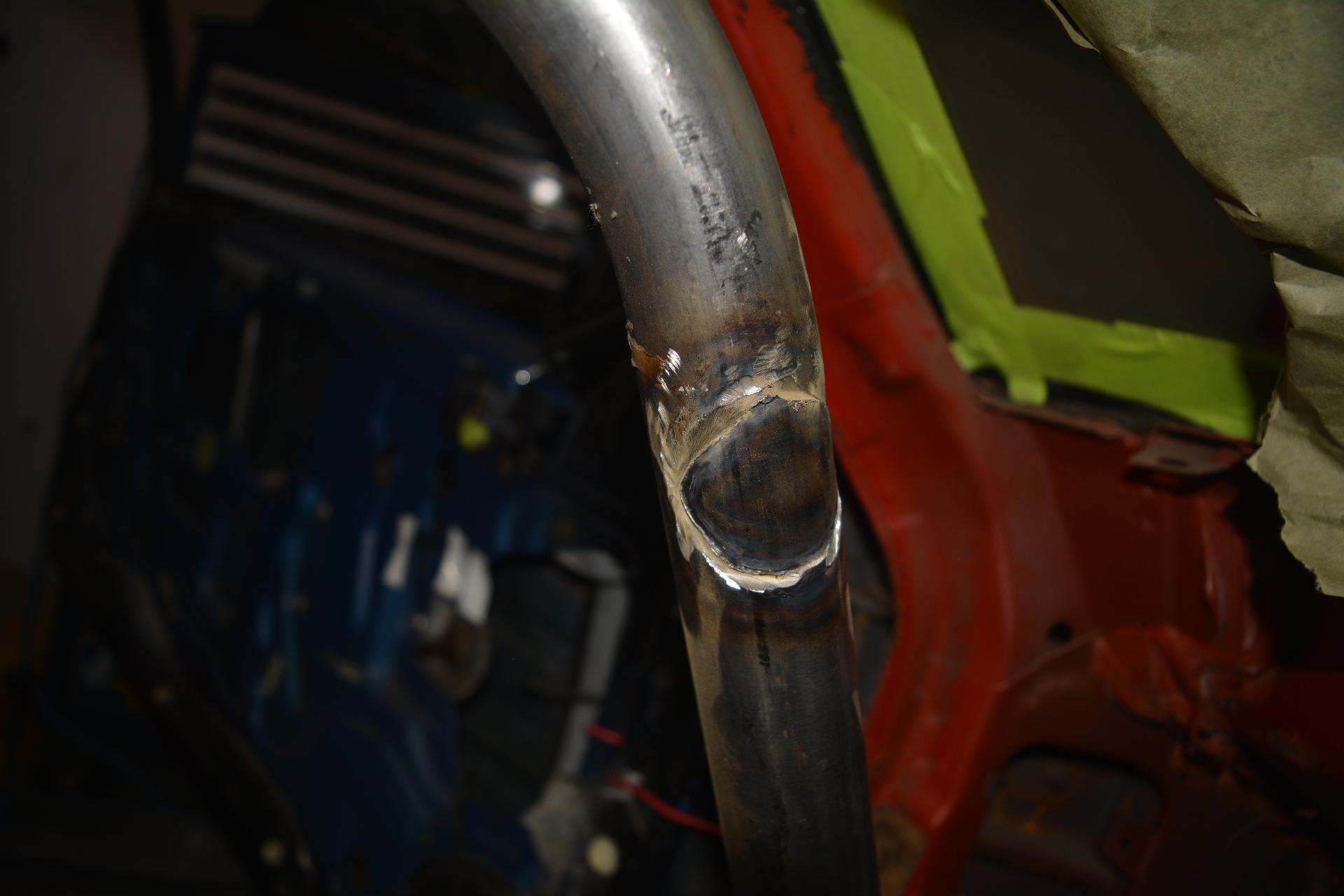

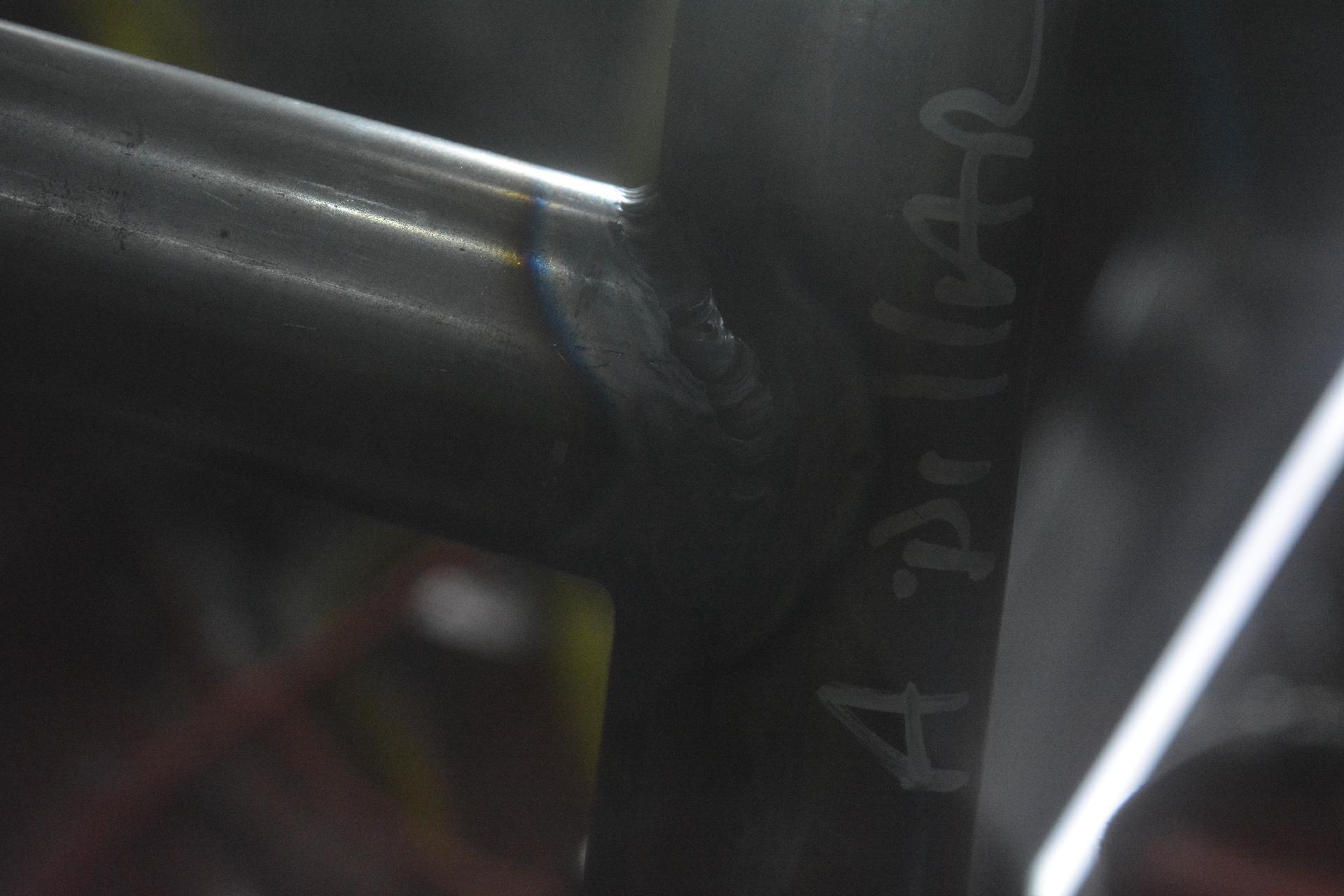

Windshield bar welds

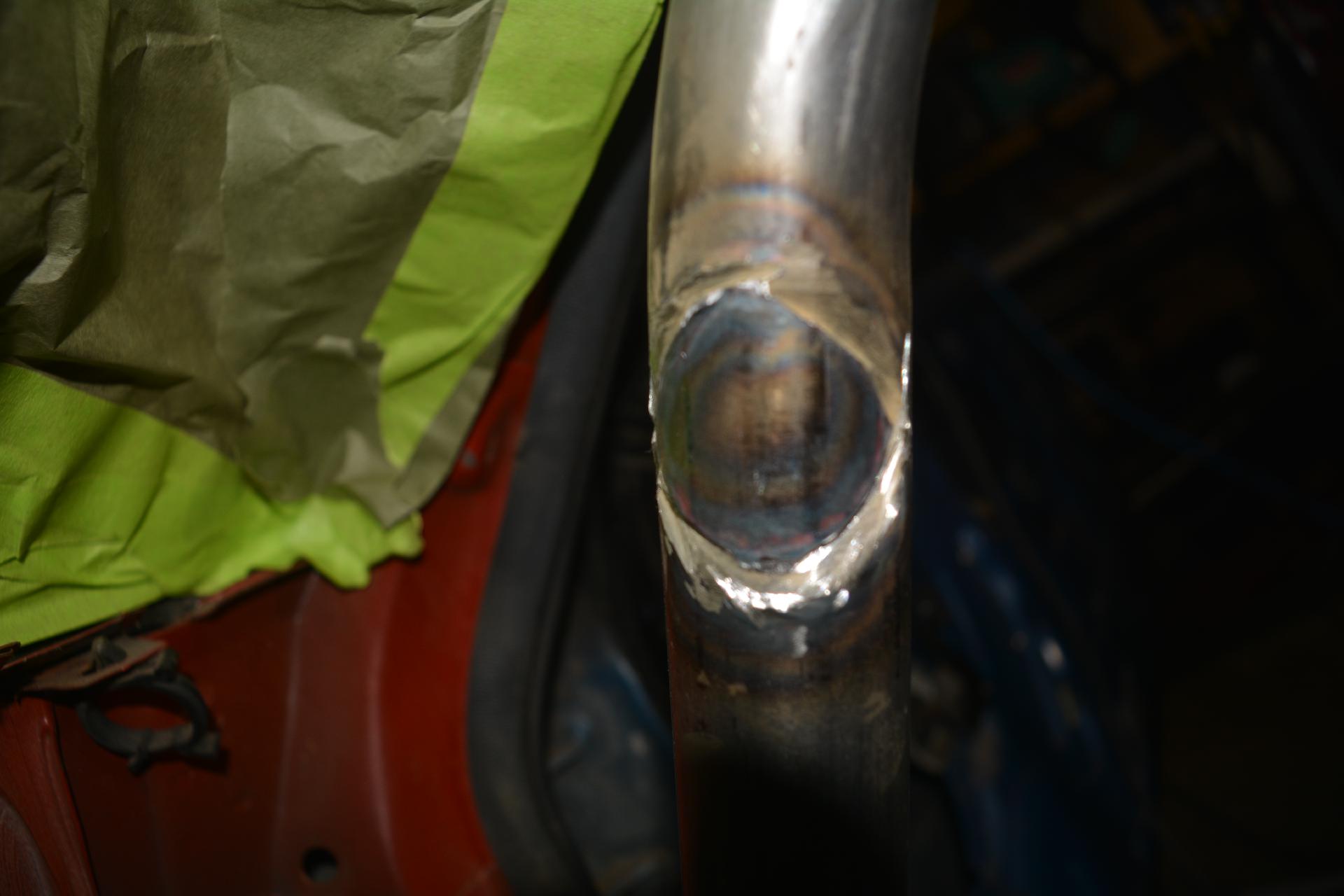

Had to cut out the windshield bar, it was installed to low this is the damage

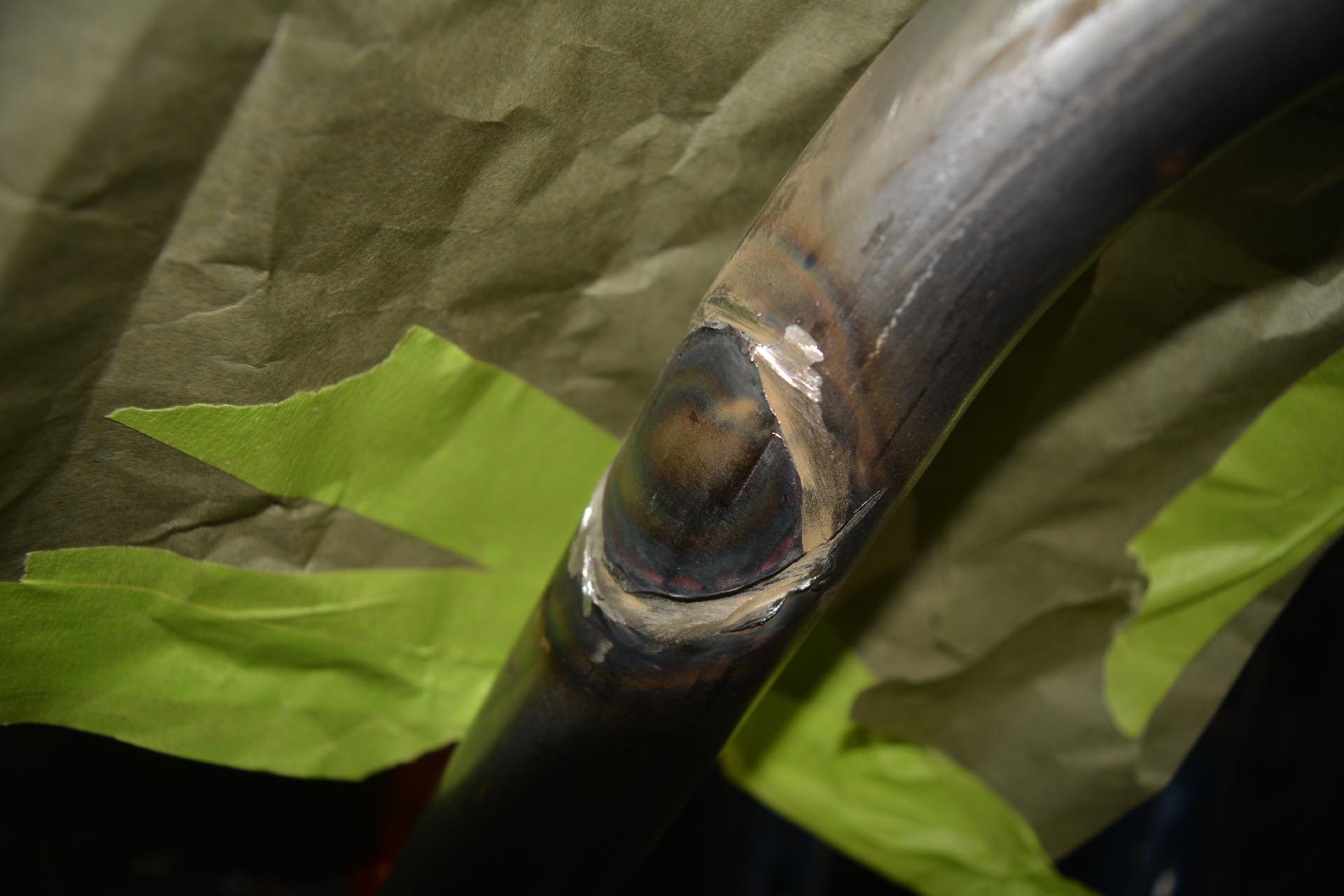

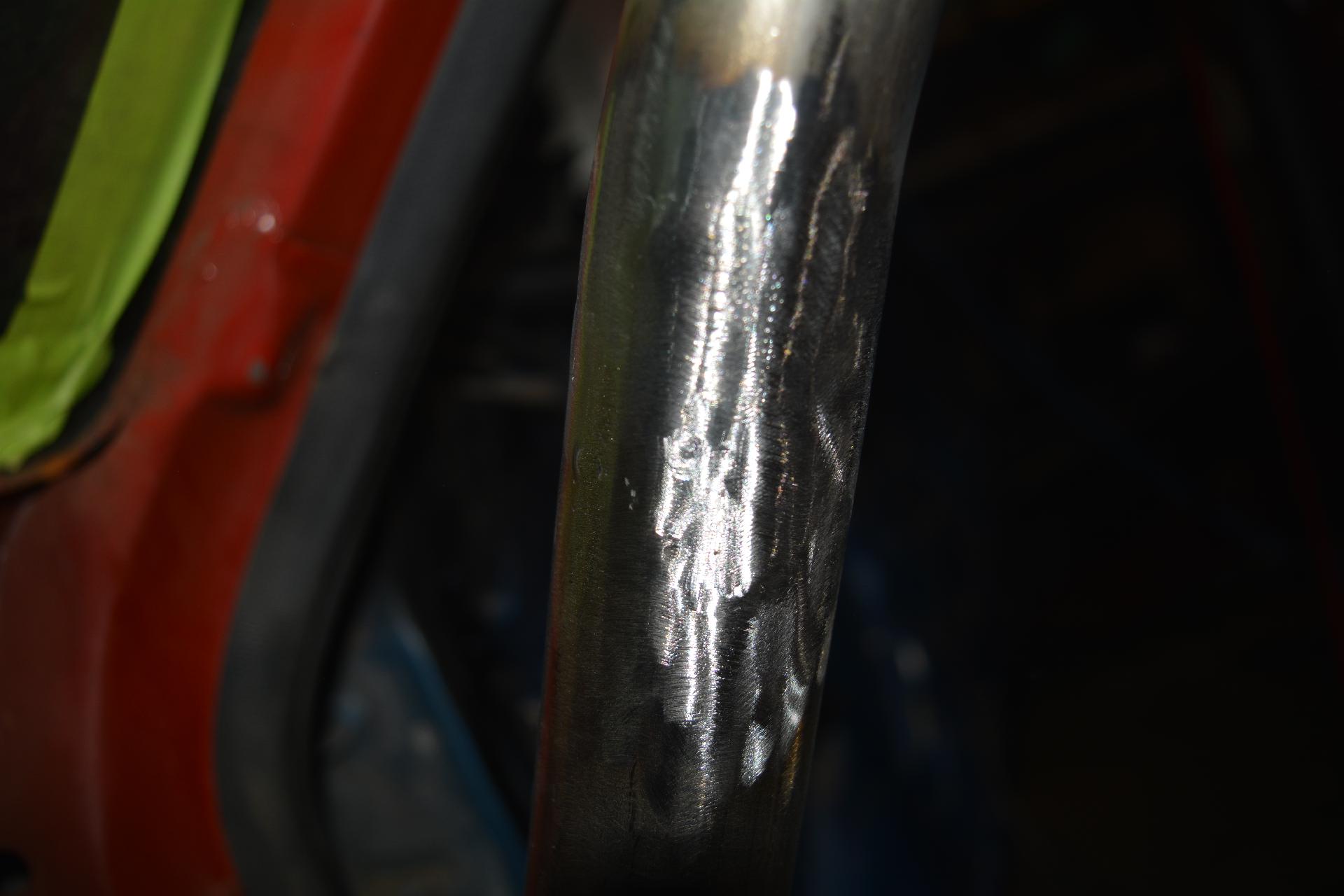

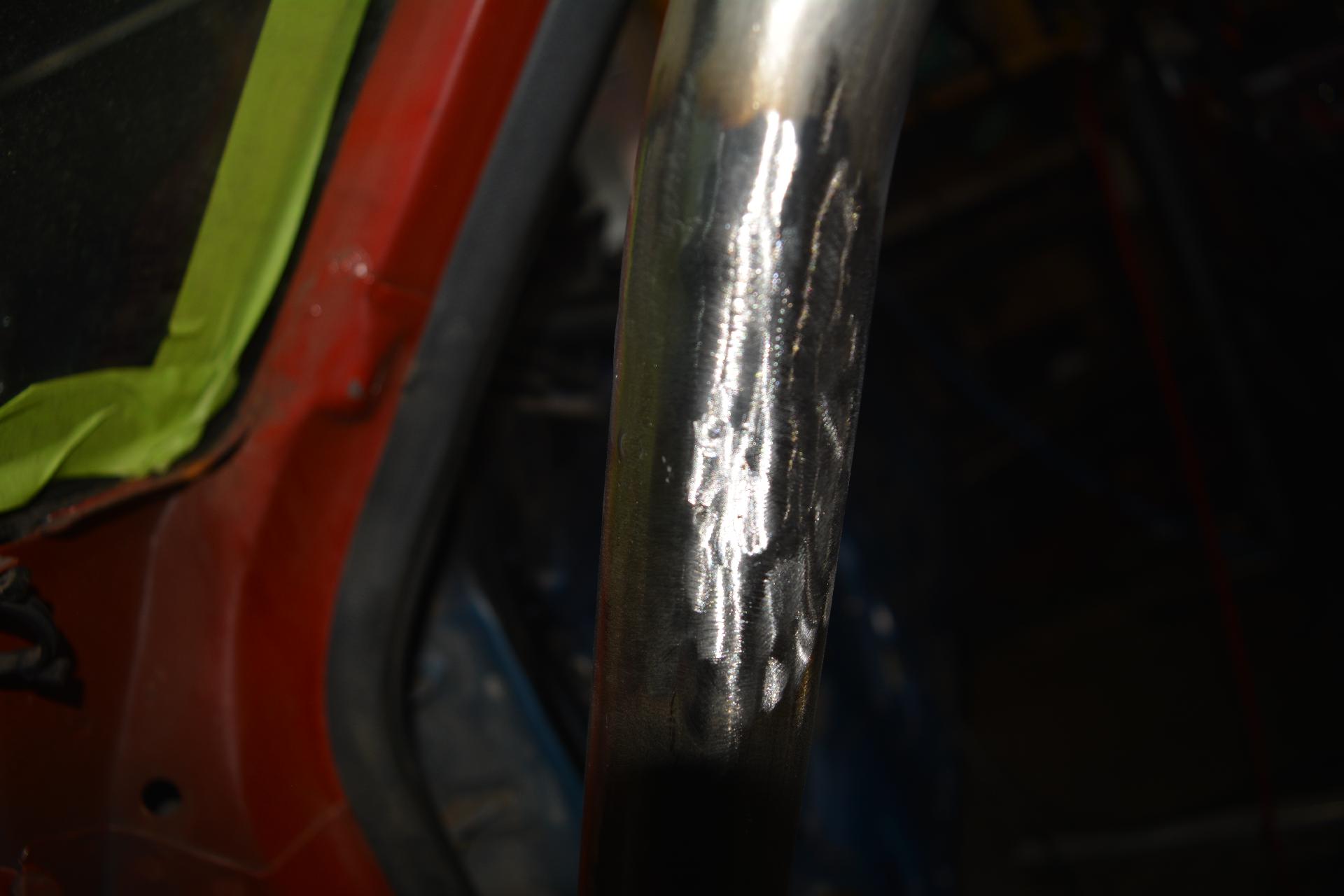

Damage re-welded and ground down

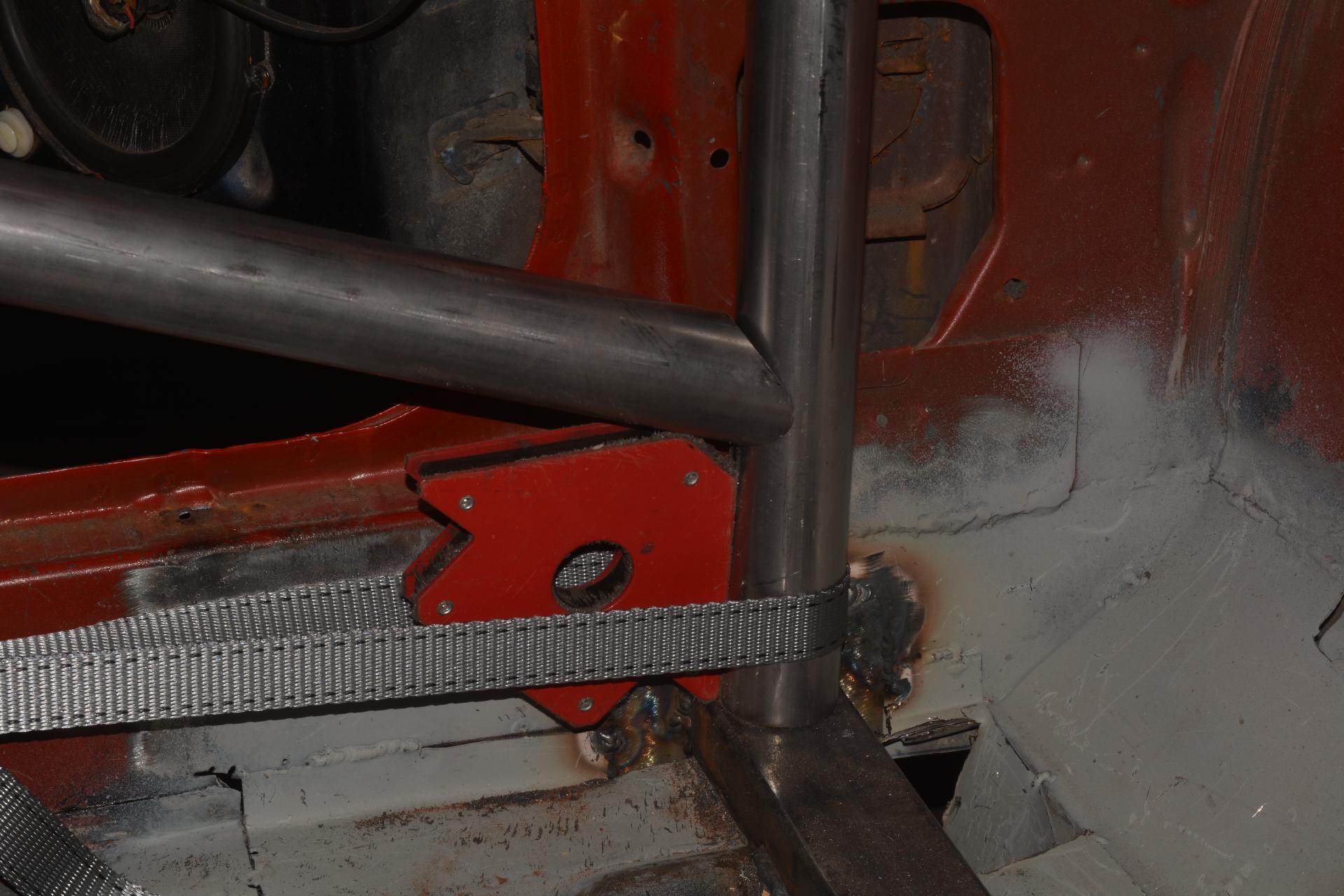

Pulling the apillar bar in and setting the door bar height

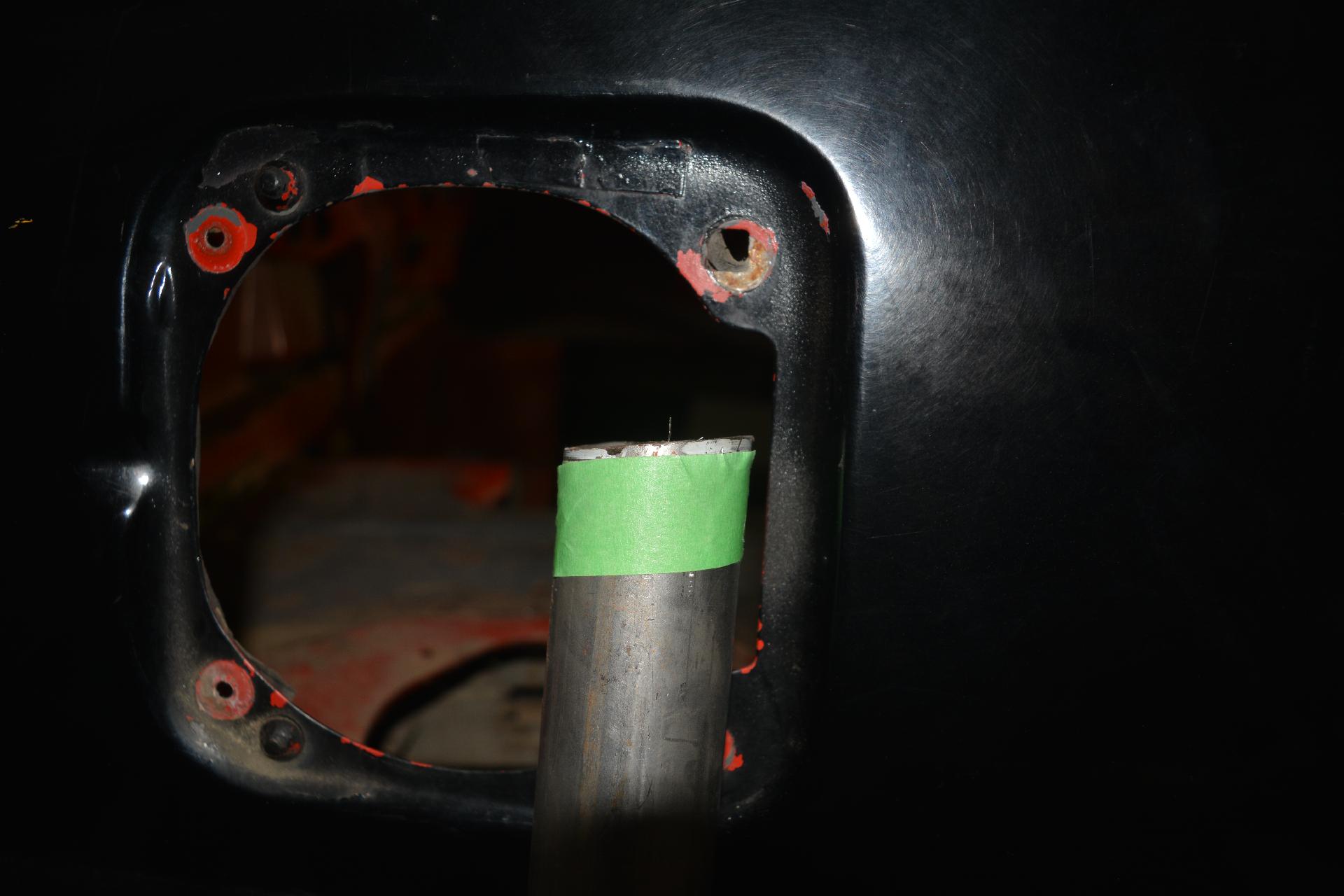

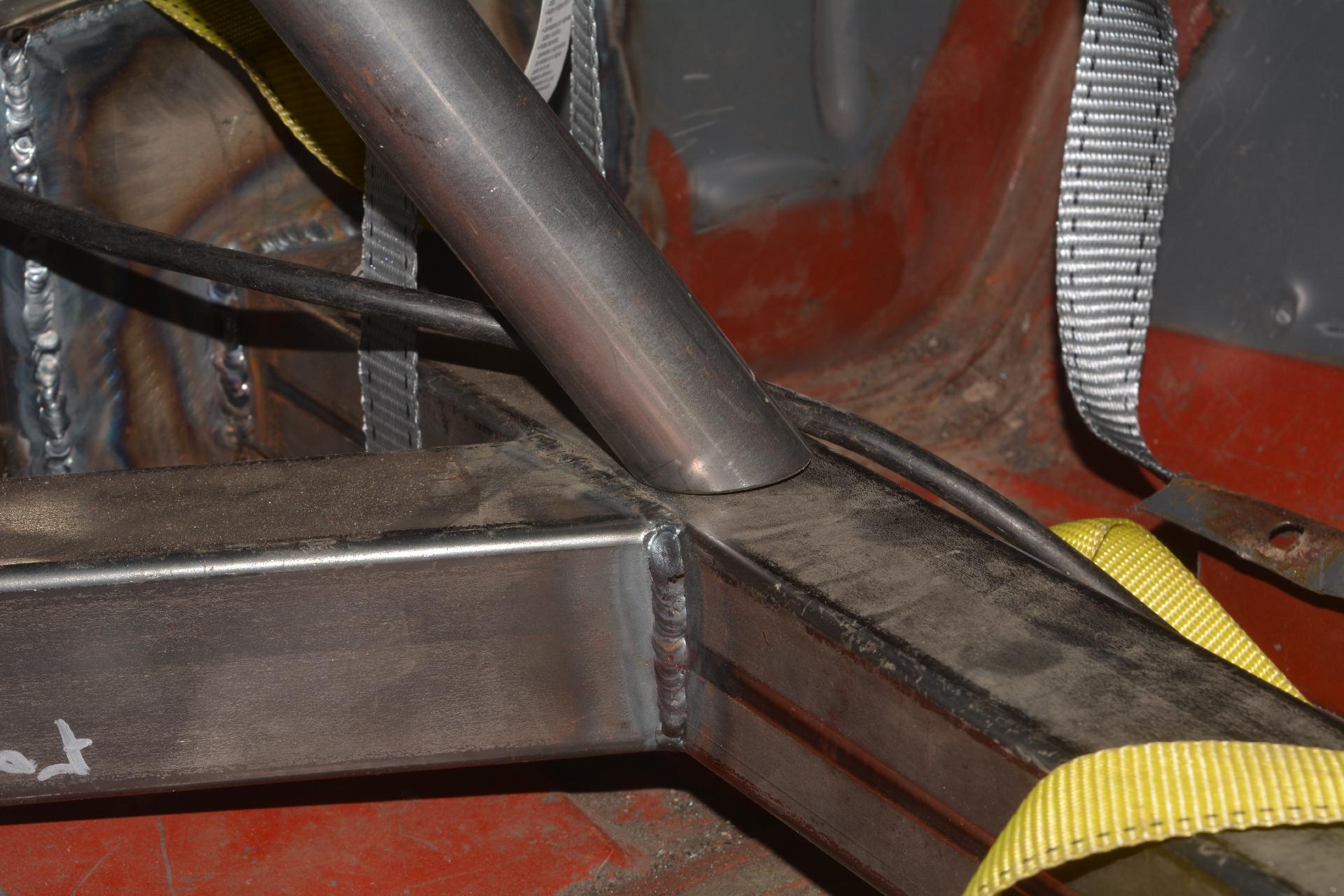

Where the subframe connector will land on the subframe connector

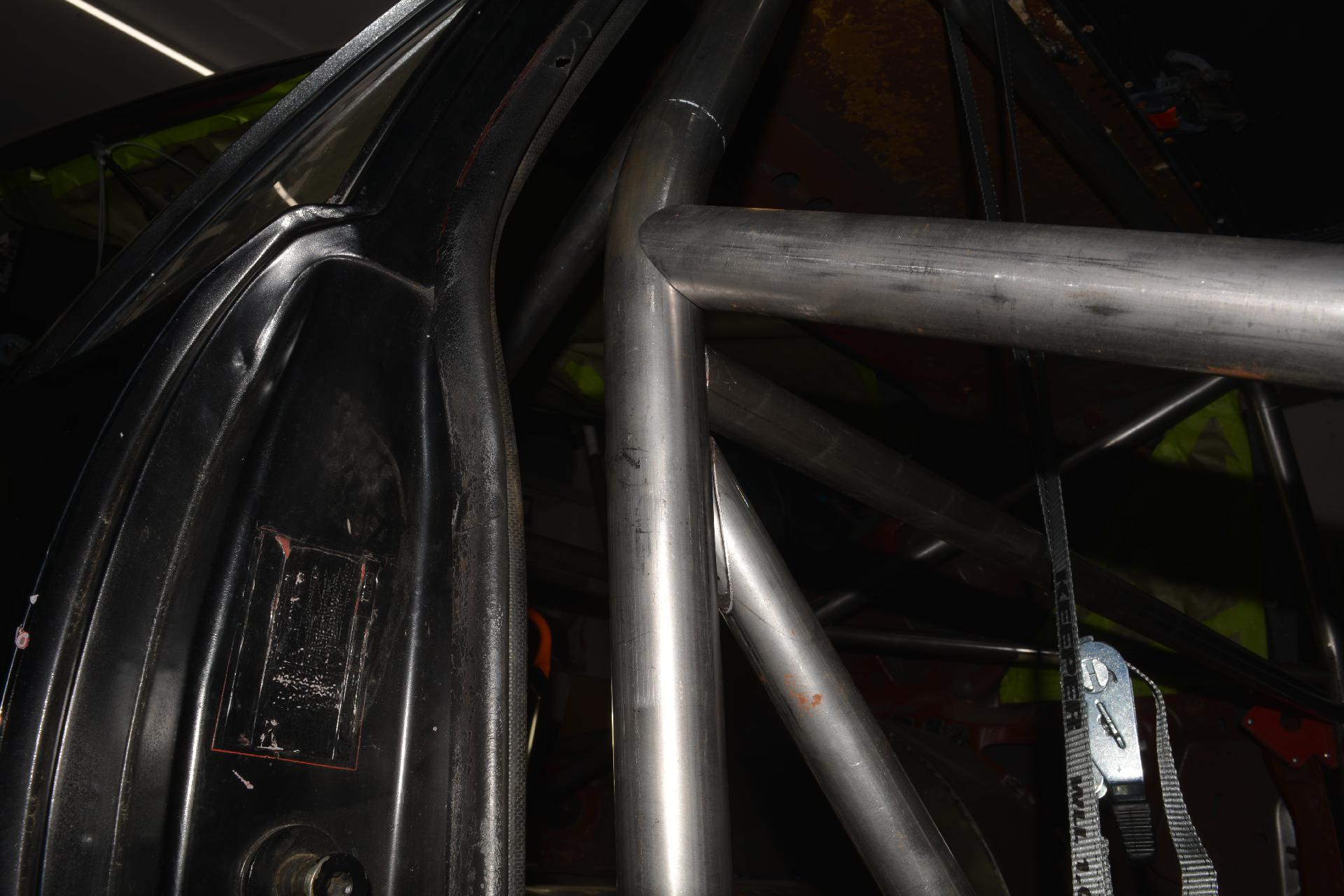

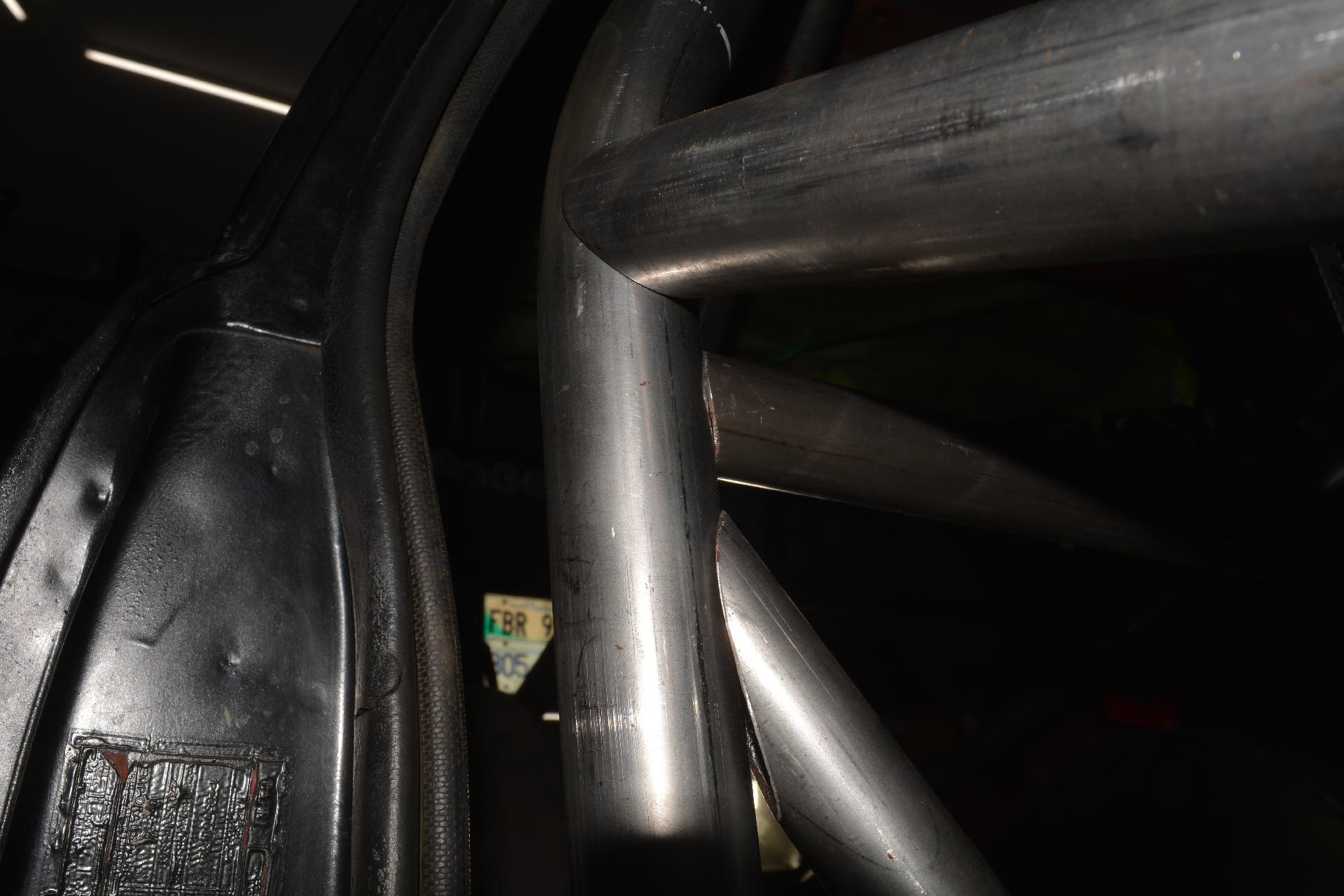

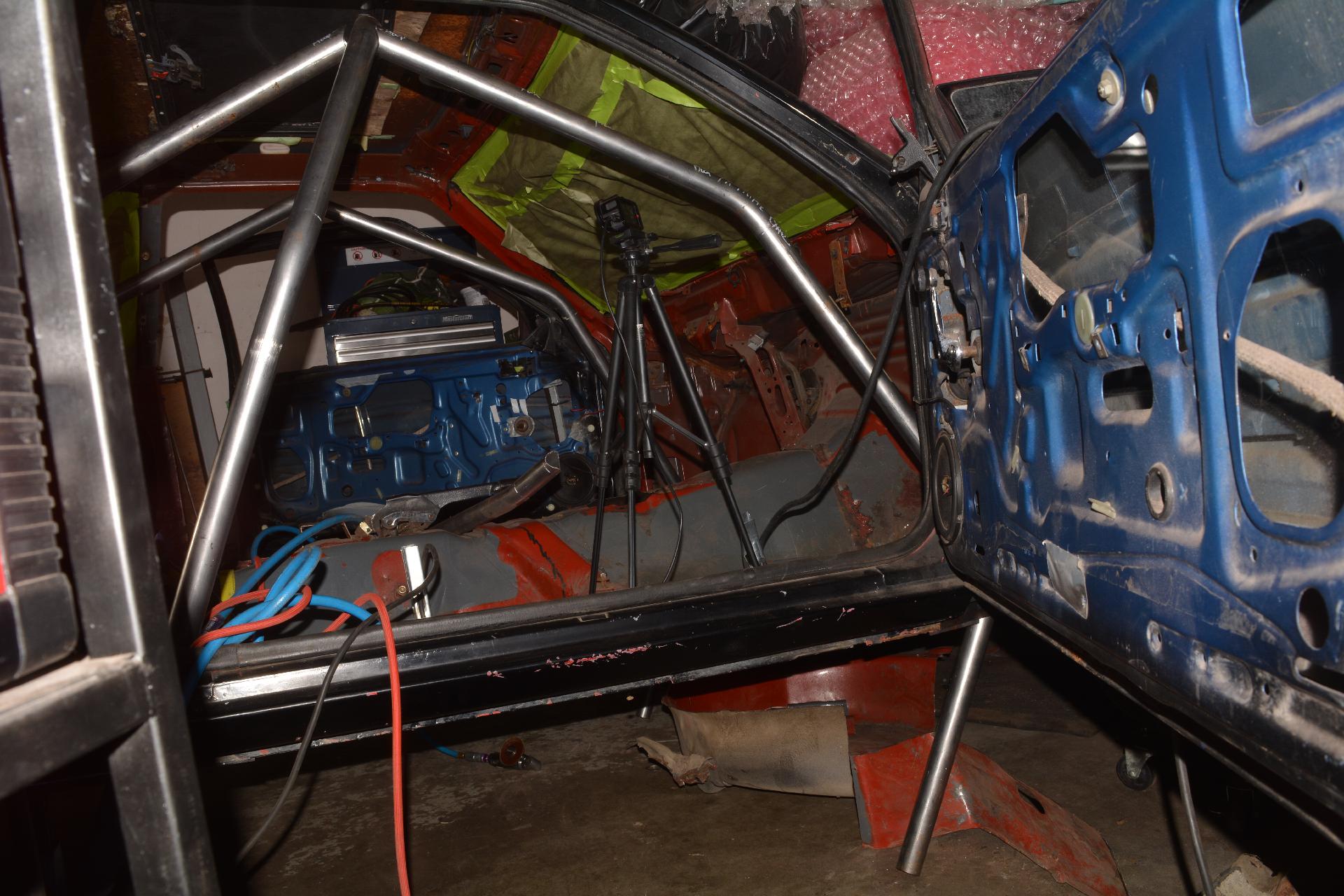

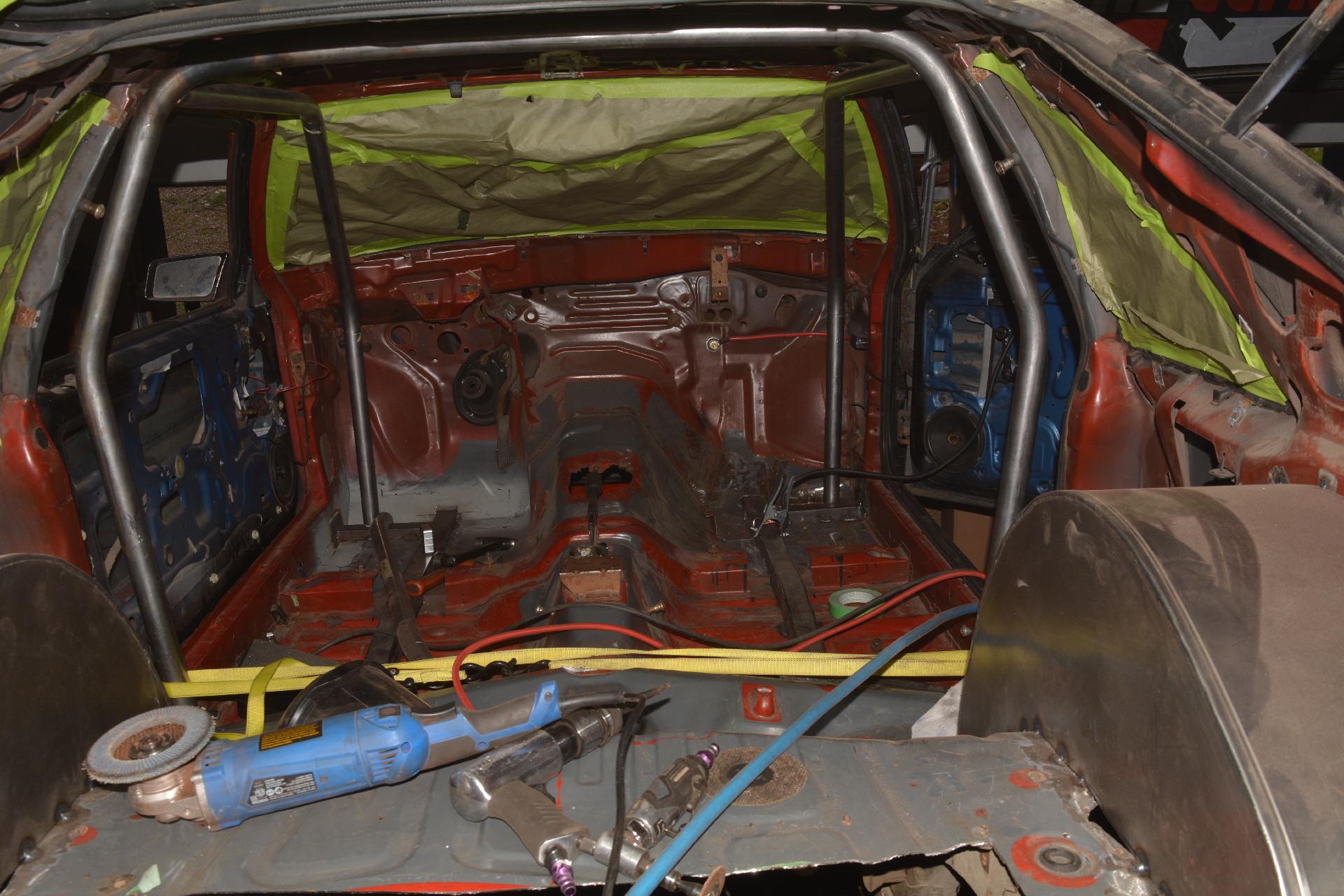

All bars placed against main hoop

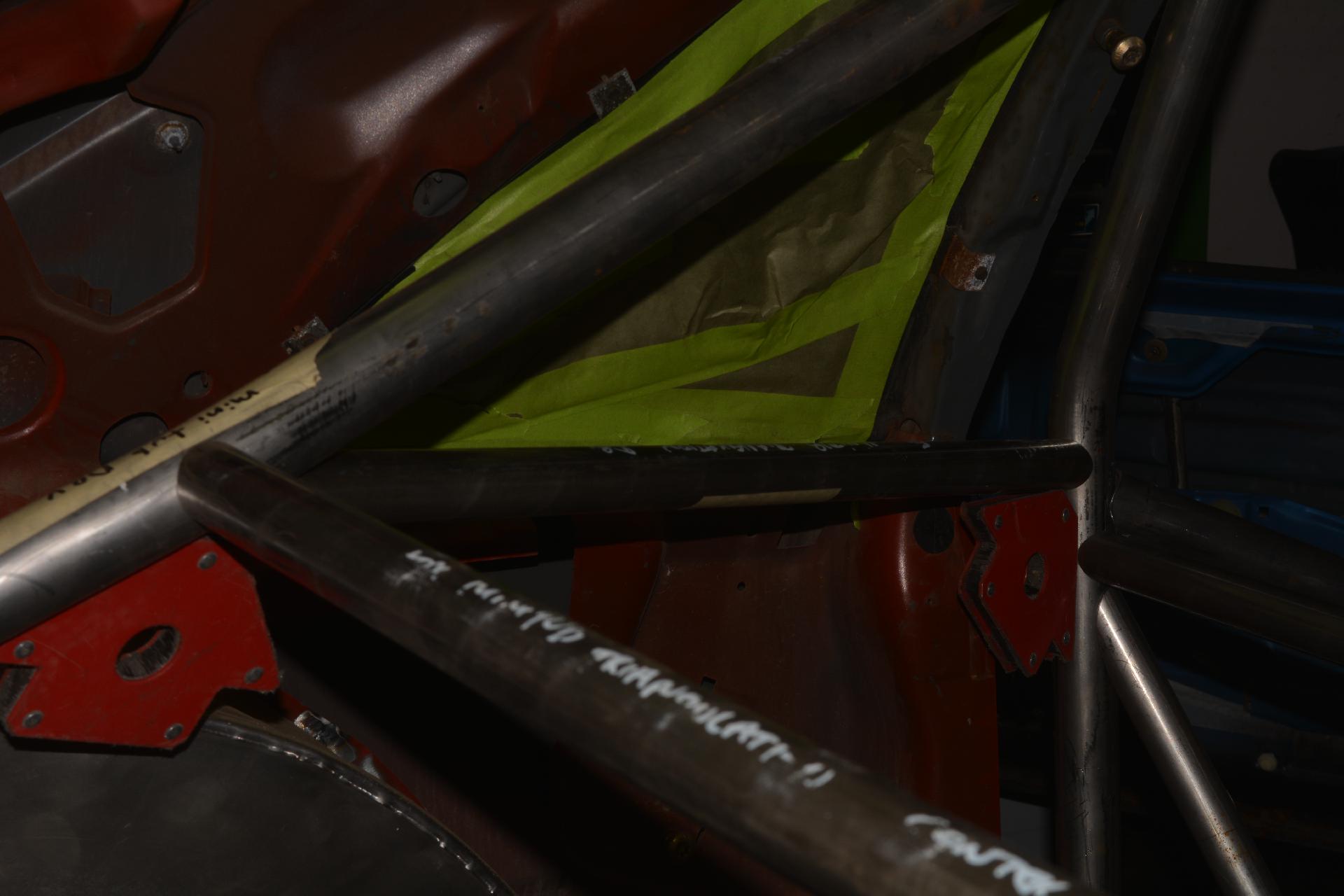

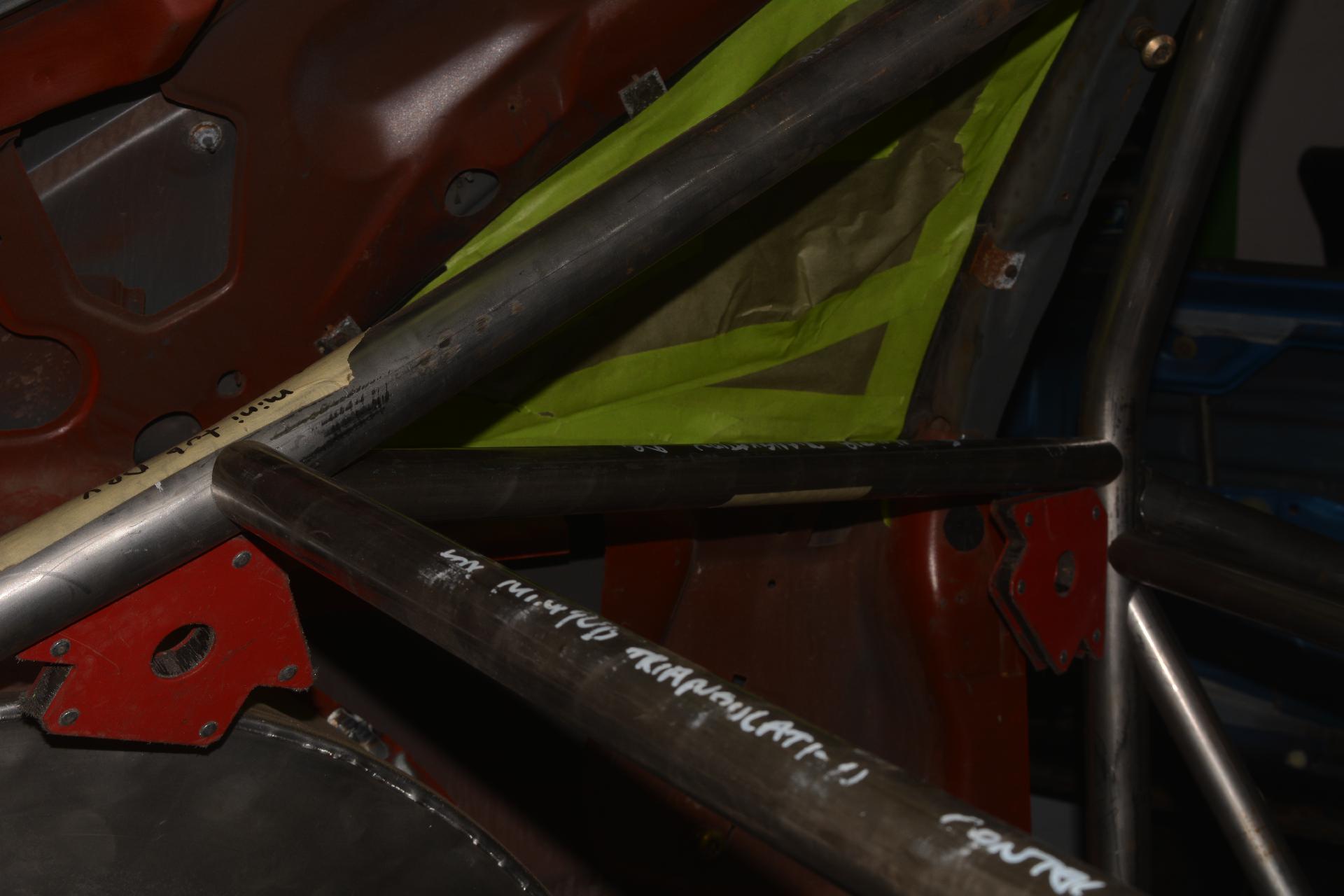

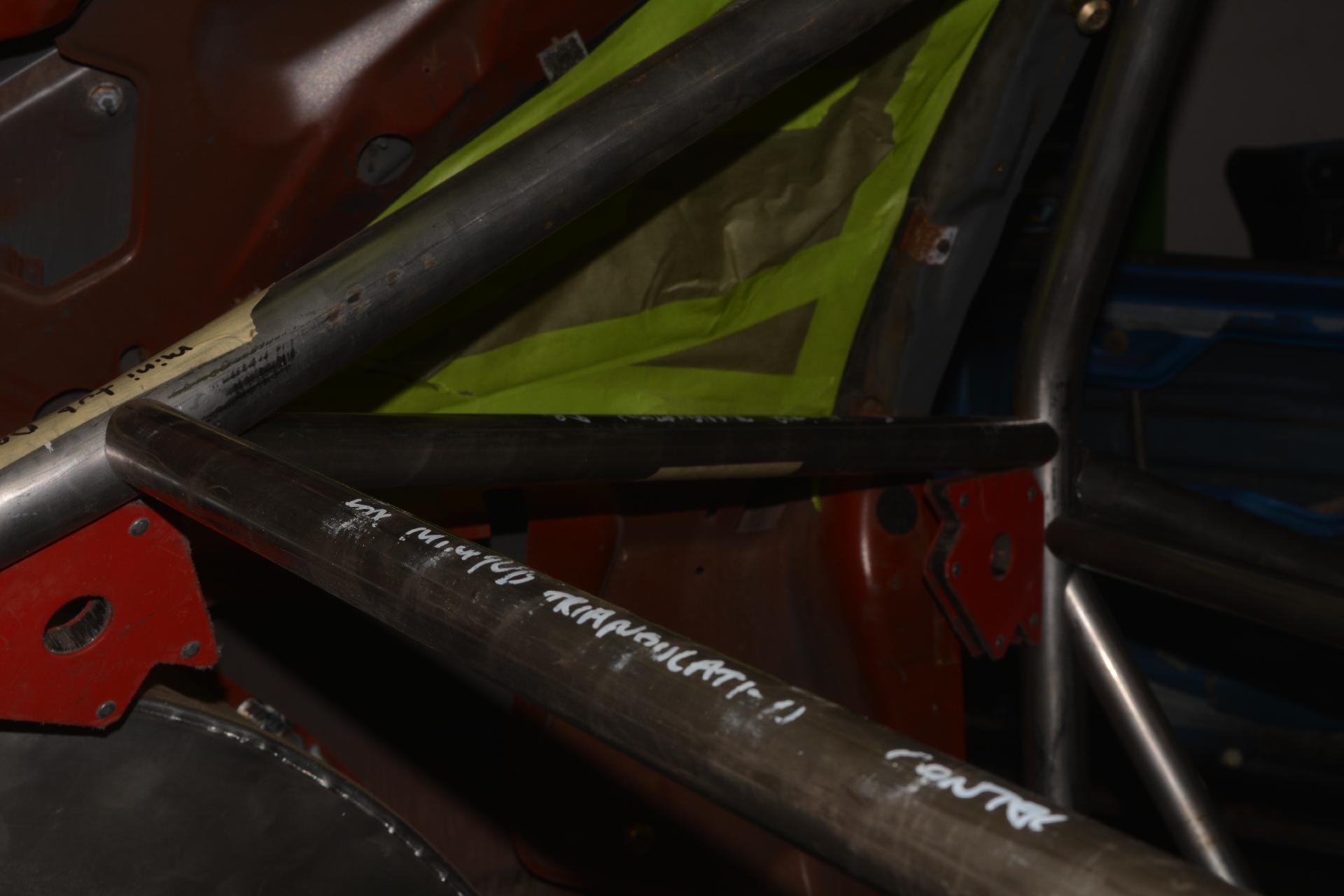

Triangulation bar fitting

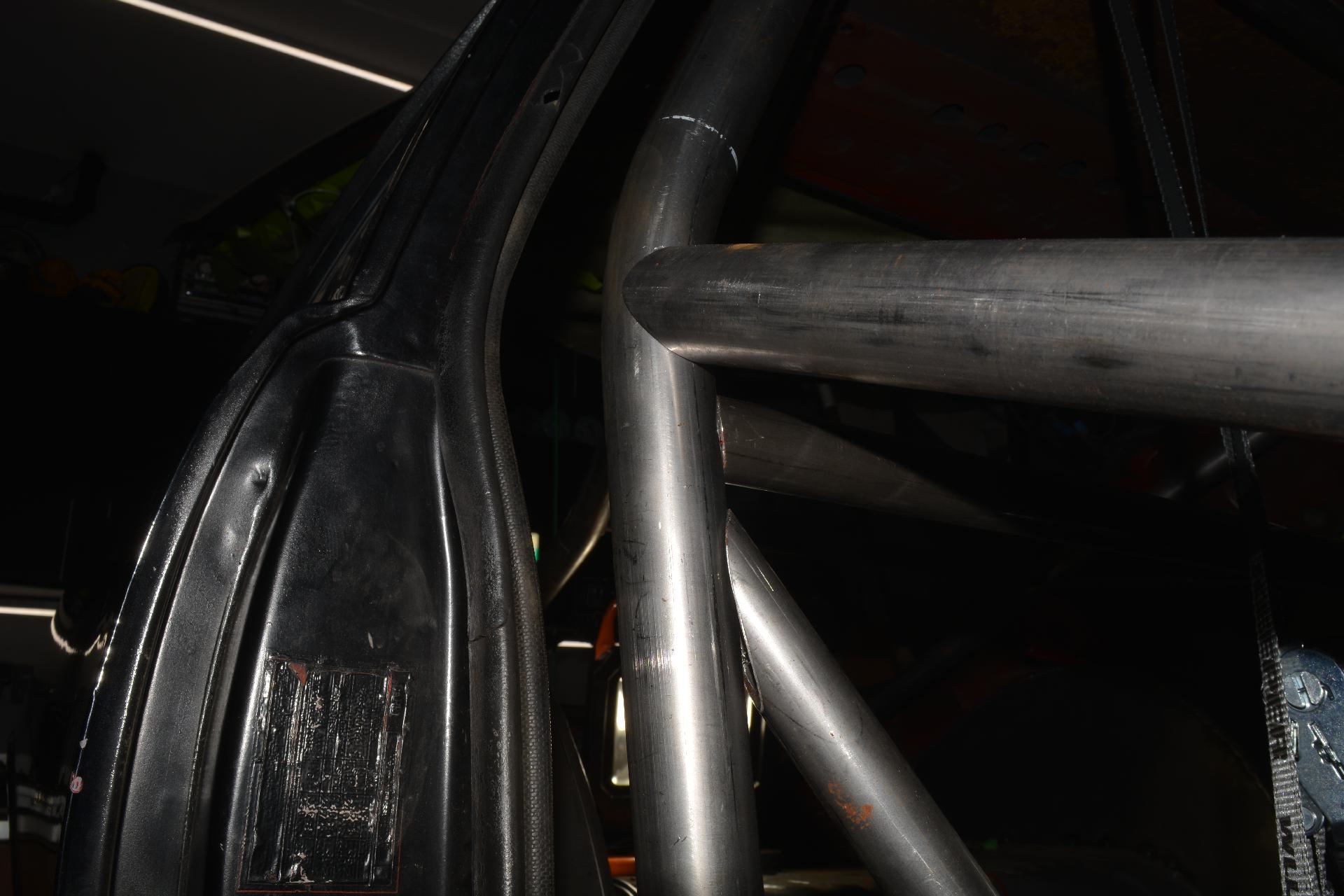

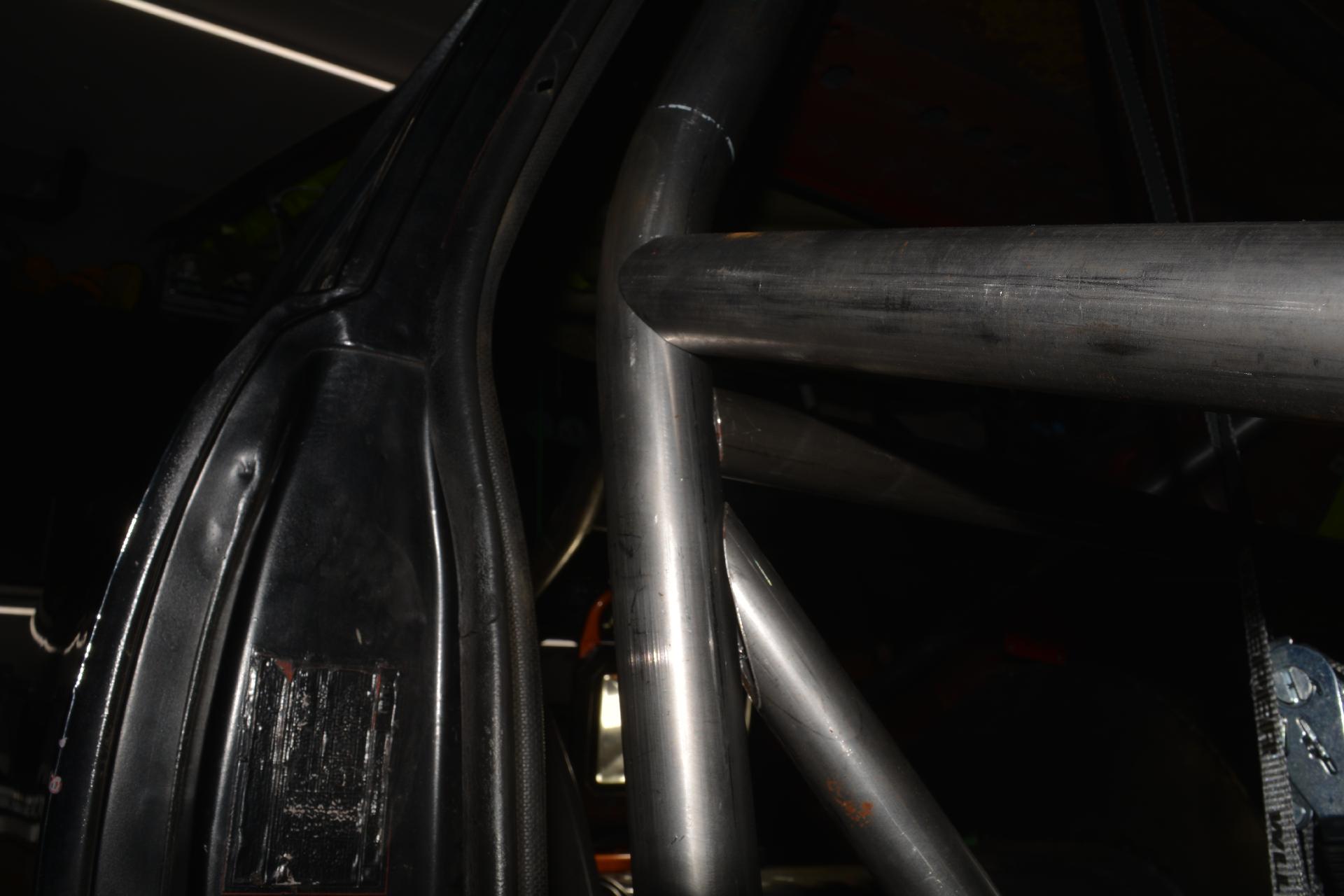

Looks like a continuous bar

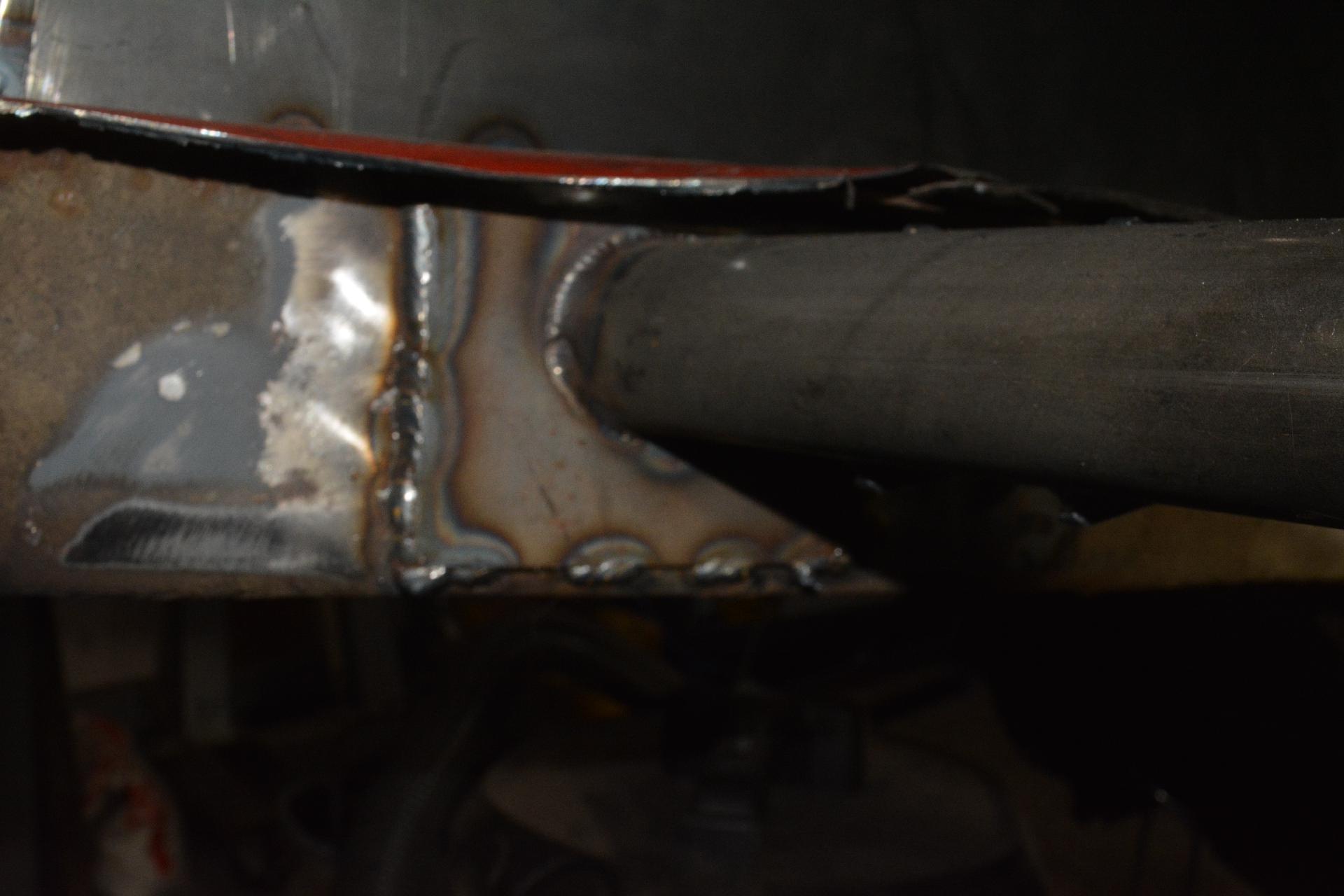

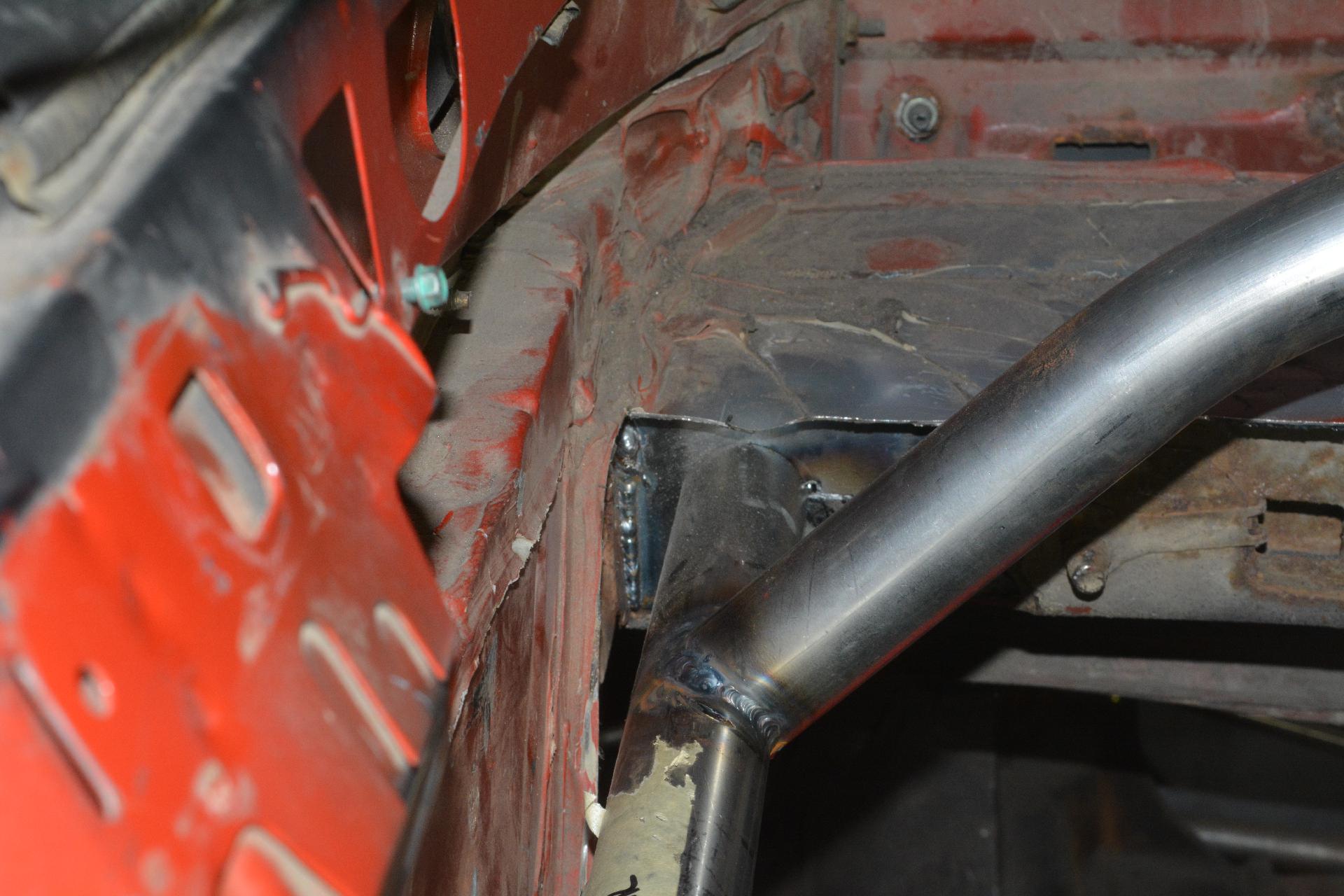

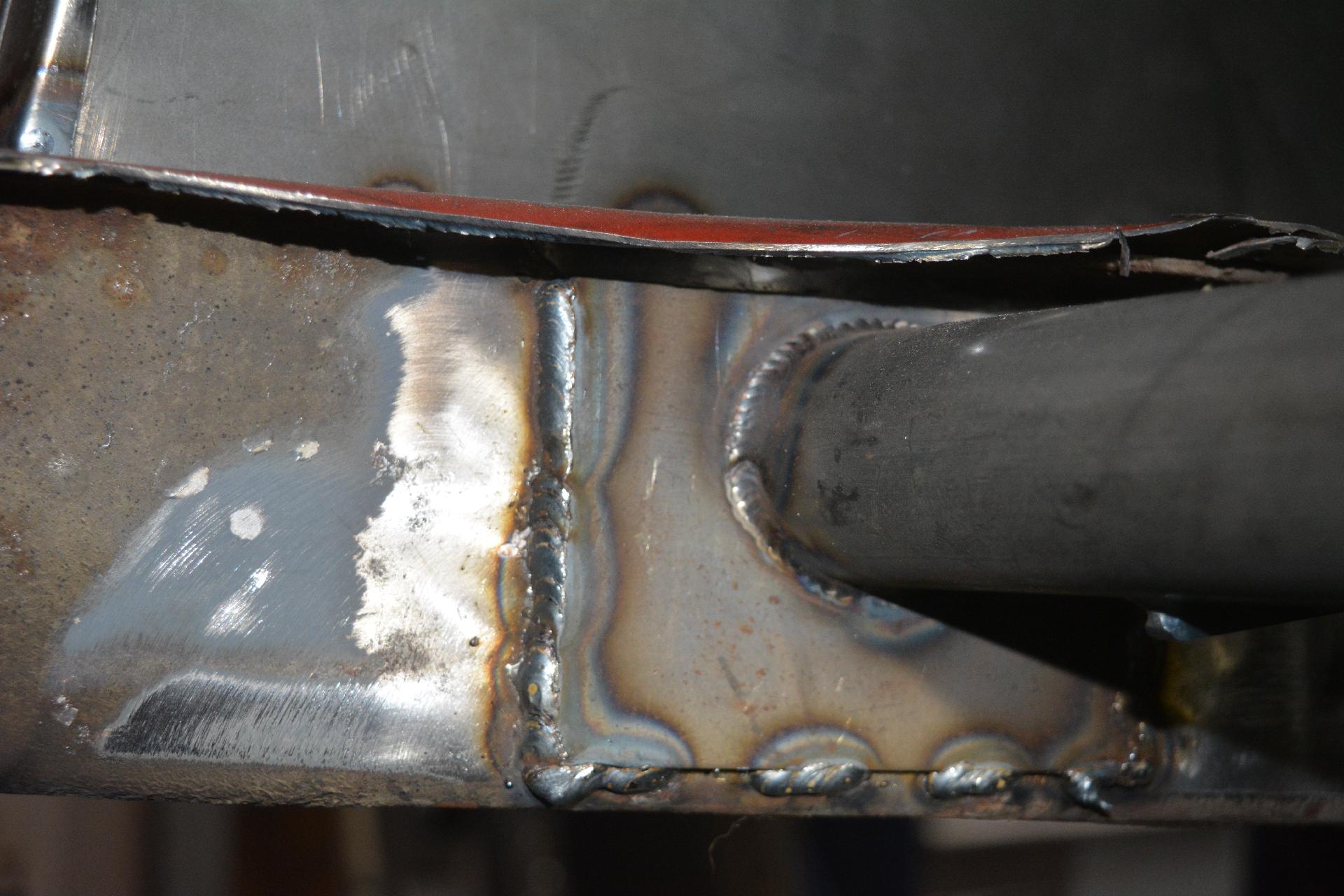

Rear cross bar plates welded in, rear bars welded in
